When comparing equipment quotes for cable tray production, a lower purchase price often looks like the better deal. But the machine that costs less upfront may end up costing more over time. An auto wire mesh cable tray making machine requires looking beyond the initial price tag to understand what drives long term cost.

The purchase price is just one number. The real cost of a cable tray forming machine comes from how it performs over years of operation. Energy consumption, staffing needs, material usage, output efficiency, and maintenance all contribute to total cost. These factors determine whether a machine is truly economical.

Applications – Where an Auto Wire Mesh Cable Tray Making Machine Is Used

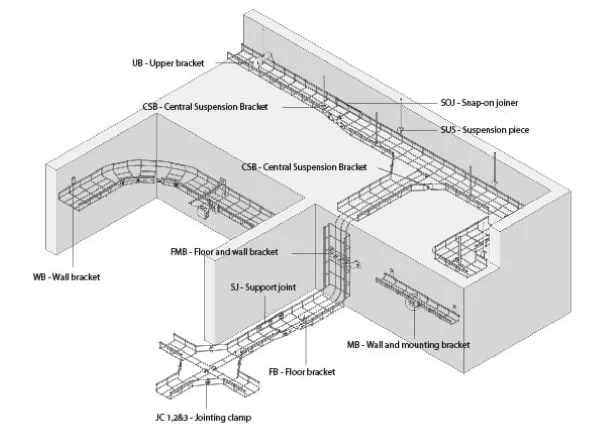

This equipment is used to produce wire mesh cable trays. These trays are widely used in the following scenarios:

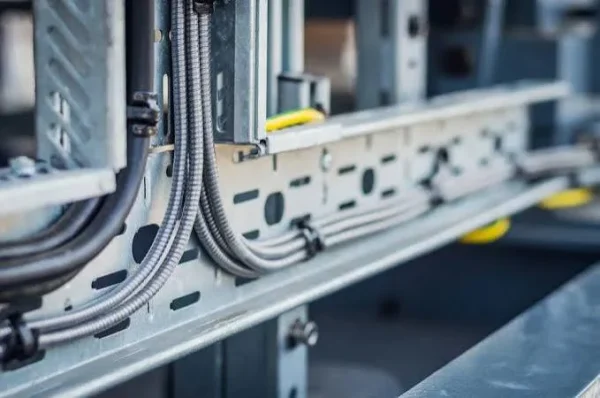

• Data centers: supporting large volumes of data cables, with the mesh structure aiding heat dissipation and cable fixation

• Telecommunications: cable management at base stations and in equipment rooms

• Industrial facilities: power cable routing in production workshops

• Commercial buildings: electrical installations in malls, hospitals, office buildings

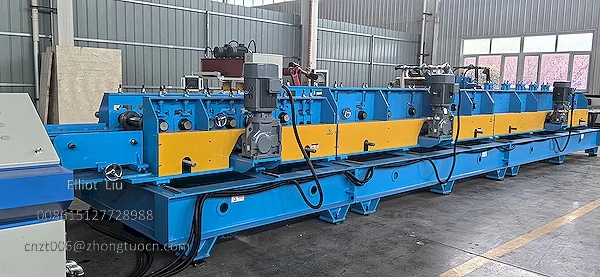

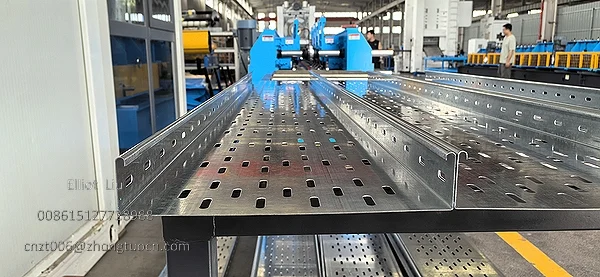

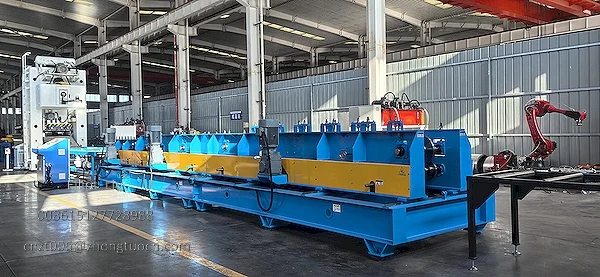

The equipment uses a continuous roll forming process with steel coils. It can produce wire mesh cable trays in different specifications, with a size range from 100×50mm to 800×100mm.

Advantages – Production Features That Affect Long Term Cost

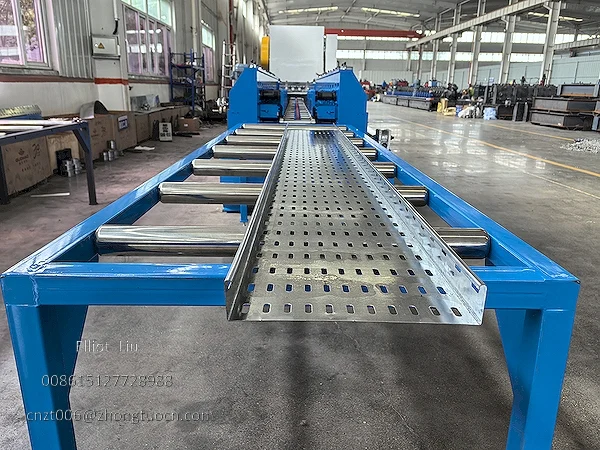

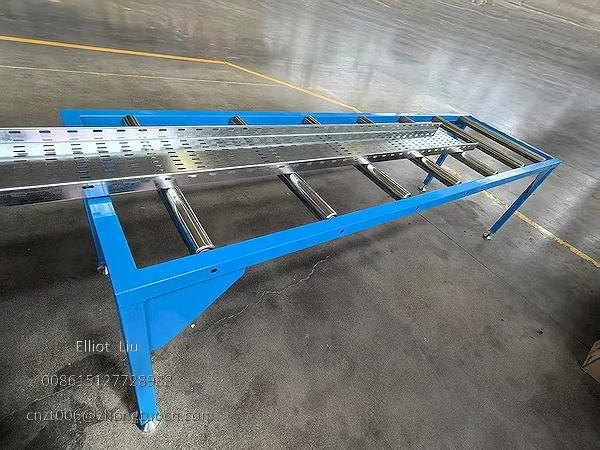

• Continuous production: from coil to finished tray in one pass, without transferring semi finished products between machines

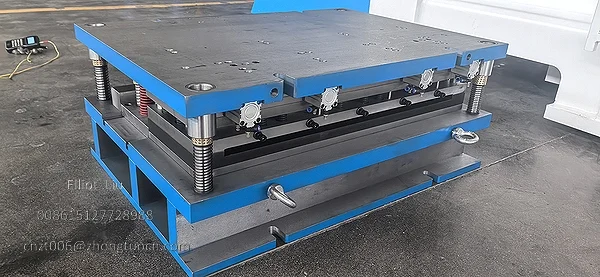

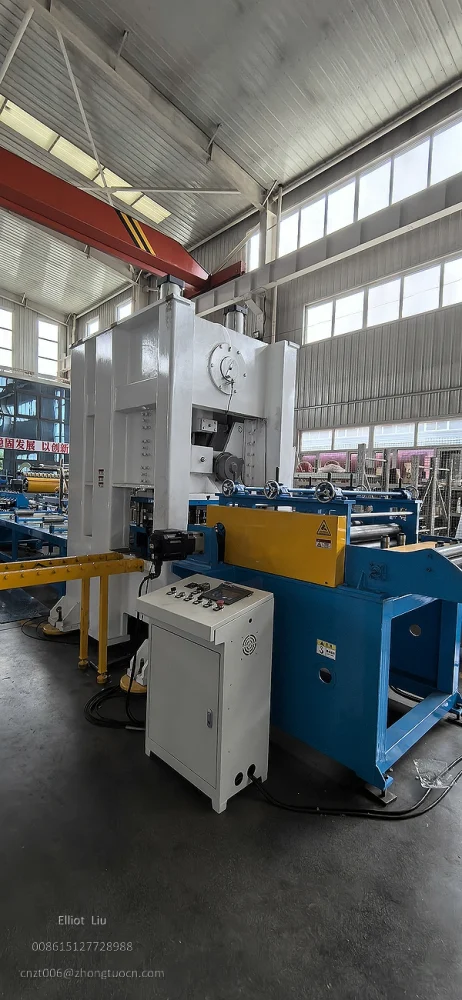

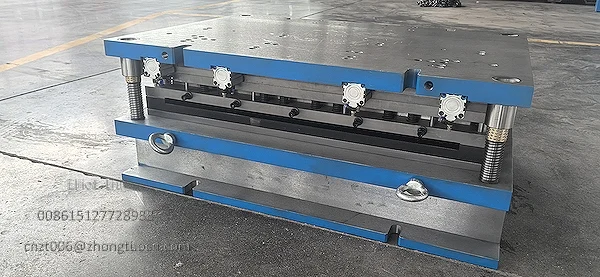

• In line punching and shearing: punching and cutting completed on the same production line, no secondary processing needed

• Servo feeding: servo motor driven, precisely controlling feed length

• PLC control: parameters adjusted via touchscreen

• Stable accuracy: length/width tolerance ±1.5mm, angle tolerance ±2°

These features directly affect energy consumption, staffing requirements, material utilization, output efficiency, and operational stability. Together, these factors make up the long term cost of an auto wire mesh cable tray making machine over its entire lifecycle.

Why the Purchase Price Does Not Equal Total Cost

The purchase price is just the starting point of total cost of ownership. Most of the real cost of a cable tray manufacturing machine comes after it arrives on the shop floor.

Energy Cost – A Recurring Operating Expense

Total installed power is approximately 60KW as specified in the equipment quotation.

An auto wire mesh cable tray making machine consumes electricity when running. Total installed power is one factor to consider when estimating electricity cost, while actual consumption depends on operating conditions and equipment load. Different machines have different energy consumption levels. For the same output, higher energy consumption means higher long term operating costs.

Why this matters for purchasing decisions: a machine with lower purchase price but higher power consumption may become more expensive to operate over time.

Labor Cost – Long Term Staffing Requirements

The level of automation determines how many people are needed to operate an auto wire mesh cable tray making machine. Lower automation typically means more workers required. Labor cost is not a one time expense. It recurs every year.

A machine that needs more operators versus one that needs fewer makes a significant annual cost difference in wages. The actual number depends on your specific production setup.

Material Waste – The Hidden Cost in Production

The servo feeding system on an auto wire mesh cable tray making machine enables precise control of feed length. More precise feeding can reduce scrap at the head and tail of each part. Material cost is typically the largest variable cost in cable tray production. Even small improvements in material utilization can have a noticeable impact on total cost over time.

Production Efficiency – Output and Consistency

An auto wire mesh cable tray making machine typically runs at 6 to 10 m/min depending on hole quantity, with length/width tolerance of ±1.5mm and angle tolerance of ±2°.

Production speed determines how much product can be produced per unit of time. Tolerance range affects product dimensional consistency. Together, these two factors influence the average cost per unit and the stability of production quality.

Maintenance and Long Term Use

Over long term operation, components wear out and need replacement. Maintenance frequency and spare parts costs vary depending on machine design and build quality.

The cable tray production line comes with a spare parts kit that includes travel switches, fuses, relays, and a set of tools. These cover basic routine maintenance. Long term maintenance costs depend on operational stability and component durability.

These five areas – energy, labor, materials, efficiency, and maintenance – are the key dimensions for evaluating long term cost of an auto wire mesh cable tray making machine. When you review equipment specifications, check each dimension against your requirements.

Auto Wire Mesh Cable Tray Making Machine Specifications

These specifications are the starting point for estimating long term costs. Key indicators like energy consumption, speed, and accuracy directly affect operating costs.

How to Compare Different Equipment Options

Combine the factors above into a comparison framework:

Dimensions to consider when comparing equipment:

• Purchase price: one time expense, easy to compare

• Energy: power consumption × operating hours

• Labor: number of operators × wages

• Material utilization: scrap rate × material usage × material cost

• Output efficiency: speed × operating hours × yield rate

A lower priced machine might cost more in one dimension, while a higher priced machine might save more in another. The real value depends on the combined balance across these dimensions.

Matching Equipment Configuration to Production Requirements

The specification sheet shows the machine's standard capability range. But the key purchasing question is not "what can this cable tray production line do?" – it's "can this auto wire mesh cable tray making machine do what I need it to do?"

Key matching points to check:

• Whether product specifications fall within the standard range (100×50 to 800×100mm)

• Whether material type and thickness fall within processing capability (Q235B cold rolled/hot rolled strip, galvanized sheet, 1.0 to 1.2mm)

• Whether planned output aligns with production speed (6 to 10 m/min, depending on hole quantity)

• Whether factory power supply meets equipment requirements (380V/50Hz/3 phase)

These matching points directly affect whether the cable tray forming machine can run properly, as well as its efficiency, energy consumption, and stability during operation. If there is a mismatch in any dimension, the machine may fail to meet expected output or require additional modification investment.

When customer requirements exceed standard ranges, custom configurations can close the gap between equipment and needs. Common custom items include:

• Profile type: different profiles require different roller configurations

• Voltage: configured to factory conditions to avoid later modification costs

• Other configurations: adjusted based on product requirements

Customisation increases initial investment. You need to weigh whether the extra upfront cost can be recovered over the long term through efficiency gains, material savings, or labor reduction.

Every customisation has technical and cost constraints. Specific feasibility must be evaluated by the supplier based on the customer's actual product requirements. The standard range in the quotation is the starting point for discussing customisation.

About Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd.

Founded in 2014, Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. focuses on the R&D and manufacturing of cold roll forming equipment. Main products include ceiling panel roll forming machines, floor deck roll forming machines, CZ purlin roll forming machines, roofing sheet roll forming machines, storage rack roll forming machines, and slitting lines.

The company provides full process services from design and production to commissioning. Products are exported to many countries and regions worldwide

Making the Right Choice

When faced with different quotes, the right way to decide is not simply choosing the cheaper one. It's about estimating the real long term cost of each machine in your own factory, based on your output, product requirements, and factory conditions.

The real value of an auto wire mesh cable tray making machine is not in the first number on the price list. It's in how it performs every day after it arrives. A lower purchase price doesn't always mean lower production cost. The total cost of ownership tells the full story.
