Many production lines face common challenges: inconsistent feeding, forming deviations, inaccurate cutting, and excessive scrap. These issues typically stem from equipment design and configuration rather than operator performance. This article explains the guardrail roll forming machine's systems, work process, and selection points to help you evaluate equipment for your production needs.

Applications

Highway guardrails are a core component of road safety infrastructure. New highway construction, road protection system upgrades, and maintenance of existing road sections all require standard compliant W-beam guardrail panels. A guardrail roll forming machine produces panels used in these scenarios:

• Highway side continuous protection barriers

• Primary road median separation barriers

• Mountain curve and cliff edge side protection

• Bridge and tunnel transition section barriers

• Urban expressway and elevated road barriers



Machine Advantages

Compared with traditional step-by-step processing, the highway guardrail metal roller forming machine offers clear advantages in several core areas.

Production efficiency

The line integrates uncoiling, leveling, punching, forming, and cutting into one continuous process. This eliminates material handling between steps and reduces waiting time.

Forming stability

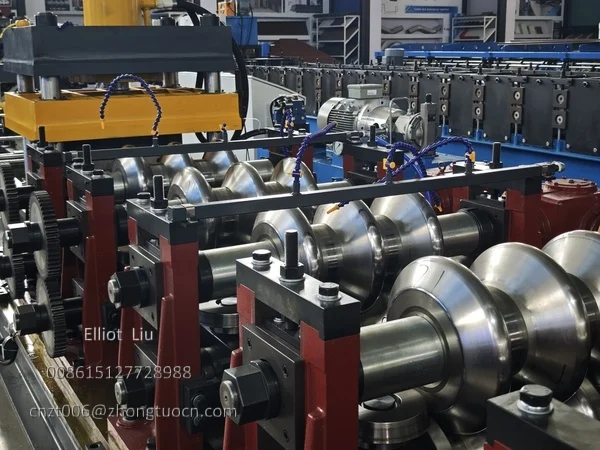

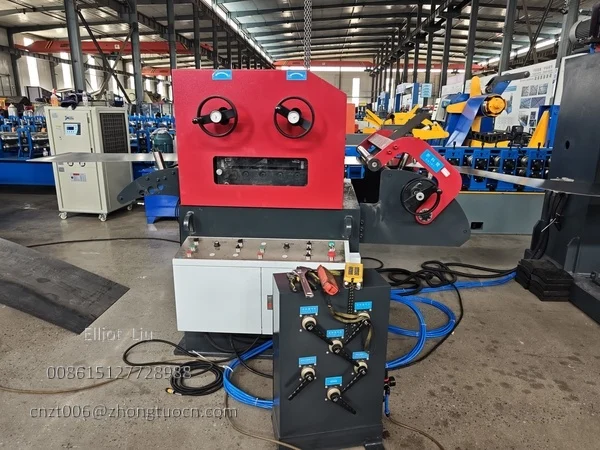

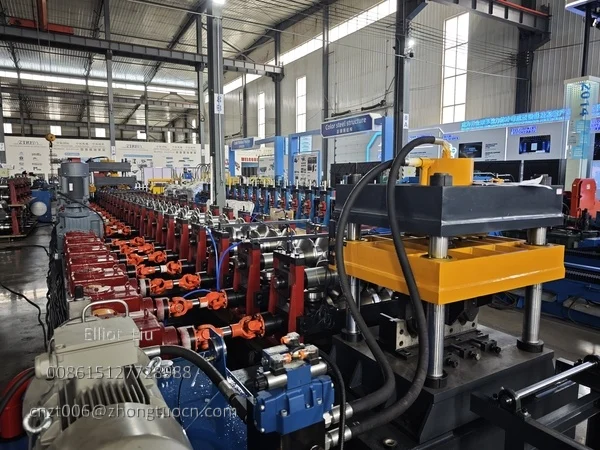

The 15 forming stations distribute the total deformation gradually. The synchronized distribution gearboxes keep all stations at the same line speed. The sheet experiences bending force only, which helps maintain profile symmetry and thickness consistency.

Automation level

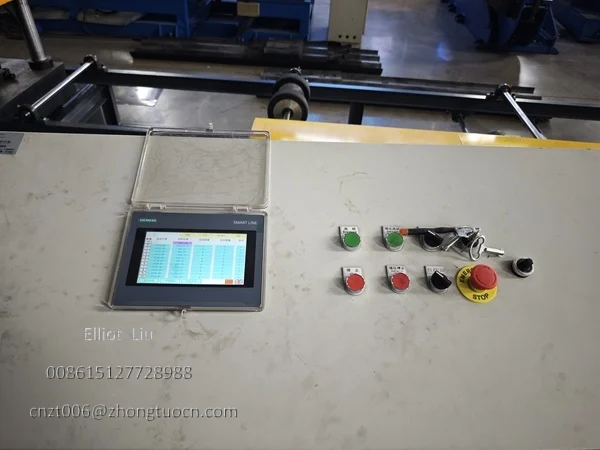

A PLC control system coordinates all production steps. The operator sets parameters through the touchscreen, and the road barrier highway guardrail cold making machine runs automatically during operation. This reduces the need for frequent manual adjustments.

Production flexibility

The machine handles multiple material types and thicknesses within its range. Switching specifications does not require roller changes. When order requirements vary, the equipment can adapt.

Key component lifespan

The forming rollers use Gr15 bearing steel with HRC55-60 hardness heat treatment. This provides surface wear resistance and helps reduce replacement frequency.

Components and Technical Parameters

A complete guardrail roll forming machine consists of several systems. Here are the main systems and their technical parameters.

Workflow

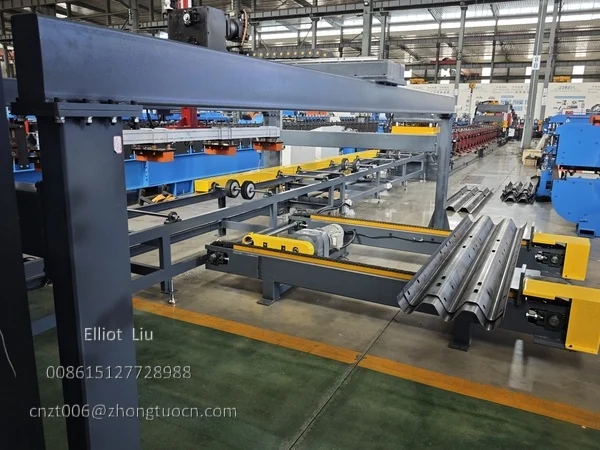

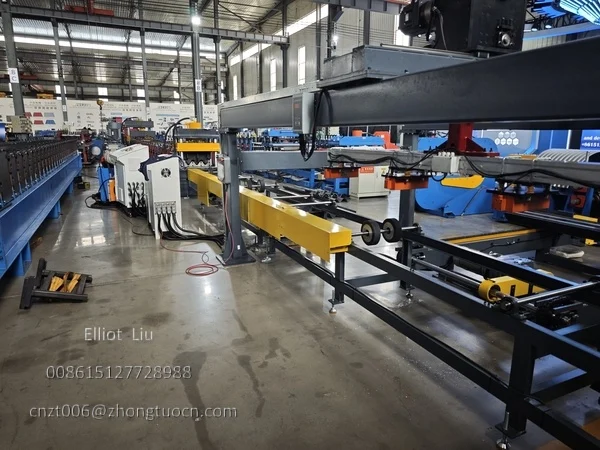

The highway guardrail roller forming machine is a complete continuous production line. Coil goes in from one end, and finished panels come out the other. The line includes the following stations:

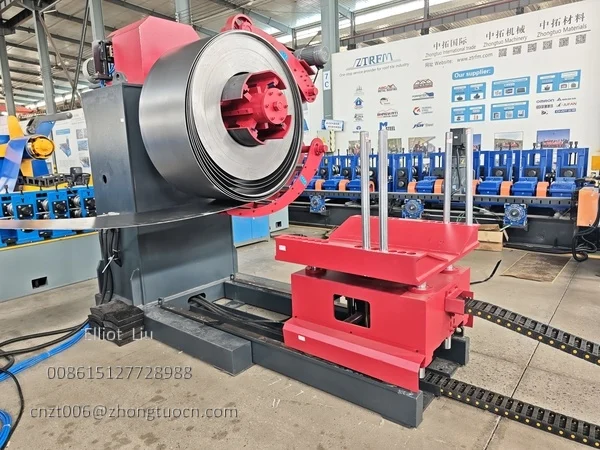

Uncoiling → Alignment guiding roller → 9 rollers leveling → hydraulic punching hole → Panel Transport table → Swift sheet feeding → Photoelectrical switch → Roller guiding table → 15 stations roll forming → Finished product support table.

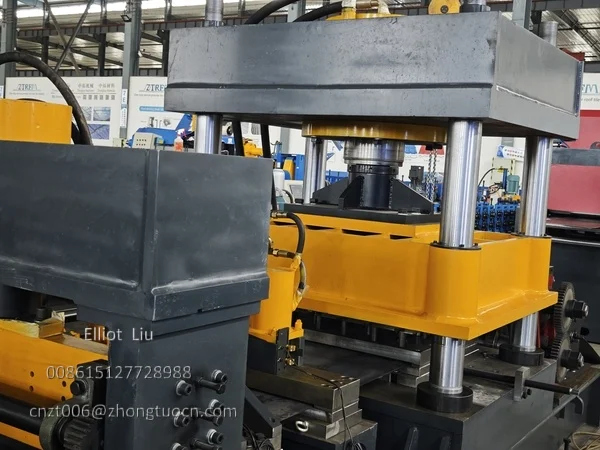

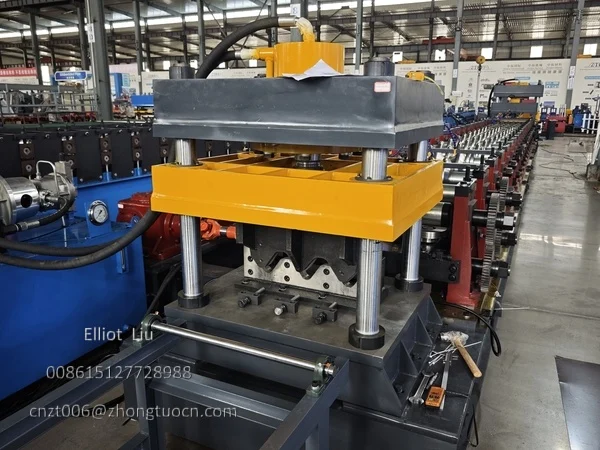

The process starts with uncoiling, then levels the sheet to remove internal stress. Next comes hole punching, followed by feeding into the forming area. The photoelectric measuring system detects length and triggers cutting at the set dimension. Finally, the stations gradually shape the profile.

The high guardrail roll forming machine runs under PLC coordination. All steps connect automatically from coil loading to finished panel output.

Equipment Specifications and Production Capacity

When evaluating a guardrail forming machine, you will want to know what materials and thicknesses it can process, what panel specifications it produces, and its daily output capacity. Here is the data from the machine specifications.

Material and thickness capability

The machine works with galvanized steel, cold rolled steel, carbon steel, and Q235. The thickness range is 2.5mm to 4.0mm.

Panel specifications

Feeding width is 490mm. Finished cover width is 312mm. Finished profile height is 90mm.

Forming accuracy

Finished length accuracy is specified at 4320mm ± 2mm. This helps reduce the need for hole alignment adjustments during panel installation.

Production speed

Forming speed is 15 to 20 meters per minute. Based on a panel length of 4320mm, the machine produces approximately 2 to 2.5 panels per minute.

Frequently Asked Questions

What materials can this guardrail roll forming machine process?

The machine processes galvanized steel, cold rolled steel, carbon steel, and Q235 within the specified thickness range.

What is the maximum thickness the machine can handle?

The thickness range is 2.5mm to 4.0mm.

What is the standard panel length accuracy?

The machine maintains length accuracy within ±2mm at 4320mm panel length.

How many forming stations does the machine have?

It has 15 fixed driven forming stations.

Is the machine fully automatic?

The machine uses PLC control to coordinate all production steps. The operator sets parameters through the touchscreen, and the line runs automatically during operation.

Closing

Understanding the guardrail roll forming machine's components, workflow, and technical parameters gives you a clear picture of what to expect. If you have questions about thickness range, output capacity, or specific project requirements, we can offer recommendations based on your production needs.
