Many factory owners face two practical challenges: the increasing difficulty of recruiting skilled operators and a persistently high scrap rate from inaccurate cutting. Our CZ steel purlin roll forming machine solves both problems simultaneously. With a touchscreen and PLC control system, it enables even average workers to master operations in just half a day. The postcutting method ensures the length of every steel profile is exact. Let’s look at how this machine saves you time and effort, focusing on its operation and cutting capabilities.

Touchscreen and PLC: Easy Operation for Any Worker

Traditional forming machines require experienced veteran operators to supervise them. Changing specifications involves adjusting numerous knobs, and diagnosing faults often relies on listening to the machine's sounds,tasks that new workers are often afraid to attempt.

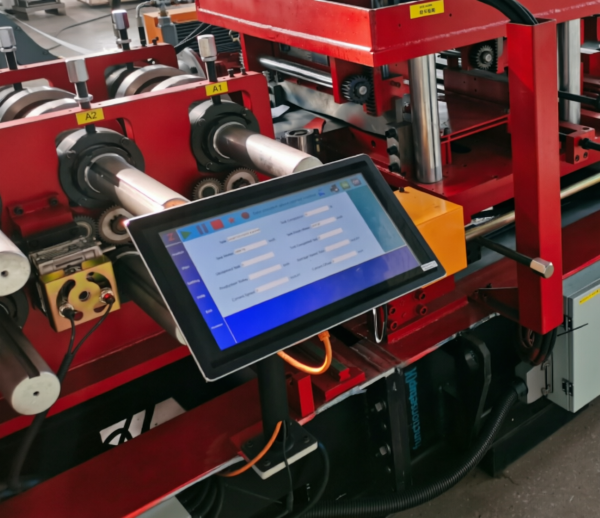

This CZ steel purlin roll forming machine is completely different. The system centralizes all controls on a color touchscreen so you simply input the product dimensions, select the material type, and press Start.

The PLC executes each step in sequence: the uncoiler automatically matches the speed, it automatically locates punching positions, and it automatically measures cutting lengths. Workers only need to organize the finished products at the discharge end. Even someone with no mechanical background can operate the machine independently after just half a day of training. You no longer need to worry about production line stoppages if a veteran operator leaves.

Why Postcutting Is More Reliable Than Precutting

Many older machines use a precutting method, where the machine cuts the steel sheet to length before it enters the forming process. While this sounds logical, it presents two hidden risks:

1. Feeding errors. Steel sheets undergo stretching or compression during the forming process, causing slight changes in length. Consequently, sheets cut beforehand often result in inconsistent final lengths.

2. Risk of material jams. Precut sheets must be fed into the forming machine one by one via a conveyor belt. This creates gaps between sheets, requiring the feed rollers to start and stop frequently. This limits speed and increases the risk of jams.

This intelligent CZ steel purlin roll forming machine utilizes a postcutting method. The  forming process shapes the steel sheet continuously, and cutting occurs only after the forming process finishes. Length measurement takes place right before cutting; an encoder reads the actual length in realtime, and a hydraulic shear performs a precise cut.

The advantages of this method are clear. The stretching deformation that occurs during the forming process does not affect cutting precision. Continuous feeding eliminates pauses, resulting in faster speeds. Our test results show length tolerance controlled within ±1 mm over a 3,000 mm length.  You need no grinding or trimming during onsite installation because you can join the sections directly.

Basic Machine Specifications

The main technical parameters of the C/Z steel purlin roll forming machine are listed below.

Applications for the Produced Steel Sections

This C/Z steel purlin roll forming machine produces products with a wide range of applications.

Please refer to the application images of finished products below.

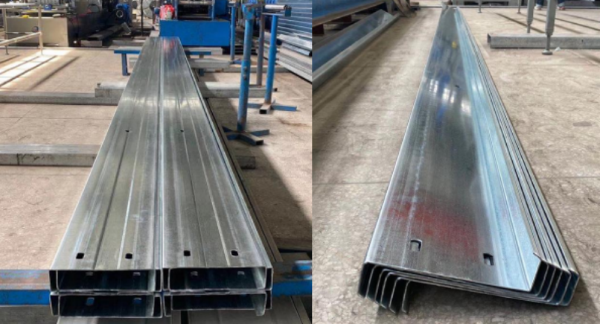

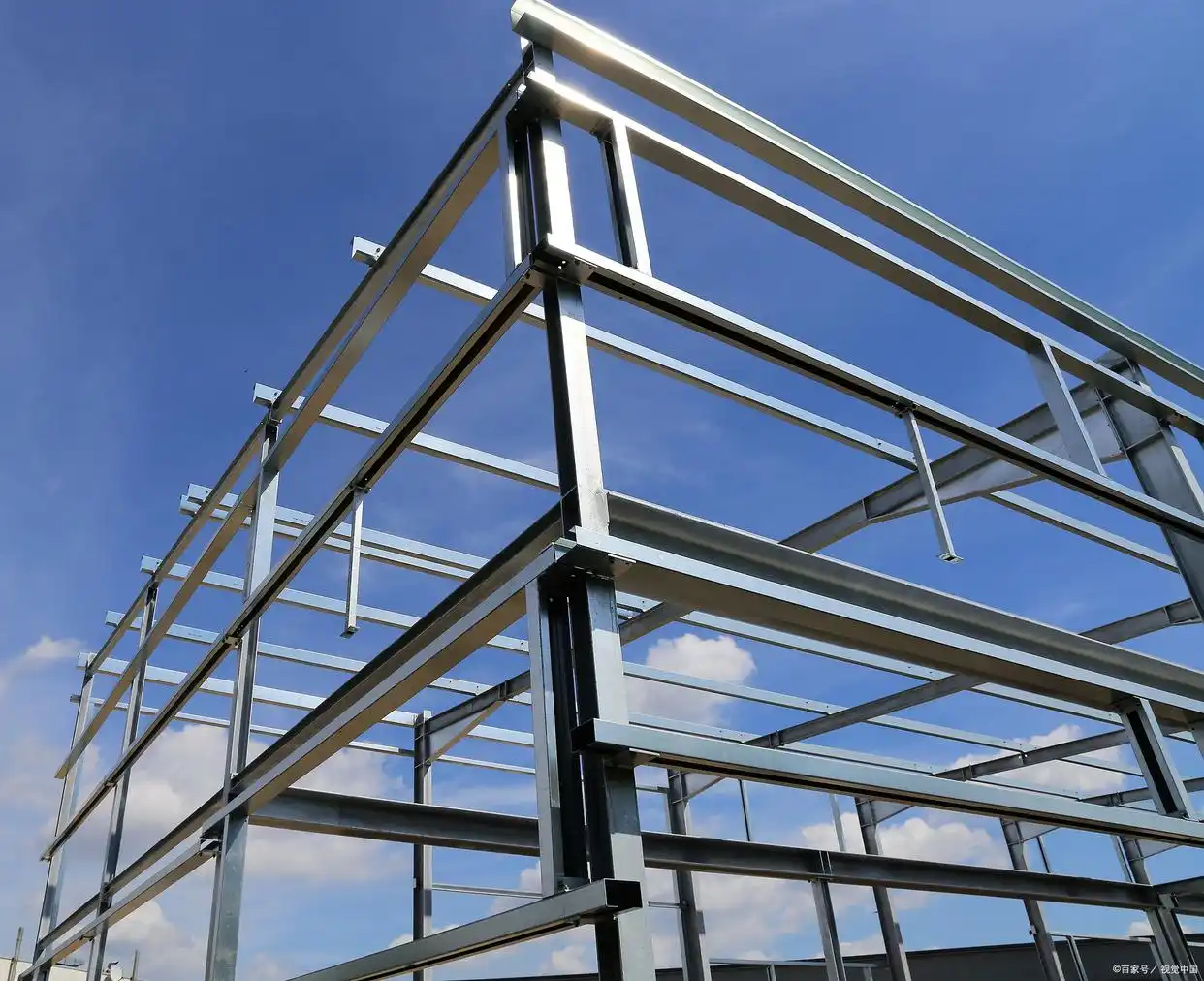

C sections frequently serve as factory roof and wall purlins, shelving uprights, and agricultural greenhouse frameworks.  Z sections frequently serve as continuous purlins for long span roofs, offering easy overlapping and high loadbearing capacity. Both types appear in lightgauge steel villas, warehouses, workshops, carports, and photovoltaic mounting systems. You will be able to handle a diverse range of orders,from small projects requiring a few hundred meters to large-scale projects spanning thousands of meters.

Production Specification Range

The profile diagrams below illustrate the cross-sectional shapes that the C/Z steel purlin roll forming machine can produce.

This range covers over 95% of the common specifications used in the domestic construction market. You do not need to prepare multiple sets of molds for different specifications; the machine's adjustable design makes switching sizes very simple. You can switch between C sections and Z sections with the push of a button.

Summary: Practical Problems This Machine Solves

Let’s review the practical issues this intelligent C/Z steel purlin roll forming machine helps you solve:

Operation: You no longer need to rely on highly paid veteran technicians. Ordinary workers can master the machine in half a day, and one person can oversee a production line. This reduces both labor costs and recruitment difficulties.

Cutting:You no longer need to worry about inaccurate lengths. With post cutting and encoder-based measurement, every piece is uniform in length. This ensures smooth onsite installation and boosts customer satisfaction.

Efficiency:Continuous feeding without pauses. No mold changes required when switching specifications. Production speeds can reach 32 meters per minute (without punching). Higher output with the same workforce.

If you are struggling with recruitment difficulties or high scrap rates, this CZ steel purlin roll forming machine is well worth your serious consideration. We can provide onsite machine testing videos so you can see firsthand how a single operator manages the process. We can also prepare a comprehensive proposal and quote based on your standard specifications.

Please contact us for more information.
