Precision Tensioning and Material Protection in Hydraulic Decoiling
In the metal forming industry, protecting the coil surface and maintaining tension are critical. Our Hydraulic Decoiler is engineered to solve common issues like coil loosening and surface scratches w...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
In the metal forming industry, protecting the coil surface and maintaining tension are critical. OurHydraulic Decoileris engineered to solve common issues like coil loosening and surface scratches while handling heavy loads of5 to 7 tons. Powered by a4kW main motorand a380Vhydraulic system, this machine features a robust frame built with300H steeland 16mm thick welded plates. It supports coil widths up to 1250mm and inner diameters of470-530mm / 570-630mm, integrating intelligent mechanisms to ensure high-quality processing for sensitive materials.
Advanced Tensioning and Braking

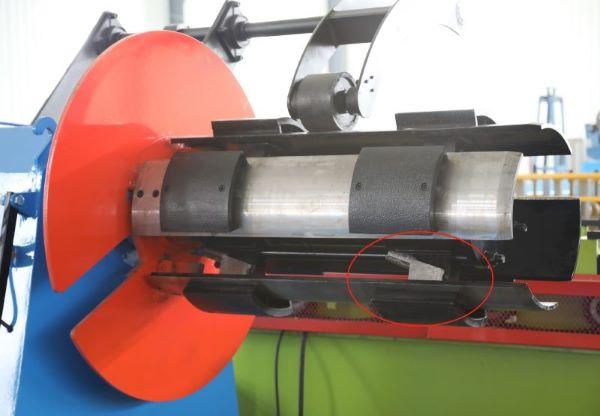

Slider-Type Tensioning: We ditched the old four-jaw style for a hydraulic slider design. It delivers stronger radial support, keeping the coil's inner wall from slipping or deforming.

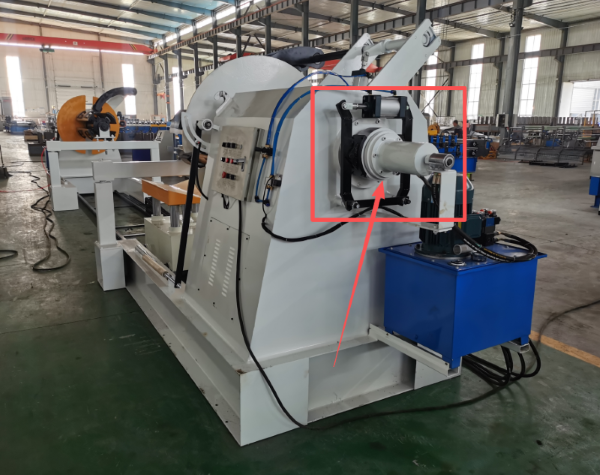

Pneumatic Brake System: The sensitive pneumatic brake auto-adjusts damping to match the forming machine's speed, stopping material pile-ups or breaks during feeding.

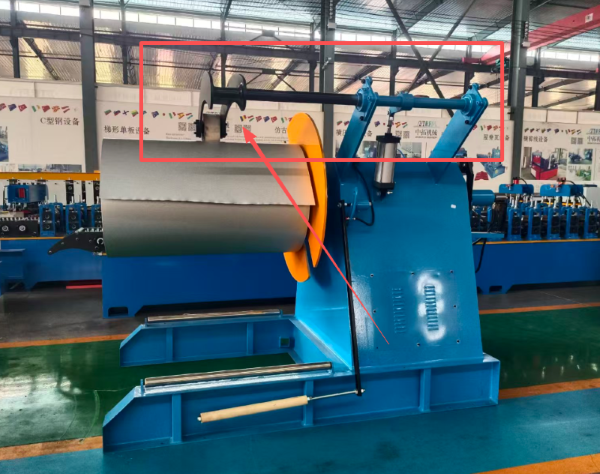

Hydraulic Retaining Arm: This top-mounted arm presses the coil's outer edge to stop it popping open from inertia at high speeds. It also helps level the strip.
Comprehensive Material Protection
Supporting Wheels: We added wheels at key contact points so the strip never rubs the metal frame. This is a must for scratch-free galvanized or color-coated plates.
Disc Retaining Device: Mounted retainers keep the strip aligned during fast feeding, preventing edge deviation that could mess up downstream processing.
Intelligent Electrical Control

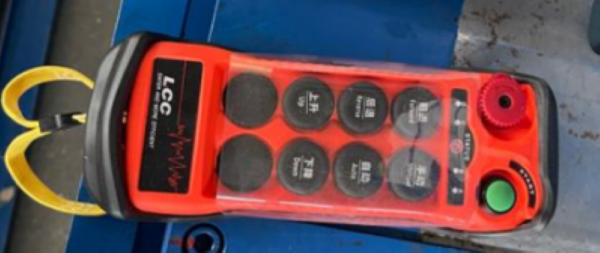

The machine runs on a Delta Inverter (5.5kW) and Schneider components for precise speed control. You can manage hydraulic loading, tensioning, and braking wirelessly—so operators stay safe and off the production floor.

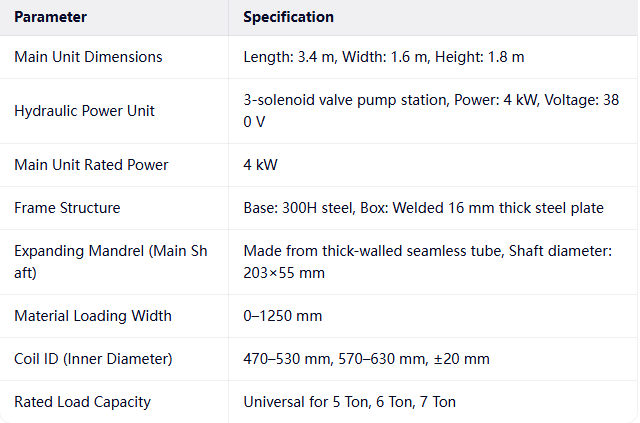

Technical Specifications

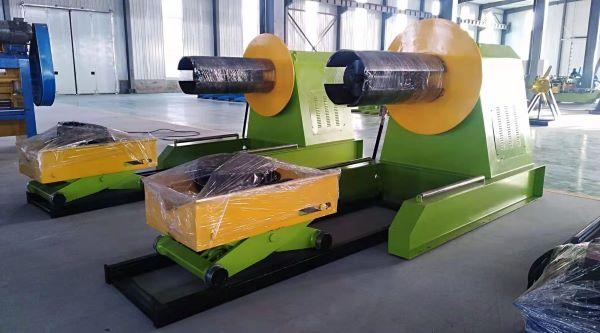

5 Ton, 6 Ton, 7 Ton Hydraulic Uncoiler

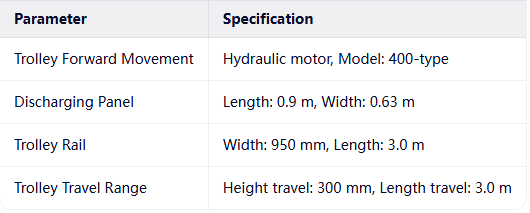

Discharging Trolley
