The hydraulic decoiler handles 5t-7t coils (0-1250mm width) with a 4kw main motor and 380V power supply. It features a slider-type tensioning system and four high-strength support axes, ensuring stable unwinding and precise inner circle formation. This heavy-duty machine is designed for long-term reliability in metal processing.

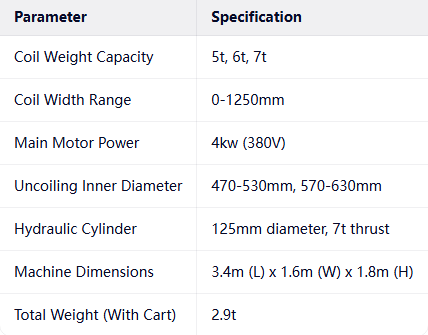

Key Technical Specifications

Advanced Design And Operational Advantages

• Slider Type Tensioning System: Replaces traditional four-jaw designs with a hydraulic slider for stronger radial support, preventing coil slippage and inner wall damage.
• Four Support Axes: Ensures high concentricity and a perfect circular inner core after tensioning, avoiding deformation caused by sharp corners.
• 5 Guide Column Cart: A heavy-duty design with five guide columns (vs. market-standard four) for balanced force distribution, preventing jamming or tilting when lifting multi-ton coils.
• Support Arm Reinforcement: An enhanced support arm on the main frame distributes cantilever load, preventing shaft sagging and extending service life.
• Intelligent Control System: Uses a frequency converter (5.5kw) and wireless remote control for precise speed adjustment and safe, convenient operation.
• Material Protection Features: Includes supporting wheels to avoid direct metal contact (ideal for galvanized/color-coated plates) and side-mounted disc retainers to prevent edge deviation during high-speed feeding.

This decoiler combines robust construction with smart engineering to deliver efficient, damage-free coil processing for a wide range of industrial applications.

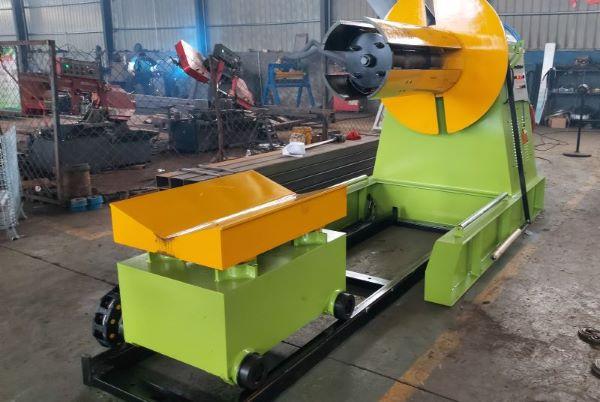

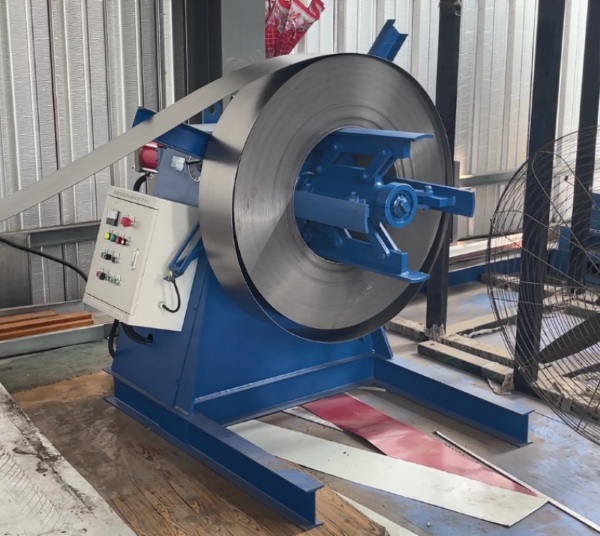

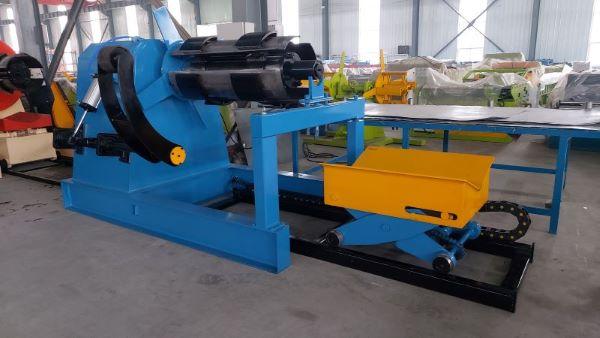

Machine image:

Whether you’re processing steel, aluminum, or specialty alloys, our hydraulic decoiler delivers the power, precision, and intelligence your production line demands. Contact us today to discuss your specific requirements—we’re here to help you optimize your coil handling process.
