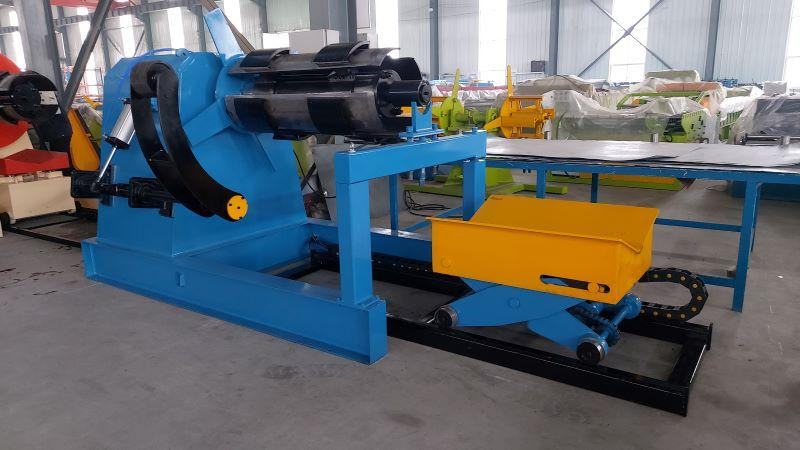

Heavy duty Hydraulic Decoiler: The stable power source for metal processing production lines
This hydraulic uncoiler is the core front-end equipment in metal sheet processing. It is mainly used for the automatic uncoiling, tensioning, and feeding of heavy steel coils such as cold-rolled plate...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Thishydraulic uncoileris the corefront end equipmentinmetal sheet processing. It is mainly used for theautomatic uncoiling,tensioning, andfeedingofheavy steel coilssuch ascold-rolled platesandgalvanized plates. By wirelessly controlling thehydraulic loading car, workers can easily import thesteel coilsinto theexpansion cylinder, significantly reducing the labor intensity of manual operations. Its uniqueslider type tensioning structureensures the roundness of the inner core and does not damage thesteel coils, providing a flat raw material for subsequentlevelingand processing.
Production Line Application
Thisuncoilerhas extremely strong compatibility and is widely used in the followingproduction lines:
Hydraulic Slitting Line: As the decoiler unit of the longitudinal shearing line, it is combined with the longitudinal shearing machine and the winding machine to achieve automatic steel strip separation.
Roll Forming Machine: Provides continuous material supply for the production line, and is combined with the feeding machine and the leveling machine to achieve automated production.
Core Advantage
Heavy duty design: The main frame is made by welding 300H steel (non-standard) and 14mm thick steel plates, ensuring a stable base.
Hydraulic tensioning: It uses a slider type tensioning mechanism, with a smooth inner core, which does not damage the steel coil, and has a large and stable tensioning force.
Pneumatic press arm: Equipped with pneumatic brakes and press arms, it matches the speed of the forming machine better, preventing the steel coil from unraveling during operation.
Frequency control: Uses a Delta frequency converter (5.5kw), allowing for arbitrary speed adjustment, and has a high level of automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Load Capacity | 5, 6, or 7 Tons (Universal) |
| Coil Inner Diameter | 470 - 530 mm / 570 - 630 mm(Freely switchable via detachable gaskets) |
| Loading Width | 0 - 1250 mm |
| Main Unit Rated Power | 4 kW |
| Hydraulic Pump Station | 3-Solenoid Valve StationPower: 3 kW, 380V |
Why Choose Us
Stable and reliable: The load-bearing main shaft is made of high-strength thick-walled seamless steel tubes, which are processed by turning. It has strong power and can bear a large load.
Convenient operation: Equipped with a wireless remote controller, the operation is more convenient. It can be remotely controlled to raise and lower the trolley and move forward.
Precise control: The electrical control system uses control components from companies such as CHINT and Delixi, which have high precision and good automation level.
Easy maintenance: Key components such as hydraulic cylinders and frequency converters use well-known brands, resulting in low maintenance costs.
