Hydraulic Decoiler Technical Data and Configuration
As a professional manufacturer, we provide detailed specifications to ensure our Hydraulic Decoiler meets your exact production line requirements. Below is the high-configuration data for our 5T-7T se...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
As a professional manufacturer, we provide detailed specifications to ensure ourHydraulic Decoilermeets your exact production line requirements. Below is the high-configuration data for our5T-7T series.

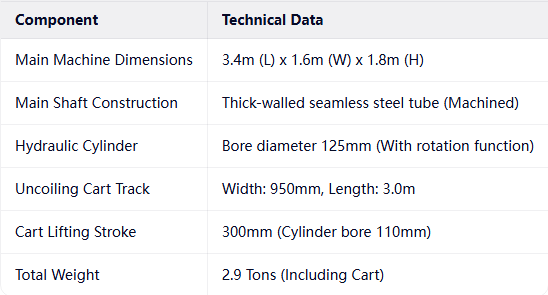

Detailed Parameter List
Operational Advantages
High Concentricity:The main shaft design ensures the inner core approaches a perfect circle after tensioning, avoiding the "squeezing" effect caused by sharp corners in older designs.
Intelligent Synchronization:The electrical control system offers high automation. The variable frequency drive allows the uncoiling speed to be adjusted arbitrarily to match the production line speed.
Stable Loading:The uncoiling cart features a 400-type hydraulic motor for forward movement and a robust lifting mechanism , ensuring smooth and stable loading of heavy steel coils onto the main shaft.
Why Choose This Model
●Complete System Integration：Equipped with a4KW Main DriveandWireless Remote Operation, allowing safe control of loading, tensioning, and braking from a distance.
●Enhanced Structural Integrity：Anenhanced support armprevents shaft sagging, while the203*55mm seamless steel tubeshaft ensures rigidity for the2.9-tonmachine and max loads.
●Power and Precision：Combines a300H steelframe with16mm thick platesand aDelta Inverter (5.5kW)for smooth speed adjustments to match your production line.

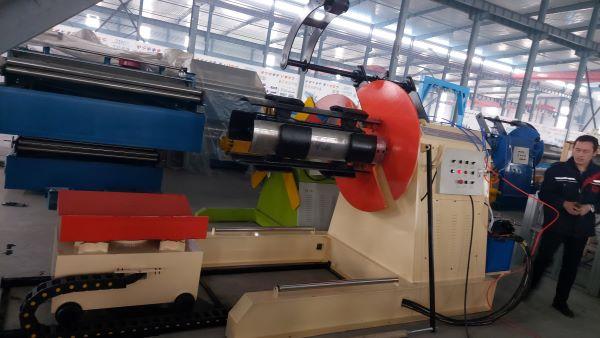

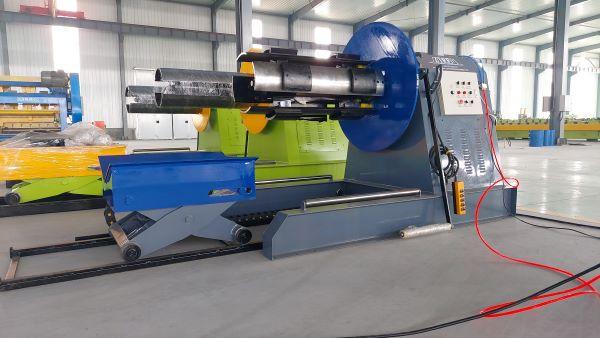

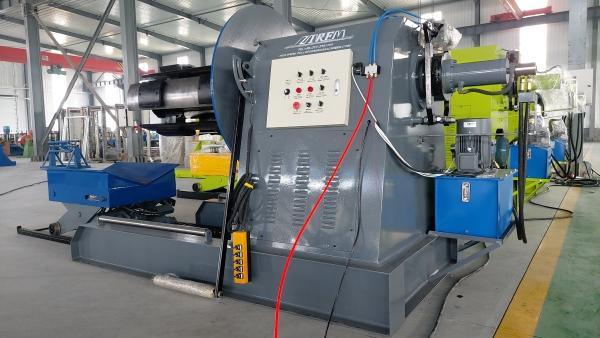

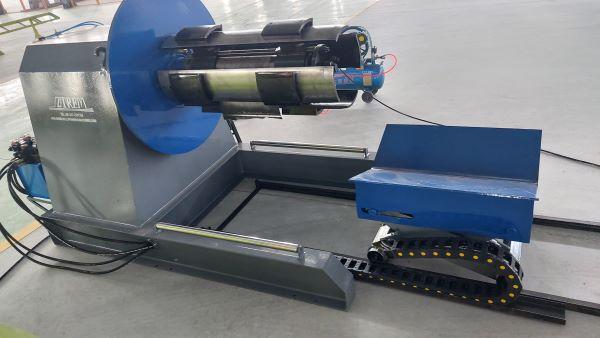

Product Details Presentation
