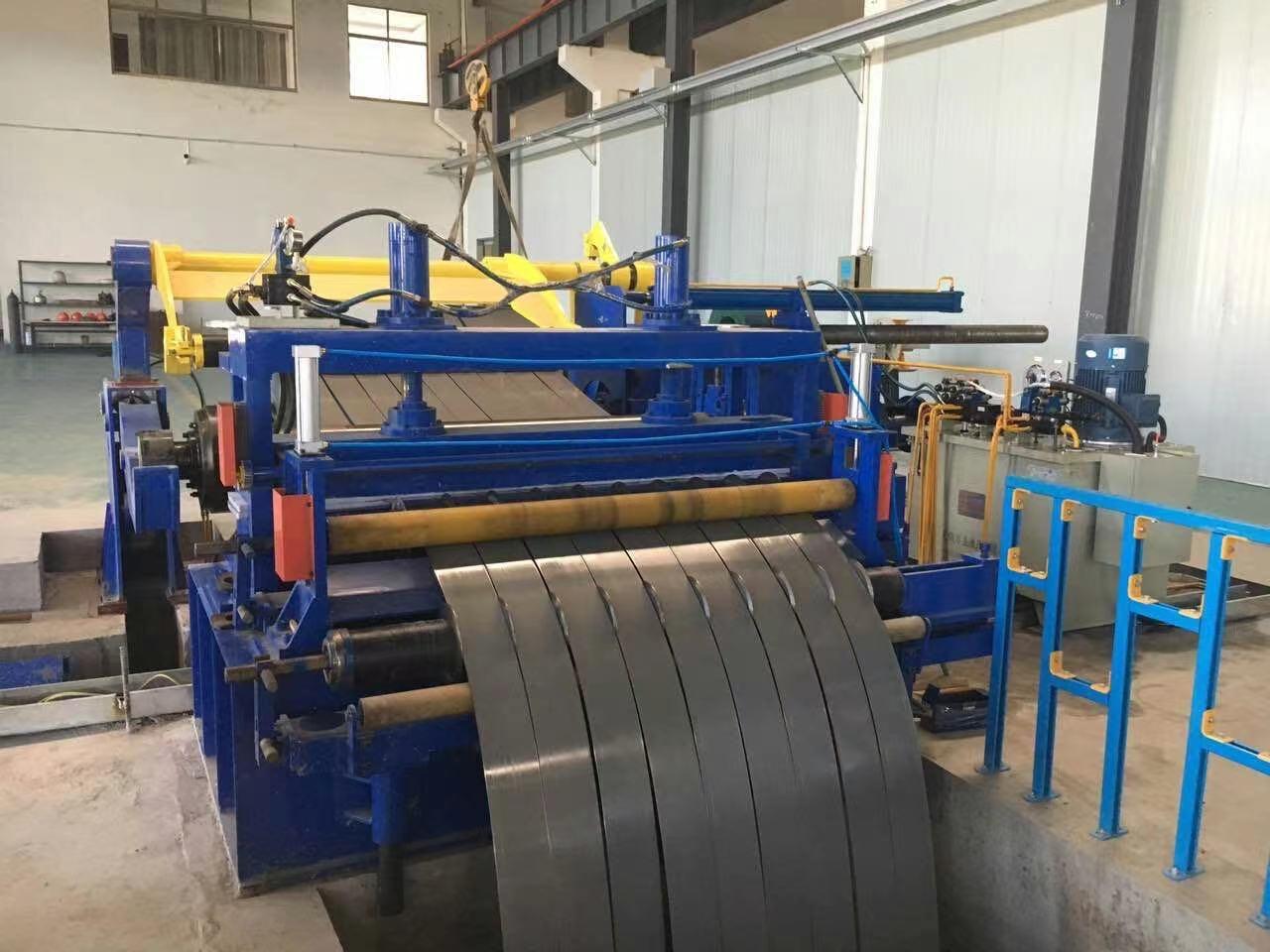

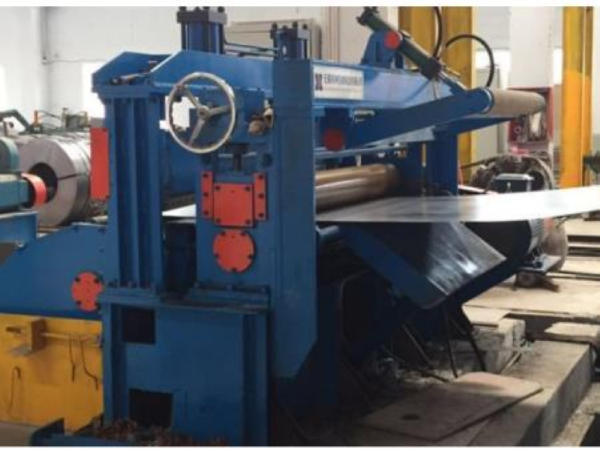

If you run a medium or large metal processing factory, you know the drill: coils come in heavy, and you need them cut into clean, narrow strips – day after day. That’s exactly what this steel coil slitting machine is built for. Not just speed, but heavy load resistance, stable running, and low failure rate.

The entire industry is trending toward automated, unmanned equipment. Many machine owners seek a "set-it-and-forget-it" solution—one that requires only initial configuration to deliver stable, consistent output, thereby eliminating the frustration of frequent, intermittent breakdowns. This steel coil slitting machine aligns perfectly with this trend: it features a linear layout and a compact structure, while also incorporating ample provision for convenient future expansion. The equipment is compatible with standard 380V/60Hz/3-phase power supplies, ensuring that each component draws precisely the energy it requires, thereby eliminating energy waste. Furthermore, it accommodates material thicknesses ranging from 0.3 mm to 3.5 mm, effectively covering the vast majority of standard steel coil specifications.

Now let me walk you through what makes this machine worth your time.

What is a slitting machine?

The slitting machine is a piece of industrial equipment used to cut wide, heavy "master rolls" or "jumbo rolls" into narrower rolls that meet specific specifications. This equipment is widely utilized across the manufacturing, packaging, and printing industries to process a diverse range of materials, including paper, plastic films, metal foils, fabrics, and adhesive materials.

How it works in three steps:

• Unwind: The big coil is fed in under controlled tension.

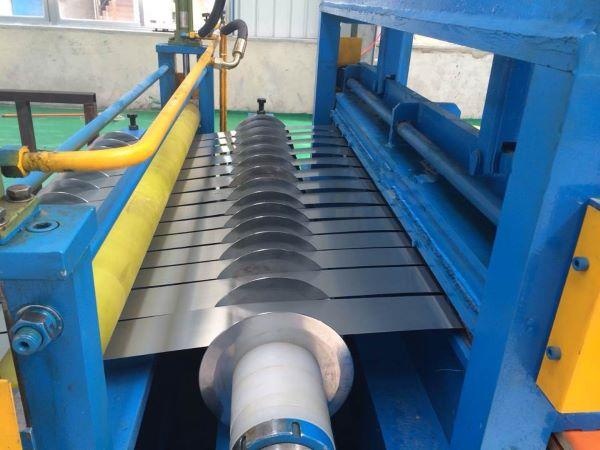

• Slit: The flat material passes through blades (rotary shear knives, for metal) to slice it lengthwise into precise strips.
• Rewind: The new narrow strips are wound onto smaller cores, ready for use.

For metal coils, a steel coil slitting machine like the one described here is the heavy duty version, engineered to shear thick, wide steel coils into thinner strips for automotive, storage racks, or pipe making.

Product Advantages

This steel coil slitting machine gives you several real-world benefits:

• Handles heavy coils:Max uncoiling weight 15 tons. That means fewer coil changes, less downtime, and smoother production.
• Strong frame, no shaking:The whole machine body uses thickened steel plate, welded as one piece. It resists compression and vibration, even under long-term heavy loads. Surface is rust-removed and painted – works fine in dusty or humid workshops.
• Precision cutting:Slitting accuracy ≤ ±0.05 mm. Strips come out uniform, no burrs, ready for your next process without extra trimming.
• Easy for operators:PLC touch screen with simple icons. Even a new worker can learn in a short time. One-key start runs the whole line automatically. There’s also a manual mode for debugging or handling unusual feeding.

Parameter Table

Machine Production Process

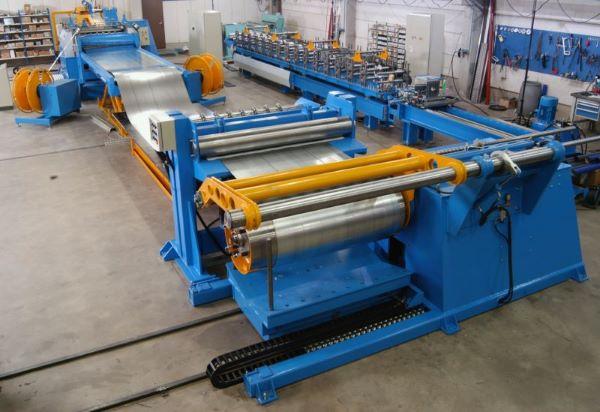

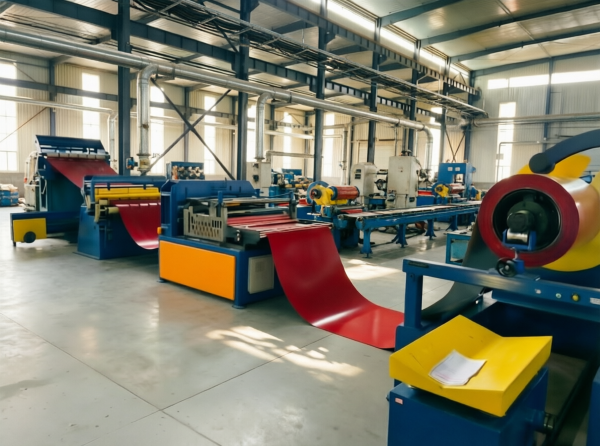

The line follows a clear order from start to finish. Coil goes in one end, gets slit in the middle, and finished strips come out the other end – all automatically. Let me show you the sequence.

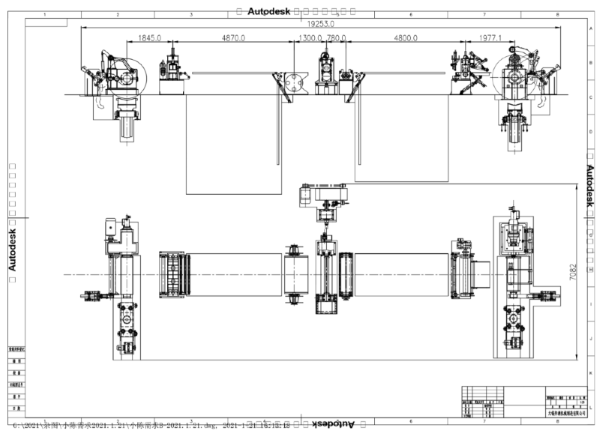

Order of components (from right to left):
Entry coil car → Decoiler → Press and pinch device → Hydraulic cutter → Looper 1 → Side guide device → Slitter → Scrap winder → Looper 2 → Tension stand → Recoiler → Exit coil car

Each unit does its part without needing someone to watch it constantly. The PLC handles the timing.

Machine Components

The complete line includes:

The accessories listed in the table are all customizable and available for purchase.

Applications of the Machine and Its Industry

This steel coil slitting machine is used across many industries. Here’s where your narrow strips will end up:

• Automotive & Transportation:Produces structural brackets, fuel system components, exhaust elements, and body panels. Precise dimensions and clean edges are critical for safety and welding.
• Construction & Building:Used for manufacturing roll-formed products like metal roofing panels, wall cladding, ceiling tiles, and structural framing.
• Electrical & Electronics: Provides the essential strip metal needed to manufacture transformer cores, motor cores, switchgear panels, and electromagnetic shielding.
• Appliance & HVAC :Supplies the metal for refrigerators, ovens, washing machines, and air duct systems.
• Tube & Pipe Manufacturing:Serves as the primary feed material continuously rolled and welded into round, square, or rectangular tubing.
• Aerospace & Medical:Utilized for high-tolerance specifications such as jet engine heat exchangers, surgical instruments, and specialized structural parts.

So whether you're making car parts or roof panels, this machine gives you the clean, precise strips you need.

Estimated Production Capacity

Based on our configuration and validation of the steel coil slitting machine, operating at a speed of 0–60 m/min, the typical output for an 8-hour shift is approximately 40 tons (depending on the material's thickness and width). However, the specific output can be adjusted according to your specific materials and requirements.

Contact Information

For pricing, technical drawings, or a steel coil slitting machine customized to your coil width, thickness, and daily output, reach out using the details below.

We can also provide a test report and inspection video before you decide – just ask.
