Precision and Durability: How We Engineer a Superior Coil Slitting Line Machine
The Hydraulic slitting line is a crucial machine that bridges the upstream and downstream processes of steel coil production. It cuts standard steel coils into required widths for further processing,...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content

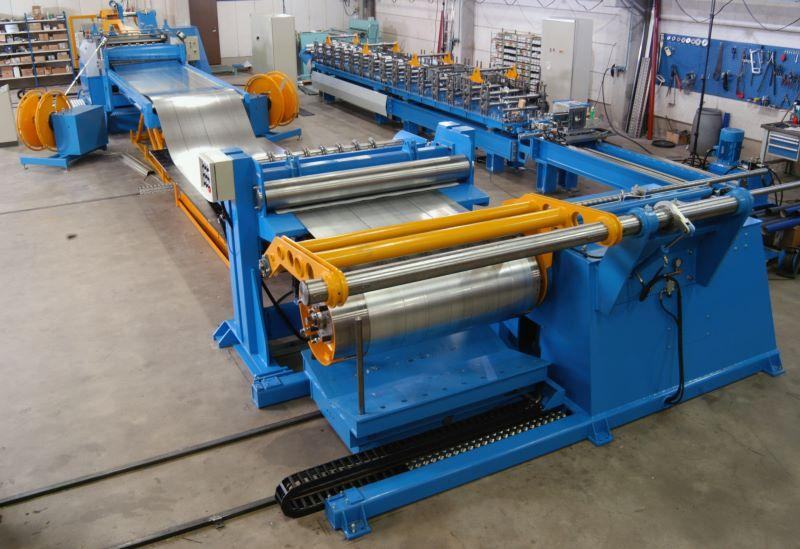

TheHydraulic slitting lineis a crucial machine that bridges the upstream and downstream processes of steel coil production. It cuts standard steel coils into required widths for further processing, serving industries such as construction and automotive manufacturing.
Today, in addition to presenting the technical specifications of theslitting line machine, I will focus on the manufacturing techniques of its core components. This will allow you to better understand the superior quality and advanced technology of our equipment.
Main technical parameters
| Steel coil parameters | Material | CRS and GI |
| Tensile strength | δb≤450Mpa，δS≤260Mpa | |
| Steel thickness | 0.3-3.5mm | |
| Steel width | 500-1600mm | |
| Steel coil I.D | φ480-520 mm | |
| Steel coil O.D | φ1600mm(max) | |
| Steel coil weight | 15T(max) | |
| Slitter parameters | knife pivot diameter | Ф220 mm |
| Knife pivot material | 40Cr | |
| Blades specification | Φ220mmXφ340mmX15mm | |
| Blade material | H13K | |
| Slit parameter | Max slit quantity | 5 pcs (3-3.5mm)8 pcs (2mm)15 pcs(1mm)25 pcs(0.3mm) |
| Width precision | ≤±0.05mm | |
| Other parameters | Power | 380V/60Hz/3Ph |
| Line speed | 0-60m/min | |
| Capacity | Around 220 Kw | |
| Whole line Dimension | 23m(L)X8m(W) | |
| Daily production capacity | Around 40T (for 8 hours) | |
| Operator needed | 1 mechanical engineer ,2 common workers | |
| Line direction | From right to left(Face to machine) |
The Manufacturing Process of Key Components
1. Work Rollers
Nibblers - Testing - Roughing (Mechanical Performance Test) - Heat Treatment (Quenching) - Semi-finishing - Finishing - Roll Surface Heat Treatment.
2. Forgings: Gears & Gear Shafts
Rough Forging - Roughing - Testing - Heat Treatment (Quenching) - Semi-finishing - Finishing - Heat Treatment (Tooth Surface Hardening, etc.).
3. Welded Structures: Frame, Base, & Transmission Box
Raw Plate Intake - Plate Pre-treatment - Cutting - Welding - Welding Inspection - Annealing / VSR - Roughing - Finishing.
Why Choose Our Hydraulic Slitting Line?
1.Our quality system operates effectively instrict accordance with the ISO9001 standardduring both product design and manufacturing. We ensure that all products providedmeet professional design standardsand contractual quality requirements.
2.Every component of the Hydraulic slitting line undergoesstrict inspectionbefore moving to the next process. This commitment tototal quality controlby all personnel, throughout the entire manufacturing journey,guarantees the superior quality and durabilityof our products.
3.The main electrical components are sourced fromstable, high-quality brands such as Siemens. This ensures the machine operates withconsistent stabilityand delivers along service life.
