Flat metal plates have a common issue in industrial and commercial settings: smooth surfaces. On truck floors, shelving decking, and industrial walkways, smooth metal surfaces can create safety concerns. People may slip. Cargo can slide. Flat plates also tend to deform under heavy loads, as their rigidity and strength have limits.

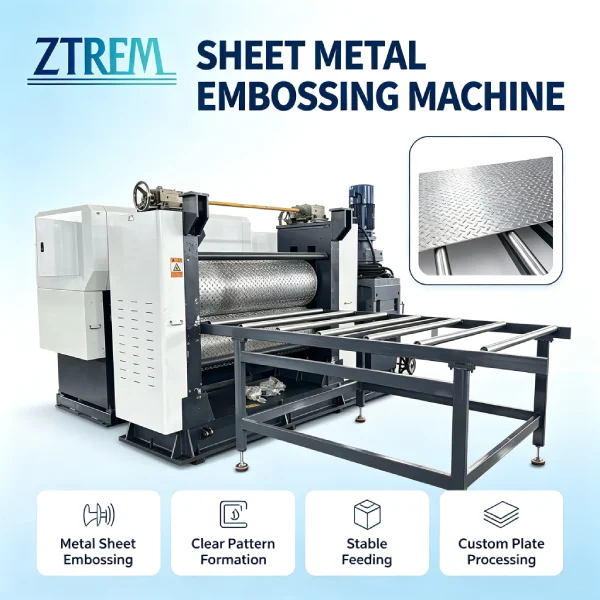

A sheet metal embossing machine addresses both concerns. It presses raised patterns into the metal surface, providing slip resistance and increased structural rigidity.

This article covers applications, advantages, working principles, specifications, and selection factors.

Applications

Truck floors
Embossed patterns provide slip resistance and help keep cargo secure during transport.

Shelving decking
Embossing adds load bearing capacity and anti slip performance.

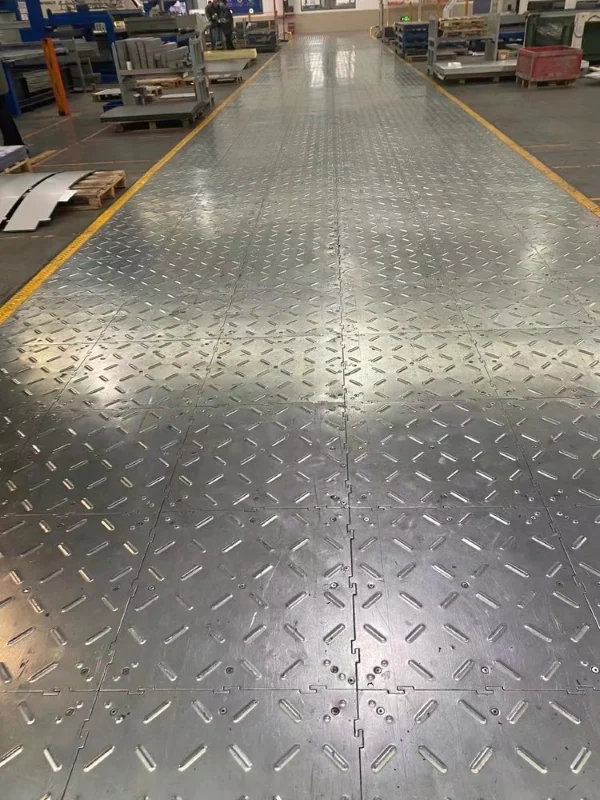

Industrial walkways and maintenance platforms
Anti slip patterns improve worker safety in factory environments.

Equipment tread plates and stair treads
Anti slip solutions for public spaces and industrial settings.

Why these products use embossed plates:

• Smooth plates are slippery

• Embossing increases rigidity through cold working

• Embossing is a one step process that is efficient and cost effective

These products all require metal plates that are both slip resistant and load bearing. Embossed plates meet these requirements, and producing them requires a reliable sheet metal embossing machine.

Machine Advantages

1. Continuous production capability

• The machine runs continuously, suitable for batch production

• The system includes a leveling machine and receiving table, forming a complete production line



2. Consistency and precision

• Embossing rollers deliver uniform pattern depth across the entire plate

• The leveling machine sits upstream to correct plate shape before embossing

3. Wide application range

• The thickness range covers multiple specifications

• The width capacity handles plates up to 1520mm

4. Ease of operation

• Standardized workflow reduces dependence on highly skilled operators

• The machine layout is clear and maintenance is straightforward

5. Integrated line design

• An Input coil supporting table assists with loading and reduces manual labor

• A receiving table collects finished products





How It Works and What Materials It Can Process

How it works:

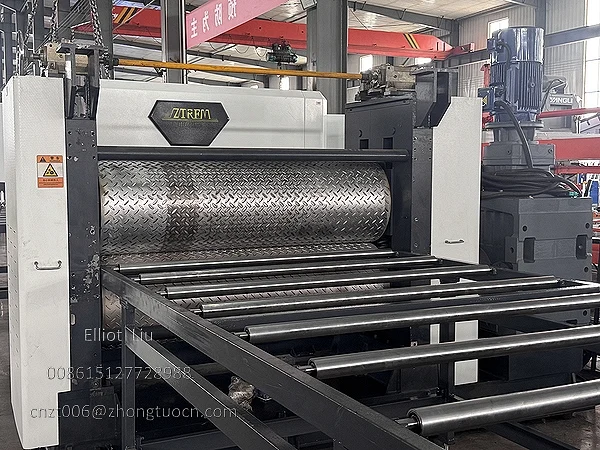

• Metal plates pass through embossing rollers. Pressure forms raised patterns on the surface.

• This is a cold forming process. It does not change the material's base properties.

Production line flow:

• Input coil supporting table (Length 5m) assists with loading plates

• Sheet metal embossing machine completes the pattern forming

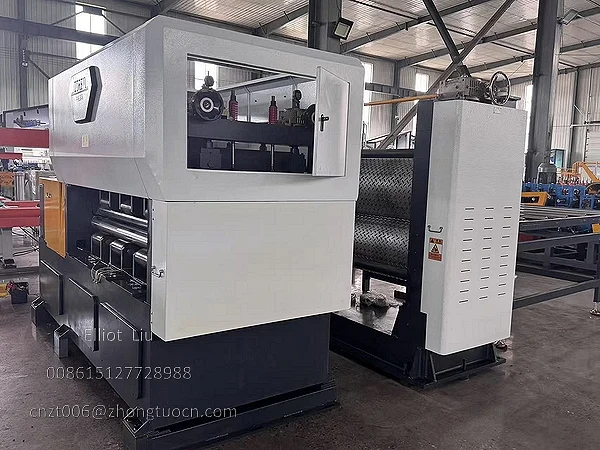

• Leveling machine releases internal stress and corrects shape

• Receiving table (Length 5m) collects finished products

The entire embossing stage is handled by a metal plate emboss machine that runs continuously with the rest of the line.

Processable materials:

• Carbon steel, commonly used in industrial structural components



Technical Specifications

How to Choose a Sheet Metal Embossing Machine

When evaluating a metal sheet embossing machine, start by checking the thickness and width ranges.

Does the thickness and width range match your production needs?

• Check whether the machine's thickness range covers your product specifications

• Check whether the width capacity meets your plate size requirements

Do you need a complete line or just the embossing unit?

• Consider whether your process requires a leveling machine upstream

• Consider whether feeding and receiving assistance equipment would benefit your operation



Does the working speed meet your production targets?

• Evaluate whether 5m/min matches your production rhythm

Equipment source and after sales support:

• Compare integrated manufacturers versus trading companies

• Check whether spare parts supply is readily available



Other Products from the Manufacturer

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. is an integrated manufacturer covering design, R&D, machine manufacturing, parts supply, and technical services. The company's product range includes:

• Roll Forming Machine

• Slitting Line

• Drywall Stud Roll Forming Machine

• Custom Profile Roll Forming Machine



A sheet metal embossing machine addresses two fundamental concerns with flat plates: traction and rigidity. It creates permanent patterns through cold roll forming, providing both safety and structural strength. When choosing embossing equipment, consider your material specifications, line configuration, production speed, and the manufacturer's support capabilities. This steel embossing machine is worth a close look if you are processing carbon steel plates from 1.2 to 5 mm thick, up to 1520 mm wide.
