When you plan to build or upgrade a roof tile production line, finished product quality and long term stability are often your biggest concerns. The forming quality depends on how the core system works together, including roller design, gradual forming, frame rigidity and drive system coordination. A stable roof rolling machine helps you produce consistent and flat panels over continuous runs.

Machine Advantages

A roof rolling machine focuses on providing a solid structural base for continuous production.

• The gradual forming design uses hard chrome plated rollers, a setup intended to support the forming of coated materials and high strength steel.

• The welded H beam frame and total machine weight are designed to provide structural stability during high speed operation.

• The shafts use quench treated 45# steel to provide structural support for the forming load.

• The main motor power matches the overall setup to handle daily forming tasks based on material characteristics.

Applications

This equipment is mainly used for continuous roll forming of metal roof tiles and wall panels. It is a common type of roof tiles machine. It can process various coated or high strength steel sheets including GI, PPGI, PPGL and G550 FULL HARD, covering a thickness range of 0.16 to 0.55 mm.

The metal panels it produces are often used in the following scenarios:

• Roof and wall covering for industrial plants and warehouses

• Sloped roof structures for residential housing

• Simple roof structures for agricultural greenhouses

• Metal roof systems for large public buildings

Provide your profile drawing and material requirements before confirming an order to ensure the machine setup matches your plan.

Main Parameters

Core Forming System

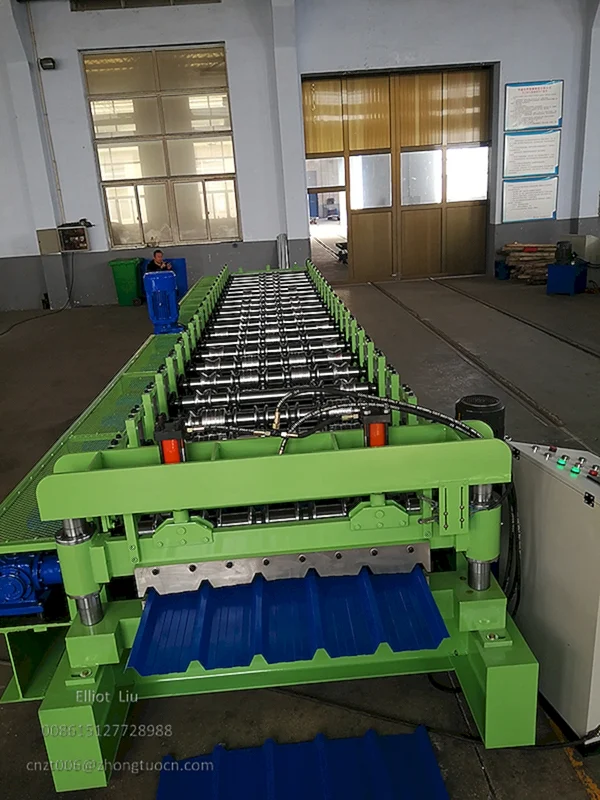

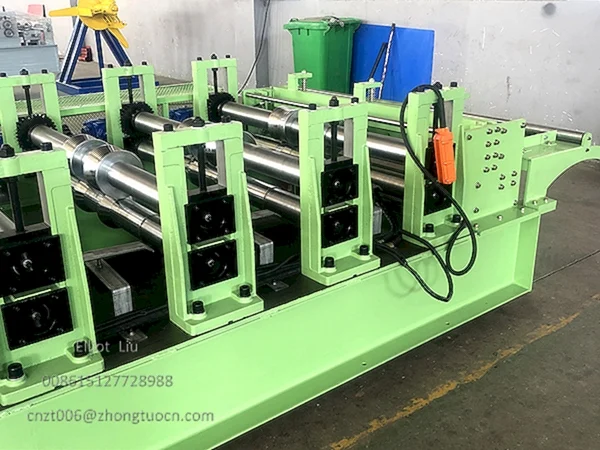

A roof rolling machine does not form roof tiles with a single stamping process. The steel strip passes through 20 rollers in sequence, with each roller bending the material slightly. This gradual forming process is designed to manage stress during the forming stage.

The number of forming stations matches your tile profile and material thickness. The hard chrome plated rollers provide a smooth contact surface for coated panels. The roller layout matches your profile drawing to reach the expected shape and size.

Frame and Shaft

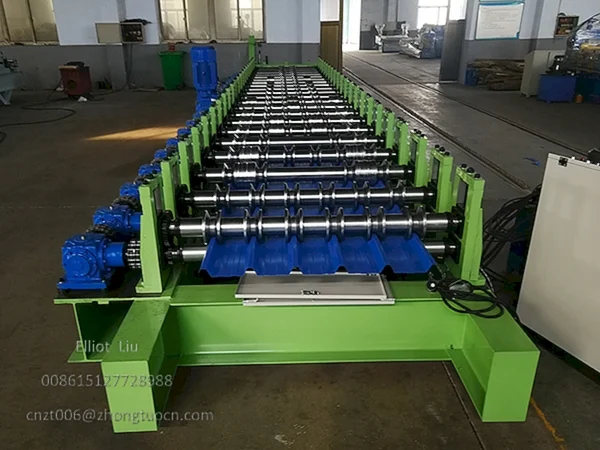

The frame and shaft design on a roof rolling machine provide the structural foundation. This machine uses a 400 H beam steel welded frame weighing 6.5 tons. This welded frame provides support for the forming process.

The shafts use 45# steel with quench treatment and reach a diameter of φ80 mm, providing a load bearing base for forming loads.

Drive Configuration

The drive system provides the power for the entire forming process. The 7.5 kW main motor works with a double chain drive to provide the power transmission mechanism. Motor power configuration considers material thickness, forming stations and production requirements together.

The double chain drive provides reliable power transmission. This drive system works with the core forming machine on a roofing tiles machine to handle daily production needs.

Customization Options

We configure every production line based on specific customer needs. When discussing the solution, providing your profile drawing, material type and thickness requirements helps confirm if the roller design meets your production needs.

You can customize working speed and operating voltage based on local conditions. The touchscreen supports Chinese, English and Spanish as standard. Configuring a roof rolling machine is a systematic process. Provide your actual working conditions, and we will offer a matching equipment solution.

Contact us with your specific requirements to finalize the setup for your roof rolling machine.
