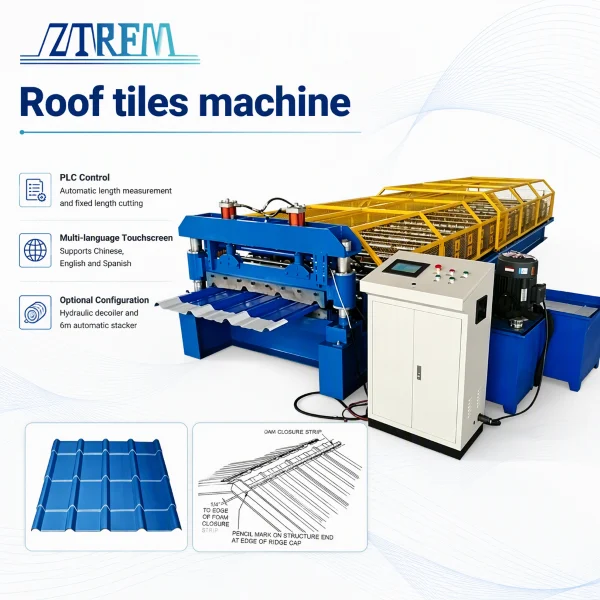

When you plan to buy a roof tiles machine, you need to understand more than the machine itself. You also need to know what parts make up the full production line, which configurations can be customized for your product, and what to prepare from order to production. This buying process is really about confirming the configuration around your profile, material, factory, and output.

Full Line Composition and Main Parameters

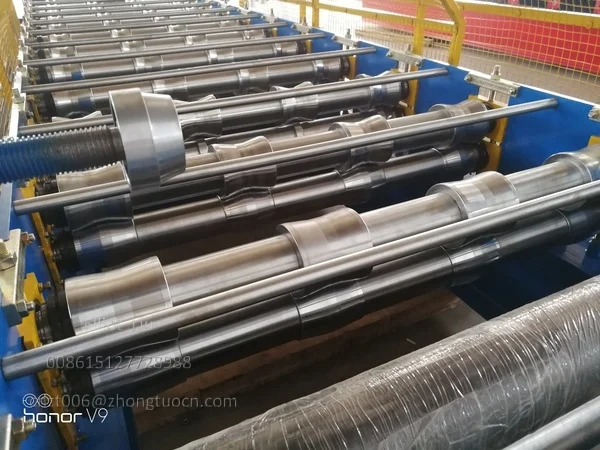

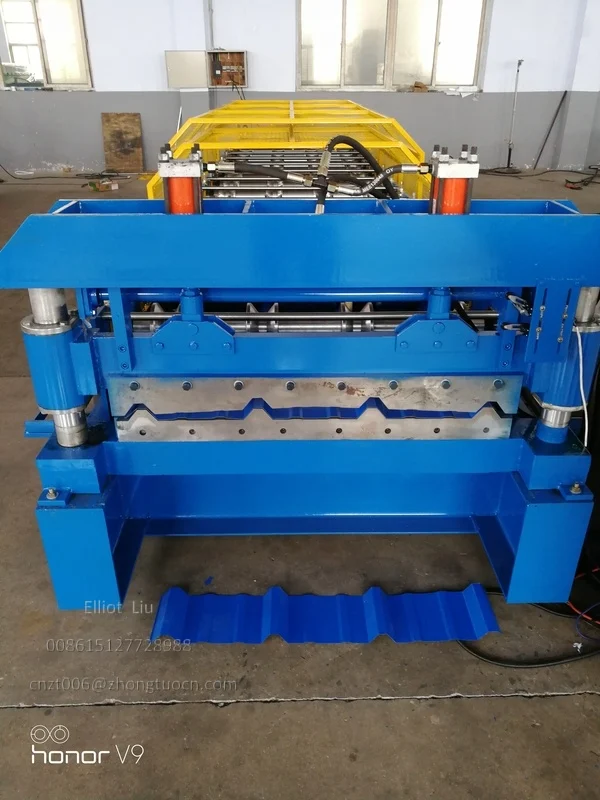

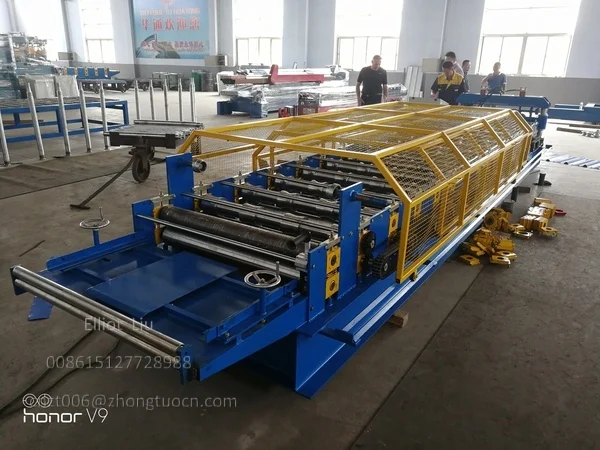

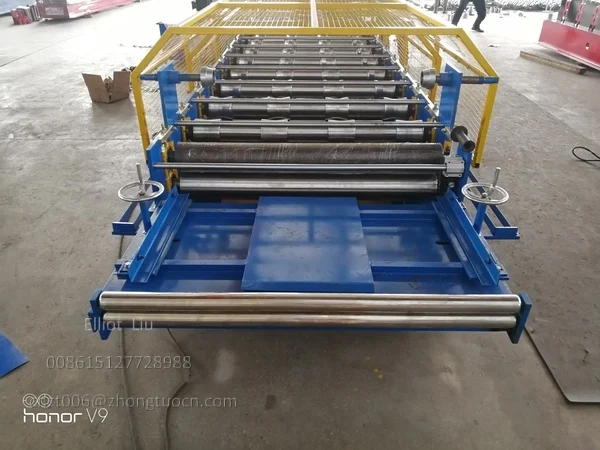

A complete roof tile production line usually includes decoiler, feeding, forming, shearing, hydraulic, electric control and receiving sections. Each section handles a different production task, and the configuration adjusts to your actual needs.

The roof tiles machine combines the decoiler, forming, shearing and receiving sections into one line. These parameters are for reference and can be customized based on your production conditions.

What This Roof Tiles Machine Can Produce

This equipment is used for roll forming metal roof tiles and wall panels. It is a type of roofing sheet roll forming machine. Processable materials include GI, PPGI, PPGL and G550 FULL HARD. Material thickness ranges from 0.16 to 0.55 mm. Raw material width is 1000 mm. Effective width is 812 mm. Working speed is 0 to 20 m/min and can be adjusted based on requirements.

From the equipment function, this type of metal roof tile is commonly used in the following scenarios:

• Roof and wall covering for industrial plants and warehouses

• Sloped roofing for residential housing

• Simple roof structures for agricultural greenhouses

• Metal roofing systems for large public buildings

Different applications have different requirements for tile profile, material thickness and surface quality. You can tell us which category your order belongs to when confirming the profile drawing.

Machine Advantages

This roof tiles machine has several advantages worth noting in actual use:

• Integrated line delivery: Decoiler, forming, shearing, hydraulic, electric control and receiving units confirmed as one line solution for a roof sheeting roll forming machine.

• Clear standard and optional items: 2 manual decoilers and 2 receiving tables are standard. Automatic hydraulic decoiler and 6 m automatic stacker are optional for higher output.

• Customization and delivery in one process: Profile, voltage, speed, language confirmed per customer. Same solution from inquiry to commissioning.

• Optional automation reduces manual work: Automatic hydraulic decoiler has loading cart and speed sensor. Automatic stacker drops and moves tiles out. Less manual work in coil change and collection.

These advantages on a roof tiles machine do not directly equal profit, but they affect labor cost, production continuity and equipment utilization.

Customization Confirmation and Delivery Preparation

You provide profile drawing, material, thickness, speed, voltage and automation needs for your roof tiles machine. We confirm if existing rollers work or need new design. Voltage, speed, automation and language can be customized.

Before arrival, confirm factory space and power. Installation and commissioning discussed at order confirmation. Process runs from profile confirmation to production.

A roof tiles machine with the right configuration helps you match the line to your specific production plan.
