In actual roof tile production, the length consistency of the panels affects the subsequent assembly progress. If the cutting length deviation is too large, workers often need to re measure and do secondary processing on site, which slows down the installation pace and can leave risks at the overlap joints. Therefore, the shearing system design of a stable roofing roll forming machine plays a crucial role in finished product length management.

Applications

This equipment mainly handles continuous roll forming and fixed length cutting of metal roof tiles and wall panels. The materials processed cover common coated steel sheets like GI, PPGI, and PPGL, with a thickness range of 0.16 to 0.55 mm. These finished products are widely used in industrial plants, warehouses, and civil buildings.

For manufacturers purchasing roof tiles machines, the length control during front end production directly affects whether the panels leaving the factory can meet the installation tolerance requirements of downstream construction sites. However, it is important to note that actual installation accuracy also depends on profile dimensions, panel deformation, overlap design, and on site construction methods.

Roofing Roll Forming Machine Advantages

A reasonable shearing system configuration on a roofing roll forming machine can bring practical improvements to production management:

• Favorable for product length management: Automatic control and fixed length cutting provide a unified length baseline for each batch of panels.

• Reducing reliance on manual measurement: Using length measuring elements to control the cutting action replaces traditional manual tape measures, which helps reduce the probability of human error.

• Maintaining a continuous cutting rhythm: The hydraulic drive matches the forming speed, which helps reduce frequent downtime caused by jams in the cutting section.

• Adapting to different profile requirements: The blade shape can match the specific profile section, which helps to get a planned cut.



Hydraulic Drive and Mechanical Structure

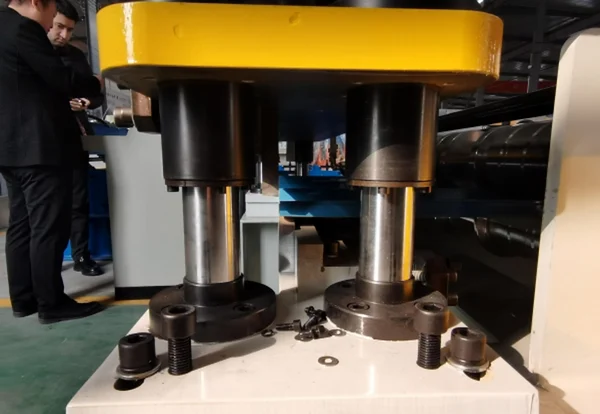

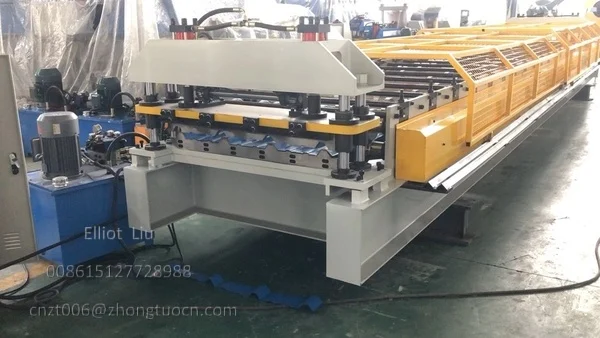

The execution of the cutting action relies on a stable mechanical system. The shearing mechanism uses a hydraulic drive to provide power for the blade pressing down. Meanwhile, the equipment is equipped with a double pillar frame structure.

When the cutting action occurs, the double pillar frame provides structural support for the cutting mechanism. This design aims to improve mechanical stability during shearing. It is important to note that hydraulic power and frame structure are the foundations for ensuring the cut, and the actual cutting quality also depends on the tool condition, material characteristics, and equipment debugging.

PLC Fixed Length Control and Measuring Mechanism

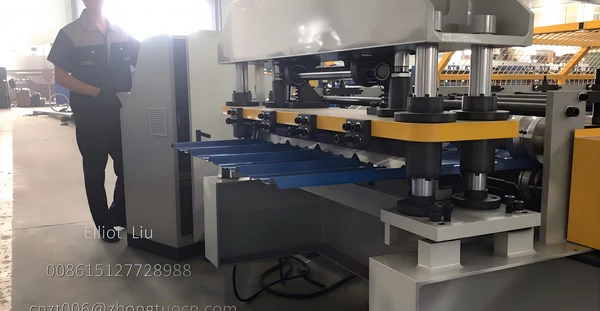

In the control system, the operator sets the target length and quantity through the touchscreen. The equipment is equipped with an Omron encoder to feed back length signals in real time during the feeding process.

The PLC control system receives the measuring signal and judges the cutting timing according to the set logic, and then triggers the hydraulic shearing mechanism to execute the action. After cutting, operators should verify the finished product length through actual measurement to confirm if it meets current production standards. This system aims to reduce manual intervention and improve the continuity of the production process.

Blade Material and Profile Matching

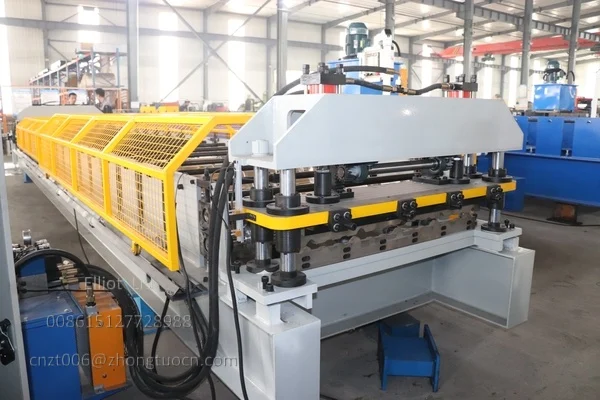

Blade configuration directly affects the cutting effect. This equipment uses Cr12 quenched blades, a material widely used in cold roll forming shearing that can handle the cutting needs of conventional coated steel sheets.

Besides the blade material, matching the blade geometry with the roof tile profile section is equally important. Profiles with different wave heights and pitches need corresponding blade shapes. In actual procurement and production, the blade specifications need to be confirmed according to specific profile drawings. Blades will experience normal wear after long term use, so production processes require regular inspection and maintenance or replacement.

Roofing Roll Forming Machine Parameters

Configuration Confirmation and Customization Options

Confirm these configurations before ordering to match your production needs:

• Profile and blade: Confirm the cross section and matching blade geometry.

• Material and thickness: Ensure material type and thickness fit the machine's applicable range.

• Tolerance conditions: Check testing conditions for length tolerance.

• Electrical and language requirements: Operating voltage and system language (standard Chinese, English, Spanish) can be customized based on local conditions.

As a metal roof tile making machine, the final configuration depends on your drawings and actual production needs. A properly configured roofing roll forming machine helps you manage product length for daily production.
