Changing coils should be simple. But when the coil car wobbles, jams during forward movement, or tilts during lifting, workers end up using pry bars and their own body weight to force the coil onto the mandrel. Ourhydraulic decoiler with coil caris built specifically to solve these loading problems. One coil change can take over ten minutes, and with several changes per day, half a shift can disappear. If a several ton steel coil rolls off a tilted car, the consequences are too serious to imagine.

Applications for the Hydraulic Decoiler with Coil Car

The hydraulic decoiler with coil car serves many production lines. It works well in any operation that requires frequent coil changes and high efficiency.

• C purlin and Z purlin roll forming lines
• Solar panel mounting structure production
• Cable tray roll forming lines
• Sound barrier panel punching and forming lines
• Home appliance panel stamping lines
• Slitting and cut to length lines

These lines require at least two to three coil changes per day. Some workshops handle mixed orders and change coils up to eight times daily. The coil car stability directly determines daily output volume.

Why Coil Cars Become Unstable

Standard coil cars use four guide columns. This design causes instability during lifting. Steel coils are round, and their center of gravity is not always centered. When the coil shifts, the load distributes unevenly across the four columns. Some columns bear heavy loads while others carry almost nothing. The car tilts. Poor quality hydraulic cylinders make the problem worse. Left and right lifting speeds differ, which increases the tilt angle.

The hydraulic decoiler with coil car uses a five guide column design. The extra column creates more contact points and distributes the load more evenly. No matter where the coil weight centers, all five columns share the force. The lifting cylinders come from Beijing Huade, a trusted hydraulic brand. The valve groups synchronize well. All columns lift together and lower together. The car stays level throughout the entire cycle.

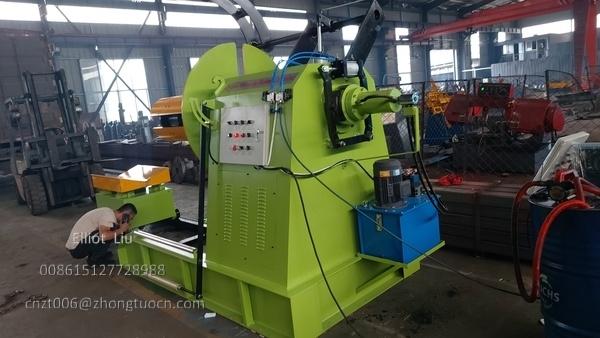

Hydraulic Lift and Forward Movement

The coil car performs two main actions. The lift action raises the coil from ground level to the spindle height. The forward action moves the coil onto the spindle. Both actions are essential for smooth loading.

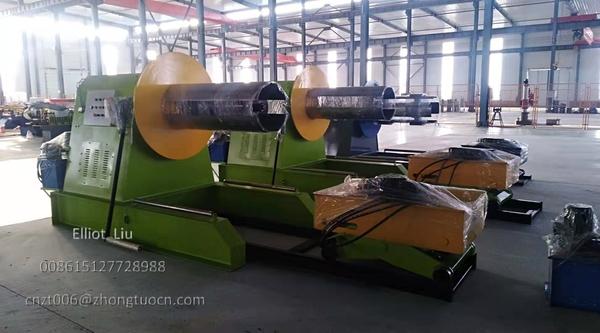

The lift uses a hydraulic cylinder with 110 mm bore diameter and 300 mm stroke. This cylinder provides enough force for 5 to 7 ton coils. The forward movement uses a type 400 hydraulic motor. The motor drives the car along a 3.0 meter rail. The rail width measures 950 mm, which provides ample movement range. After the forklift places the coil on the car deck, the car moves forward automatically. No pushing or manual lifting is required. Workers simply press a button on the remote control.

Technical Specifications

One Year Warranty and Build Quality

A one year warranty is common in the industry. What matters is what the manufacturer actually covers.

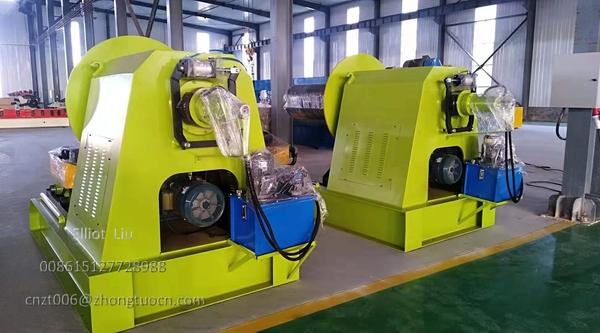

The hydraulic decoiler with coil car carries this warranty because of its material quality. The base uses 300H steel (non standard specification). The box body uses 14 mm steel plate welding. The main spindle comes from thick wall seamless steel tubing, machined to 194×45 mm diameter. All welds are full penetration. The spindle undergoes heat treatment for uniform hardness. It does not bend or break under heavy loads.

Hydraulic components come from Beijing Huade. The motor and VFD use Delta and Chint/Delixi brands. These are well known names in the industry. Replacement parts are available nationwide, not just from overseas suppliers.

The one year warranty represents confidence in this material and process combination. If anything fails during normal use in the first year, the manufacturer covers repair or replacement. With this build quality, the machine will continue running for five to eight years after the warranty ends.

Time and Labor Savings

What does an unstable coil car actually cost?

A stable coil car completes each change in five minutes. An unstable car takes at least twenty minutes for adjustment, shimming, and forcing the coil into place. With four changes per day, the difference is one full hour. Over twenty two working days, that equals twenty two lost hours. Think about how much product those hours could have produced.

Labor costs also add up. One worker with a remote control operates a stable car alone. An unstable car requires two workers plus a forklift. Labor costs double, and safety risks multiply.

A good coil car saves time and manpower, not just equipment purchase costs.

Frequently Asked Questions

Q: Can the lift and forward speeds be adjusted?

A: The lift speed is controlled by hydraulic flow rate. The forward speed is controlled by the hydraulic motor. Both are set to reasonable ranges at the factory. If you need specific speed requirements, you can mention them when placing your order.

Q: Does the one year warranty cover the coil car?

A: Yes. The full machine warranty covers one year. It includes all hydraulic components, electrical parts, and structural parts on both the main machine and the coil car. Wear parts such as seals are not covered, but the manufacturer provides spare parts support.

Next Steps

If your current decoiler has an unstable coil car, or if you are selecting new equipment, here is what to do:

1. Measure your current coil dimensions. Write down the inner diameter, outer diameter, width, and weight.
2. Check the area where the coil car operates. Is the floor flat? Is there enough space?
3. Contact the manufacturer with this data. Request a car matching plan and a quotation.

The manufacturer can also send a video showing the car running in real production conditions.
