Stainless steel water ripples metal embossing machine

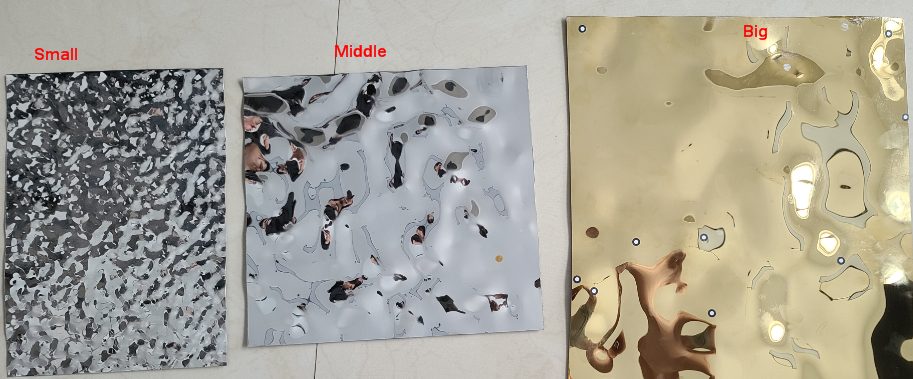

Stainless steel water ripples metal embossing machine is designed to make the metal embossing in batch fully automatically. Forthe water ripples metal embossing, we mainly use the stainless steel and as to the water ripples we have three types like big waves, middle waves and small waves. Here are some pictures for your reference:
h888a866867b7450e8bfed28ab585fb016 1784172807 F0AG

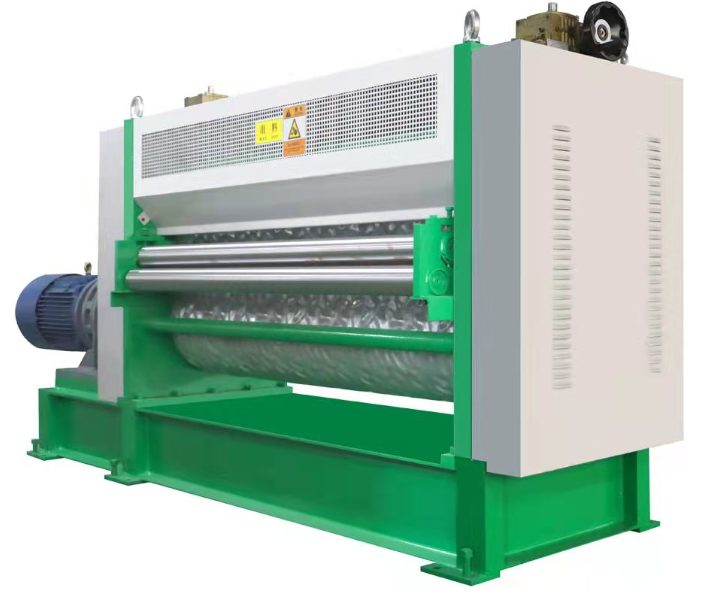

Products Display
h2e04feca071e4647a1f7ca7847555ab3g 1784172808 RdFj
he5bf72fc5e3d4d9d8d70f86866194bdfi 1784172808 XNCC

Introduction

Metal sheet embossingis a stamping process to produce various designed patterns in sheet metal by passing the sheet in roll or a strip of metal between rolls of the desired patterns. Metal sheet or steel coil is fed into the male and female roller dies on a sheet metal embosser so that a pattern or a design will be engraved on the metal sheet.
Parts to introduce

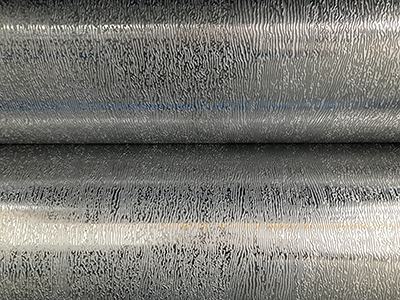

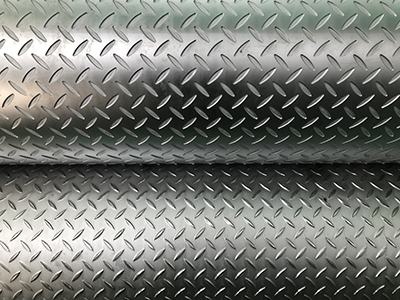

h0ae917eea7084161ab9e3d23ca751097b 1784172809
hfc4f226824dd4e798489c21affbc4fffz 1784172810 9l3y
hafc0775c9c97440bb7d3317b088102547 1784172811 e2eC

Other design

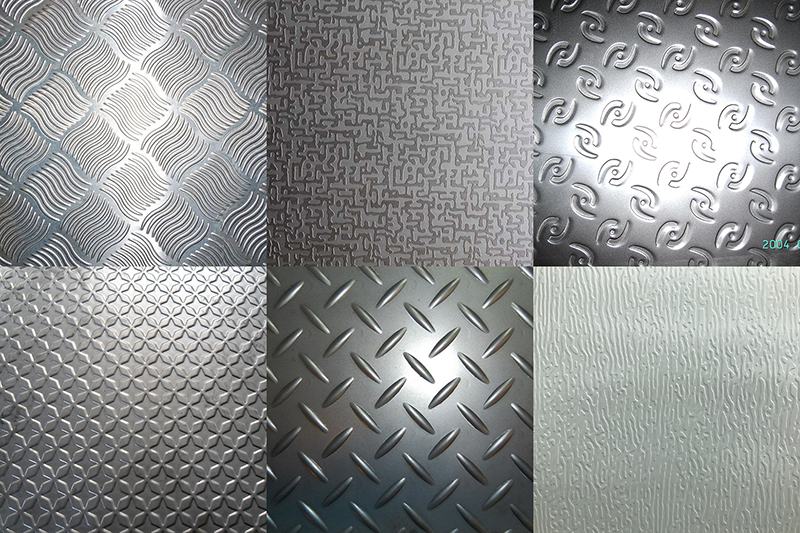

Different designed patterns can be embossed by changing the designing of roller dies on the embossing machine. A metal sheet embosser produce the patterns on each every fed piece of metal sheets, while a metal sheet embossing machine line can produce designed patterns continuously on uncoiled or unrolled metal sheet and after the embossing process, the embossed metal sheet will be re-rolled or re-coiled for other purposes.
h0bcd067db3694bf3a31edb67fe6009d5b 1784172811 rq9c
Main Parameter
 Machine parameters for your reference
Embossing machine:
1. Embossing roller material: 42crmo solid forged alloy steel
3. The thickness of the pressed material: 2mm
4. Width of pressed material: within 1500mm
5. Speed: 0-8m/min

6. Pattern: water ripple
7. Material to be pressed: 304 stainless steel.
8. Pattern depth: 0.5-2cm, pattern depth is adjustable
9. Embossing roll specifications: ø410*1600mm. The width of the pressed material finished product is less than or equal to 1500mm;
10. Roll structure: integral forging;
11. Roll heat treatment: medium frequency quenching of the roll body;
12. Roll hardness: ≦HRC55;
13. Roll pattern: According to drawing requirements: CNC engraving;
14. Flower roller surface: anti-rust treatment (self-spraying chrome paint)
15. Rolling mill stand; steel plate combined structure
16. Rolling mill drive; adopts frequency conversion speed regulation
17. Embossing method; two rolls of concave and convex opposing pressure
18. Pressure adjustment method: reducer pressure adjustment (upper embossing roller and lower embossing roller matching gear
adjustment function)
19. Center height (between the ground and the two rollers): 750mm
20. Electric control part; independent control cabinet
21. The gap between the rolls can be adjusted
22. Flower roller: detachable to change the roller.
23. Cycloidal pinwheel reducer: XWD8-15
24. Frequency conversion motor power: 15KW/380V(50Hz) 3 phases, (voltage optional)
25. Inverter brand: Delta
26. Three-phase asynchronous motor: Nanjing Shunbai Motor Co., Ltd.
 Leveling Machine:
(1) Material of leveling roll: forged steel
(2) Specification of leveling roller: 150*1350 (3) Number of rollers: 11 rollers (4) Surface of leveling roller: chrome plated
(5) Cycloidal pinwheel reducer: XWD7-87-5.5
(6) Frequency conversion motor power: 5.5KW/380V
(7) Leveling machine frame: steel plate structure
(8) Quantity: 1 set
Color: regular blue or customized
Overall dimensions of a single unit: 6000mm*6800mm*1700mm (take the actual product as the standard)
Single embossing machine: 12000Kg (based on the actual weight)
Single leveling machine: 2500Kg (based on the actual weight)
Single receiving rack: 500kg (based on the actual weight)
