You might have faced this confusion when evaluating leveling and shearing equipment. Different manufacturers give different thickness specs. Some say 3.0mm. Others say 4.0mm. But few explain what these numbers really mean for your production.

The 4mm upper limit matches the thicker sheet requirements commonly seen in steel structures, solar mounting systems, and storage racking. Our equipment sets its thickness limit right there. It pairs this with a 17 roller leveling system to deliver consistent flatness across the entire spec range.

This article looks at two angles: where the thickness parameter fits in the industry, and the engineering logic behind the roller system. Together, they show how this steel roll to sheet cutting machine builds its core capability.

Applications

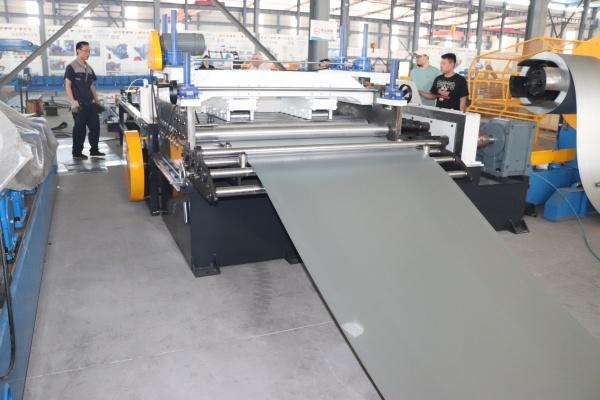

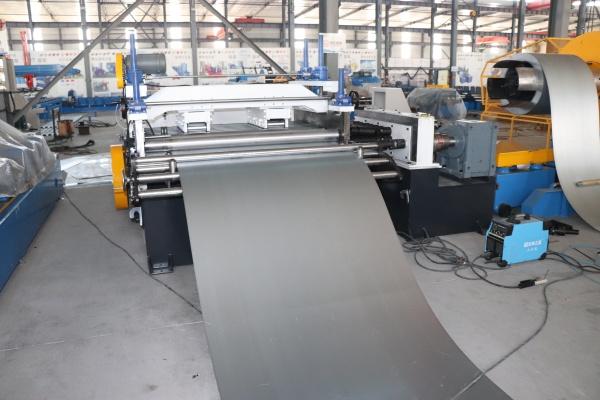

This steel roll to sheet cutting machine processes coils into flat, dimensionally accurate sheets. These sheets go to downstream roll forming, stamping, and bending operations.

Primary finished products include:

• Uprights, beams, and shelves for storage racking systems
• Rails, posts, and connectors for solar mounting structures
• Troughs and covers for cable tray systems
• Truck floor panels and stamping blanks for automotive parts

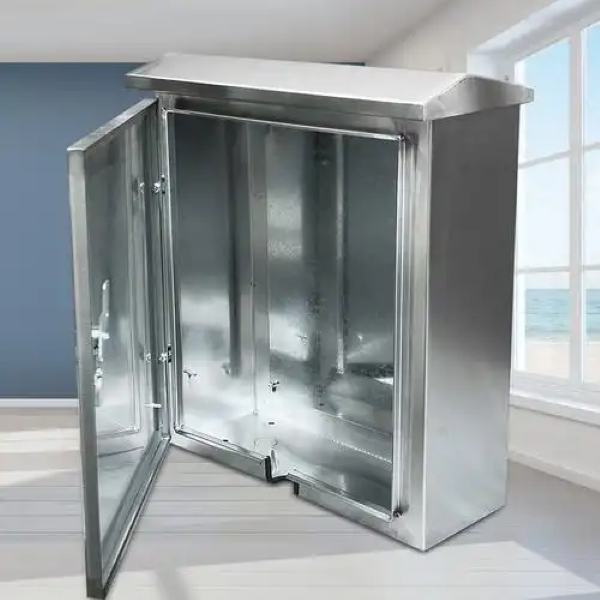

• Light gauge steel framing, rolling shutter doors, and equipment housings

These products are widely used in:

• Steel frameworks for industrial plants and logistics warehouses
• Racking systems for ecommerce fulfillment centers
• Ground mount and rooftop solar array support structures
• Power and communication cable management systems
• Commercial vehicle body manufacturing
• Light gauge steel partition systems for residential construction

One piece of equipment serving multiple industries. That is the investment value of a wide width leveling and shearing solution.

Technical Specifications

These numbers define what the machine can handle. Thickness up to 4mm. Width up to 1500mm. Coil weight up to 15 tons. Understanding these boundaries is the first step in matching the equipment to your production needs.

Selection Boundaries

What 4mm Means for Your Production

The thickness range of this steel roll to sheet cutting machine runs from 0.4mm up to 4mm. This covers the common CR and GI gauges used in building, solar, and storage applications.

Solar mounting purlins typically use 1.5mm to 3.0mm sheets. Storage rack uprights and shelves fall in the 1.5mm to 3.0mm range. Steel building wall panels and decking sit in a similar thickness band. The 4mm upper limit gives you extra room for thicker jobs.

The Value of Wide Width Coverage

The 500mm to 1500mm width range gives this equipment strong adaptability. Narrow sheets down to 500mm work for small stamping parts. Wide sheets up to 1500mm serve large building panels and decking.

You do not need separate machines for different width orders. One steel roll to sheet cutting machine covers most requirements from narrow to wide. This flexibility directly improves your equipment utilization.

Leveling Logic

Why Leveling Matters

You may have seen this problem before. Sheets come out at the right length, but the surface shows waves or warping. The issue often traces back to the leveling stage.

Leveling removes the residual stress left from rolling and coiling. As the strip passes through the leveling machine, the work rollers apply repeated bending. This evens out the internal fiber lengths and releases the stress. Leveling quality directly determines the final sheet flatness.

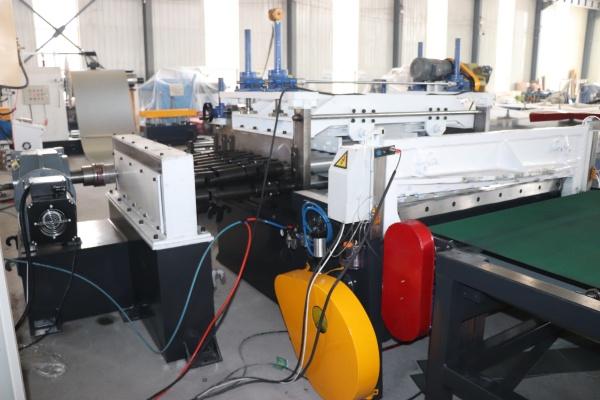

What the Backup Rollers Do

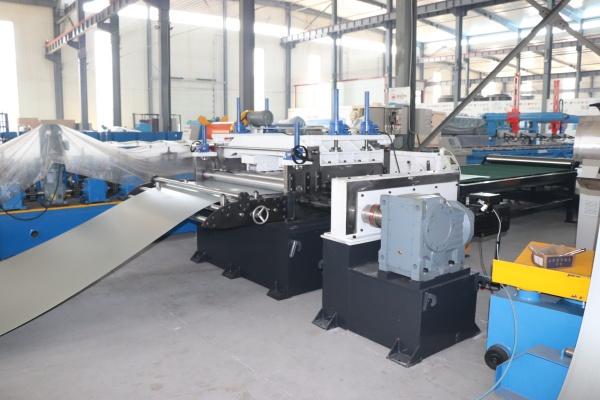

This machine uses a four high leveling structure with 3 backup roller groups. The backup rollers sit behind the work rollers and provide rigid support along the full length.

On two high leveling machines without backup rollers, the work rollers bend and deflect under load. This creates uneven pressure across the sheet width and hurts flatness. The backup rollers keep the work rollers straight and distribute pressure evenly.

The results are flatter sheets, more even roller wear, and longer precision life.

Materials and Manufacturing

Roller Material Selection

The work rollers use GCr15 bearing steel with surface hardness of HRC58-60. GCr15 is the standard bearing steel. It delivers high hardness after quenching and tempering, plus excellent wear resistance and contact fatigue strength.

All rollers are driven and carry needle bearing support at both ends. Each roller gets reliable support for sustained precision under continuous operation.

Four High Structure Benefits

The four high structure keeps the work rollers evenly loaded and reduces wear. The work rollers use a worm gear manual adjustment with two handwheels to set the gap and maintain leveling quality.

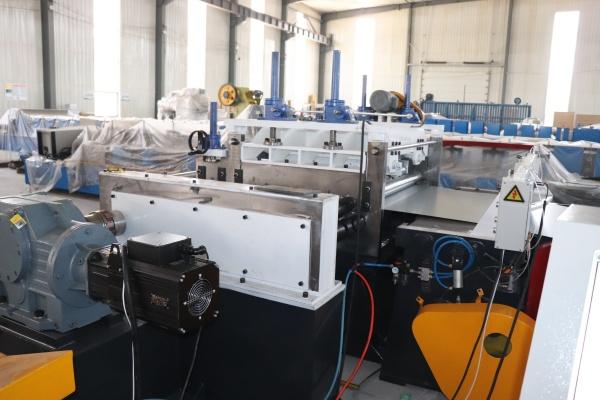

All rollers connect to the gearbox through independent couplings and run on a 55KW AC motor. This drive setup gives every roller full power delivery.

The frame is welded from steel plate and section steel. The structure is rigid enough for long, continuous operation.

Shearing and Control System

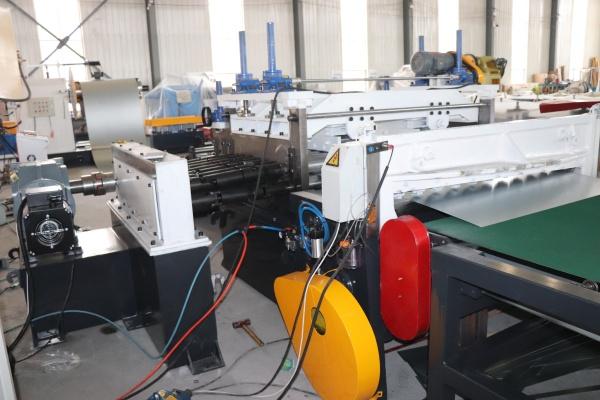

Hydraulic Shear Capability

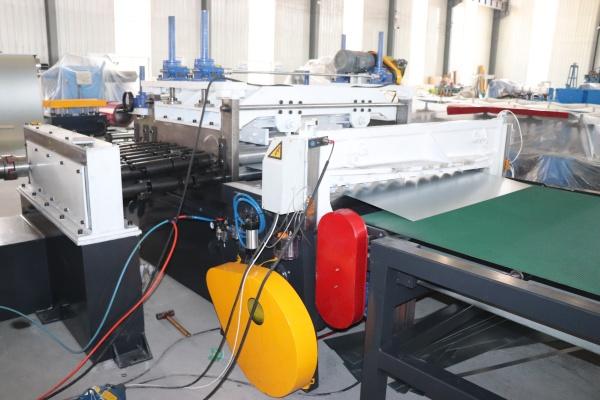

The shear uses a guillotine action cutting from top to bottom. It works with signals from the feeder and cuts automatically. The hydraulic drive safely shears sheets up to 4mm thick.

The shear has a gap adjustment feature for different thicknesses. This ensures clean cut quality across your material range.

PLC Control and Length Setting

The control system uses a PLC to manage the whole line. It controls encoder based length setting and automatic cutting with piece counting. Operators set length, adjust speed, and monitor production from the control panel.

The PLC works with the encoder for precise length control. Diagonal tolerance stays under 2mm. Length tolerance holds within ±1.5mm. Leveling precision reaches ±1.5mm.

Conclusion

This steel roll to sheet cutting machine combines thickness capability, roller system design, and control precision in one package. The 4mm upper limit gives you capacity for thicker sheets. The 17 work rollers with 3 backup roller groups deliver flatness. The Siemens PLC and encoder based length control ensure cutting accuracy.

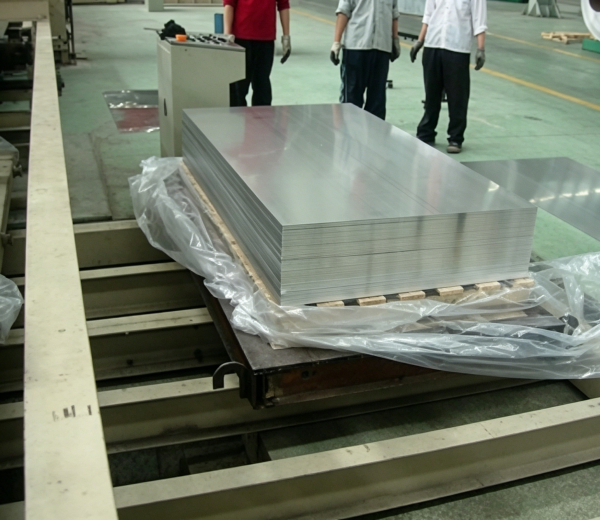

From a 15 ton coil to neatly stacked, precisely cut sheets, one operator monitors the entire line. If you are evaluating leveling and shearing equipment options, or if you expect better efficiency and quality from your existing line, we are ready to offer suggestions based on your specific needs.
