If you run a metal processing shop, you know construction orders are large and delivery is tight. A sheet metal slit machine that runs continuously without stopping is what you need.

Maintenance costs and spare parts supply also affect your profit margins. This sheet metal slit machine keeps running during coil changes, and you can buy spare parts locally.This article covers how it handles large orders through continuous flow and lowers long term costs through simple maintenance.

Application Areas

The strips produced by this sheet metal slit machine supply these metalworking industries:

• Automotive parts manufacturing: stamping blanks for body brackets, exhaust pipes, and seat frames
• Home appliance manufacturing: shells and internal structural parts for refrigerators, washing machines, and air conditioners
• Construction metal products: C purlins, Z purlins, and other structural sections
• Tube and pipe manufacturing: round tubes, square tubes, and rectangular tubes
• Electrical equipment manufacturing: transformer cores and motor stators and rotors

Continuous Flow Design

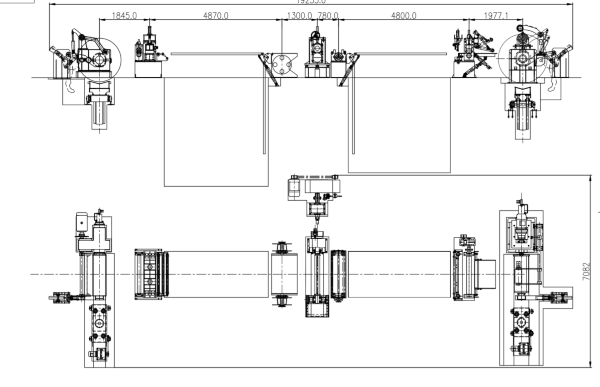

This sheet metal slit machine uses a straight line layout from right to left. All units line up in sequence, and the coil flows from uncoiling to recoiling without stopping. You don't need to worry about downtime during coil changes. The equipment has loopers placed after the uncoiler, before the slitter, after the slitter, and before the recoiler. When you change a coil, the loopers hold extra strip material to keep the slitter running. The whole line needs only three operators and delivers about 40 tons of finished product in an eight hour shift.

Looper Buffering

The uncoiler feed speed and the slitter cutting speed can never stay perfectly matched. Without loopers, speed differences would stretch the strip or cause it to pile up and scratch.

This sheet metal slit machine uses loopers to solve this problem. When the uncoiler runs slow, the looper continues supplying material. When the uncoiler runs fast, the extra material stores in the looper.

The slitter always has material to cut. No stops.

Side Guide and Slitting Accuracy

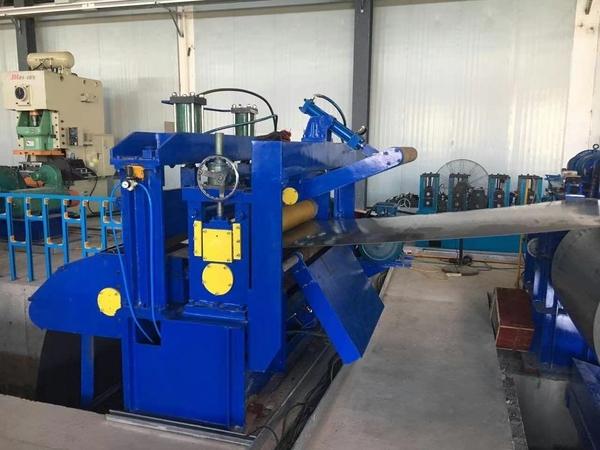

The strip passes through the side guide device before entering the slitter. Vertical rollers on both sides hold the strip centered to prevent wandering.

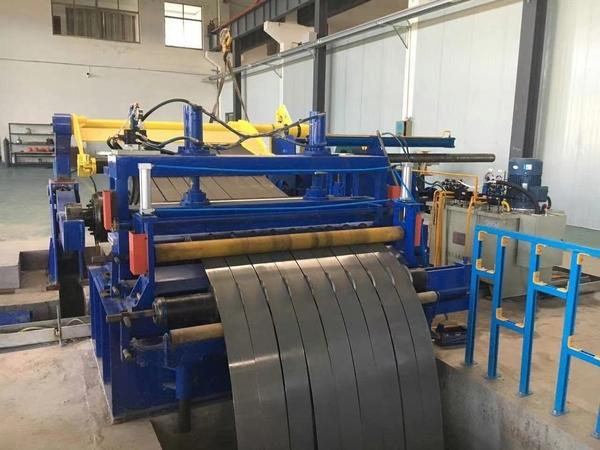

Then the strip enters the slitter, where circular blades cut it into multiple narrow strips along the length direction. Blade gap adjusts based on material thickness. Thick material needs a larger gap; thin material needs a smaller gap. The equipment holds slitting width accuracy within ±0.05mm, with smooth edges and no burrs.

Recoiling and Unloading

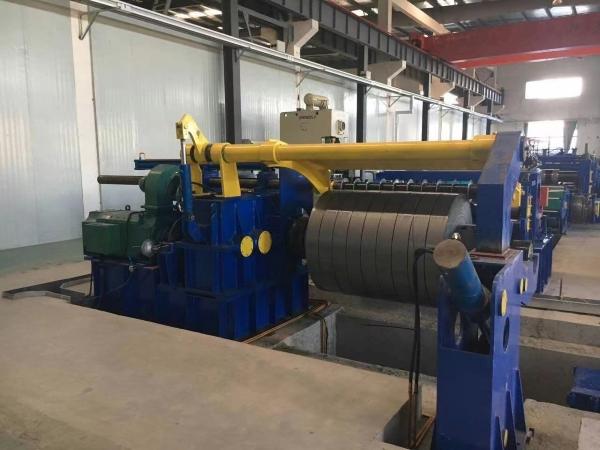

The slit strips pass through the second looper and the tension stand before entering the recoiler. The tension stand applies backward pull to keep the strips tight during recoiling. The recoiler winds the strips into tight, uniform coils. The expanding mandrel holds the coil core securely from inside. After winding, the mandrel releases and the exit coil car carries the finished coil away.

Have you dealt with loose coils that fall apart during unloading? Construction material like C purlins and Z purlins require tightly wound coils. Loose coils cause feeding problems at the job site. The tension stand paired with the hydraulic expanding recoiler keeps finished coils tight and neat from both tension control and mandrel holding.

Core Technical Parameters

The following parameters come from actual production test records:

Easy Maintenance

Maintenance cost is a real concern after you buy equipment. The wear parts on this sheet metal slit machine, including seals, bearings, hydraulic fittings, and electrical components, all use standard off the shelf sizes.

Your maintenance crew can buy replacements from local industrial supply shops. No need to wait for factory shipments. The hydraulic lines and electrical wiring are laid out clearly. When something goes wrong, you can find it quickly without removing multiple covers.

Daily maintenance just needs regular lubrication and simple circuit checks. No complicated procedures. A regular mechanic can handle it. Take seals as an example. Standard size seals are available at local hardware shops with clear pricing. You don't need to pay premium prices from the original factory.

Equipment Durability

The frame on this sheet metal slit machine uses heavy steel plate, welded as one piece. Not bolted together. It won't deform under long term heavy loads, and it holds accuracy for over a decade.

The surface has rust removal and paint treatment to handle humid or dusty workshop conditions. The uncoiler and entry coil car handle 15 ton coils with frequent heavy loading. No problems.

A machine that deforms in five years and a machine that stays accurate for fifteen years: the cheaper one costs more in the long run. This sheet metal slit machine is the second type.

Quality Assurance

Every machine undergoes full operational testing before leaving the factory, and we provide test reports.

You can see the machine's actual performance at your material thickness: speed, accuracy, and running stability.

The equipment comes with a one year warranty. Installation guidance is available remotely or on site. We offer regular maintenance recommendations after delivery. You pay after confirming everything works. Someone is there to help.

If you'd like to explore how this sheet metal slit machine fits your specific material specs and workshop conditions, just contact us. We can offer recommendations and technical information based on your actual needs.
