If you are struggling to find skilled operators for yourcutting slitting machineor feeling overwhelmed by frequent specification changes and shrinking order sizes, you are not alone. The metal processing industry faces two common challenges: experienced workers are retiring and hard to replace, while customer orders have shifted from large volume with few specifications to small volume with diverse specifications.

The cutting slitting machine was designed with these two issues in mind. It addresses both the operational skill requirements and changeover efficiency. Now let us take a closer look at how this equipment handles these challenges.

Main Applications of the Cutting Slitting Machine

The cutting slitting machine cuts wide steel coils into multiple narrow strips along the length direction. It serves as a critical bridge in the metal processing chain. The slit strips feed into various downstream operations:

• Automotive manufacturing: stamping raw materials for body panels, structural brackets, exhaust components, and other parts
• Appliance industry: precision slitting for refrigerator, washing machine, and air conditioner shells with dimensional accuracy reaching 99.5% or higher
• Construction sector: base materials for metal roofing, wall cladding, C purlins, and Z purlins
• Tube and pipe manufacturing: continuous welding raw materials for round tubes, square tubes, and rectangular tubes
• Electrical industry: silicon steel strips for transformer cores and motor stators and rotors

These industries share consistent requirements for the narrow strips: accurate width, smooth edges, and tightly wound coils.

Core Technical Parameters

The following parameters come from actual production test records of the equipment:

Production Flow: Full Automatic Operation from Uncoiling to Recoiling

The complete production line arranges from right to left with the following unit sequence:

Entry coil car → Decoiler → Press and pinch device → Hydraulic cutter → Looper 1 → Side guide device → Slitter → Scrap winder → Looper 2 → Tension stand → Recoiler → Exit coil car

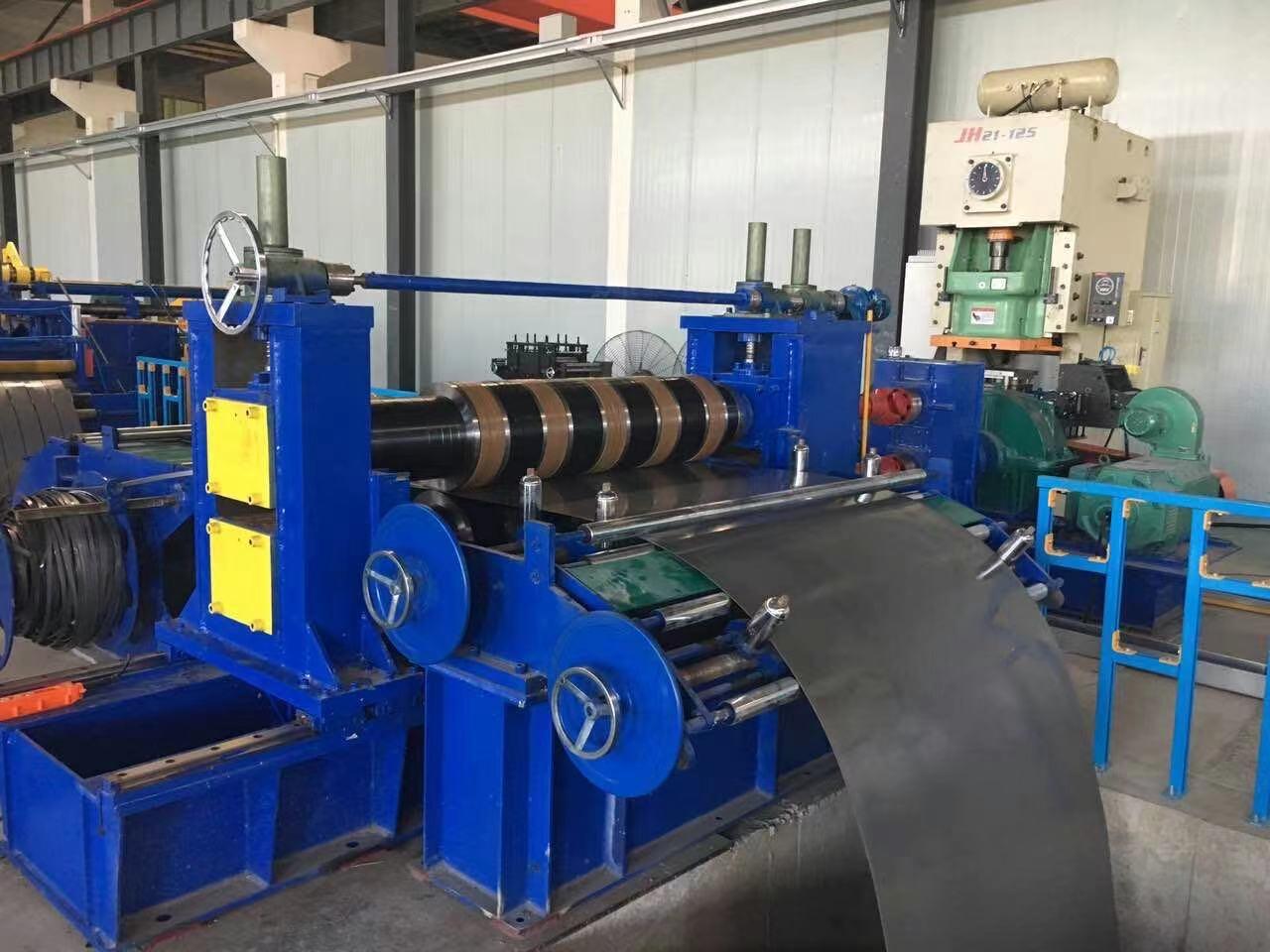

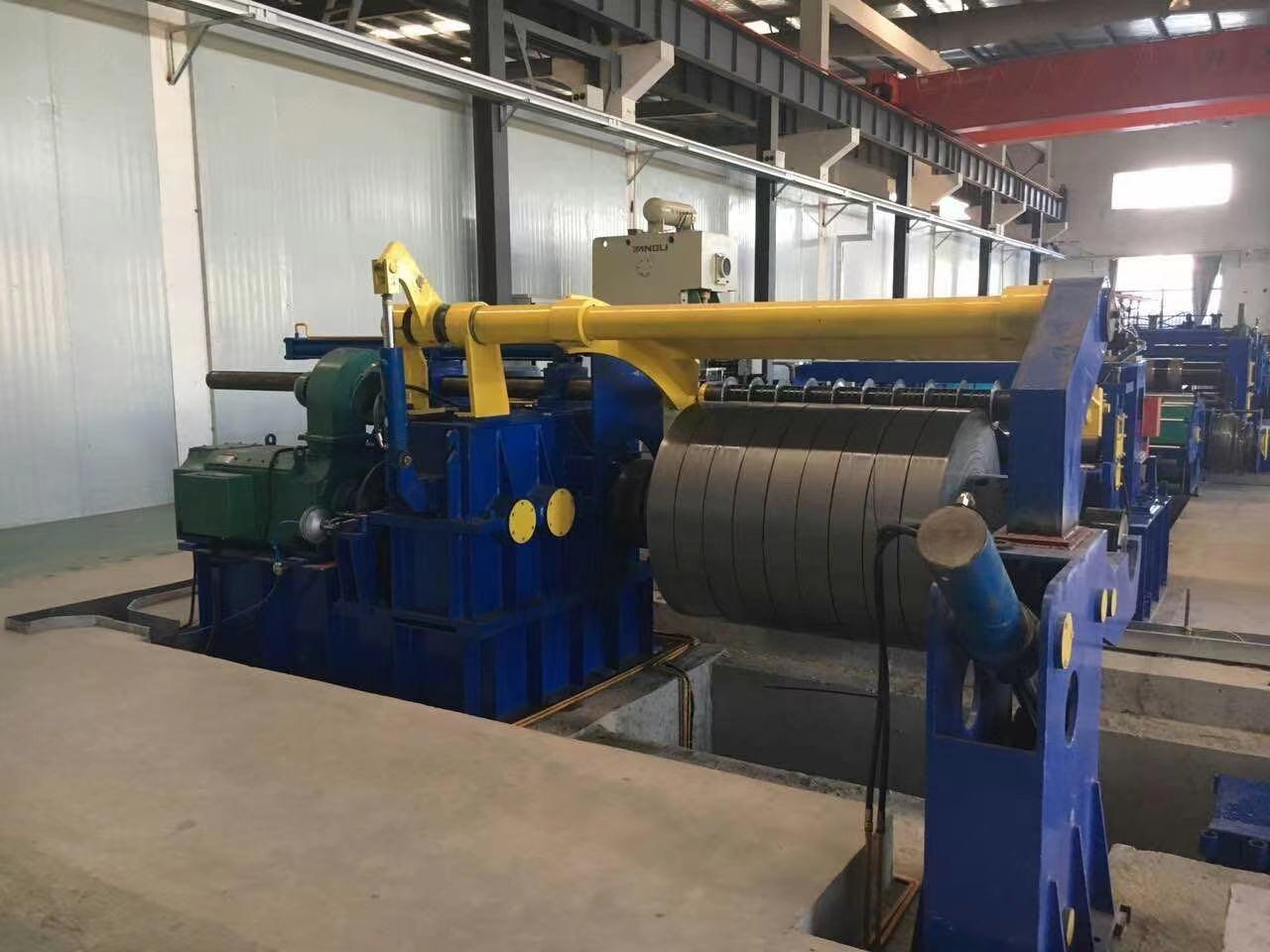

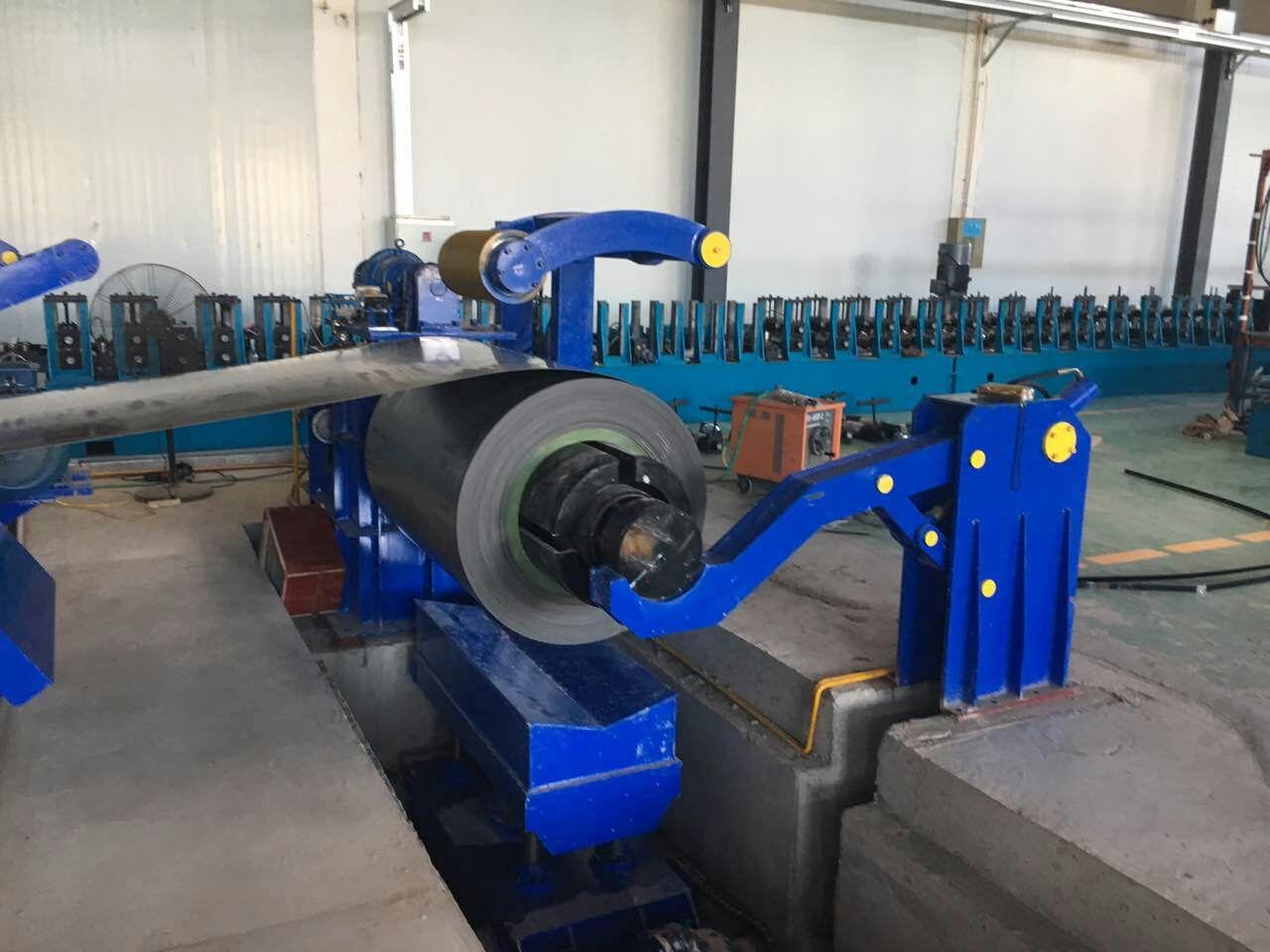

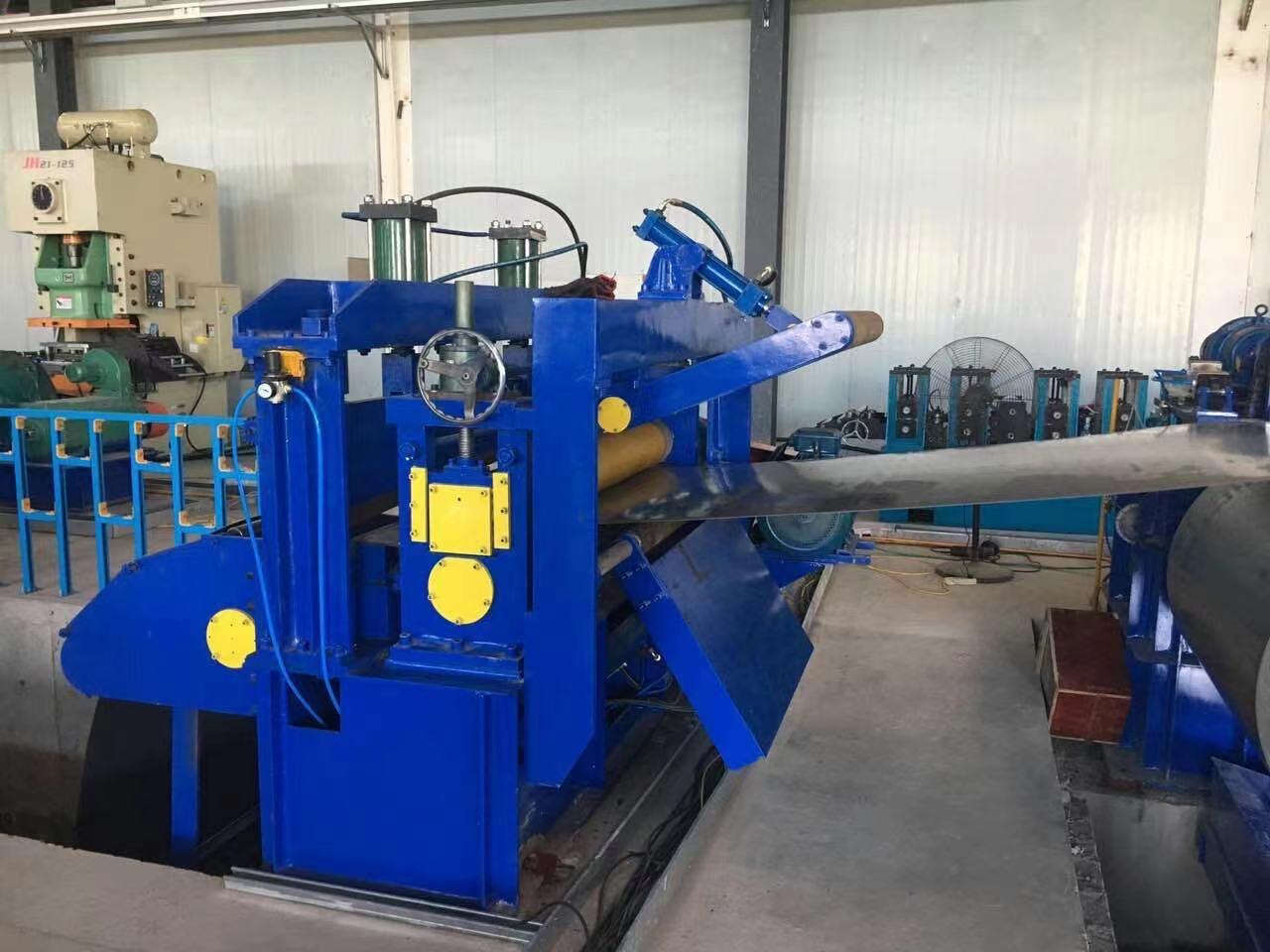

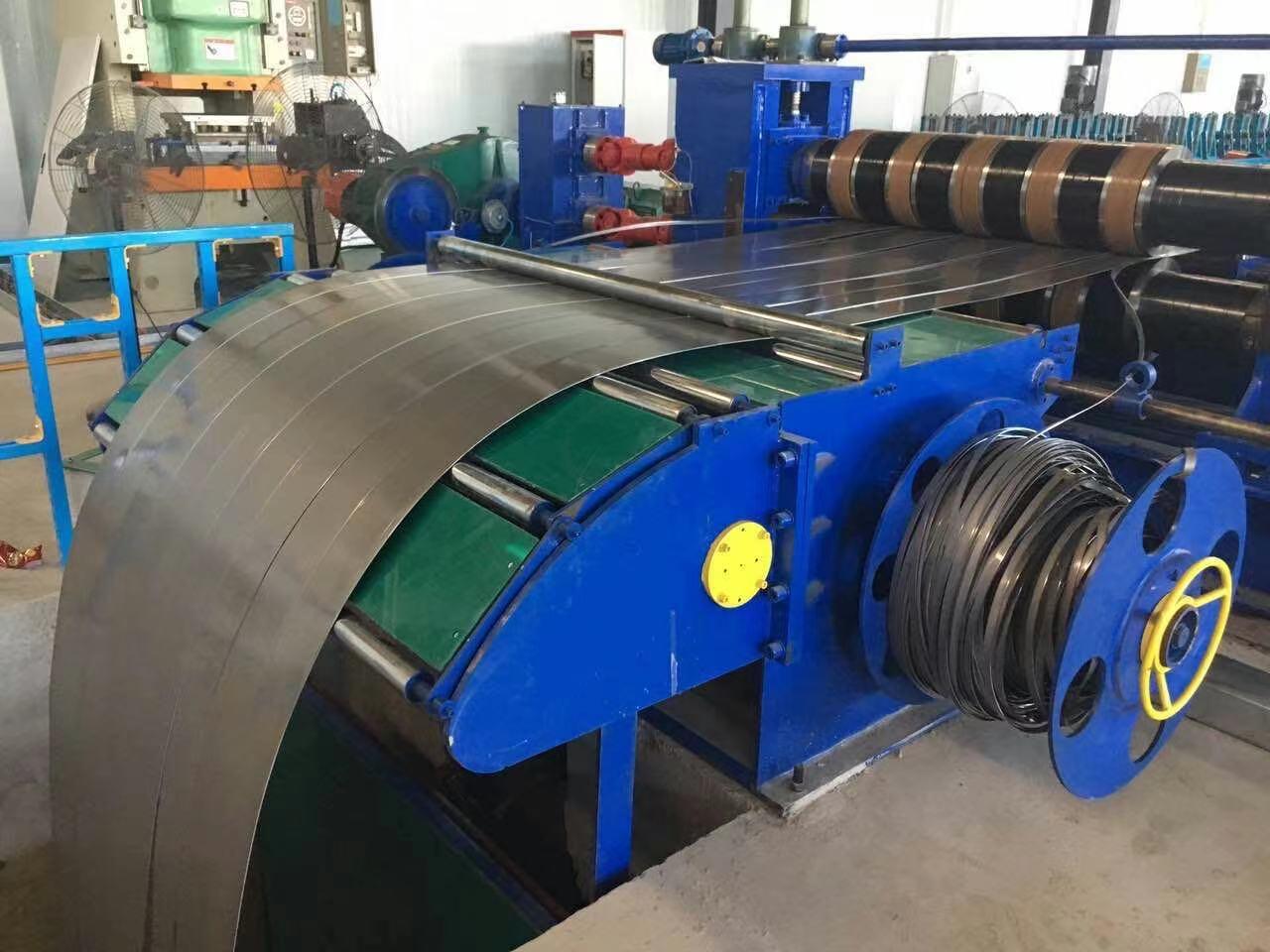

Steel coils pass through each unit in the order shown above, running continuously from uncoiling to recoiling. The entry coil car delivers the coil to the decoiler. The decoiler unwinds the steel plate while the press and pinch device pushes it forward. The hydraulic cutter trims the uneven coil head. The strip passes through looper 1 for buffering before entering the side guide device which ensures proper centering. The slitter cuts the steel plate into multiple narrow strips while the scrap winder collects the edge trim. The strips pass through looper 2 and the tension stand before entering the recoiler which winds them into finished coils. The exit coil car carries the finished coils away.

Solving Labor Shortages: Lowering Operational Barriers and Reducing Workforce Dependence

Older cutting slitting machines rely on operators to adjust tension, manage speed, and correct wandering based on experience. Training a skilled operator typically takes months or even half a year. When an experienced worker leaves, replacements cannot keep up and production stops.

This cutting slitting machine uses PLC centralized control with one button start for the entire line. Operators set the slitting width and production quantity on the touchscreen. The machine automatically handles feeding, uncoiling, trimming, slitting, and recoiling without requiring workers to judge acceleration or deceleration timing.

The line requires only three people: one mechanical engineer and two general workers. New workers can learn basic operations after half a day of training alongside an experienced employee. Dependence on senior operators drops significantly.

Handling Diverse Specifications: Quick Changeover and Flexible Switching

Orders are becoming increasingly fragmented. Today the job requires 500mm width and tomorrow it requires 1200mm width. If adjusting the width takes half a day, the production line spends most of its time stopped for changeovers.

The side guide device uses motor driven screw adjustment with a width range of 500mm to 1600mm. Operators enter the target width on the control panel. The motor automatically moves both side guide rollers and completes the changeover within minutes. Blade gap adjustment also works without removing the slitter shafts when switching between thick and thin materials.

Small batch orders are no longer a burden. With changeover times reduced to minutes, even highly fragmented orders become profitable. The market has changed and the equipment has changed with it.

One Machine Covers Multiple Materials and Thicknesses

Factory order books often contain a mix of materials. Today the job runs 0.3mm thin sheet and tomorrow it runs 3.5mm thick plate. A machine that only handles one thickness makes many orders impossible to accept.

The cutting slitting machine handles thicknesses from 0.3mm to 3.5mm and widths from 500mm to 1600mm. Maximum coil outer diameter reaches 1600mm and maximum weight capacity is 15 tons. Carbon steel and galvanized steel both process effectively. The blade material is H13K and the slitter shaft material is 40Cr. The design protects the galvanized coating so the surface finish remains intact after slitting. One machine covers the mainstream material specifications eliminating the need for different equipment for different orders.

Quality Assurance and After Sales Support: Factory Testing and Installation Guidance

Every machine undergoes complete operational testing before leaving the factory. We provide test reports and inspection videos so clients can verify performance under their specific material thickness and width requirements.

The cutting slitting machine comes with a one year warranty. Installation guidance is available either remotely or on site. We offer regular maintenance recommendations after delivery. Wear parts follow standard specifications and can be purchased locally from hardware suppliers without waiting for original factory shipments.

Ready to explore how the cutting slitting machine fits your specific material specifications and workshop conditions? Contact us anytime for detailed documentation and technical recommendations.
