Color Roof Tiles Machine Handles Multiple Material Thicknesses While Protecting Coated Surfaces and Producing Various Profiles
This article provides a technical overview of the color roof tiles machine. It covers material compatibility, surface protection features, application fields, profile options, and commercial value for production planning.
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
The roofing sheet market grows more competitive every day. Buyers demand higher surface quality and faster delivery times than ever before. Many production lines only run thin sheets or thick sheets but not both. Switching orders becomes a major headache. Ourcolor roof tiles machinesolves this problem with targeted designs for material flexibility and surface protection. Let us walk through the key features that make this equipment a reliable choice for production.
Technical Parameters
| Parameter | Value |
|---|---|
| Material thickness | 0.16 – 0.55 mm |
| Raw material width | 1000 mm |
| Effective width | 812 mm |
| Working speed | 0 – 20 m/min |
| Processable materials | GI, PPGI, PPGL |
| Main forming unit length | Approx. 11500 mm |
| Main forming unit weight | 6.5 tons |
| Roller material | 45# steel with hard chrome plating |
| Number of roller stations | 20 |
| Shaft material | 45# steel, quench treated |
| Shaft diameter | φ80 mm |
| Drive system | Double chain |
| Frame construction | H-beam steel, welded |
| Cutting length tolerance | ±1.0 mm at 3m length |
| Standard voltage | 380V 50Hz 3 phase (customizable) |
| Decoiler capacity | 5 tons |
| Decoiler inner diameter range | 450 – 610 mm |
| Standard receiving table length | 3 m per unit, 2 units supplied |
| Optional automatic stacker length | 6 m |
| Optional stacker max stacking height | 300 mm |
Material Compatibility
The color roof tiles machine processes GI, PPGI, and PPGL coated steel grades. It handles sheet thicknesses from 0.16 mm to 0.55 mm. Thin sheets and thick sheets both form consistently.

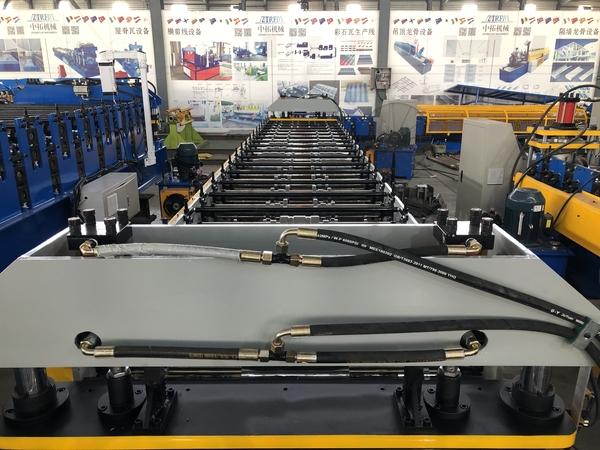

The machine uses 20 roller stations with a gradual forming sequence. Each roller station changes the sheet angle by a small amount. This prevents the material from bending too sharply at any single point. The sheet does not suffer from stress concentration or edge cracking during production.
Coating Protection Measures

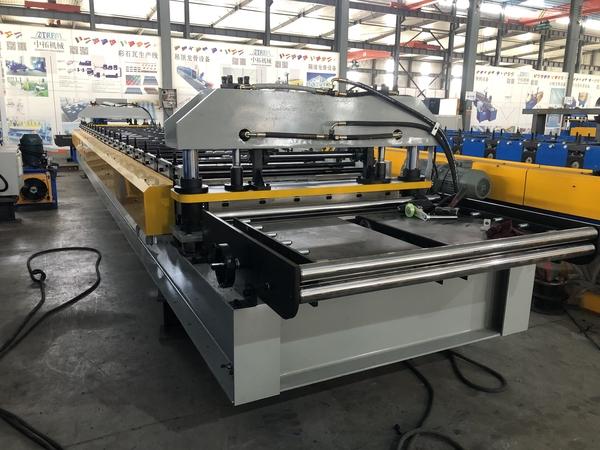

Surface scratches cause major problems when processing coated sheets. The color roof tiles machine uses stainless steel feeding rollers at the entry section. These rollers resist rust and stay smooth. The sheet passes over them without scratches or marks.

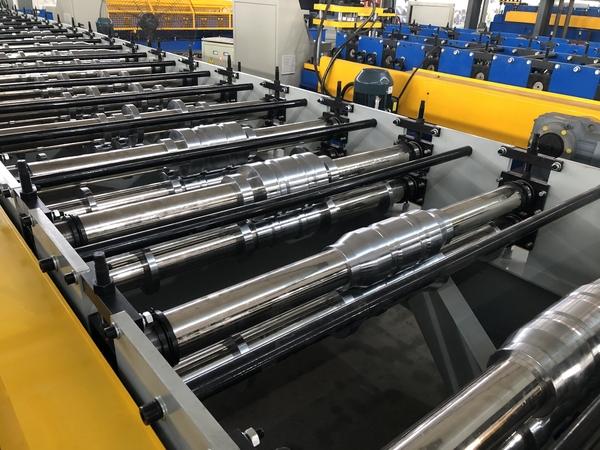

Every forming roller on the color roof tiles machine receives hard chrome plating. This increases surface hardness and reduces friction. The sheet moves through each station without leaving marks or abrasions.
The spacer rings between rollers use a zinc treatment instead of paint. Paint flakes off over time and falls onto the sheet, leaving stains. Zinc treatment does not rust or peel, and it stays clean for years.
Application Fields
The color roof tiles machine produces panels for a wide range of construction projects:
- Industrial factories and warehouses: roofing and wall cladding with custom sheet lengths
- Residential housing and agricultural greenhouses: corrugated sheets for sloped roofs
- Large public buildings and sports stadiums: standing seam roofing panels with water tightness
- Commercial building facades: wall panels with a flat, uniform appearance
Profile Options
The color roof tiles machine ships with one standard roller set for a specific profile. Clients who need multiple profiles can purchase additional roller sets and swap them. Customers can also order custom roller tooling for exclusive profile designs.

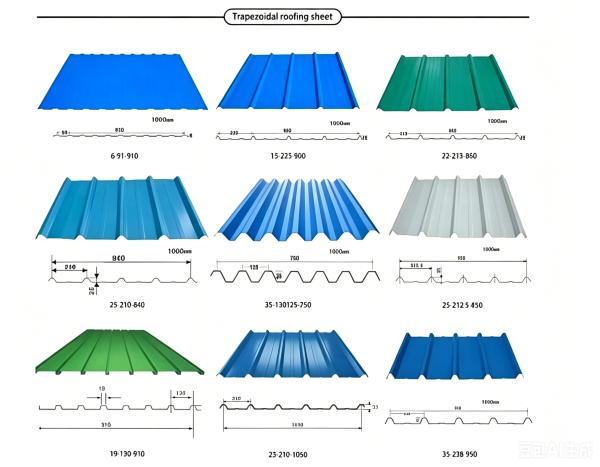

Common profile types include:
- Trapezoidal sheets: industrial factory roofs and warehouse covers
- Corrugated sheets: residential roofing and agricultural buildings
- Standing seam panels: large public building roof systems
- Wall cladding panels: commercial building exterior finishes
Commercial Value
A single color roof tiles machine handles multiple thicknesses. Manufacturers do not need separate production lines for different orders. The equipment cost spreads across a wider product range, which shortens the payback period.
The stainless steel feed rollers, hard chrome plated forming rollers, and zinc treated spacer rings all improve surface quality. Lower rejection rates reduce material waste and rework costs. Customers receive panels that meet their quality expectations on the first delivery.
If you have a profile drawing or need to confirm material compatibility, please contact us.
