Have you ever encountered a situation where the machine wobbles during operation, the produced roofing sheets have incorrect dimensions or surface scratches, and the customer flat out rejects the delivery? We have seen far too many examples of this. The biggest fear when buying a machine is that it looks great on the surface but has many problems during actual use. Theroof roll forming machineI am introducing today focuses heavily on three key areas: structural rigidity, precision, and surface protection. Let me break it down point by point so you can see exactly how it differs from standard machines.

Machine Advantages and Highlights

This roof roll forming machine solves common production headaches. From the very beginning, we focused on making the machine more user friendly and durable.

1. The machine frame consists of high tensile strength H beam steel and the factory fully welds it, resulting in a total machine weight of 6.5 tons. This ensures stable operation and produces perfectly straight roofing sheets.
2. The rollers feature a hard chrome plated surface, offering high hardness and wear resistance. They withstand hard materials without easily wearing down, ensuring years of service without the need for replacement.
3. Cutting precision reaches ±1 mm over a 3 meter length. Inaccurate lengths are a major concern for roofing sheets; if overlaps don't fit correctly, leaks occur, and customers will certainly hold you accountable.
4. The feeding end features stainless steel feeding rollerss. These rollers are rust proof and feature a smooth surface, preventing scratches on the coated sheet material.
5. Roller spacers undergo a zinc treatment process rather than paint. Zinc treatment prevents rust and paint flaking, eliminating the risk of paint chips falling onto the sheet surface and causing contamination.

Specifications Table

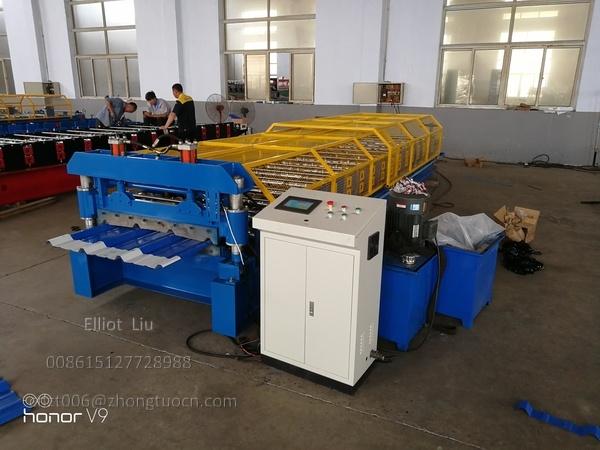

Equipment Rigidity and Stability

The stability of the entire production line depends first on the solidity of the machine frame. We use use high tensile strength H beam steel for the frame, and the factory fully welds it instead of assembling it with bolts. The main forming section alone weighs 6.5 tons and measures 11.5 meters in length.

A heavier machine naturally runs more stably. Lightweight machines tend to shake at high speeds, resulting in warped roofing sheets. Our machine operates at speeds up to 20 meters per minute while remaining rock steady. Furthermore, the drive system utilizes a dual chain setup rather than a single chain. Dual chains offer double the load bearing capacity and superior durability, reducing the risk of breakage and the frequency of maintenance.

Cutting Precision

When it comes to cutting, the biggest concern is often inconsistent tile lengths. Our cutting system uses a PLC control and utilizes an Omron encoder for length measurement. Once the material reaches the preset length, the hydraulic system activates the blade to perform the cut. The system fully automates the entire process, requiring no manual intervention.

We use blades made of hardened Cr12 steel; they are thicker and more durable than standard blades. The cutter frame features a dual column structure, ensuring stability and preventing any wobbling during the cutting process. A common question from prospective customers is: "What is the margin of error when cutting 3 meter long tiles?" We achieve a precision of ±1 millimeter. This level of accuracy is perfectly adequate for roofing tiles, ensuring tight overlaps that prevent leaks.

Surface Protection

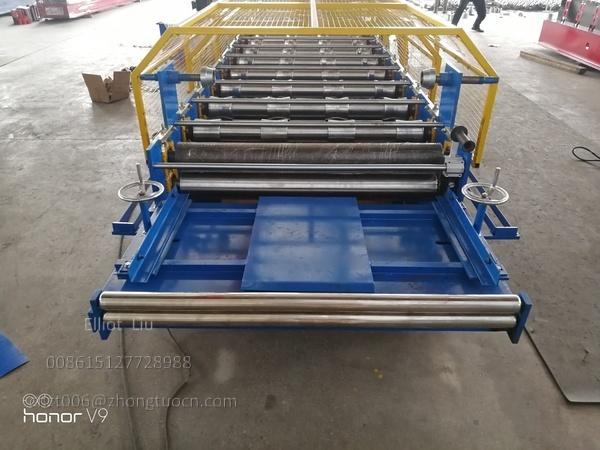

Surface scratching is a major headache when working with coated metal sheets. Our roof roll forming machine incorporates several specific design features to address this. At he material entry point, we use stainless steel feed rollers; these are rust proof and have a smooth surface, ensuring the material does not get scratched as it passes over them.

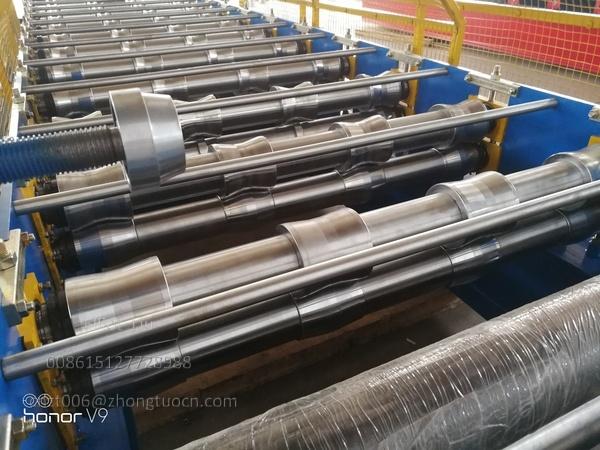

All rollers in the forming section feature hard chrome plating. This treatment creates a surface that is both extremely smooth and hard, preventing indentation or scratching as the material moves through the machine. We also pay attention to a detail often overlooked: the spacers between the rollers undergo a zinc treatment. Standard paint finishes can flake off over time, leaving unsightly stains on the metal sheets. Zinc treatment, however, prevents rust and peeling, keeping the components clean and pristine for years.

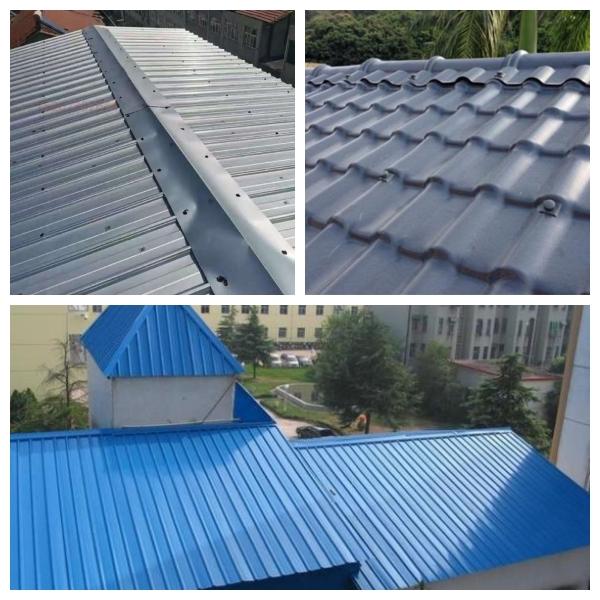

Product Applications

This roof roll forming machine produces tiles suitable for a wide range of applications.

• Roofing and wall panels for industrial plants and warehouses
• Roofing for residential homes and agricultural greenhouses
• Roofing systems for large public buildings and stadiums
• Exterior wall cladding panels

Profile Designs

The cross sectional drawings you provide determine the specific tile profiles this machine can produce. Below are some common profile examples for reference. The standard roller configuration corresponds to a single profile. If you need to produce multiple profiles, you can order an additional set of rollers or customize the profile design when placing your order.

Conclusion

The above details cover the key aspects of this roof roll forming machine, including structural rigidity, cutting precision, surface protection, and product applications. We have tailored the design of every step of the process to ensure a hassle free experience for you. Please feel free to contact us directly if you have your own pattern drawings or any questions regarding materials.
