Competitiveness of Adjustable Width Cable Tray Roll Forming Machines in International Trade
Exporters of cable trays often face this scenario. Inquiries from overseas clients come with a wide variety of width requirements, ranging from 150mm, 300mm, up to 500mm or even 550mm. If you only own...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Exporters ofcable traysoften face this scenario. Inquiries from overseas clients come with a wide variety of width requirements, ranging from 150mm, 300mm, up to 500mm or even 550mm. If you only own a fixed width machine, handling non standard sizes becomes a dilemma. Either you turn down the order, or you outsource the tooling, causing long delays that drive the customer to a competitor.
Our adjustable widthCable Tray Roll Forming Machinespecifically solves this problem. With a continuously adjustable width range of 50mm to 600mm, you can produce whatever size the client requests on a single line. There is no need to change molds or wait for external suppliers; you can produce samples the very same day you receive the order. In the international market, suppliers who can rapidly respond to diverse specifications always have a competitive edge.
In addition to this flagship adjustable width model, we offer high speed production lines for fixed specifications which are ideal for large volume orders of a single size as well as heavy duty machines designed for rolling thick plates over 2.5mm. We can help you create a comprehensive configuration plan tailored to your export market needs.
Advantages of the Machine
Arbitrary Width Adjustment: No Order Goes to Waste
Set any width between 50mm and 600mm. Switch from 150mm today to 450mm tomorrow simply by changing a number on the screen. For exporters, non-standard sizes are often a headache; this machine turns non-standard requirements into standard production.
Wide Thickness Range: Suitable for Indoor and Outdoor Applications
Handle everything from 0.5mm thin sheets for low-voltage trays to 2.0mm thick plates for heavy-duty industrial trays. A single machine covers the thickness requirements of the vast majority of export orders.

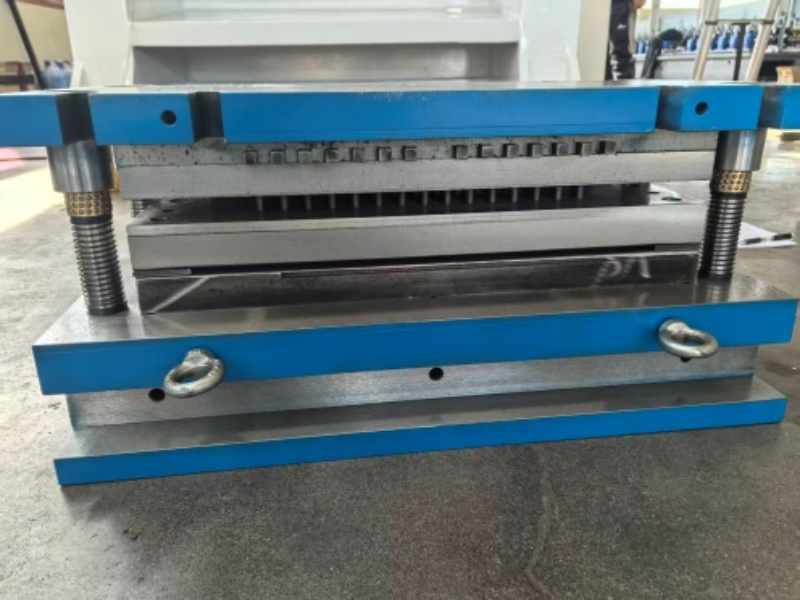

In Line Punching and Cutting: Eliminates an Extra Step
The machine performs punching and cut to length operations at the same station.Semi-finished products feed directly into the forming unit, eliminating the need for secondary handling or repositioning. This boosts efficiency, saves on labor costs, and shortens delivery times.
Tight Tolerances: Trouble Free On Site Installation
Length tolerance is ±1mm, and the angle is 90° ±2°. Labor costs at overseas job sites are high; if cable tray mounting holes are misaligned, the cost of enlarging holes on-site can exceed the cost of the tray itself. Our Cable Tray Roll Forming Machine produces products that require no secondary processing by installers.
Fully automated operation: one person monitors the entire line.
A PLC automatically controls the entire process from coil loading to the final finished product.A single operator can oversee the whole line, which is a distinct advantage when exporting to countries with high labor costs.
Technical Specifications
| Parameter | Value |
|---|---|
| Applicable strip thickness | 0.5-2.0 mm |
| Finished tray bottom width range | 50-600 mm |
| Finished tray height range | 50-100 mm |
| Finished tray length range | 2000-6000 mm |
| Production speed | 6-12 m/min |
| Machine footprint (L×W×H) | 35×2×2 m |

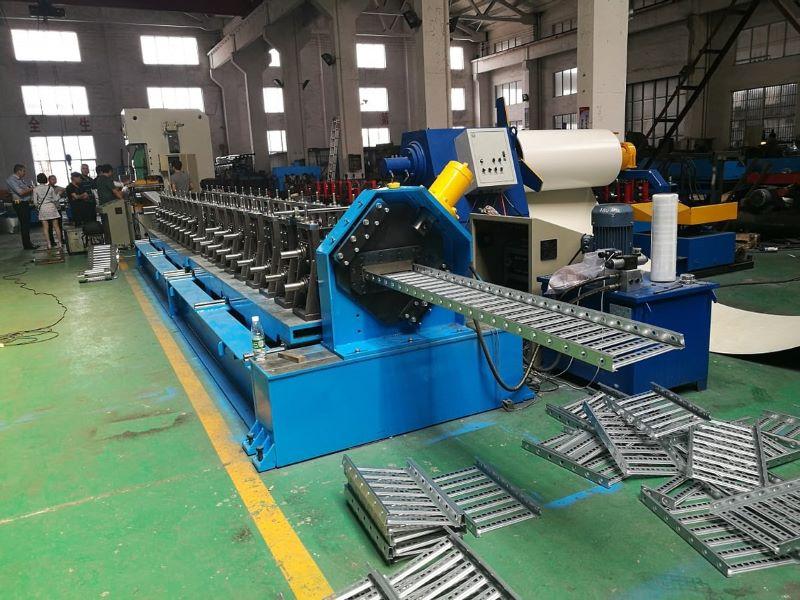

Production Line Workflow
1. Coil loading
2. Servo feeding
3. Punching and cutting
4. Transfer platform
5. Roll forming
6. Discharge

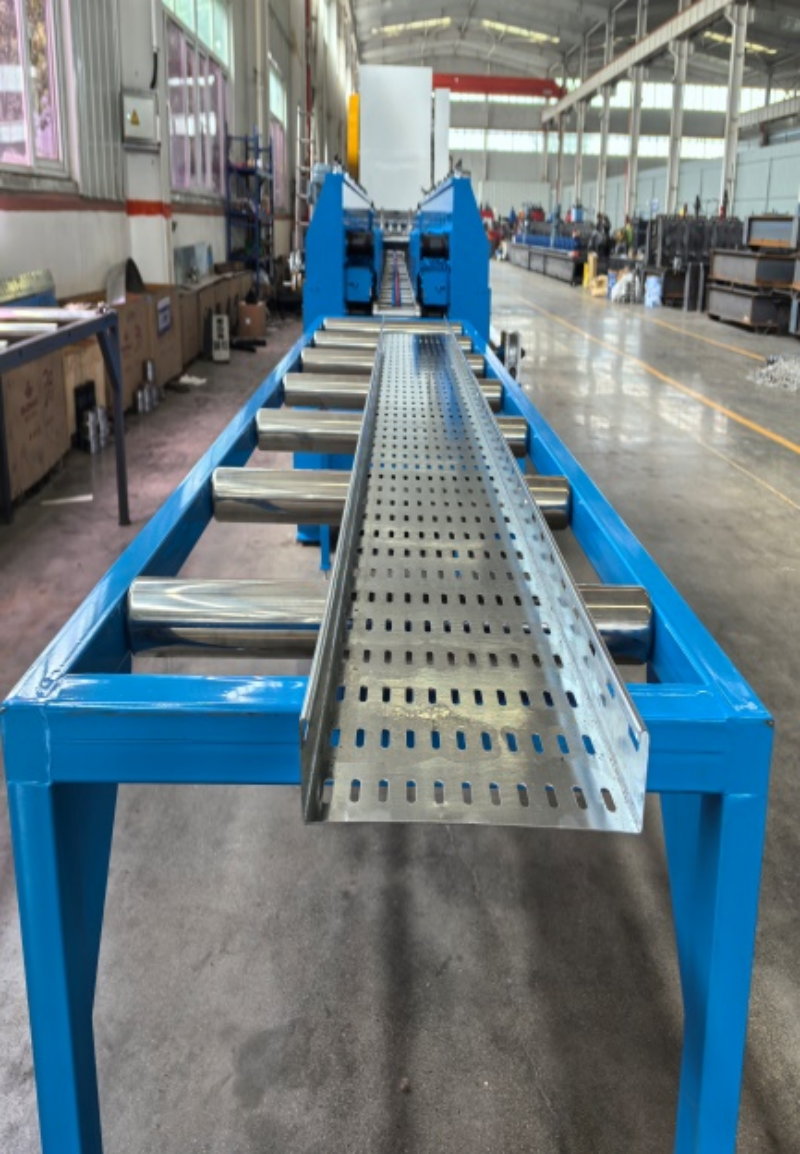

Each stage connects automatically, requiring no manual intervention. The entire fully automated line for producing perforated cable trays (50–600mm width) requires only one operator.
Why Adjustable Width is Essential for Key Export Markets
Many projects in Southeast Asia follow British Standards, with widths typically set at 150, 300, 450, or 600mm. The Middle East market often prefers 200mm or 400mm widths, while European clients sometimes request intermediate sizes like 250mm or 350mm. With a fixed-width machine, securing a new client might necessitate commissioning new molds. Mold costs can easily run into the thousands; you end up spending a large sum before even making a profit on the order.
An adjustable width Cable Tray Roll Forming Machine eliminates this issue. The width is continuously adjustable, allowing you to produce whatever size the client requires. Furthermore, there is no need to stock large inventories of finished products in various specifications; you can manufacture to order, resulting in lower capital commitment and reduced risk.
Contact Us for a Solution and Quote
If you are interested in this cable tray roll forming machine, please provide the following information:
Primary widths you produce (e.g., frequently 100, 200, 300mm, or other sizes)
Common material thicknesses (e.g., 0.8–1.5mm or 1.5–2.0mm)
Target export country or region
Desired monthly output (in meters)
Available workshop length
