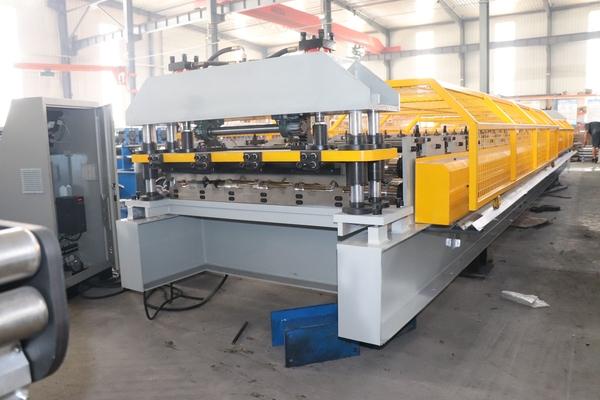

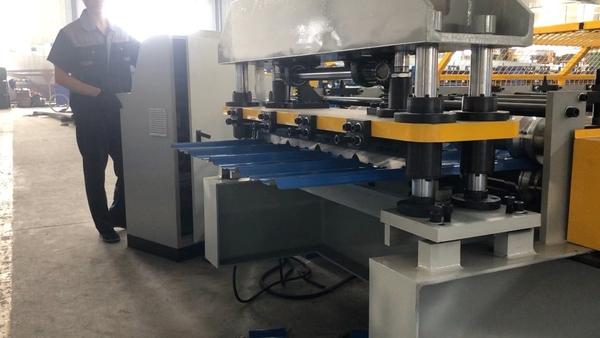

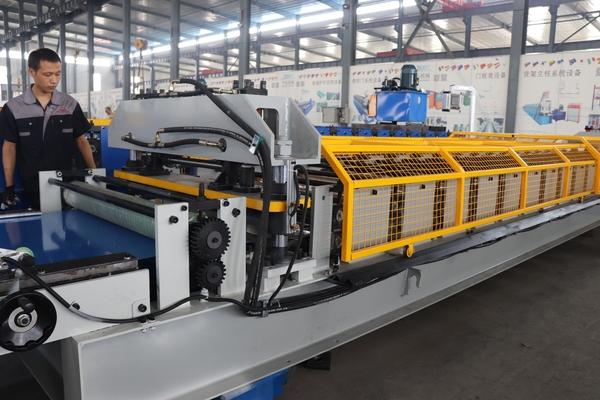

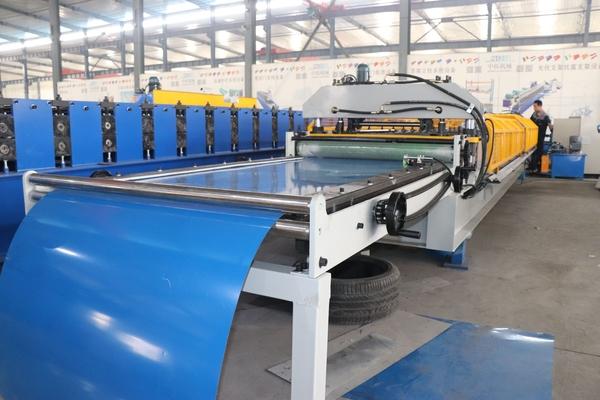

Precision formed trapezoidal type roofing sheet machine equipment

During the production process of roof tiles, problems such as deviation of raw materials, warping at the forming stage, and wave-like deformation are common issues in profile processing, which directly increase the defective rate. Now, our roof sheet roll forming machine can optimize the feeding structure and the arrangement of rollers, achieve uniform and stable feeding, and gradually roll and shape to significantly reduce product defects, improve the overall yield rate, and reduce raw material loss.Application scenario· Industrial buildings: factories, warehouses, workshops, logistics centers.· Commercial buildings: supermarkets, stadiums, exhibition halls, farmers' markets.· Civil/Res...

Inquire

During the production process of roof tiles, problems such as deviation of raw materials, warping at the forming stage, and wave-like deformation are common issues in profile processing, which directly increase the defective rate. Now, our roof sheet roll forming machine can optimize the feeding structure and the arrangement of rollers, achieve uniform and stable feeding, and gradually roll and shape to significantly reduce product defects, improve the overall yield rate, and reduce raw material loss.

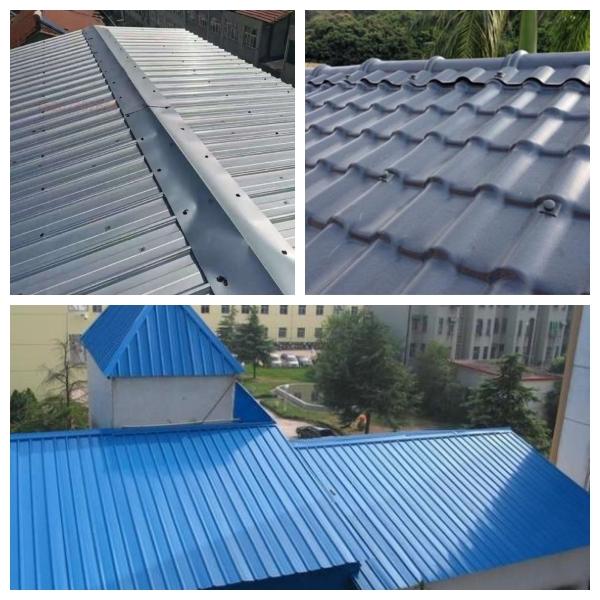

Application scenario

· Industrial buildings: factories, warehouses, workshops, logistics centers.

· Commercial buildings: supermarkets, stadiums, exhibition halls, farmers' markets.

· Civil/Residential: villas, apartments, self-built houses in new rural areas.

· Agricultural/Special: greenhouses, livestock farms, temporary construction sites, fences and barriers.

The value in the industry

The trapezoidal type roofing sheet machine turns what used to be a slow, messy process with poor precision and high waste into something much more continuous and stable.

For manufacturers, this means lower labor costs, less wasted material, and faster delivery times, all while keeping board dimensions consistent and joints tight enough to prevent leaks or rework on site.

For distributors and engineers, it translates to a reliable supply and controllable quality with shorter lead times. This makes it easier to take on bigger projects like industrial plants, warehouses, and commercial centers, while still being flexible enough to meet different customer needs for board types, widths, and thicknesses.

Technical Specifications

Parameter	Value
Material thickness	0.16-0.55mm
Raw material width	1000 mm
Effective width	812 mm
Working speed	0-20 m per minute
Processing material	GI PPGI PPGL G550 FULL HARD
Working space	about 20m length x 2.5m width x 1.2m height

Advantages

Reduce labor costs: Utilize PLC, transducer, touch panel. The operation is simple, and even beginners can master it within a short period of time.

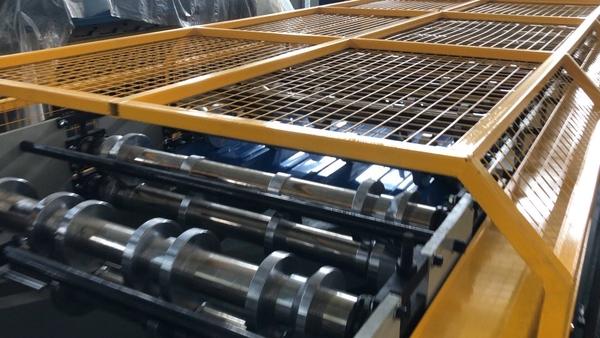

Stable and durable: H-shaped steel welded frame + chain drive. Low vibration, uniform force distribution. It can operate continuously for 24 hours and is suitable for large-scale orders.

Long-lasting Rust Resistance: Rollers spacers adopt zinc treatment but not color paint, this can use whole life without rust and of adopt paint after color drop on the sheet will damage the paint.

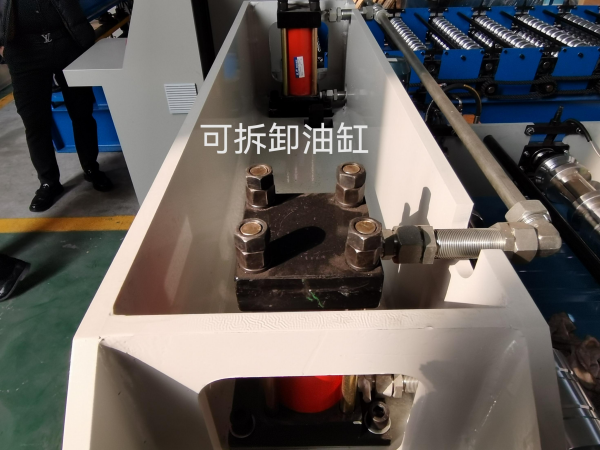

Easy Maintenance Design: Our oil cylinder adopt bolts connect type but not welding type, this is easy fix if there are problem, welding type can not fix after problem.

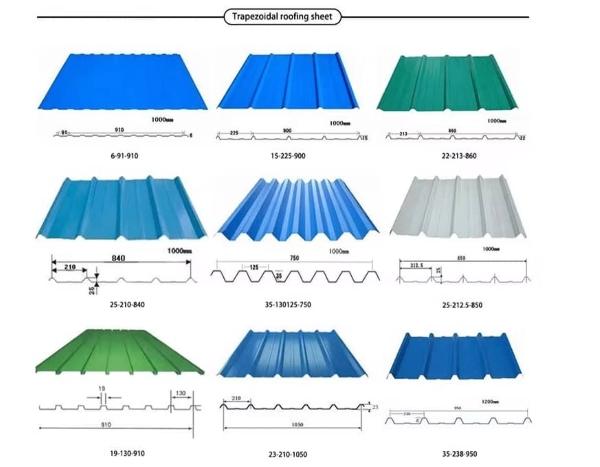

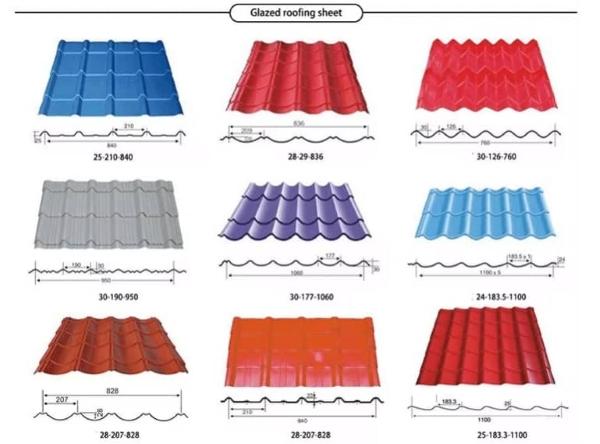

Display of Other Styles

Below are the patterns produced by the machines we often make for our customers. If you need a template type not shown in the picture, don't worry. We will tailor a solution that meets your requirements for you.
