One of the most overlooked issues on a guardrail production line is panel length consistency. A highway guardrail forming machine handles this through measurement and cutting. If panels in a batch vary in length, holes may not line up on site, and panels may not connect smoothly. This can affect delivery and installation.

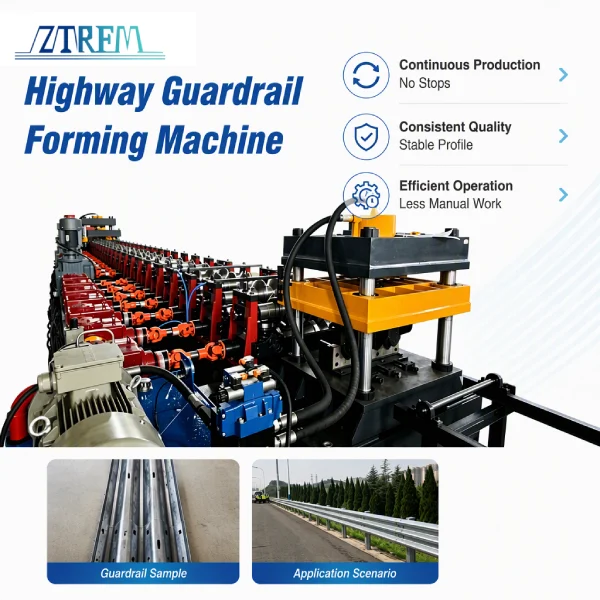

What Guardrail Panels Does This Machine Produce
A highway guardrail forming machine produces highway W beam panels. Finished panels have a cover width of 312mm, a profile height of 90mm, and a feeding width of 490mm.
The equipment works with these materials:
-
Galvanized steel
-
Cold rolled steel
-
Carbon steel
-
Q235
Material thickness ranges from 2.5 mm to 4.0 mm. Finished panels go into these applications:
-
Highway side protection
-
Primary road median separation
-
Mountain curve and cliff edge side protection
-
Bridge and tunnel transition sections
Machine Advantages
A highway guardrail forming machine brings several advantages for length control and continuous production.
-
Length measurement uses a photoelectric switch, with a quoted measurement accuracy of 4320mm ± 2mm
-
Adjustable feed speed lets the line match different production rhythms
-
Cutting links to measurement, so the cut triggers at the set length without manual positioning
-
15 forming stations shape the profile step by step, supporting stable output for fixed length cutting
-
The line runs from uncoiling to finished output with less manual work between steps
Why Continuous Production Needs Length Control
Guardrail production differs from single sheet processing. Coil enters the line continuously and moves through uncoiling, leveling, punching, forming, and cutting. The line runs as one continuous flow.
In this continuous mode, length control is not just a final cut. Cutting depends on signals from feeding and measuring. If feed speed is unstable or length information arrives late, the cut position can shift.
Length deviation affects more than one panel. In a batch of hundreds, small variations per panel can add up to hole misalignment. Panels may not connect, and crews may have to re drill or adjust. This slows work and can waste material.
4320mm is the specified panel length for this road guardrail roll forming machine. Production needs accurate control to keep every panel consistent.
How Length Measurement and Cutting Work Together
The core of length control sits between measurement and cutting. This highway guardrail forming machine places a photoelectric switch after feeding and before forming. The switch detects the length of material passing through.
The quoted measurement accuracy is 4320mm ± 2mm. This figure describes the measuring step, not the final finished panel tolerance. Actual panel length can also be affected by feed stability, forming movement, and cutting timing. Accurate measurement is one prerequisite for accurate fixed length cutting, but final panel length depends on the stability and coordination of feeding, forming, control, and cutting.
When the switch detects the set length, the system sends a signal to trigger cutting. No manual measuring or positioning is needed. The feed system moves material forward, the measuring system gets length information, and the cutting system acts at the right position. These steps must work together to keep panel length consistent.
Technical Parameters
| Parameter | Specification |
|---|---|
| Applicable materials | Galvanized steel, cold rolled steel, carbon steel, Q235 |
| Material thickness | 2.5 mm to 4.0 mm |
| Feeding width | 490 mm |
| Finished cover width | 312 mm |
| Finished profile height | 90 mm |
| Forming stations | 15 fixed position driven forming stations |
| Stand rollers | 3 sets |
| Main motor power | 22KW × 2 stepless speed regulating motors |
| Gearbox | K127 |
| Roller material | Gr15 bearing steel, hardness HRC55 to 60 |
| Control system | PLC |
| Length measurement accuracy | 4320 mm ± 2 mm |
What Fixed Length Control Means for Real Production
Stable length control shows up in two places: product consistency during production and smooth installation on site. For a road guardrail roll forming machine, this is a core production concern.
In batch production, if every panel stays close to the set length, consistency improves. Each panel comes off the line at a similar length, with less need for extra sorting or trimming.
On site, panels of equal length connect more smoothly. Holes line up, bolts pass through, and installation stays on schedule. If length varies, crews may spend time fixing hole alignment.
For projects that need a continuous supply of guardrail panels, length control is one foundation of production stability. A highway guardrail forming machine helps support consistent batch delivery and smoother installation. It is not just a size issue.
