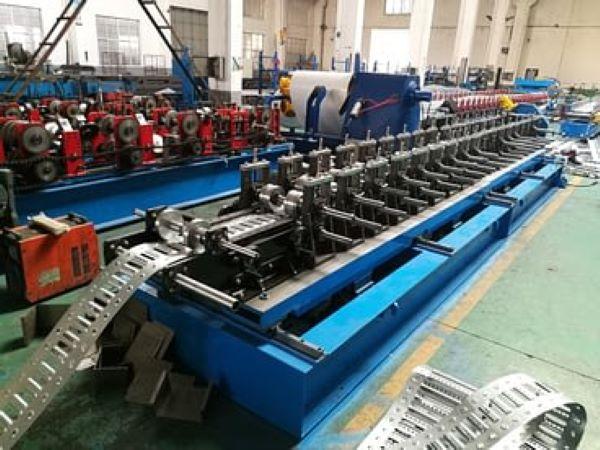

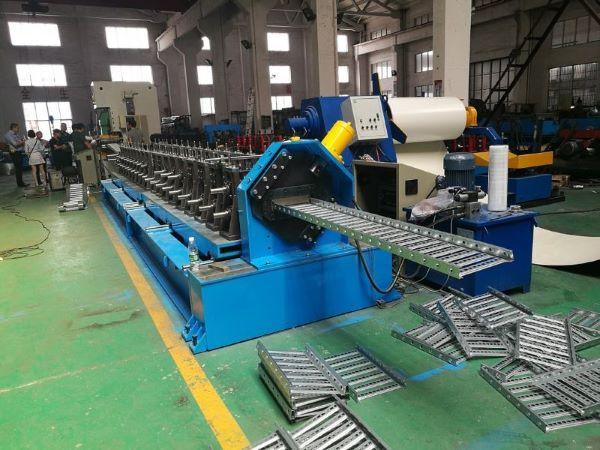

Heavy-duty integrated cable tray roll forming machine specializes in full-spec cold rolling production of steel cable trays. It adapts steel strip thickness 0.5-2.0mm, adjustable finished tray width 50-600mm and height 50-100mm. The whole production line occupies 35×2.0×2.0m installation space, punching forming speed 6-12m/min, strict product size error ≤±1mm, fully conforming to international electrical construction safety and wiring specifications.

Standard Automatic Production Process

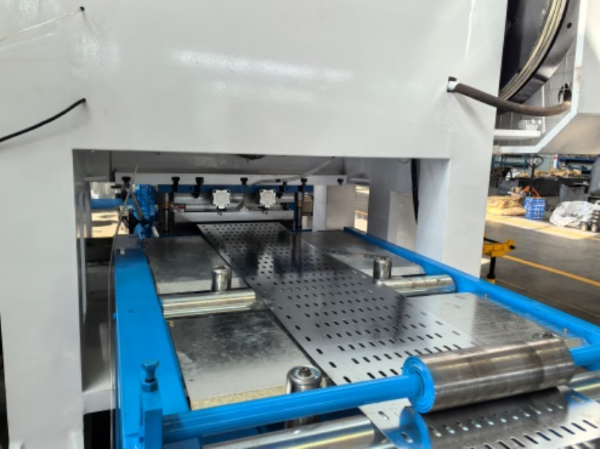

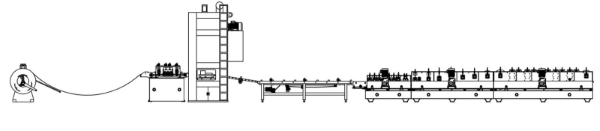

Decoiler → Servo feeding integrated machine → Punch press punching and cutting → Conveying platform → Roll forming → Finished product output

Mechanical Core Structure & Detailed Parameters

Applications

Widely used in buildings, factories, power plants, data centers, rail transit, chemical plants, new energy, defense, and light industries like textiles. It is a basic tool for safe and standard wiring in electrical and low-voltage systems.

Multi Scene Installation & Practical Use Advantages

Finished cable trays support independent erection, building beam column installation, ceiling arrangement and tunnel embedded laying modes.They feature good heat dissipation, dustproof performance and anti electromagnetic interference ability, protecting power and communication cables safely.

Unique Competitive Advantages Of The Machine26-stage progressive forming technology ensures smooth section shape and high structural strength of finished products.Bilingual touch screen PLC system is easy to operate, ordinary workers can finish parameter debugging quickly.

Low energy consumption and low failure rate design greatly reduces daily operation and maintenance costs for customers.Flexible customized hole layout and size specifications perfectly match local national electrical standards of different overseas regions.

With years of professional roll forming equipment manufacturing experience, we deliver high-quality durable cable tray production lines. We provide one-stop whole-process solutions from equipment production, installation guidance to lifelong technical after-sales service.
