If you are in the metal processing industry, you likely need to cut wide steel coils into narrow strips of various widths for sale to automotive plants, construction companies, pipe manufacturers, or home appliance factories. However, when purchasing a slitting machine, you must consider more than just cutting precision; ease of operation, the ability to maintain continuous production without jamming, and the convenience of changing specifications are equally important. Thisautomatic metal steel coil slitter machinecomprises three distinct yet coordinated sections, uncoiling, slitting, and recoiling, designed to solve the practical challenges encountered during the slitting process.

Production Challenges Solved

In actual operation, business owners often face the following issues with slitting machines:

• Frequent coil changes lead to multiple daily shutdowns, significantly reducing effective production time.
• Inaccurate strip widths result in returns from downstream customers, causing losses in both material and reputation.
• Steel strips drift off track during processing, resulting in uneven widths (wide on one side, narrow on the other) and the scrapping of the entire batch.
• Loose recoiling causes coils to unravel during unloading, creating problems for transport and storage.

Changing specifications is time consuming, as adjusting the width can take half a day, making it impossible to accept small batch orders. Through tthe coordinated operation of its three sections, this machine runs continuously from right to left: the steel coil enters the uncoiling section, the slitting section cuts the coil, and the recoiling section winds it into a finished product. The process requires no manual handling and enables continuous, coil after coil production.

Uncoiling Section Overview

The uncoiling section serves as the entry point for the entire line; if this initial stage fails, the subsequent processes come to a halt. Common problems include the coil being too heavy for the cart to lift, the mandrel failing to grip the coil core tightly (causing slippage), or insufficient hold down pressure causing the coil to unravel and pose a safety risk. Such malfunctions force the entire line to stop for anywhere from ten minutes to half an hour.

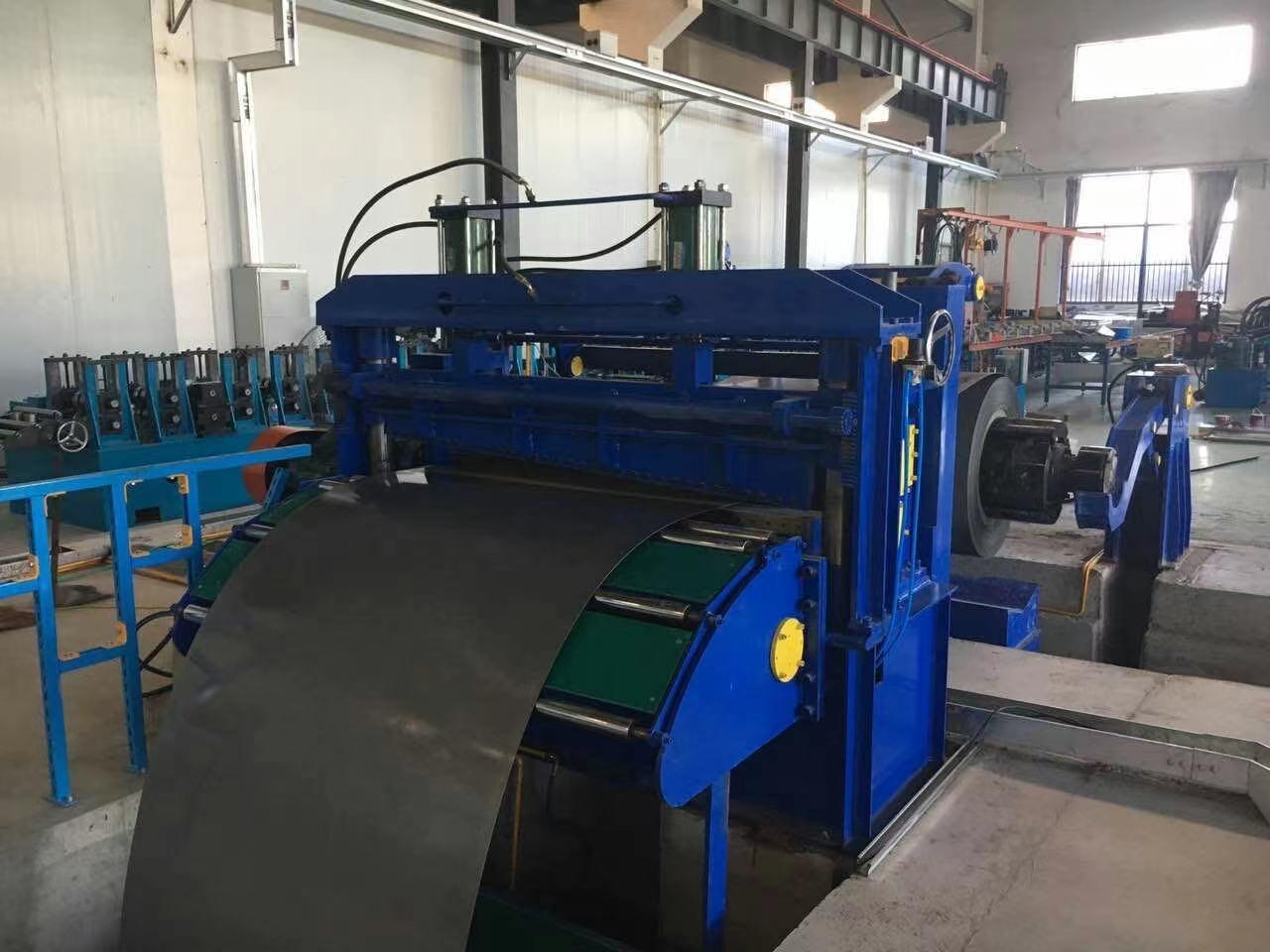

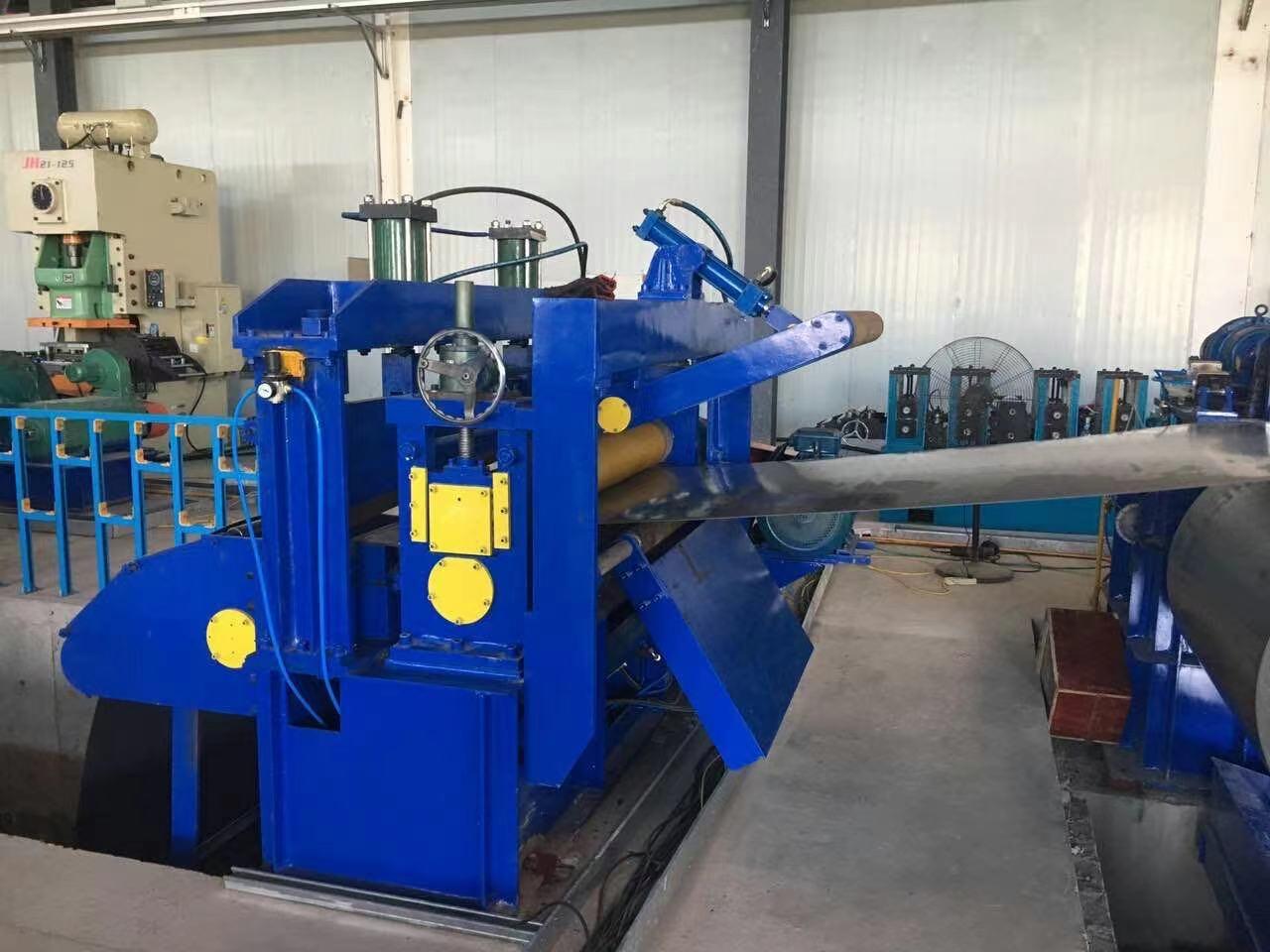

The uncoiling section consists of four units: a hydraulic entry coil car, a decoiler, a hydraulic hold down and pinch device, and a hydraulic cutter. The hydraulic entry coil car lifts the coil and positions it onto the expanding mandrel of the decoiler, which secures the coil from the inside. An external hold down arm with rubber rollers presses against the outer wrap of the coil to prevent it from unraveling, while a feeding mechanism flattens and advances the coil head; a hydraulic cutter then shears off any uneven sections. Once the uncoiling process is complete, the coil is ready for the next stage.

Slitting Section Overview

The slitting section is the core of the entire line, allowing for cutting to the exact widths required by the customer. However,common challenges during actual slitting operations include the following.

• The steel sheet drifts off line, resulting in inconsistent strip widths or dimensional discrepancies between the two ends of the same coil.
• Thick and thin sheets require different shearing forces; using the same method can cause thin sheets to curl at the edges while thick sheets may not be cut through completely.
• Scrap edge strips scatter across the floor, creating a messy and hazardous environment that requires workers to frequently bend down for cleanup.
• Changing specifications is time consuming, as adjusting blade clearance requires prolonged machine downtime.

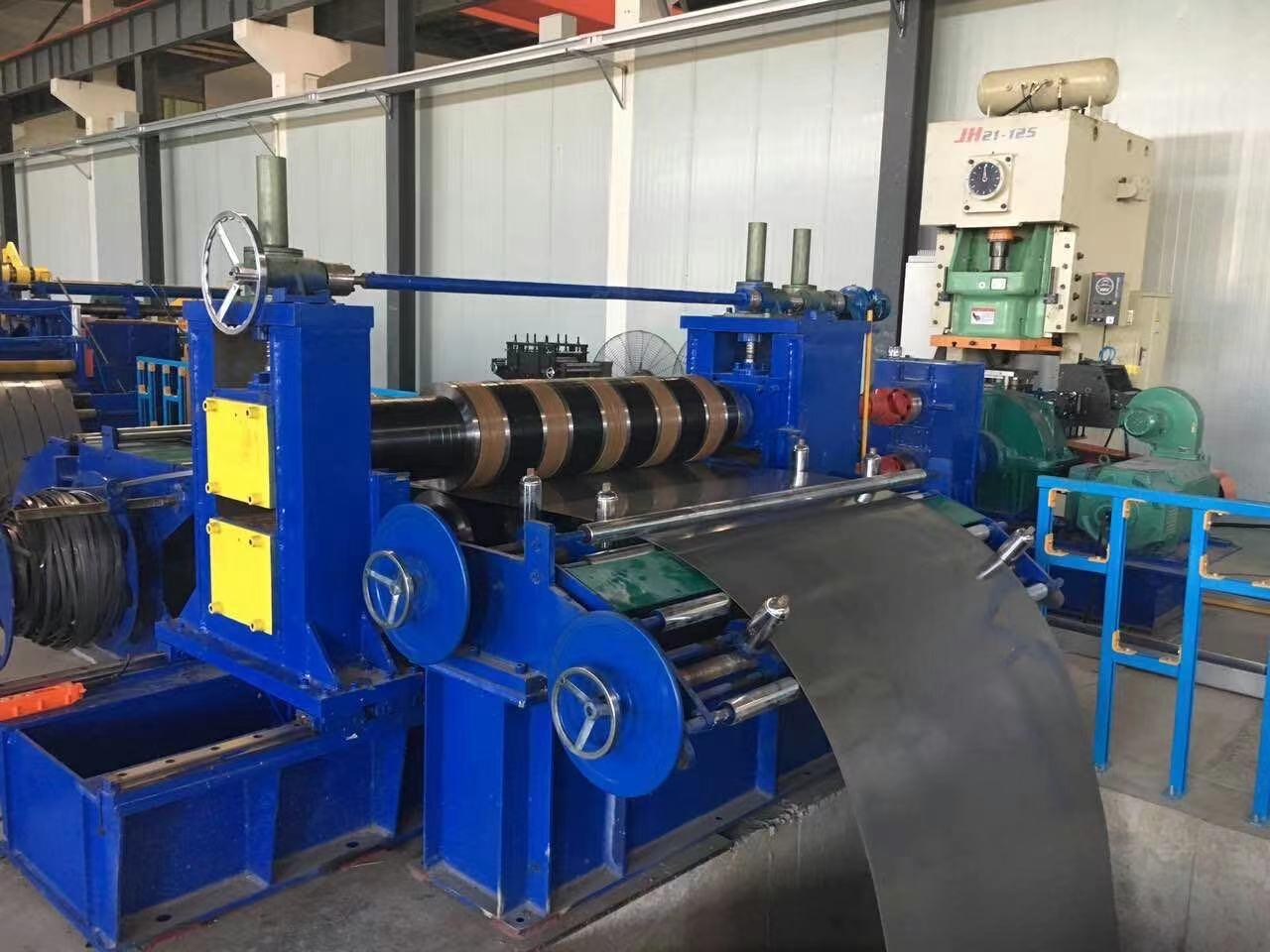

After entering the slitting section, the steel sheet passes through a side guide device, where vertical rollers on both sides center the sheet to prevent lateral drift. It then enters the slitter; the main unit features a pair of circular blades with clearances adjusted according to sheet thickness, wider gaps for thick sheets and narrower gaps for thin ones. Theresulting narrow strips feature uniform widths and clean edges, while a scrap winder automatically winds up the scrap edge strips.

Slitting Line Specifications

We compile the following key specifications from actual production test records to provide a quick overview of the basic configuration of the equipment.

Recoiling Section Overview

The recoiling section is the final stage of the line; if recoiling is uneven or loose, customers may face difficulties during uncoiling, or the entire coil could unravel and become scrap. Older slitting lines often performed well in the cutting stage but encountered persistent issues during recoiling, leading to frequent customer complaints.

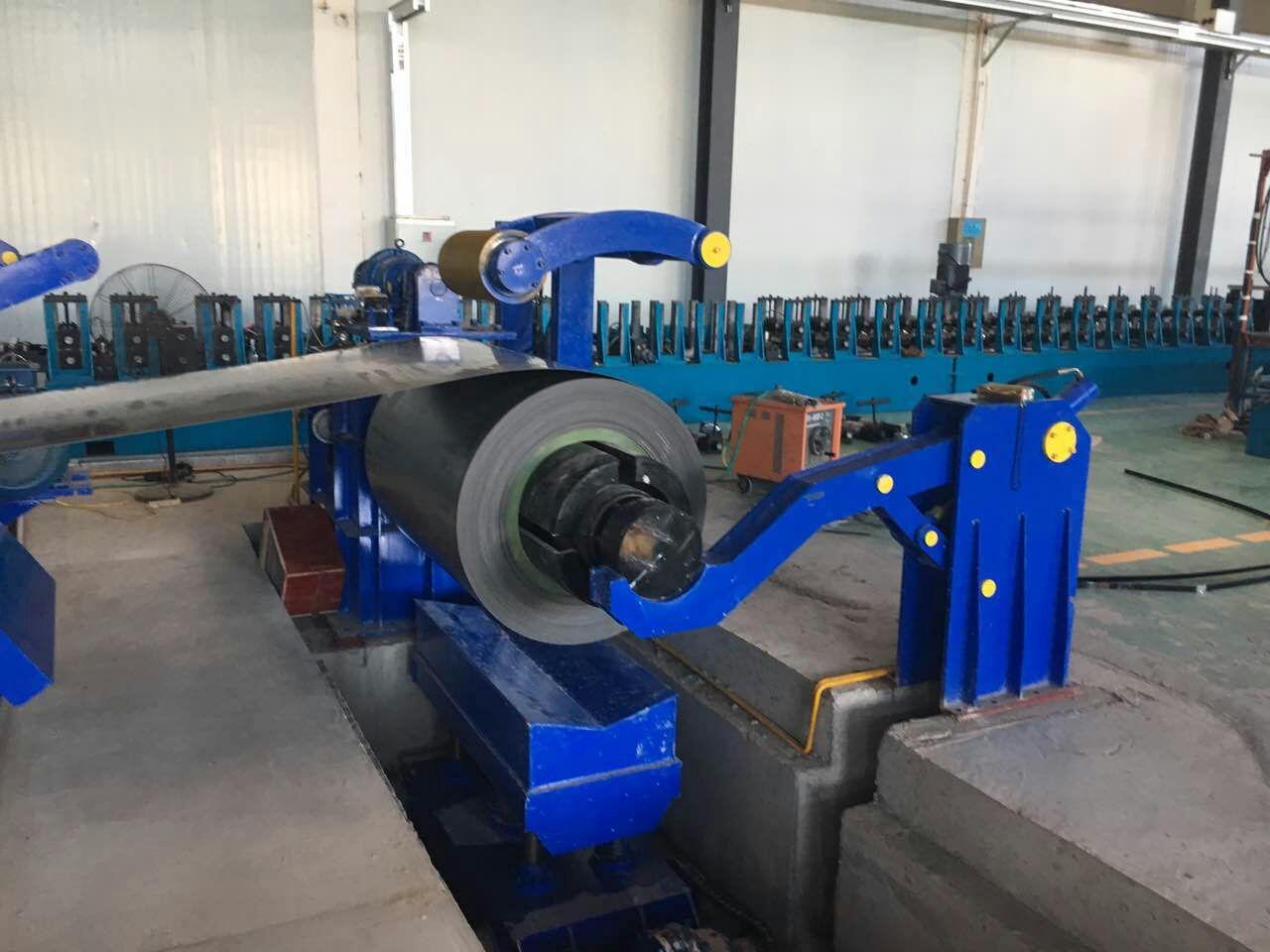

The recoiling section first passes the material through a tension stand, which applies backward tension to the finished strips, ensuring they remain taut throughout the winding process. Next, the recoiler winds the finished steel strips into tight, neat coils; an expanding mandrel grips the coil from the inside to ensure the core remains secure. Once winding is complete, the mandrel releases, and a hydraulic exit coil car supports and transports the finished coil, ensuring it stays intact without loosening or unraveling.

Target Industries

There is a steady market demand for the narrow strips produced by this automatic metal steel coil slitter machine, with key applications in the following sectors:

Automotive Manufacturing: Production of stamped parts such as body brackets, exhaust pipes, and seat frames.

Construction Industry:Production of roofing panels, wall panels, C channels, and Z purlins.

Pipe Manufacturing: Production of round, square, and rectangular pipes.

Home Appliance Manufacturing:Production of casings and internal structures for refrigerators, washing machines, and air conditioners.

Electrical Industry:Production of transformer cores and motor stators and rotors..

Downstream customers share consistent requirements for narrow strips: precise width, smooth edges, and neat winding. With stable quality, you can secure long term, reliable orders. A high quality automatic metal steel coil slitter machine is the foundation for accessing these markets and building lasting partnerships.

Complete Complete Slitting Line for Wide Coils

Three key factors determine the quality of a slitting machine:

Precision Cutting: Prevents customer returns, eliminates rework and waste, and builds a strong reputation.

Stable Operation: Guarantees delivery schedules, minimizes downtime risks, and ensures smooth production planning.

Durability:Maximizes investment value; a machine that lasts over a decade significantly lowers the annual cost.

From uncoiling to recoiling, our engineers designed every stage of this automatic metal steel coil slitter machine to address real world production challenges. Whether you use the strips yourself or process them for sale to downstream clients, this equipment ensures excellent results and customer retention. Please contact us anytime for detailed specifications or a solution tailored to your material requirements.
