The modern warehousing industry places extremely high demands on the production efficiency and flexibility of metal shelving uprights. Our  upright rack roll forming is designed to produce two different width specifications—40 mm and 60 mm—on a single machine, accommodating material thicknesses ranging from 2.0 mm to 2.5 mm. The machine is equipped with a PLC-based screen adjustment system, enabling size changes to be executed simply by configuring settings via the PLC and swapping the cutting dies. Through the synchronized operation of an integrated hydraulic uncoiler, servo feeder, pneumatic press, and flying shear, the system delivers consistent quality at a production speed exceeding 20 meters per minute.

Product Advantages

l Make both 40mm and 60mm profiles on one machine – change takes minutes on the touchscreen.

l No stopping for cuts – the servo tracking shear moves with the profile.

l Heavy-duty build: cast steel frames, tempered shafts, chromecoated rollers. Handles 2.5 mm steel day after day.

l The 80-ton pneumatic press punches holes cleanly. Adjust the die for 80 cm or 100 cm spacing.

Profile Shapes

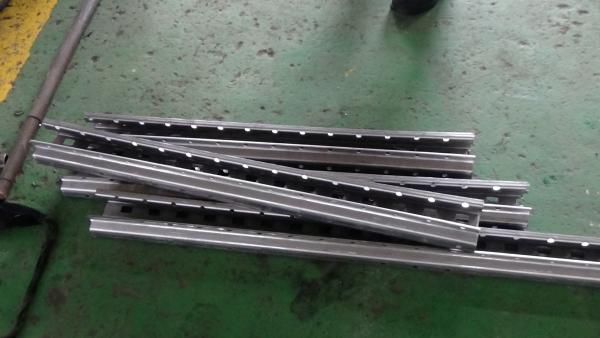

Two standard profile types: opening widths of 40 mm and 60 mm, and base widths of 80 mm and 100 mm. Featuring a uniform height design, they fit the same shelf beams.. Material thickness: 2.0–2.5 mm.

What is an upright rack roll forming machine?

Upright rack roll forming refers to a specialized type of automated industrial equipment designed for the continuous production of metal uprights used in warehouse racking systems. By feeding metal coil stock through a series of rollers, this machinery efficiently punches holes and forms the steel into precise structural profiles—such as C-channels or U-channels—making it an essential tool for manufacturing warehouse pallet racking.

Machine Features

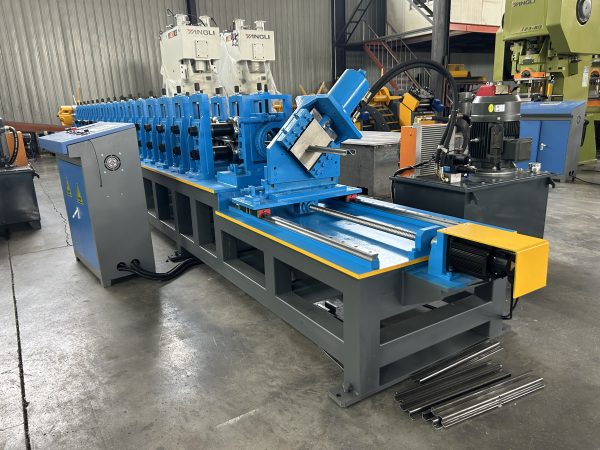

Production Process:Integrates uncoiling, feeding, hydraulic punching, roll forming (bending), and cutting into a single, continuous, high-speed production line.

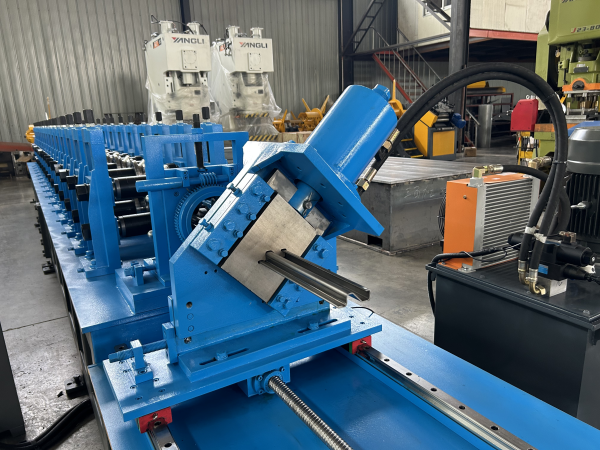

Components:Includes an uncoiler for coil handling, a punching module (designed to create specific patterns such as diamond or teardrop-shaped holes), multiple sets of forming rollers, and a flying shear.

Versatility:Capable of producing uprights in various dimensions and can accommodate a range of material thicknesses (my specific machine handles 2.0 mm to 2.5 mm).

Efficiency:Modern systems can achieve high production speeds of up to 20 meters per minute.

Technical Parameters Table

Machine components:

5t hydraulic decoilerwith 1 set;

80t pneumatic Yangli press1 set;

Servo feeder system1 set;

Pneumatic material loop1 set;

22kw forming machine1 set;

Tracking shearing device1 set;

Hydraulic collect table1 set;

11kw hydraulic station1 set;

Electric control system1 set;

Optional Configurations

Automatic stacker (holds up to 1.5 tons per batch)

Coil loading car – saves a forklift

Remote PLC monitoring – check from your phone

Larger color touchscreen
Custom options available upon request – contact us for details.

Frequently Asked Questions

Q1: How long to switch between the two profiles?

Select the other size on the PLC – that’s it for the forming rollers. You still swap the shear blades (different profile heights need different knives).

Q2: Can I see the machine running before buying?
Yes. We have a video of an almost same machine. Ask us for the link.

Q3: Do you provide different cutting blades for the two profiles?
Yes. We supply separate blade sets for each profile size. You swap them when changing the profile.

Need anupright rack roll formingline that actually delivers two profiles without drama? Let’s talk.
