Are you searching for "how many years does a roll forming machine last"? Many customers calculate the return on this investment carefully before purchasing. We understand your concern.

Your worry is not whether the machine works today. It is whether it can still run steadily three years from now, or five years from now.

Our Anchor Rod Cold Bending Roll Forming Machine consists of five independent production lines. Each line uses a heavy duty cast steel frame with a middle plate welded base, and uses a gearbox instead of chain drive. These design choices all serve one purpose: to make the machine last longer.

Structural Design (Using the Roll Forming Line as an Example)

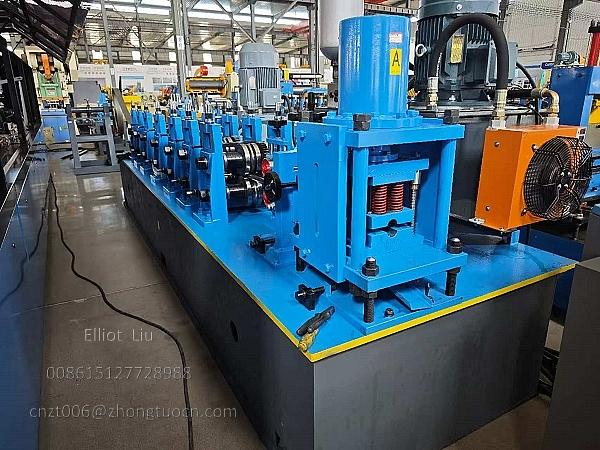

The frame is the machine's skeleton. Our roll forming line uses a heavy duty cast steel frame with a middle plate welded base. This structure absorbs vibration during forming; the frame stays stable so the rollers do not drift. Less drift means slower wear on molds and rollers. Slower wear means longer equipment life.

Gearbox drive is another key design feature. Gearbox drive is smoother and quieter than chain drive. Under heavy loads, the gearbox is less likely to skip teeth or loosen; this directly reduces the failure rate of the drive system.

The other four lines (dome plate press, necking, ring making, and welding) use the same grade of frame structure and gearbox drive. All five lines in this Anchor Rod Cold Bending Roll Forming Machine match each other in structural durability.

Line Composition

Back to your original question: how many years can this equipment last overall. To answer that, you need to understand the complete setup first. The first four lines produce the pipe body, end plate, necked pipe end, and ring respectively. The fifth line welds all parts into finished rock bolts.

The five lines run independently without interfering with each other. Each line has its own frame, drive, and control panel. When one line needs repair, the other four keep producing. This independent design means each line handles only its own step, so loads stay within limits and the whole system's lifespan is more secure.

Our Anchor Rod Cold Bending Roll Forming Machine consists of these five independent lines:

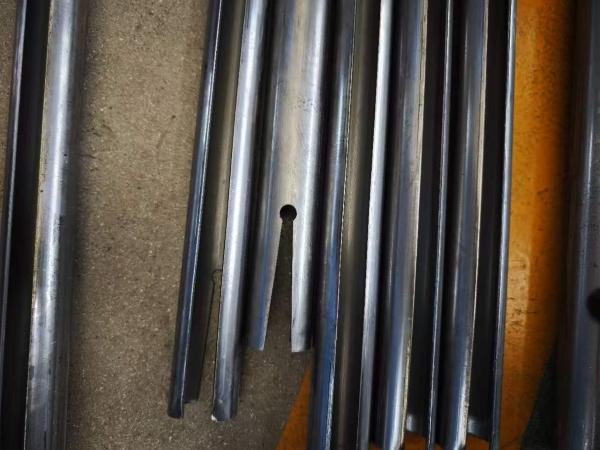

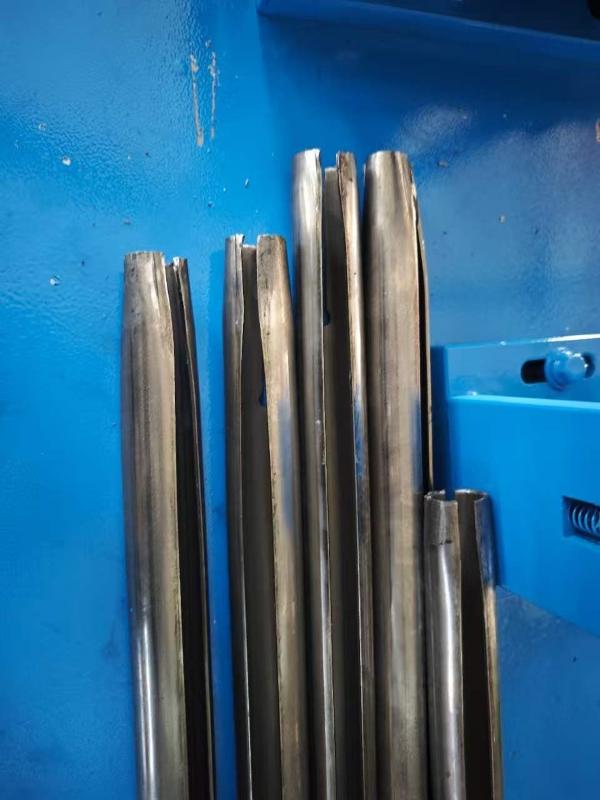

• Split set roll forming line (produces pipe body)

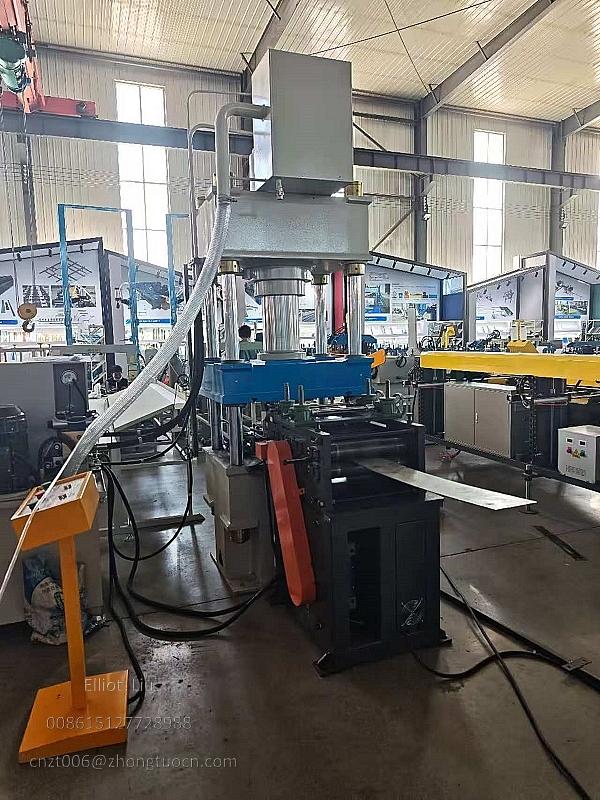

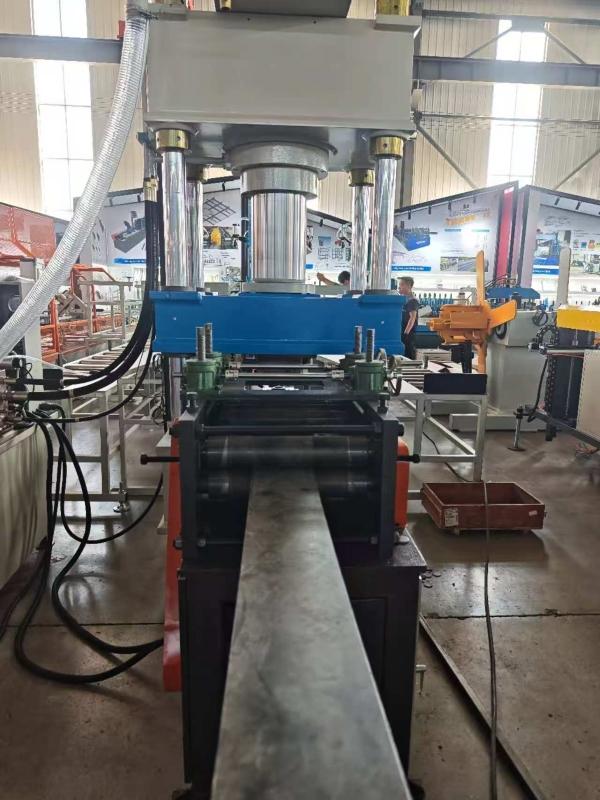

• Split set dome plate press line (produces end plates)

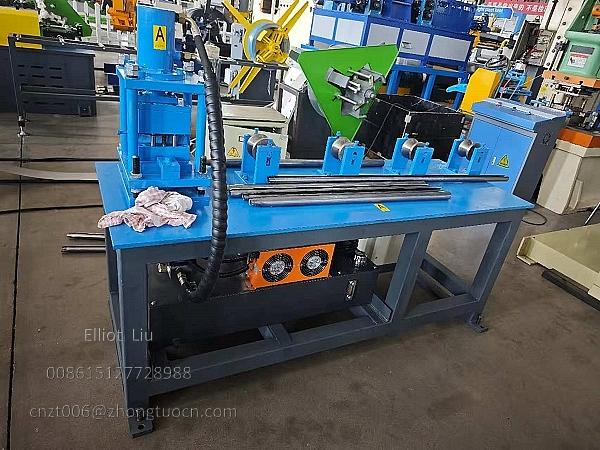

• Split set necking line (reduces pipe end diameter)

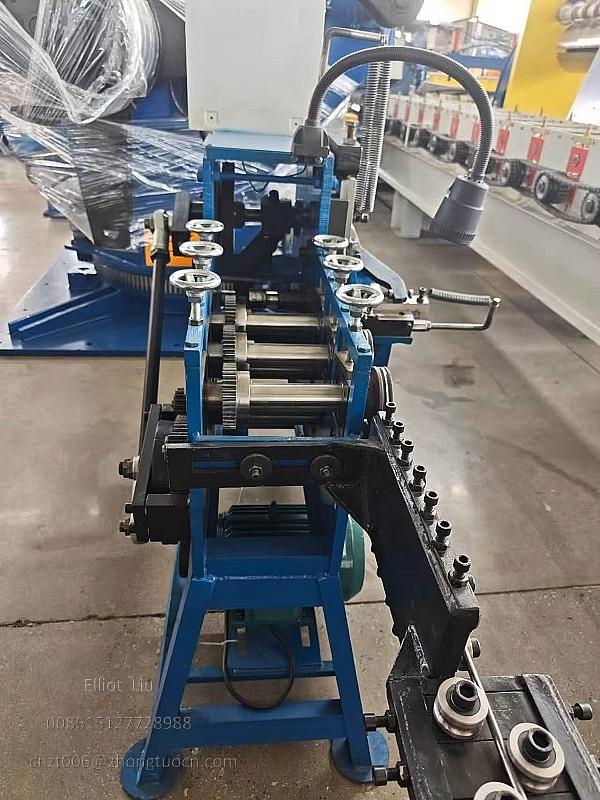

• Split set ring making line (produces fixing rings)

• Split set ring welding line (assembles and welds all parts into finished rock bolts)

Rollers and Molds

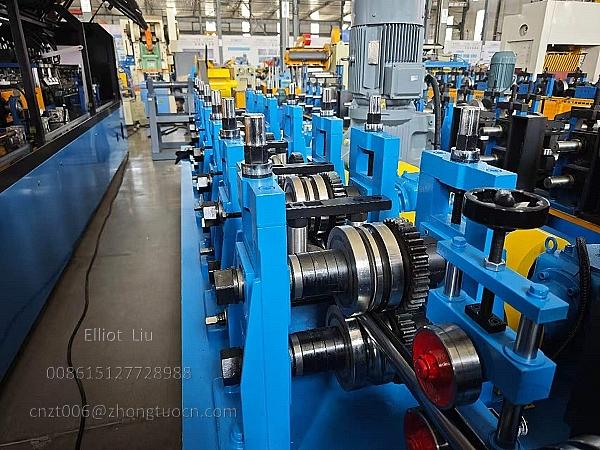

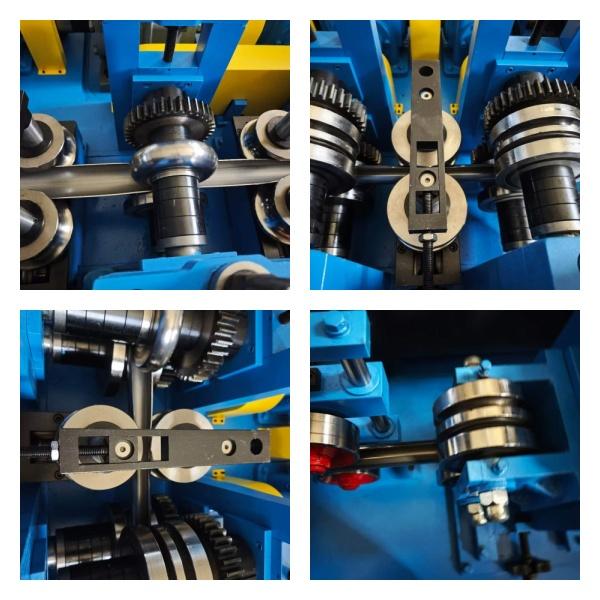

Rollers are the parts that touch the material directly. Our rollers use Cr12 die steel with quenching treatment. This material has high hardness and good wear resistance. Under normal production conditions, Cr12 quenched rollers maintain surface smoothness for a long time.

The necking line and ring making line use GCr12 for their molds; the dome plate press line uses Cr12MoV. These are proven choices in cold work die steel. They share two strengths: resistance to wear and resistance to deformation. When molds do not wear easily, the line does not need frequent stops for mold changes.

Material Compatibility

The material thickness a line can process directly affects its load level. Our roll forming line handles pipe thickness from 2.5 mm to 3.5 mm. The dome plate press line handles up to 5.0 mm thick plate.

If you consistently process material thicker than the design range, the line's load increases noticeably. Higher loads speed up wear on bearings and drive parts. We recommend using the equipment strictly within the designed thickness range; this keeps it running under rated load for stable long term performance.

Technical Parameters

Split set roll forming machine

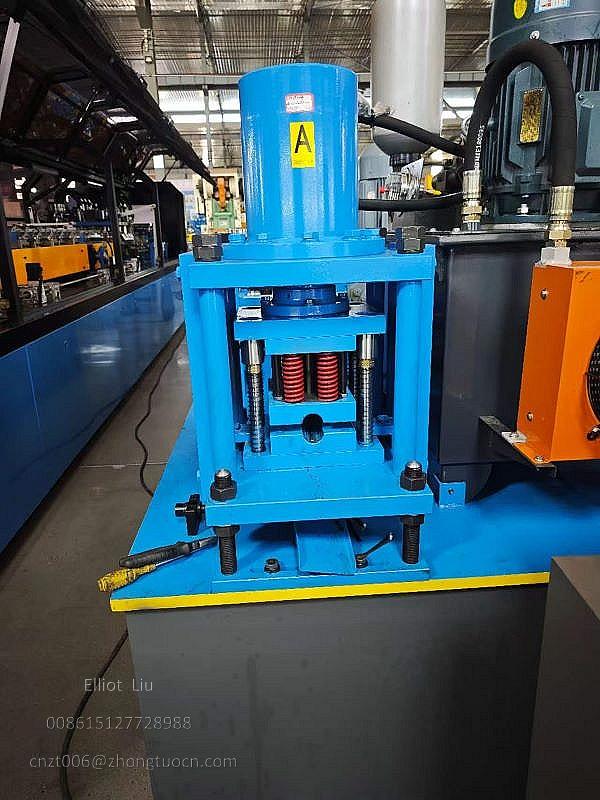

Split set dome plate press machine

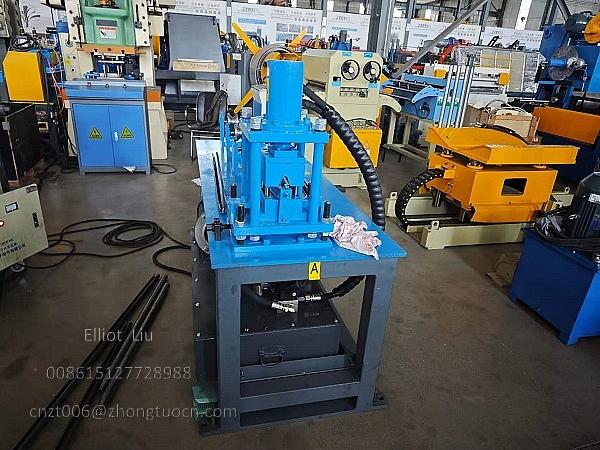

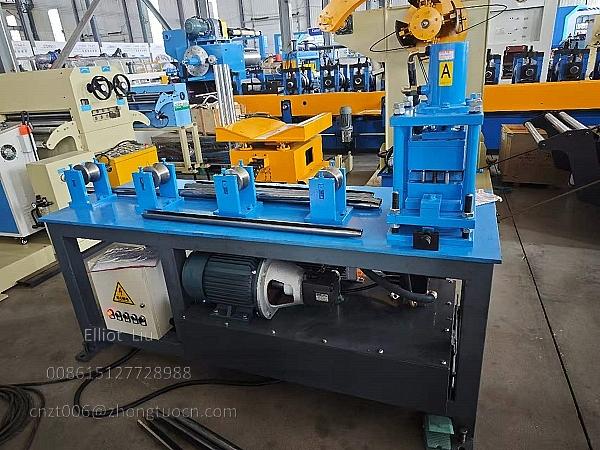

Split set necking machine

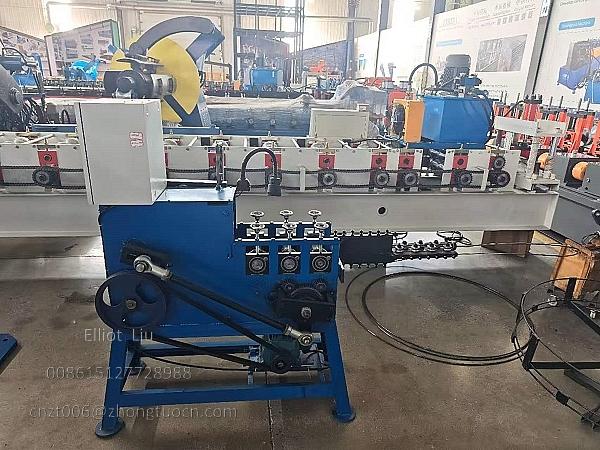

Split set ring making machine

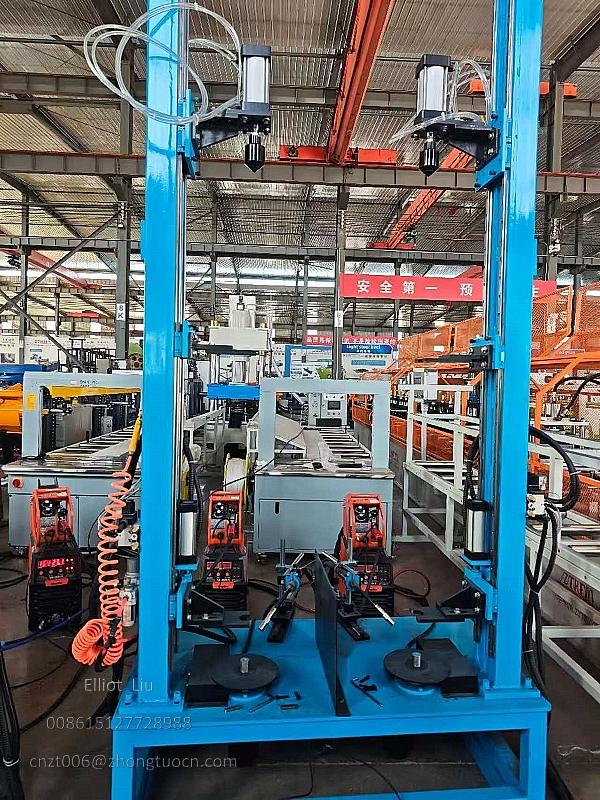

Split set ring welding machine

Daily Maintenance

Equipment life depends not only on build quality, but also on daily upkeep. We recommend customers do a few things regularly.

Clean the machine surface and interior to prevent metal chips and oil buildup; accumulated chips can get into roller gaps and speed up roller wear.

Add rust preventive oil to rollers about every ten days; also apply it before storage if the machine sits idle for a long time. Add lubricating oil to the cutting mold friction areas every half hour during production; insufficient oil speeds up tool wear.

Check electrical wiring connections regularly. Loose or aged wiring can cause unstable control signals, and unstable signals lead to abnormal machine movements.

Application Areas

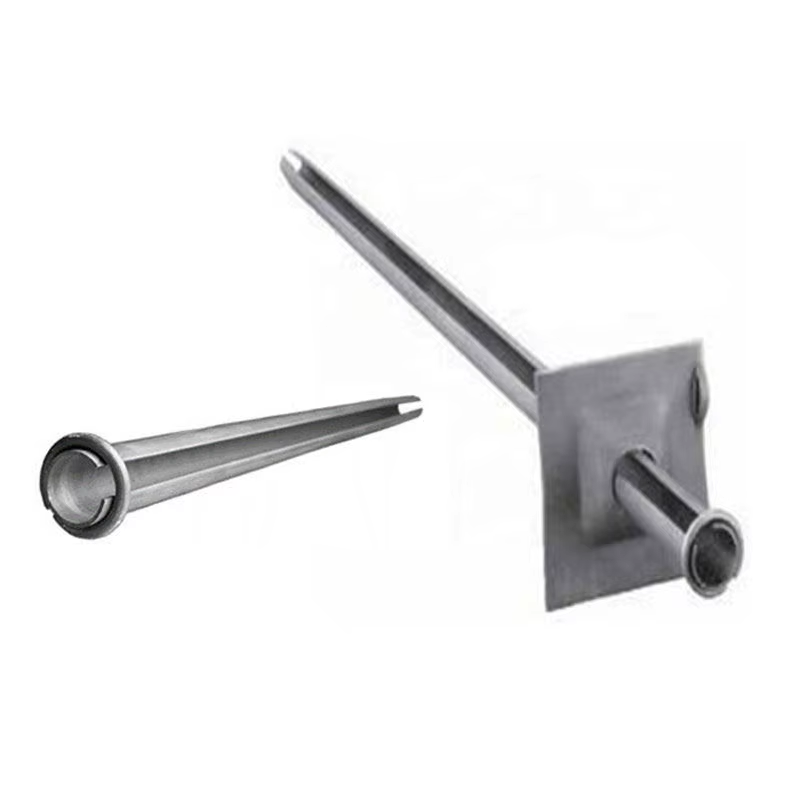

This Anchor Rod Cold Bending Roll Forming Machine produces Split Set rock bolts and accessories for many industries:

• Mine roadway roof and side support
• Highway and railway tunnel primary support
• Dam slope and reservoir bank reinforcement
• Underground cavern and foundation pit support
• Slope stabilization and geological hazard control

Purchasing Advice

If you are concerned about how long the equipment will last, evaluate it from two angles. First, look at the frame and drive type. Cast steel frame with gearbox drive generally has a longer structural life. Second, look at the roller and mold materials. Quenched die steels like Cr12 and GCr12 have clearly better wear resistance than ordinary steel.

Our Anchor Rod Cold Bending Roll Forming Machine uses proven solutions in both areas. You do not need to worry about replacing the whole machine after three years; with normal use and maintenance, this equipment will serve you for many years.

Service Support

All equipment comes with a one year warranty. During the warranty period, we fix any failures caused by manufacturing defects at no charge. After the warranty, we provide lifetime technical support. The warranty policy for our Anchor Rod Cold Bending Roll Forming Machine covers all equipment across the five lines, with no exceptions.

If you need installation guidance, you can watch our video tutorials. You can also visit our factory for hands on training. Or we can send an engineer to your site.

Whatever concern you had when you first searched "how many years does a roll forming machine last", we can recommend the right configuration for your working conditions and material requirements. Our Anchor Rod Cold Bending Roll Forming Machine offers flexible combinations to match your needs. Tell us your material thickness, target output, and voltage, and we will send you a detailed proposal.
