In North American light gauge steel construction, builders frequently arrange floor joists and roof trusses in parallel. Steel bridging bars play an indispensable role in this context, connecting parallel structural members and providing top track fixing points for non load bearing interior walls. When manufacturing these bars, the inability to quickly switch widths renders small batch orders unprofitable; conversely, a lack of strict synchronization between roll stations leads to hole misalignment, hindering on-site installation. Thisarticle examines two key features, spacer based width adjustment and gear drive systems, to demonstrate how thissteel bridging bar roll forming machineresolves these common production challenges. We include technical specifications, profile diagrams, and application scenarios for your evaluation.

Spacer Based Width Adjustment Without Roll Remova

Traditionally, adjusting the width of bridging bars required dismantling and reassembling the entire roll set, a task often consuming half a day and demanding skilled technicians.

This machine features precision engineered annular spacers installed between roll stations. Operators simply add spacers to reduce the gap when producing narrower bars, or remove spacers to accommodate wider ones. The entire process requires neither the disassembly of roll shaft housings nor realignment.

Thanks to the precision machining and uniform thickness of the spacers, the roll gap automatically returns to the correct setting upon reassembly, eliminating the need for repetitive trial runs. For North American manufacturers, this means operators can switch between the common widths of 63.5 mm and 92 mm in mere minutes without requiring an on site engineer.

Gear Drive System Ensures Precise Hole Alignment

If the rotational speeds of the roll stations are not synchronized, the steel strip will twist and deform. This causes misalignment of the mounting holes, rendering on site assembly impossible.

This ssteel bridging bar roll forming machine utilizes an enclosed gearbox rather than a chain drive as its primary transmission system. Gear meshing provides a rigid connection, eliminating the stretching issues associated with chains and ensuring that the rotational angles of all roll stations remain strictly synchronized.

As the material passes through the punching station, the PLC issues punching commands based on the real time phase of the rolls, naturally ensuring accurate hole positioning. Regardless of production speed or the sequence of the piece being produced, the spacing between holes remains consistent. This feature is particularly critical for the North American construction market, where both bridging bar widths correspond to strict installation modules; any deviation in hole positioning would render the entire batch incompatible with the on site framing studs.

Technical Specifications Overview

The following parameters reflect the actual equipment configuration, allowing for a quick assessment of compatibility with your existing setup.

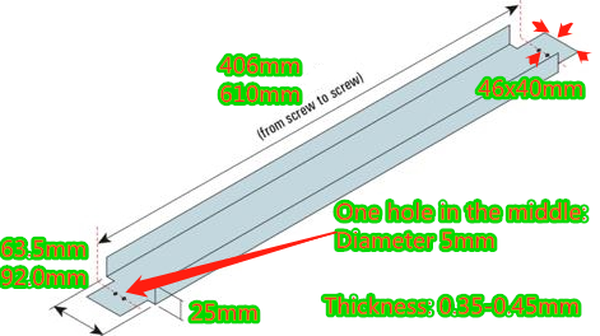

Profile Diagram

The cross sectional view shows that the machine rollers emboss only the web area, leaving the edges untouched. This design preserves edge flatness, ensuring a tight fit between self tapping screws and connectors and preventing loosening caused by surface irregularities. Confining the embossing to the web also minimizes friction related wear on the galvanized coating.

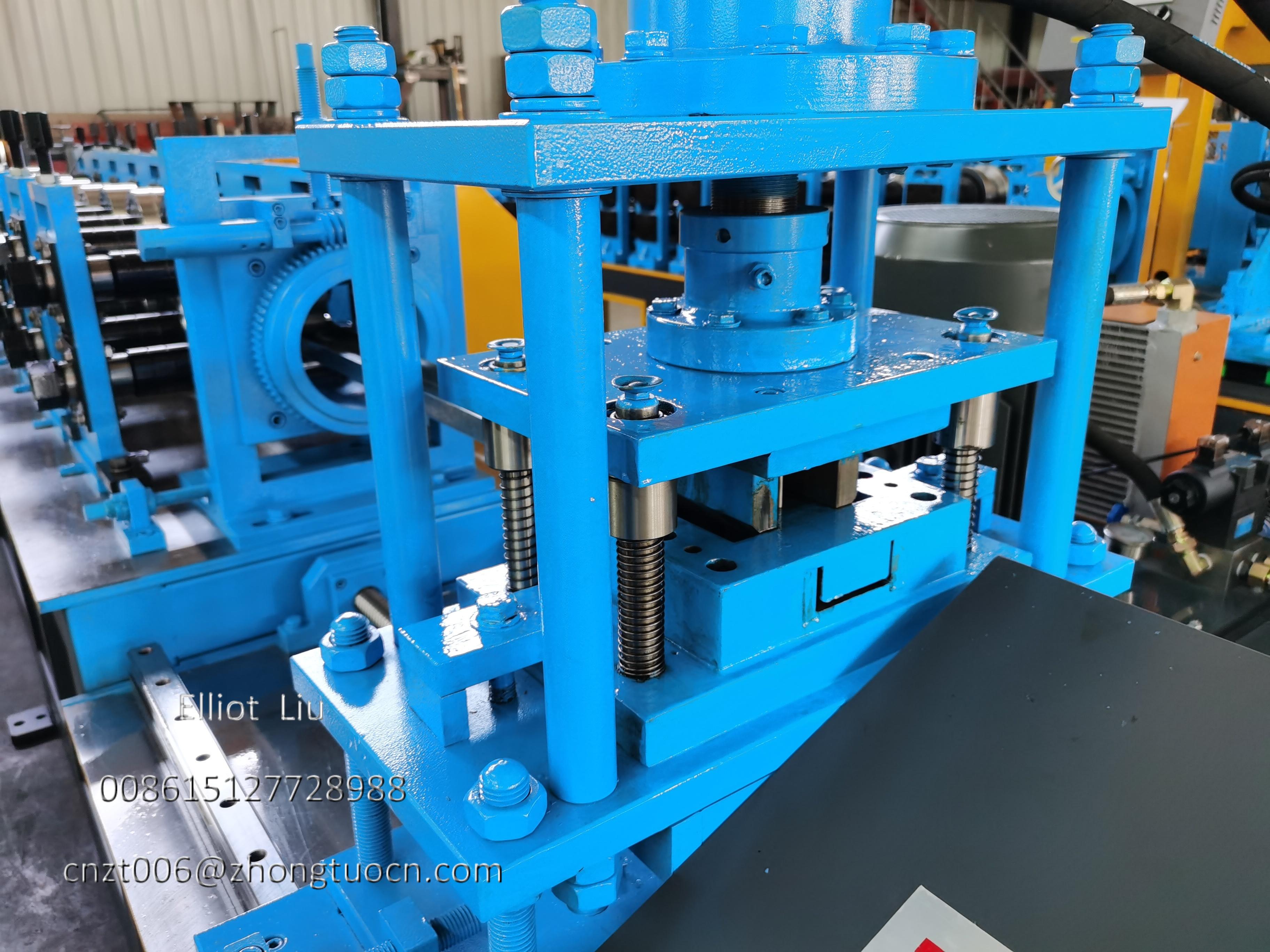

Non Stop Punching and Cutting for Consistent Length

Most machines require deceleration or even a full stop during the cutting process. This not only reduces efficiency but also increases the risk of length inaccuracies.

TheSteel Bridging Bar Roll Forming Machinefeatures an automated tracking punching and cutting system, centrally controlled by a PLC. As the material moves continuously, a measuring wheel provides real time length feedback. Upon reaching the preset length (406mm or 610mm), the punching die engages first, followed immediately by the cutting blade. The entire sequence occurs at the machine's operating speed, eliminating the need to slow down.

A hydraulic station provides centralized power for punching and cutting, while blades made of hardened Cr12 steel ensure clean cuts. To switch production lengths, the operator simply selects a preset recipe on the screen; the system automatically adjusts the cutting timing without requiring mechanical limit switch changes. This configuration guarantees uniform length for every bridging bar, meeting North American construction site standards for dimensional consistency.

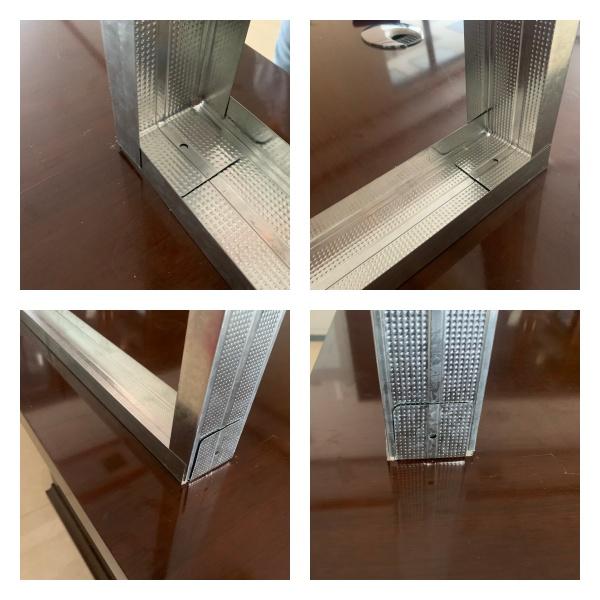

Finished Product Image

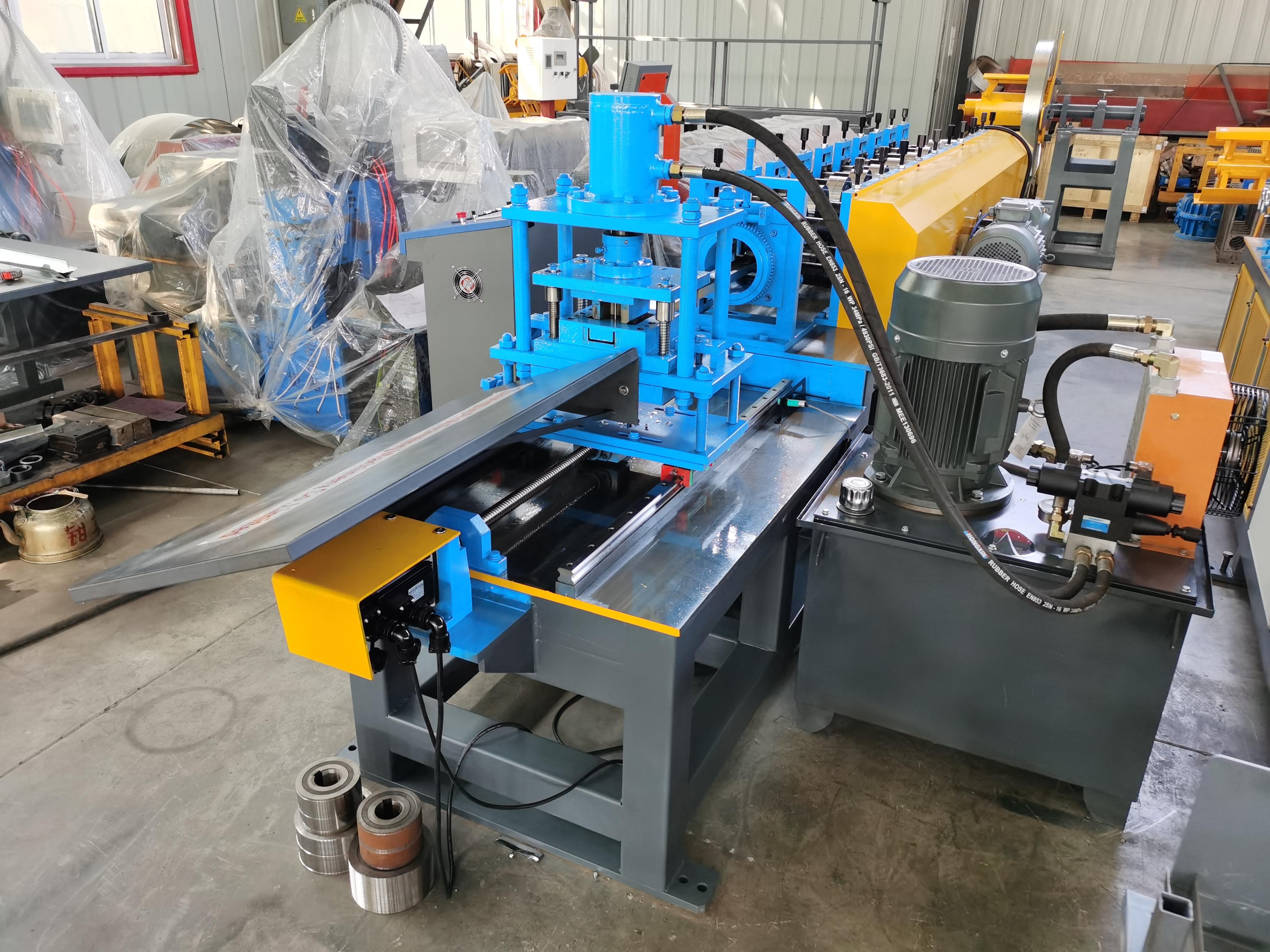

Machine Configuration Designed for Long Term, Stable Operation

A machine must not only perform well today but also remain reliable for years to come. This machine incorporates specific design details to ensure such longevity. Core Structural Features:

The machine features a robust welded square steel tube gantry style frame that ensures excellent overall rigidity.

The main shaft undergoes quenching and tempering, balancing hardness with toughness.

The manual passive uncoiler supports a load of 2.5 tons and features an adjustable inner diameter to accommodate standard coil specifications.

An entry guide platform ensures the steel strip is centered as it enters the machine.

A manual take off table facilitates visual inspection of the finished product's appearance by operators.

Included Accessories

We provide a set of maintenance tools with each machine.

Spare gears are included.

An operation manual with illustrated instructions is provided.

The configuration aims to minimize unexpected downtime, extend equipment lifespan, and reduce reliance on highly skilled operators. For processing plants fulfilling North American construction orders, equipment reliability, rapid changeover capabilities, and high precision are essential to meeting builders' stringent requirements for timely delivery and consistent quality.

Conclusion

This overview has highlighted the key features of the system, specifically its shim based width adjustment and gear drive mechanism. It is not merely an assembly of parts, but an engineered solution addressing two common production pain points: slow changeover times and hole positioning inaccuracies. If your production line struggles with frequent specification changes or the precision demands of export orders, this equipment could be a viable solution.
