Warehouse racks are the backbone of logistics and retail. The upright pillars carry all the weight, so their quality decides how safe and long lasting the racks will be.

Many workshops struggle with low output or inconsistent pillar quality. Our shelf system steel upright rack making machine combines decoiling, leveling, punching, roll forming, and cutting into one automatic line. It turns steel coil into finished pillars in a single pass.

This equipment makes two profile sizes: 65×80mm and 65×100mm. It runs at over 20 meters per minute and handles material from 2.0mm to 2.5mm thick.

Where These Uprights Go

• Warehouse storage racks and heavy duty pallet systems
• Supermarket shelving and retail distribution centers
• Factory storage for raw materials and finished goods
• Adjustable racking in third party logistics warehouses
• Galvanized shelving for cold storage and food logistics

How the Production Line Works

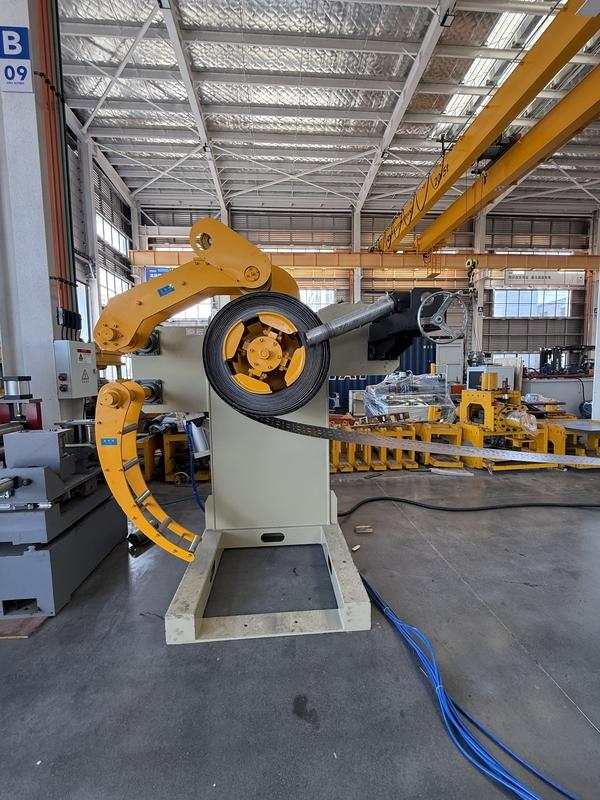

Decoiling and leveling: A 5 ton hydraulic decoiler holds the coil and feeds it smoothly. A seven roller leveler takes out bends and twists, giving flat material for the steps ahead.

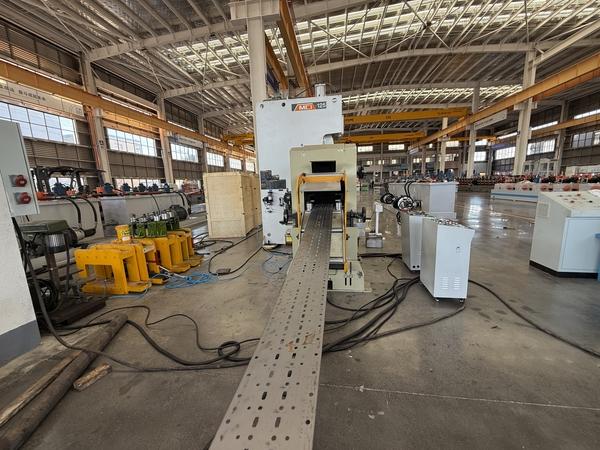

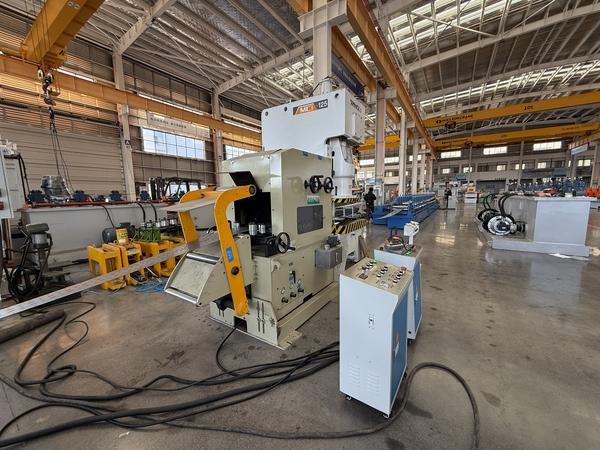

Punching: An 80 ton pneumatic press punches the holes. A servo feeder moves the strip accurately, so hole spacing stays consistent along the whole pillar.

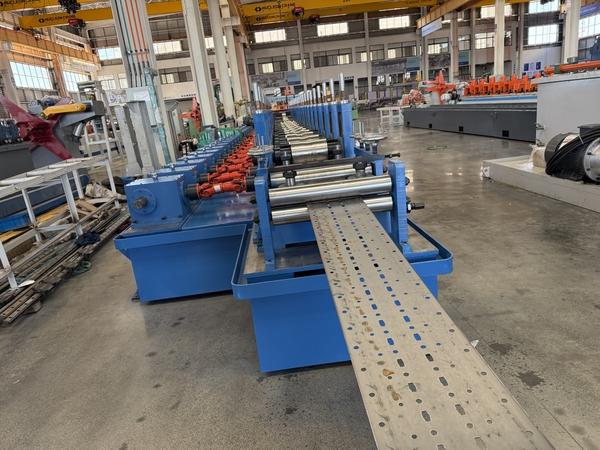

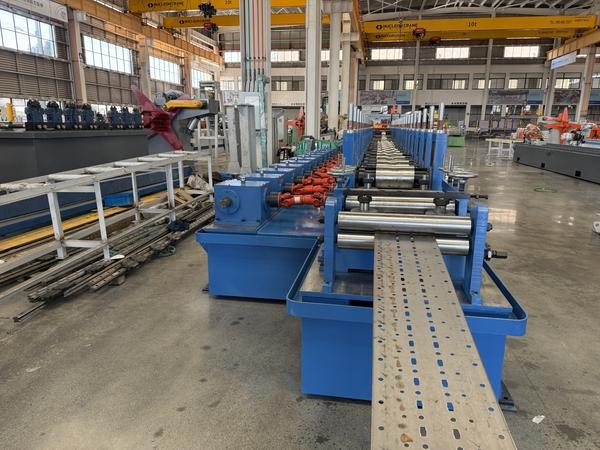

Roll forming: The 22kW main machine uses 20 roller stations to gradually shape the flat strip into the final upright profile. Gearbox drives keep every roller turning in sync, so the section stays stable.

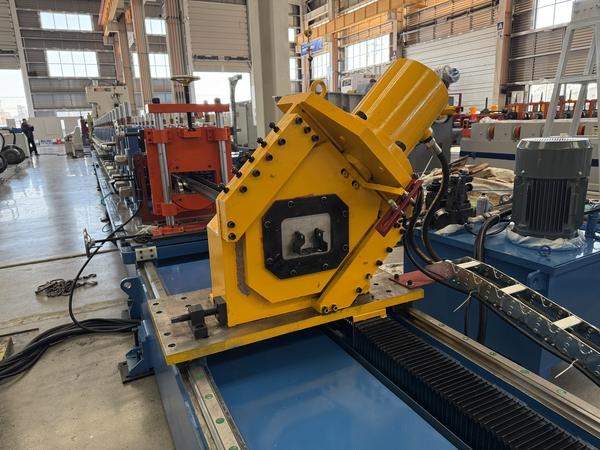

Cutting and collecting: A servo tracking shear cuts the pillar while moving with the strip. The line never stops. A 6 meter hydraulic table collects the finished pieces neatly.

Core Strengths

Synchronous linked control: All stations adjust their speed automatically. If punching runs a bit faster, a loop buffer takes up the extra material. If forming pulls harder, the servo adjusts. Nothing piles up or gets stretched out of shape.

Two profiles on one machine: Switching between 65×80mm and 65×100mm takes just a few taps on the PLC screen. No mold changes, no second production line. You save on equipment cost and floor space.

Gcr12 hardened rollers: The rollers reach HRC58 to 62 hardness. At that level, they barely wear over their normal service life. The uprights come out smooth with no scratches, and the galvanized coating stays intact.

Servo tracking shear: The shear moves with the strip while cutting. The machine keeps running at full speed over 20 meters per minute without slowing down for each cut.

Technical Specifications

Choosing the Right Machine

Before you pick a shelf system steel upright rack making machine, ask yourself three things: What section size do you need? What thickness do you run most often? How many pillars do you produce per day?

This equipment covers 2.0 to 2.5mm thickness, which suits most upright production. If you mainly make heavy duty racks, go with the 65×100mm profile. For medium duty shelving, 65×80mm gives a more economical option.

Voltage can be customized to your local standard. The control panel supports multiple languages, so overseas operators find it easy to use.

Business Value

A stable upright forming line keeps turning out good parts day after day. At over 20 meters per minute, one shift gives you a solid output. The automated process needs only one operator to watch the whole line.

Durability protects your bottom line too. The cast steel frame, gearbox drives, and Gcr12 rollers are built for continuous running. Less maintenance and fewer breakdowns mean lower long term costs.

The dual size design lifts your return even further. One shelf system steel upright rack making machine handles two profile sizes, so you can take more types of orders and keep the equipment busy longer.

Tell us which upright size you produce. Let us know your typical material thickness. We can recommend the right configuration for your shop. Every shelf system steel upright rack making machine comes with a one year warranty and lifetime technical support. After delivery, you will get setup videos and remote guidance.
