Many road guardrail orders come in large volumes with tight deadlines. Your production line speed directly determines whether you can deliver on time. At the same time, different projects require different sheet thicknesses and materials. If your equipment can only handle one specification, your ability to take on a variety of orders will be limited. This high guardrail roll forming machine combines production speed with investment flexibility, giving you more confidence in your expansion decisions.

Slow production leads to missed deadlines. Rigid equipment means lost opportunities when specifications change. This high guardrail roll forming machine solves both problems at once.

Below we focus on its forming speed, multi specification adaptability, and automation capabilities to help you expand production wisely.

Technical Parameters

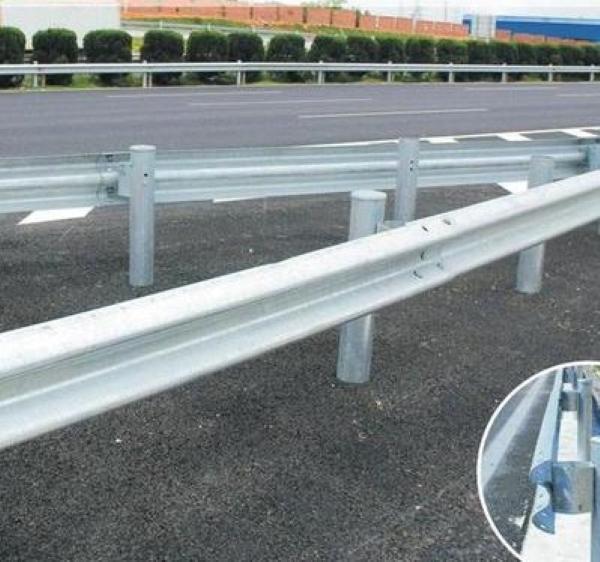

Applications

Guardrail panels produced by this high guardrail roll forming machine are used in the following scenarios:

• Continuous protection along highways, where the panel deforms upon vehicle impact to absorb collision energy
• Median barriers on primary roads to prevent cross traffic collisions
• Side protection on mountain curves and cliff edge roads to stop vehicles running off the road
• Transition sections between bridges and tunnels
• Urban expressways and elevated road barriers

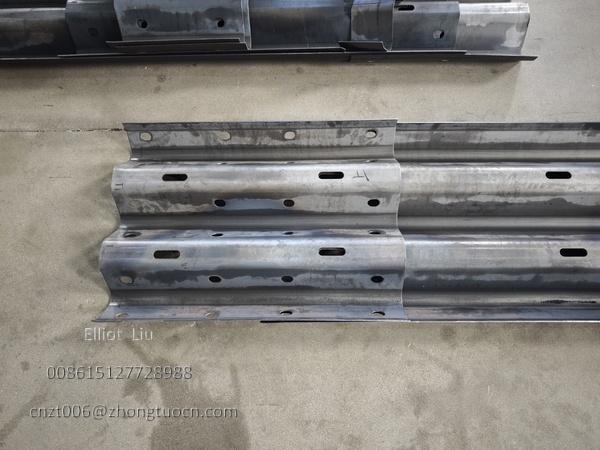

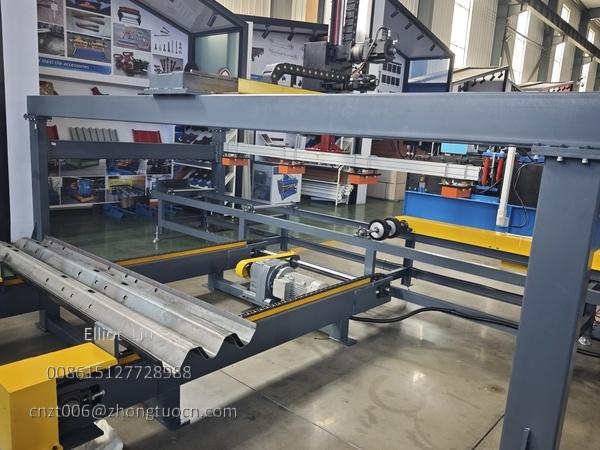

The panels produced by this equipment have a profile height of 90 mm and a cover width of 312 mm. Hole positions are accurate and lengths are consistent, so no secondary hole adjustment is needed during site installation.

Forming Speed

Have you calculated how many panels a production line can turn out per day? This high guardrail roll forming machine runs at 15 to 20 meters per minute. With each panel at 4320 mm, the machine produces 2 to 2.5 panels per minute.

If it runs 8 hours a day, daily output is roughly 960 to 1200 panels. This speed lets you handle medium sized road project orders comfortably. Higher speed from this machine means more orders completed in the same time and noticeably shorter delivery lead times.

Forming Stations

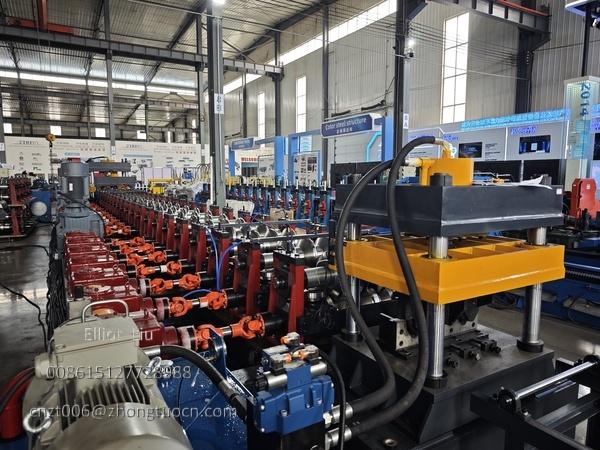

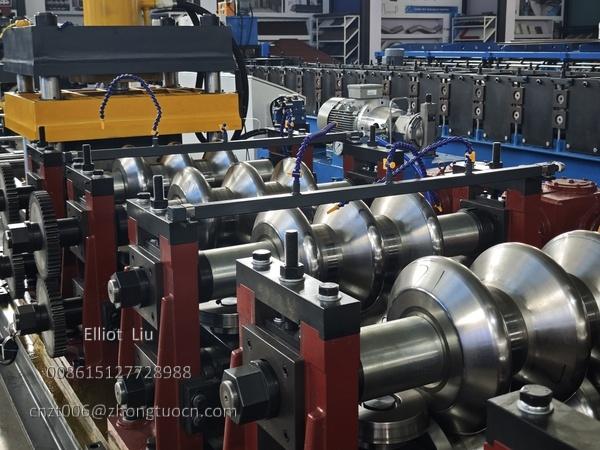

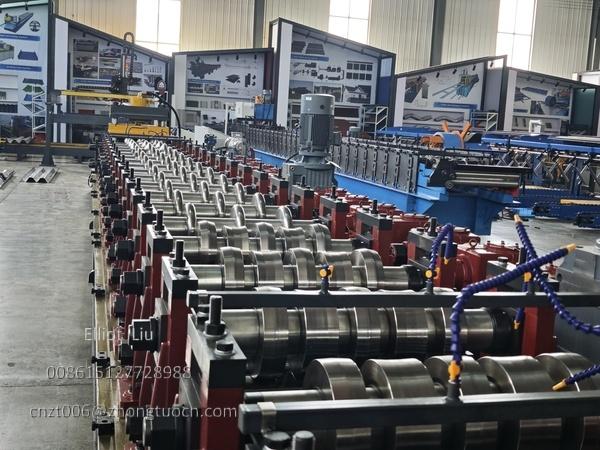

Guardrail profiles are not formed in one pass. The sheet goes through multiple rollers that gradually bend it into shape. This high guardrail roll forming machine is equipped with multiple forming stations, each completing part of the deformation.

Too few stations means each step takes too much deformation, which can cause cracking or springback. Too many stations increases equipment cost and floor space without added benefit. Stations strike a proven balance. With 3 sets of side rollers controlling the sheet edges, this machine avoids material jams or stops caused by uneven deformation.

Synchronized Drive

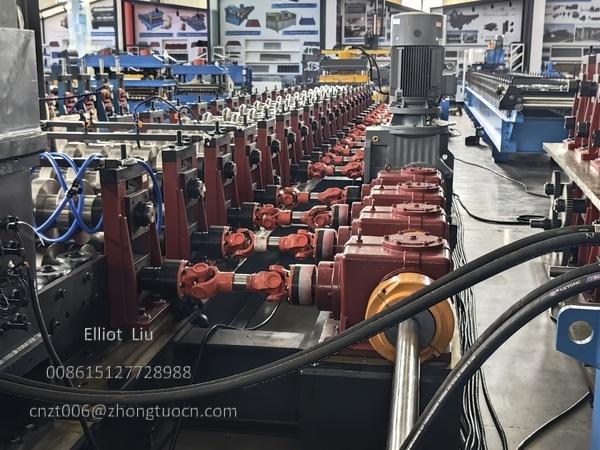

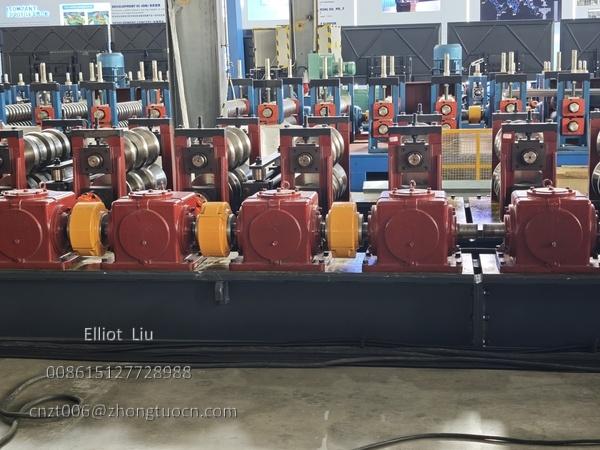

You may have experienced sudden production stops. Upon checking, you find that different stations are running at different speeds. This high guardrail roll forming machine uses 13 sets of synchronized distribution gearboxes between the motors and the forming stations.

These gearboxes distribute power from the two 22KW motors evenly to all forming stations. Each station runs at the same line speed, so the sheet experiences bending forces only, without extra pulling or squeezing. Even after hours of continuous production, this machine does not suffer from material bunching or thinning due to speed differences.

OneMachine, Multiple Uses

When buying a production line, your biggest worry is often that the equipment can only make one specification. If future orders change in thickness or material, the machine sits idle. This high guardrail roll forming machine covers a thickness range of 2.5 mm to 4.0 mm.

This means the same machine handles both thin panels for lower grade roads and thick panels for highways. It works with galvanized steel, cold rolled steel, carbon steel, and Q235. You don't need to buy separate equipment for each thickness or material. When market order patterns shift, this machine keeps working.

PLC Control

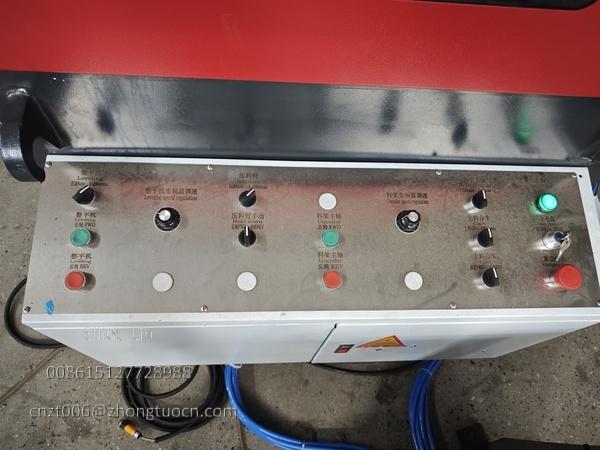

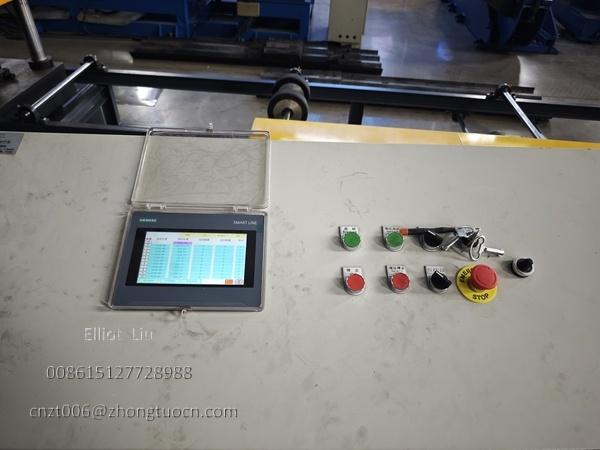

Are you concerned that new equipment will be hard to operate and require long worker training? This high guardrail roll forming machine uses a PLC control system. The operator simply sets parameters like length and quantity on the touchscreen, and the line runs automatically.

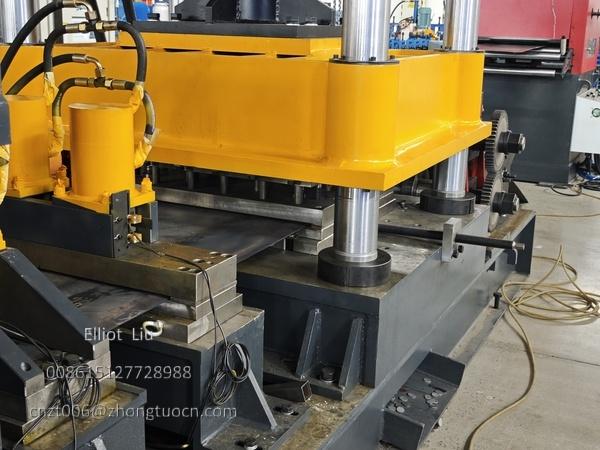

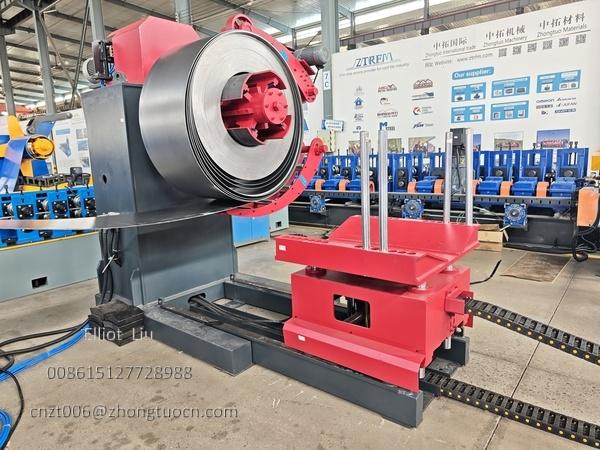

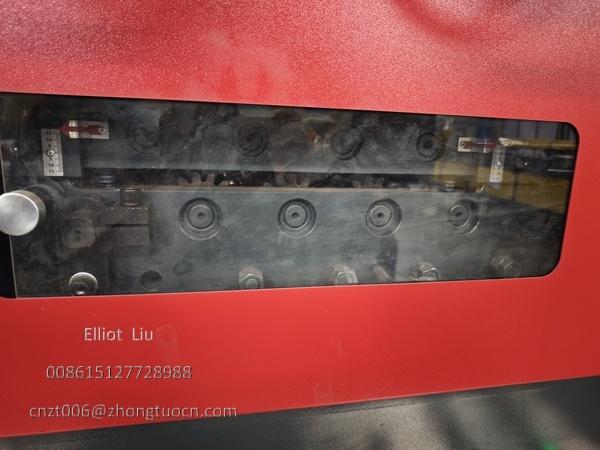

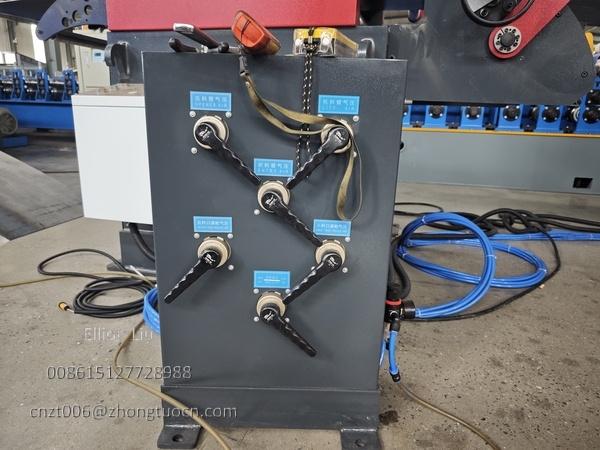

The PLC coordinates decoiling, leveling, punching, feeding, forming, and cutting. The decoiler adjusts pay off speed based on feed rate. The leveler and feed table work together to keep sheet movement steady. Punching syncs with material feed. A photoelectric measuring unit checks length in real time and triggers cutting. No frequent manual adjustments are needed during operation. New staff can learn the basics after simple training.

Multi Material Compatibility

Guardrail projects in different countries use different materials. Some use galvanized steel, some use cold rolled steel with additional coating, and others use carbon steel or Q235 directly. This high guardrail roll forming machine works with all these materials.

As long as the thickness falls between 2.5 and 4.0 mm and the width matches the 490 mm feed requirement, you're set. You don't need separate lines for different materials. For manufacturers handling diverse material orders, this compatibility means greater flexibility in order intake.

Equipment Longevity

Processing steel sheet from 2.5 to 4.0 mm thick puts serious wear on rollers. This high guardrail roll forming machine uses Gr15 bearing steel for its forming rollers, heat treated to HRC55 to 60 hardness.

This hardness level means the roller surfaces resist wear and do not easily develop scoring or marking. Paired with the K127 gearbox and 22KW dual motor drive, the drive system runs dependably. Fewer equipment issues mean the line keeps running. For factories that need to run 8 or more hours daily, this machine delivers lower maintenance costs and more reliable output.

Closing

Thank you for taking the time to learn about this high guardrail roll forming machine. We understand that every production line purchase comes with specific production plans and a real budget to consider. If you are evaluating equipment options, or if you have questions about thickness range, material suitability, or output calculations, we are always ready to offer suggestions based on your specific needs. Feel free to reach out to us anytime.
