As a professional industrial roll forming machinery manufacturer, we specialize in full automatic upright pillar production line for warehouse shelf and storage rack industry. This complete integrated line covers whole process from coil uncoiling, leveling, punching, roll forming to automatic cutting and finished product collection. It adopts standard industrial voltage, matched stable power configuration, reasonable floor layout, and perfectly adapts to 2.0–2.5mm raw material processing with steady running speed.

The whole production line runs smoothly in one continuous flow, no need for repeated manual handling. All electrical and hydraulic parts adopt well-known brand accessories, low failure rate and long service life, very suitable for long-term batch production of shelf upright profiles.

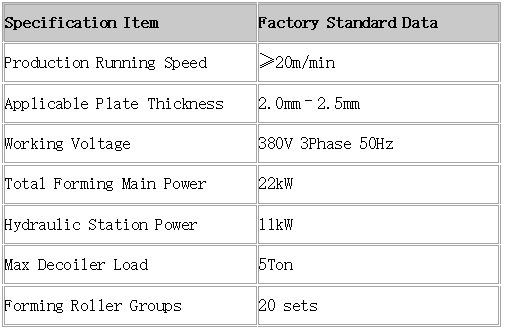

Main Technical Parameter Table

Complete Process Configuration

This line integrates multiple functional units into one set, compact structure and clear division of each station. Every working section is reasonably matched in speed and rhythm, realizing synchronous linkage operation.

· 5-ton hydraulic automatic decoiler with inner diameter adjustable range

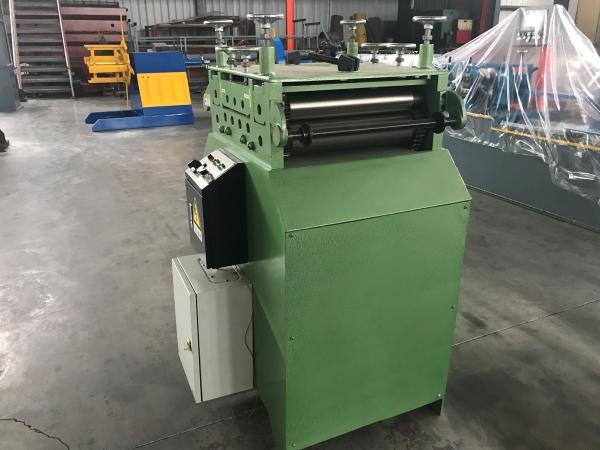

· 7-roller material leveling unit to ensure flat raw plate

· 80t punching press matched with servo feeding system

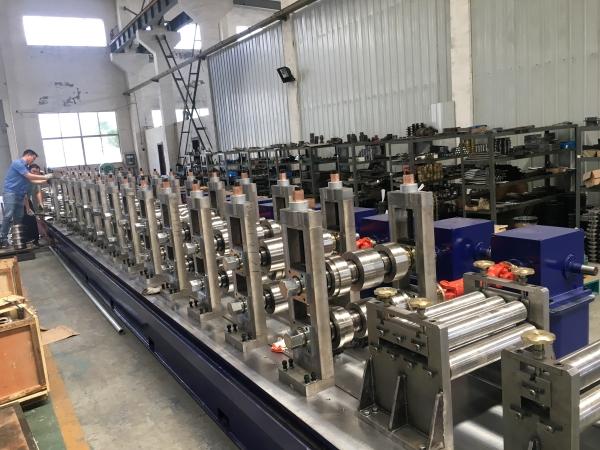

· 20 groups precision roll forming host

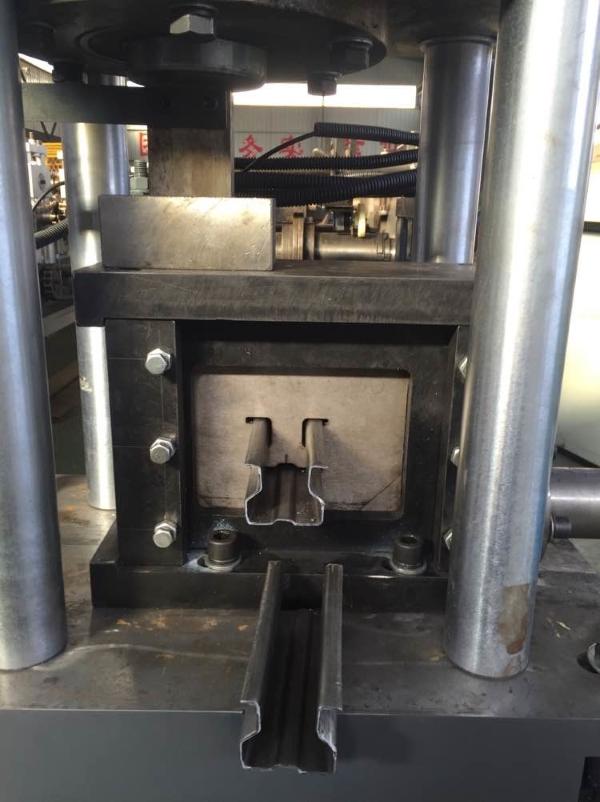

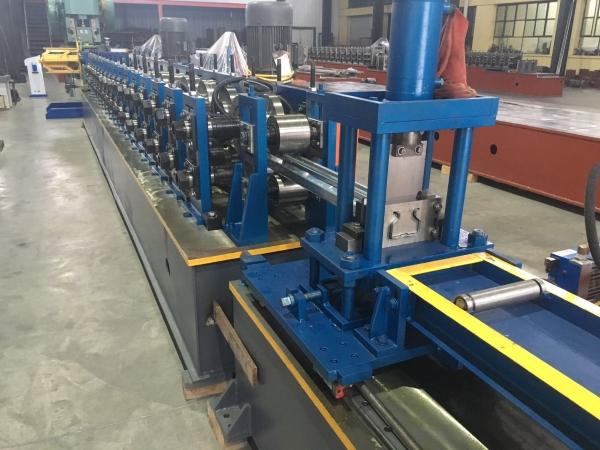

· Servo tracking hydraulic shearing device

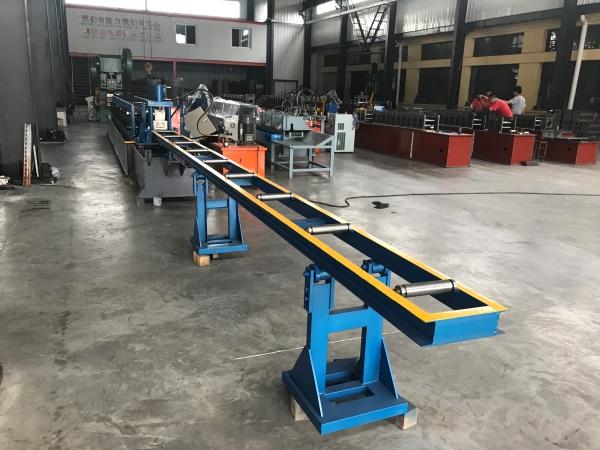

· 6m long hydraulic finished product receiving table

Production Line Adaptability

Our upright pillar line is designed compatible with two mainstream upright sizes: 65×80mm and 65×100mm.

We will provide different sizes cutting blades together with the machine. When you produce different sizes profiles, you have to change the cutting knife accordingly, plus simple adjustment on punching die and forming rollers.

One line can meet two common upright production demands, no need to buy another full production line, saving your workshop space and equipment budget.

Structural Material Advantage

All forming rollers are made of Gcr12 steel after overall quenching treatment, surface hard chrome plating, wear-resistant and not easy to deform. The main shaft adopts high-strength alloy material, stable bearing capacity, long-term operation without shaking and size deviation.

Operation and Control Feature

Equipped with Delta PLC and human-machine touch screen, Chinese and English language optional. Workers can set length, quantity and speed directly on the screen. The system has automatic counting, fault alarm and memory function, simple operation and easy for new employees to get started quickly.

We always focus on practical production demand and equipment durability. This upright pillar production line is refined in every process detail, stable operation, high output and low maintenance. Choosing our equipment means you get a high-efficiency automatic production solution, helping your shelf manufacturing business expand steadily.
