You know what’s frustrating? You have a great workshop, skilled workers, and a steady stream of contractors asking for ceiling grids. But you are still buying main tees from one supplier, cross tees from another, and wall angles from a third. The colours don’t match. Delivery is always late. And when something goes wrong, everyone blames everyone else. That is exactly why we put together three separate roll forming machines – one for Main Tee (38x24x3600mm), one for Cross Tee  (26x24x1200mm), and one for Wall Angle (22x22x3000mm). You run them side by side, or one at a time. You control the quality, the colour, and the delivery. Let me show you what this Suspended Ceiling T Bar Roll Forming Machine set can do for your business.

Highlights

• The ceiling t grid making machine is highly automated for streamlined production.
• The ceiling t grid roll forming machine ensures excellent precision in every formed panel.
• The t bar roll forming machine delivers high-efficiency performance for maximum output.
• The ceiling main t bar roll forming machine is designed to be easy to operate.
• The automatic t grids machine is CE certified, guaranteeing safety and quality.
• The ceiling t grid forming machine is fully customizable to meet specific project needs.

All ceiling t grid machines, including each model listed, are backed by our remote warranty service for reliable support.

Technical Parameters of Each Machine

Main T Roll Forming Machine

Cross T Roll Forming Machine

Wall Angle Roll Forming Machine

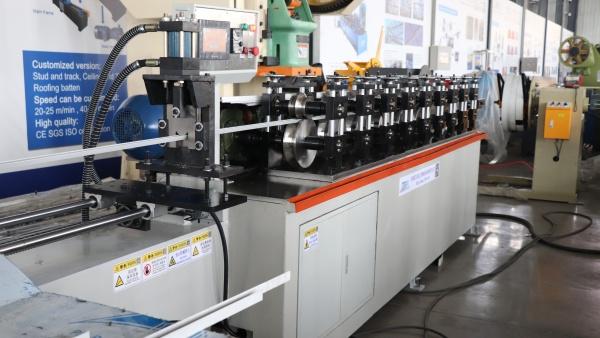

How does a T Bar Roll Forming Machine work?
TheT Roll Forming Machinebends continuous flat metal coils (such as galvanized steel) into T-shaped structural profiles, which are commonly used in ceiling grilles. Its working principle is achieved through a continuous cold forming process driven by five main mechanical stages:

	Decoiler:The machine unrolls the heavy, flat metal coil so it can feed smoothly into the production line.
	Feeding System: Guides the metal strip evenly into the main unit to ensure stability and precise profiling.
	Roll Forming Unit:The core of the machine. The metal strip passes through a series of consecutive roller stations. Each set of rollers makes a tiny, incremental bend until the flat sheet transforms perfectly into a "T" profile.
	Punching & Cutting System:As the continuous T-bar moves along, built-in hydraulic or servo systems punch holes, cut notches, and trim the bar to the exact required lengths (e.g., Main Runners or Cross Tees).
	PLC Control System:The "brain" of the machine. It manages the operating speed, monitors the servo-feeders, and allows the operator to input specific profile dimensions.

What Value Do These Machines Bring To Your Business

Let me be honest. Buying three separate machines is not the cheapest option upfront. But over time, it saves you a lot of headaches.

First, you stop relying on outside suppliers. No more waiting two weeks for a batch of wall angles. No more rejecting a shipment because the main tees are 2mm too short. You make everything yourself, on your own schedule.

Second, you can offer a complete ceiling kit to contractors. That means one invoice, one delivery, and one point of contact. Contractors love that. They will pay a little more for the convenience.

Third, your brand gets on every profile.Every time someone looks up at a ceiling, they see your brand. That is free advertising for years.

Fourth, the machines are built to last. 45# quenched shafts, Cr12 or GCr12 rollers, cast steel stands. These are not toy machines. They are made for daily production.

Applications And Finished Products

What can you make with thisSuspended Ceiling T Bar Roll Forming Machineset? Pretty much any standard suspended ceiling grid you see in:

• Office buildings (main tees carry lights and tiles)
• Hospitals (clean, straight profiles for hygiene)
• Schools (high volume, durable grids)
• Shopping malls (long corridors need consistent lengths)
• Hotels (aesthetic ceilings with hidden grid)
• Residential basements (small batches, custom lengths)

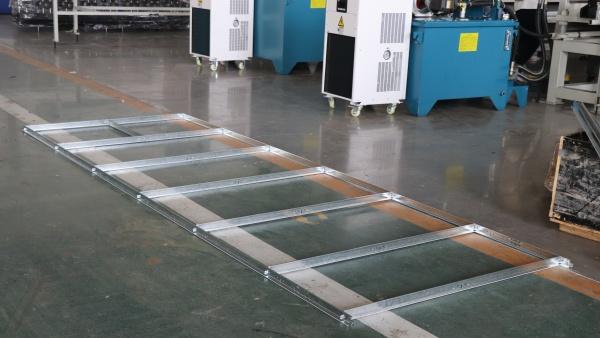

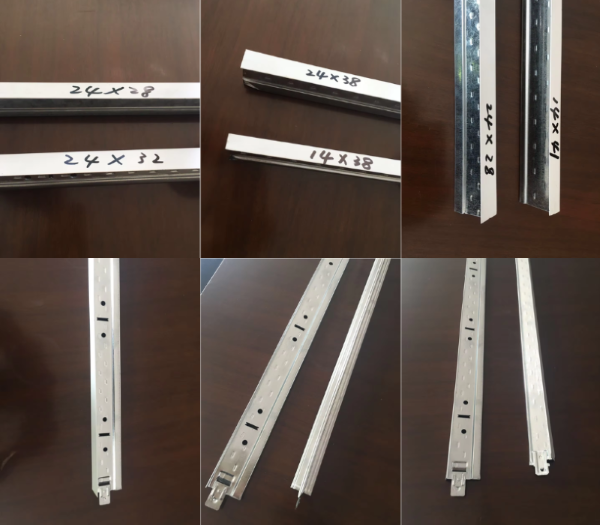

The finished profiles are:

• Main tee– 38mm height, 24mm width, length custom – the backbone of the ceiling
• Long cross tee– 26x24x1200mm – connects main tees
• Short cross tee– 26x24x600mm – fills the grid
• Wall angle– 22x22x3000mm – finishes the perimeter

Ready To Talk Here Is How To Reach Us

We have been building roll forming machines for years. Our team speaks English, and we can help you choose the right configuration – voltage, speed, thickness, and any custom features you need. We also offer remote warranty service and spare parts support.

To get a full specification sheet or a quotation, please contact:
