  Steel floor deck machine

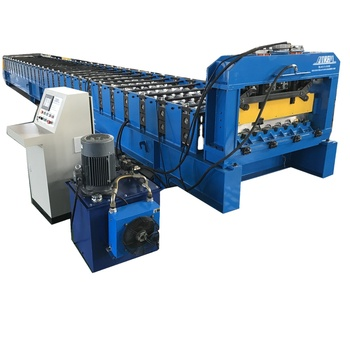

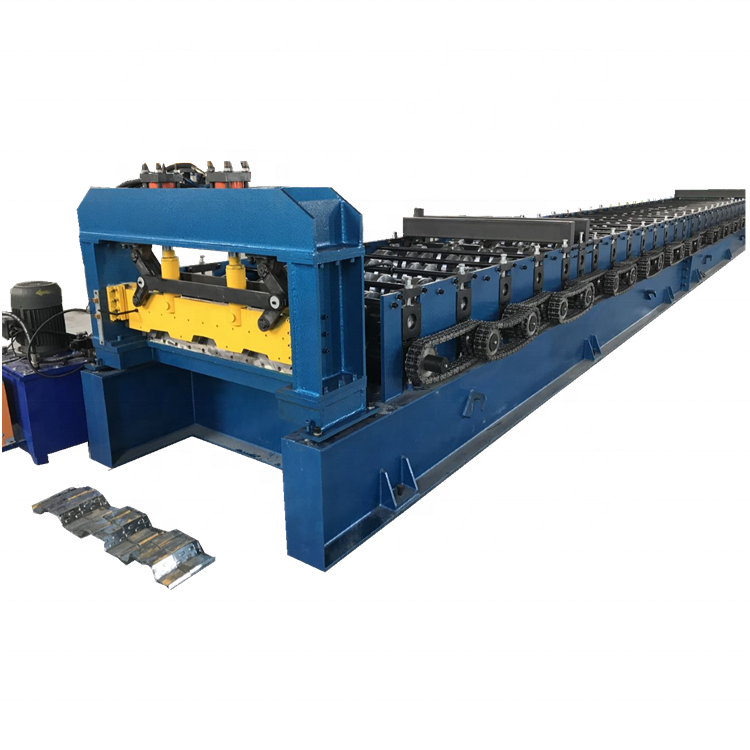

    Metal roof deck roll former composite deck steel floor form deck roll forming machine

    Metal roof deck roll former composite deck steel floor form deck roll forming machineCangzhou zhongtuo roll forming machine company can produce metal roof deck, composite deck and form deck roll former, in a variety of depths, widths and gauges.Form deckshave been known for their lightweight and high strength-to-weight ratio, making them a durable and attractive flooring solution. 9/16” form deck is used extensively in floor construction as an economical form to support concrete slabs during construction. This metal form deck is used to serve as a permanent steel base for poured concrete. The advantage to using a form deck is that it eliminates the time and cost of wood forming making it a ...

       Inquire


    Metal roof deck roll former composite deck steel floor form deck roll forming machine


    Cangzhou zhongtuo roll forming machine company can produce metal roof deck, composite deck and form deck roll former, in a variety of depths, widths and gauges.


    Form decks have been known for their lightweight and high strength-to-weight ratio, making them a durable and attractive flooring solution. 9/16” form deck is used extensively in floor construction as an economical form to support concrete slabs during construction. This metal form deck is used to serve as a permanent steel base for poured concrete. The advantage to using a form deck is that it eliminates the time and cost of wood forming making it a quick, easy, and affordable solution.


    No.
    Main Parameter
    1
    Suitable to process
    Color steel plate,Galvanized board
    2
    Width of the plate
    1250mm
    3
    Thickness of the plate
    0.8-1.5 mm
    4
    rollers
    26 rows
    5
    Dimensions
    12*1.55*1.51m
    6
    Weight
    About 14T
    7
    Power
    22+7.5 KW
    8
    Hydraulic
     40#
    9
    Diameter of the roller
    Φ90mm
    10
    Voltage
    380V 50Hz 3phases
    11
    Control system
    PLC control
    12
    Processing precision
    Within 1.00mm
    13
    Productivity
    0-15m/min
    14
    Material of the cutting plate
    Cr12
