Fully automatic self-locking CABLE TRAY MACHINE line: Intelligent manufacturing solution from steel coil to finished product
Our newly launched Fully Automatic Self-Locking CABLE TRAY MACHINE is a complete solution that integrates decoiling, punching, roll forming, and automatic cutting..
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
In modern building electrical engineering, the demand forcable traysis huge. Traditional manual bending and punching cannot meet the requirements for efficient delivery. Our newly launchedFully Automatic Self-Locking CABLE TRAY MACHINEis a complete solution that integrates decoiling, punching, roll forming, and automatic cutting. It not only solves the problems of high labor costs and low efficiency, but also ensures the dimensional accuracy of eachcable trayproduct through a preciseservo control system. This article will provide a detailed dissection of the operation process of this efficientproduction line.
Machine Usage and Process Flow

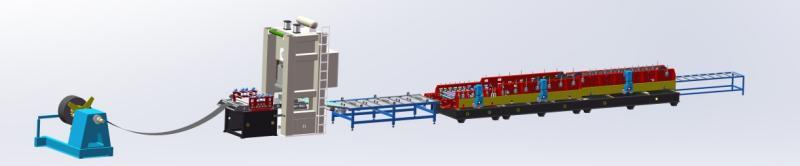

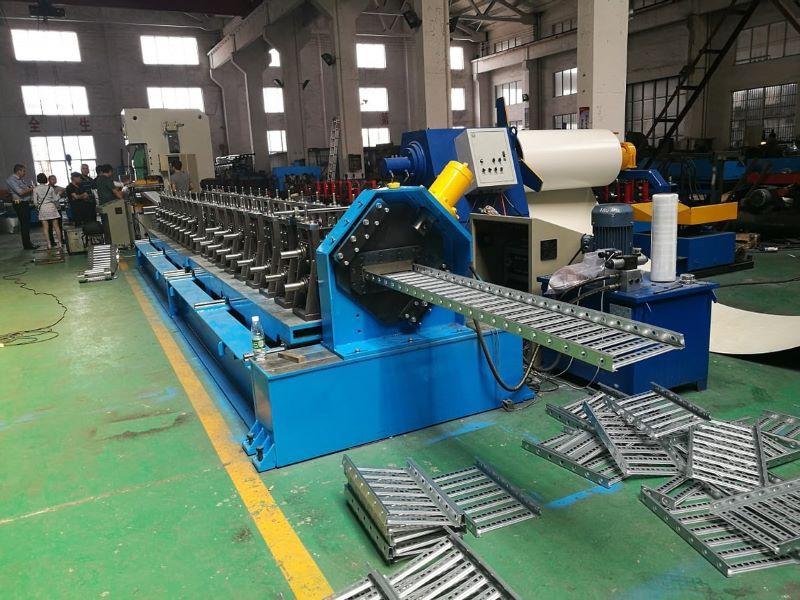

This equipment is specifically designed for the continuous production ofsteel cable trays. Its main function is to transform flat steel coils intocable trayswithself-locking structures. The entireproduction processis highly automated, and the specific steps are as follows:
●Uncoiling and Feeding:The 8-tondecoilerprovides continuous raw materials, and theservo feedingunit ensures precise feeding length.
●Online Punching:Equipped with a 400-tonpunching press, high-speed punching and cutting are performed on the strip steel before forming.

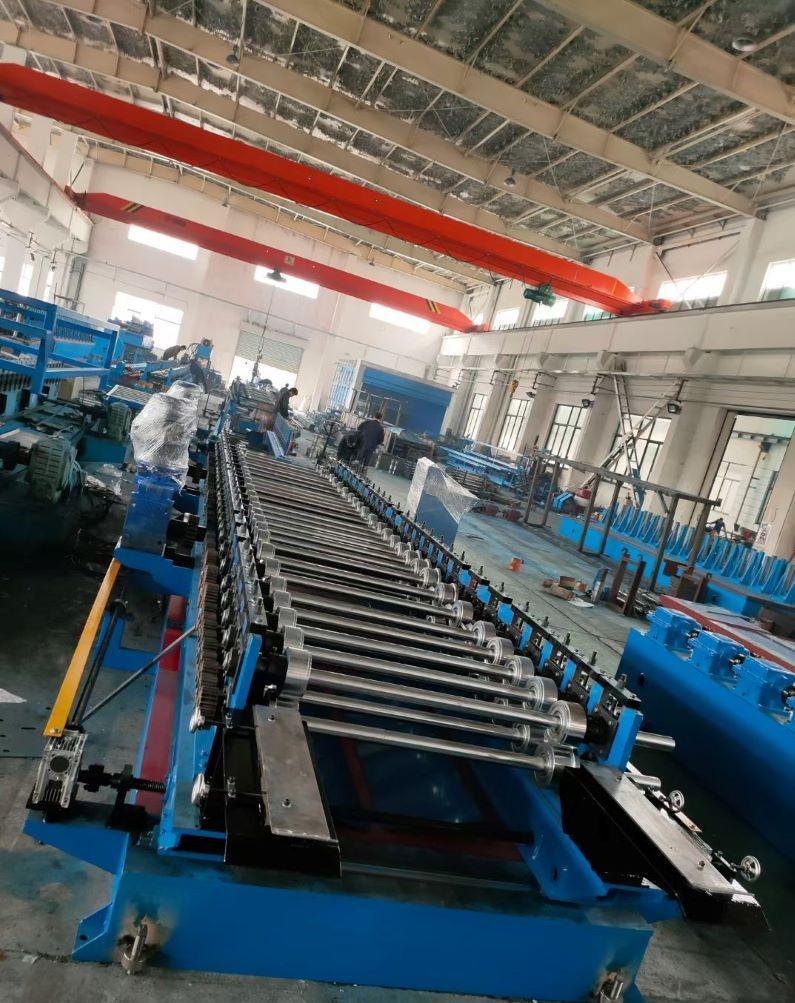

●Roll Forming:Through 30roll forming stations, the flat steel sheet is formed into the specific cross-section of thecable tray.
●Post-processing:The conveying platform is combined with aservo tracking run-out tableto complete the final shaping and discharge.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Base Width | 100 - 600 mm |
| Product Height | 50 - 100 mm |
| Applicable Plate Thickness | 0.5 - 2.0 mm |
| Production Speed | 6 - 12 meters/minute |
| Equipment Floor Area | 38 × 2.0 × 2.0 meters |
Core configuration of the production line
●Punching system:Powerful in power, suitable for high-intensity punching operations.
●Forming system:Main shaft diameter 65mm, with 30 forming stations, ensuring that the frame does not deform under high load.
●Roller material:Made of high-qualityCr12 steel, wear-resistant, ensuring that the product surface remains smooth even after long-term use.
Why choose this solution?
●High integration:One device can accomplish tasks that previously required multiple machines and a large number of manual operations.
●Self-locking technology:The unique forming process enables the production ofself-locking structure cable trays, without the need for welding, which is both aesthetically pleasing and highly durable.
●Strong stability:The heavy-duty body design combined with precise transmission is suitable for 24-hour uninterruptedindustrial production
