A road guardrail machine is a complete production line that turns steel coil into finished guardrail panels. From coil entry to panel output, the process involves uncoiling, leveling, forming, punching, and cutting.

For someone new to this type of equipment, the main question is what exactly happens to the coil from start to finish. This article explains each step of the production process in order of material flow.

Applications

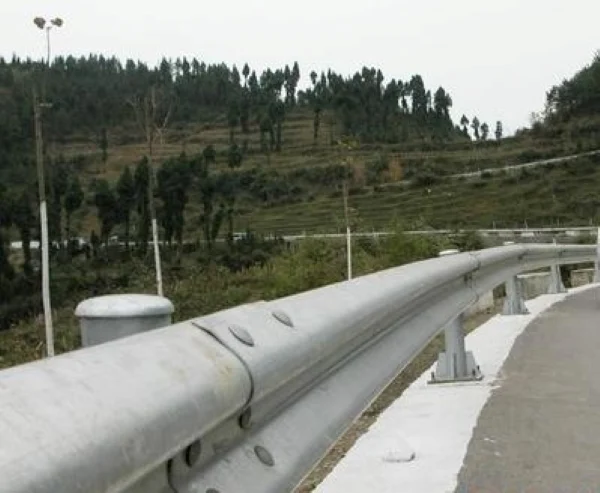

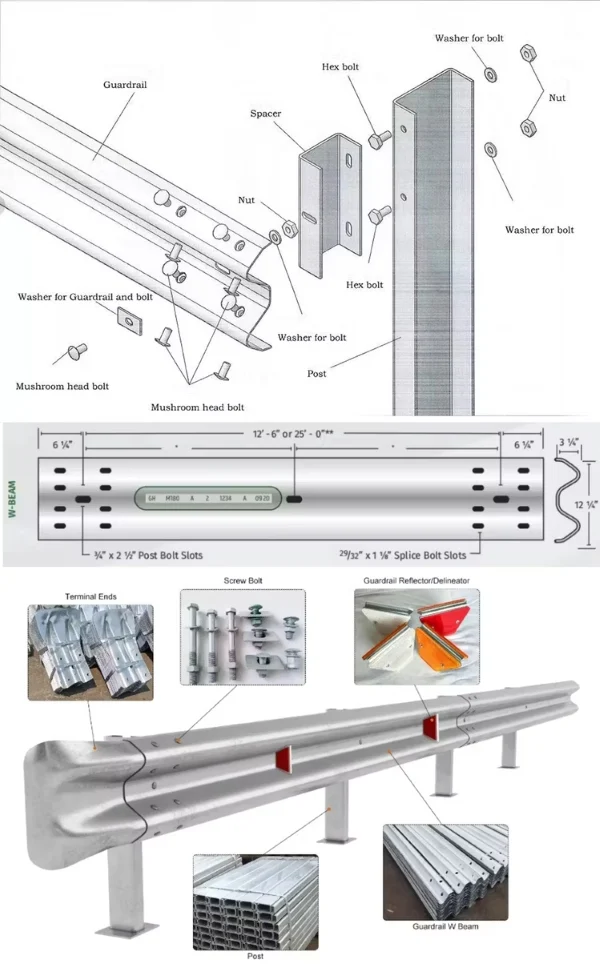

This road guardrail machine produces W beam guardrail panels for highway and road safety barriers. The finished panels are used for roadside protection, median separation, and curve or bridge sections where vehicle impact energy needs to be absorbed.

What Is a Road Guardrail Machine

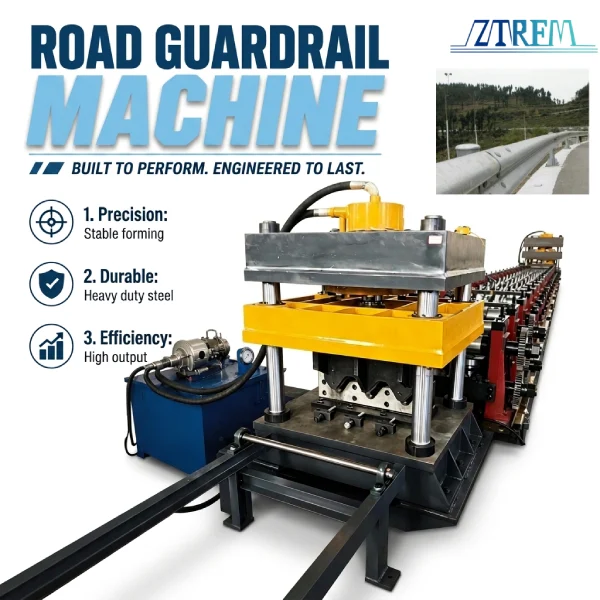

A road guardrail machine is a roll forming line that converts steel coil into highway W-beam guardrail panels. Coil enters from one end and goes through uncoiling, leveling, forming, punching, and cutting. Finished panels come out the other end continuously. A PLC coordinates the entire line, so the system runs without manual intervention.

Machine Workflow

Uncoiling and Leveling

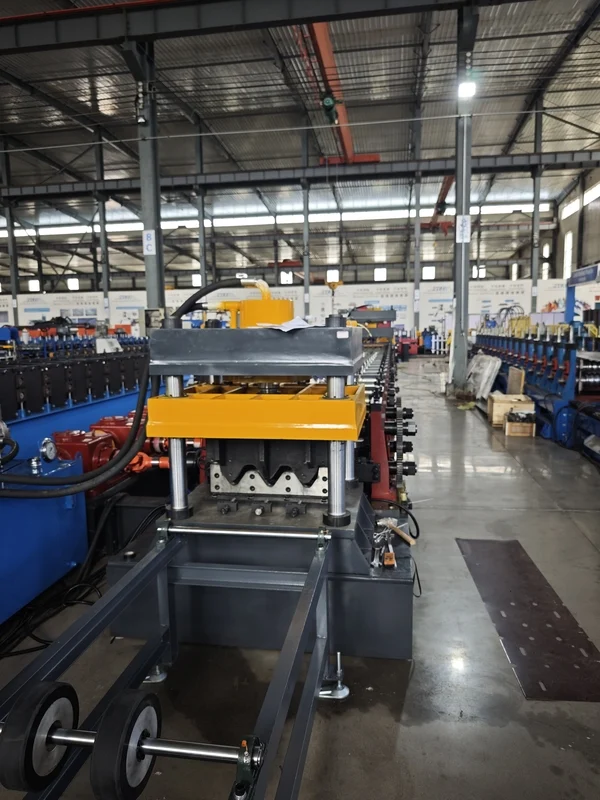

The coil gets loaded onto the decoiler, and the system holds it in place during rotation. The decoiler feeds material forward, and the strip moves into the leveler. The leveler passes the strip through rollers that work the material flat. This reduces coil curvature and produces flat sheet for the next stage.

Roll Forming

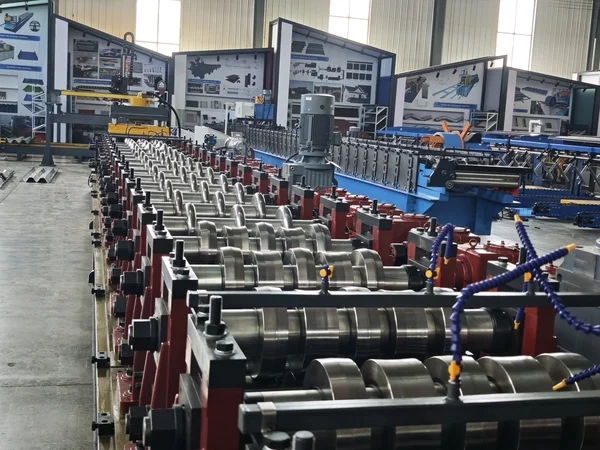

The flattened sheet enters 15 forming stations. Each station bends the sheet at a specific angle. From the first station to the fifteenth, the profile gradually takes shape from flat to fully formed. A drive system keeps all stations at the same line speed. If any station runs at a different speed, it can affect forming stability. This is the core stage of the entire line. The highway guardrail metal roller forming machine uses this multistage approach to achieve consistent profile geometry.

Punching and Cutting

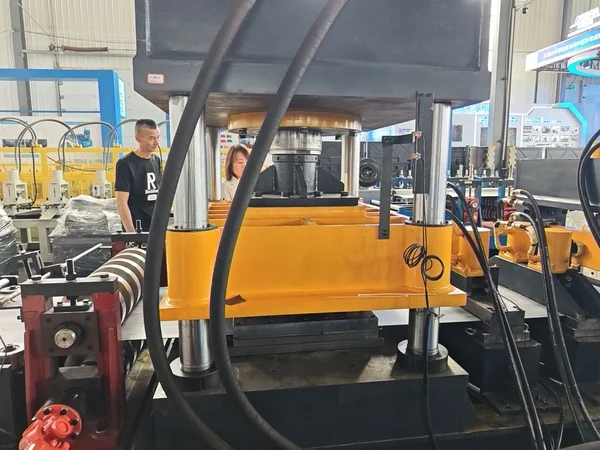

The formed sheet moves into the punching system. A hydraulic press punches mounting holes at preset positions. The punching step runs in sync with the feed speed to maintain hole accuracy. After forming and punching, a measuring unit checks the sheet length. When the length reaches the set value, the system triggers the cutting device to cut the sheet automatically.

Finished Panel Output

Cut panels drop onto a support table for collection or stacking. The table supports the full panel length during output.

Machine Advantages

Forming Stability

Fifteen stations form the profile progressively, distributing deformation evenly. This helps reduce the risk of cracking or springback from excessive deformation in a single step. A synchronized drive system locks the speed relationship between stations mechanically, so they do not need frequent recalibration. This is how a highway guardrail roller forming machine maintains consistency across long production runs.

Production Continuity

The line integrates multiple steps into one continuous process. This reduces material handling and waiting time between steps. Material goes in from one end, and finished product comes out the other.

Precision and Automation

Punching stays in sync with feeding, which helps maintain accurate hole positions. A measuring system checks length and triggers cutting, reducing the need for manual measurement or positioning. A PLC coordinates speed matching across all systems, so the line runs continuously from coil to finished panel with minimal operator intervention.

Machine Configuration Overview

The table below shows the main specifications of this road guardrail machine.

Control and Coordination

A PLC controller manages the entire line. The operator sets parameters like length and quantity, and the system runs automatically.

The feed speed coordinates with downstream steps to prevent material pileup or line starvation. The measuring system checks length and triggers cutting when the panel reaches the set value. Speed matching and timing across all systems run through the PLC, so the line operates continuously with minimal manual adjustment. The high guardrail roll forming machine relies on this coordinated control to deliver consistent output.

Summary

The road guardrail machine works in a straightforward way. Coil enters from one end and goes through uncoiling, leveling, forming, punching, and cutting. Finished panels come out the other end. All systems run under PLC coordination, and the line completes the entire process continuously from raw material to finished product. Understanding the workflow of this road guardrail machine is the first step in judging whether the equipment can meet your production needs.
