Guardrail production runs on tight delivery windows and large order volumes. Every stage has to keep pace, and the forming stage carries most of that pressure. A high speed guardrail roll forming machine earns its place on the floor by keeping output continuous, holding profile consistency, matching order rhythm, and cutting manual handling between steps.

Where This Machine Fits in Guardrail Production

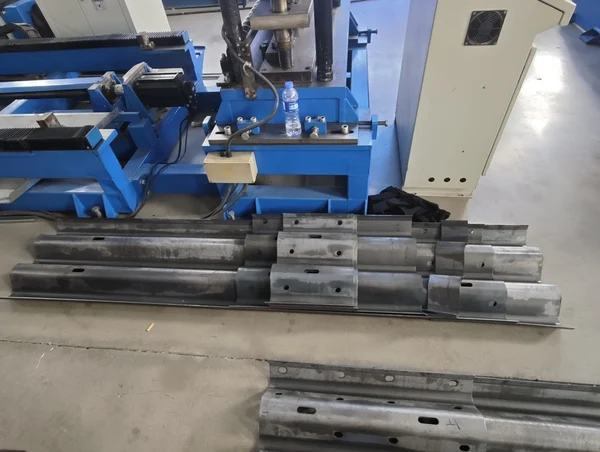

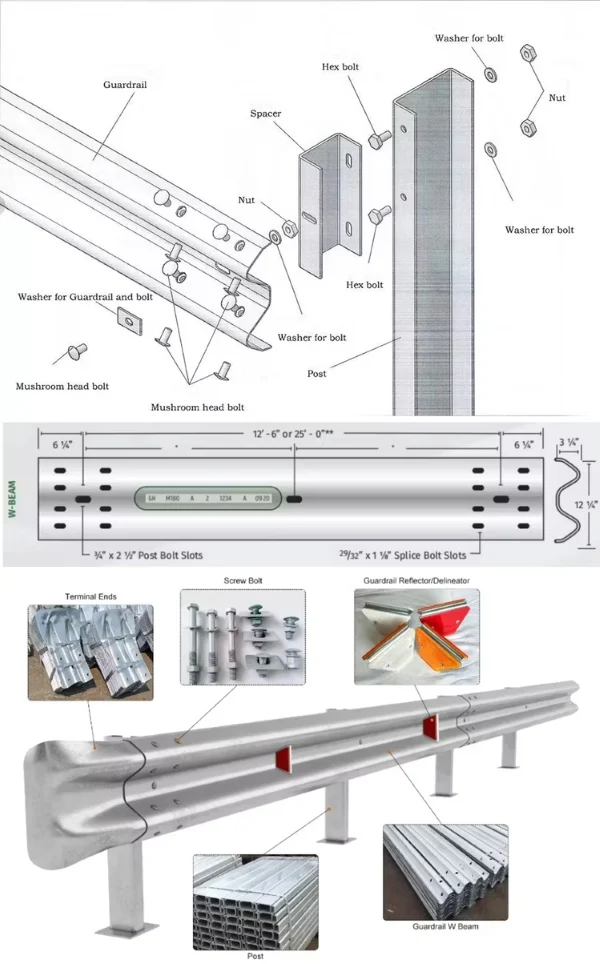

This machine produces highway W-beam guardrail panels. Finished panels have a cover width of 312mm, a profile height of 90mm, and a standard length of 4320mm.

The equipment works with these materials:

• Galvanized steel

• Cold rolled steel

• Carbon steel

• Q235

Material thickness ranges from 2.5 mm to 4.0 mm. Finished panels go into these applications:

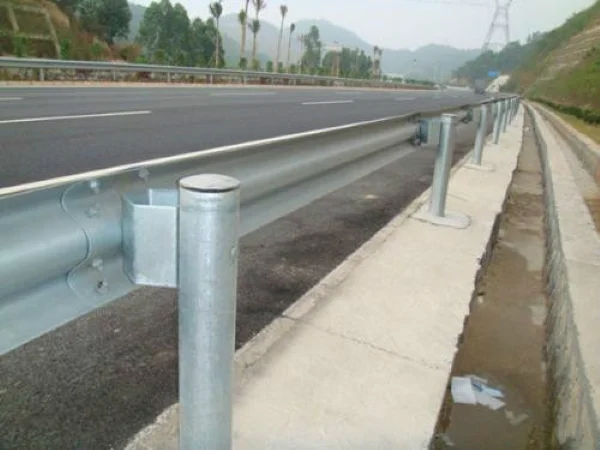

• Highway side protection

• Primary road median separation

• Mountain curve and cliff edge side protection

• Bridge and tunnel transition sections

Any project that needs guardrail panels in volume is a real use case for a highway guardrail making machinery line.

Why Continuous Production Depends on the Forming Stage

A high speed guardrail roll forming machine runs as one continuous process. Coil enters the decoiler and moves through leveling, punching, forming, and cutting. Finished panels come out the other end. Each stage feeds the next, so what happens in forming directly shapes what comes out at the end.

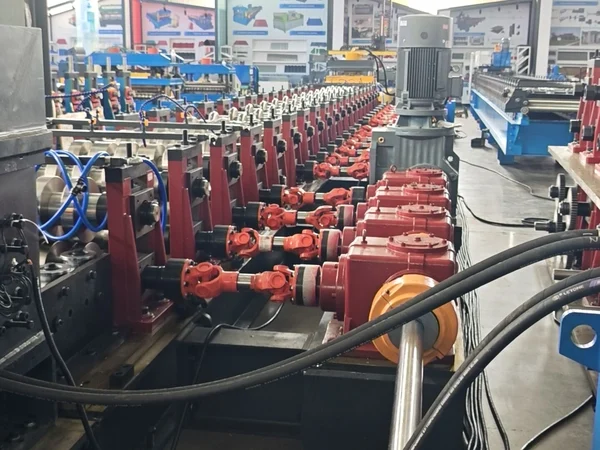

Forming is where the W-beam profile takes shape. The profile builds gradually across 15 fixed position driven forming stations rather than in a single pass. Station speed differences or roller wear can affect profile symmetry and surface quality. A deviation at one station carries into the next.

This is why forming stability decides whether the whole line keeps running, not just one station.

Four Benefits in Guardrail Production

Continuous Output Without Stops

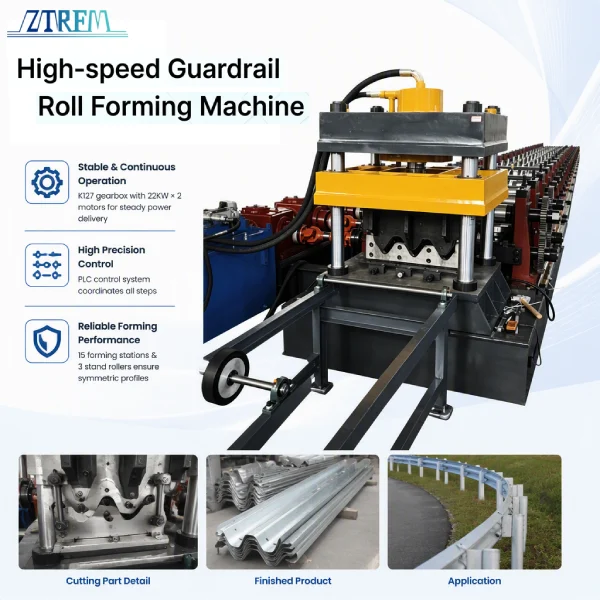

A high speed guardrail roll forming machine combines uncoiling, leveling, punching, forming, and cutting into one continuous line. Material goes in at one end, and finished panels come out the other. No handling or waiting between steps. A PLC coordinates the whole line, and each stage connects automatically. For projects that need a steady supply of panels, this flow cuts out the pauses between stages.

Consistent Profile Across Long Batches

Guardrail orders often run into hundreds or thousands of panels per batch. If the profile shifts during forming, holes won't line up on site, and panels won't connect smoothly.

Fifteen forming stations break the total bend into smaller steps, with each station handling part of the deformation. Three stand rollers guide the sheet edges during forming to prevent drift. This gradual approach helps keep every panel consistent. A road guardrail roll forming machine built this way holds its profile across long runs.

Production Pace Matches Order Rhythm

Guardrail projects usually need panels within a tight delivery window. Forming speed directly affects daily output. A stable forming speed helps the line keep up with concentrated order schedules. A high speed guardrail roll forming machine keeps that rhythm steady without constant operator input.

Stable speed brings another advantage. The line doesn't need constant adjustment, so operators can focus on inspection and finished panel checks.

Less Manual Work Between Steps

Traditional step by step processing needs several people to move sheets, align them, and catch finished parts. This high speed guardrail roll forming machine turns those actions into an automatic flow:

• Decoiler feed speed coordinates with downstream steps

• Punching stays in sync with feeding

• A photoelectric switch checks length and triggers cutting

• An automatic stacker collects and stacks finished panels

Fewer manual steps means fewer points where operators have to intervene.

Technical Parameters

Where These Benefits Matter Most

A high speed guardrail roll forming machine shows its value most clearly under certain production conditions.

They matter most when orders are large, production runs continuously, and panel specs stay relatively stable. In that setting, continuous output and profile consistency carry the most weight.

If order volumes are small, specs change often, or the project doesn't demand tight panel accuracy, the advantages of high speed continuous production may matter less. The key is to look at your own order structure first. A high speed guardrail roll forming machine pays off most when your production profile matches what it was built for.
