galvanized steel aluminum gate frame cold roll bending line
Basic informaion of aluminum gate frame cold roll bending line:
1.The aluminum gate frame cold roll bending lines are stable,no noise,no shake.
2.Controlling by computer, PLC display, operation is easy, running is steady andreliable,endurable.
3.cutting machine is characterized by stable driving, easy operation.
4.hydraulic system use the hydraulic pump, long operating life,no noise.
Zhongtuo stealuminum gate frame cold roll bending linefeature:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2. aluminum gate frame cold roll bending linefinished with good flatness bending pressure performance is good, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation,
Our company specializes in making door system machines since 1996.
Now, we can manfacture almost every part of the shutter door,
like steel door frame making machines,roller shutter guide rail machine, bottom lath machine,roller shutter slats roll forming machine and so on.
What is the working flow of Door frame manufacturing machines?
Door frame manufacturing machines are consisted of decoiler,
main forming machine,cutting device,runouttable.The working flow is as follows:

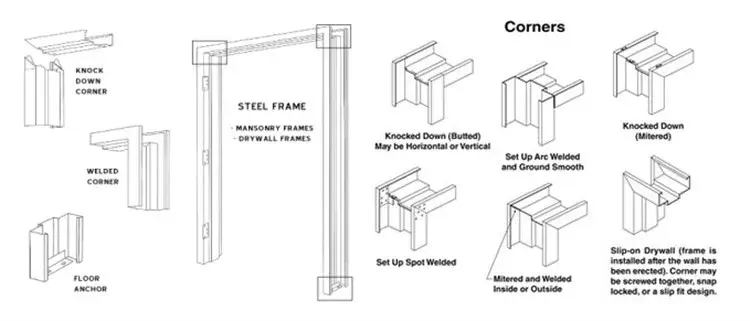

some drawings of Door frame manufacturing machines
If you want to buy Door frame manufacturing machines, first you should give us a profile drawing of the steel door frame like the following.
And if you don't have a drawing, we can recommend you the most popular steel door frame drawing in your country.
The following is some drawings for your reference, we can also design the steel door frame making machinesaccording to your drawing.
the basic Information of steel door frame making machines
| name | china galvanized steel aluminum gate frame cold roll bending line |
| Processing material | colored steel, galvanized sheet, or aluminium plate |
| Material thickness | 0.8-1.5 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |
some details of steel door frame making machines
