Factory Directly Supply Metal Steel Sheet Door Frame Roll Forming Machine
Meral steel sheet door frame roll forming machine is designed to roll form the galvanized steel to the door frame or window frame shape.
Normally the thickness of the door frame or window frame is from 0.65mm to 1.0mm.
Our door frame machine is widely used in the steel door or steel window manufacturing.
Metal steel sheet door frame machine consists of uncoile, leveler, mail roll forming machine, cutting part, runout table, PLC control box and hydraulic station.
The whole machine are controlled by the industrial PLC, which can gurantee the machine work automatically and precison of the final products.
What is the application of steel door frame making machine ?
Metal steel sheet door frame roll forming machine can produce many types of steel door frame.
Some door frame need to punching holes, some don't need punching holes.
So before making a machine solution, please send me your require and we will make a technical solution through your needed.
What is the working flow of metal steel sheet door frame roll forming machine ?
steel door frame making machine is consisted of decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:
Uncoiling---Main roll former---Cutting system---Product collect table
some drawings of steel door frame making machine
If you want to buy a steel door frame roll forming machine, first you should give us a profile drawing of the steel door frame like the following.
And if you don't have a drawing, we can recommend you the most popular steel door frame drawing in your country.
The following is some drawings for your reference, we can also design the door frame cold-bending machine according to your drawing.
The basic information of metal steel sheet door frame roll forming machine
| Name | Metal steel sheet door frame roll forming machine |
| Processing material | colored steel, galvanized sheet, or aluminium plate |
| Material thickness | 0.6-1 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |

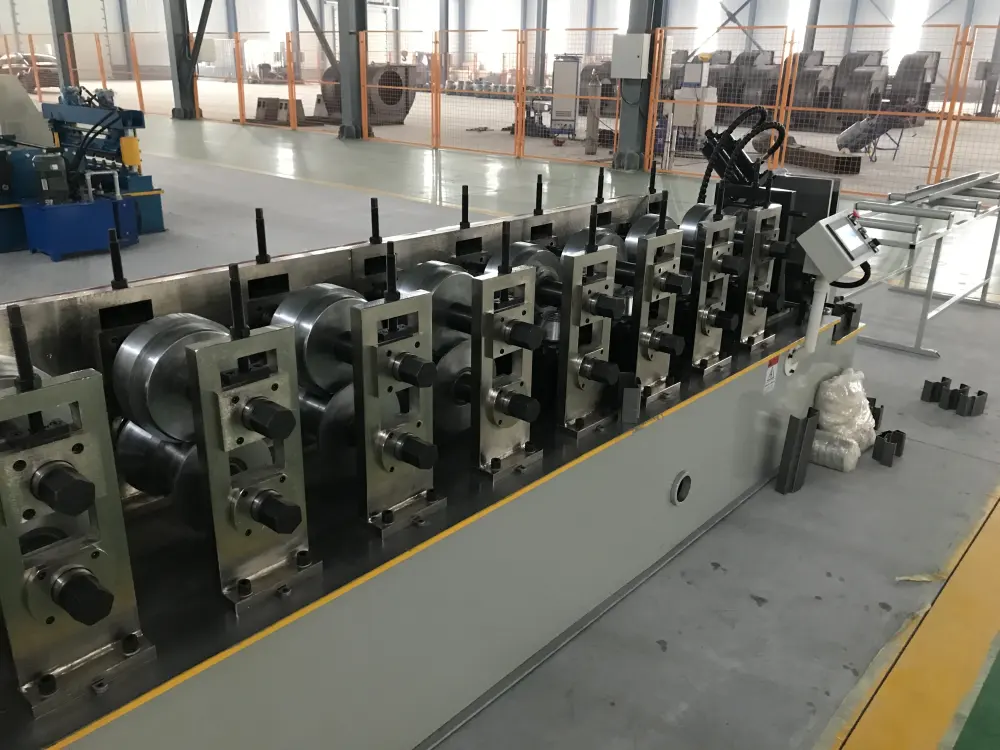

Some details of steel door frame making machine
Some photos about the machine test that customer come to our factory
