Villa Frame Machine

Magic version light frame villa rolling machine-using C channel and U channel as the combination

Magic version light frame villa rolling machineMagic version light frame villa rolling machine-using C channel and U channel as the combination is designed to make the 6 layers bulding by one machine. The material thickness could be from 0.8 to 2.0mm. The width adjustment could be from 89 to 300mm and all the operation could be finished with in the computer. The PLC control system is open socurce, it can accpet all design software programme. In the following part, I will take the drawing for example to show more details of the machine and explain how it works.Here is the Magic version light frame villa rolling machine picture for your reference:PLCPC control Changeable distribution box1 (ins...

   Inquire


Magic version light frame villa rolling machine

Magic version light frame villa rolling machine-using C channel and U channel as the combination is designed to make the 6 layers bulding by one machine. The material thickness could be from 0.8 to 2.0mm. The width adjustment could be from 89 to 300mm and all the operation could be finished with in the computer. The PLC control system is open socurce, it can accpet all design software programme. In the following part, I will take the drawing for example to show more details of the machine and explain how it works.

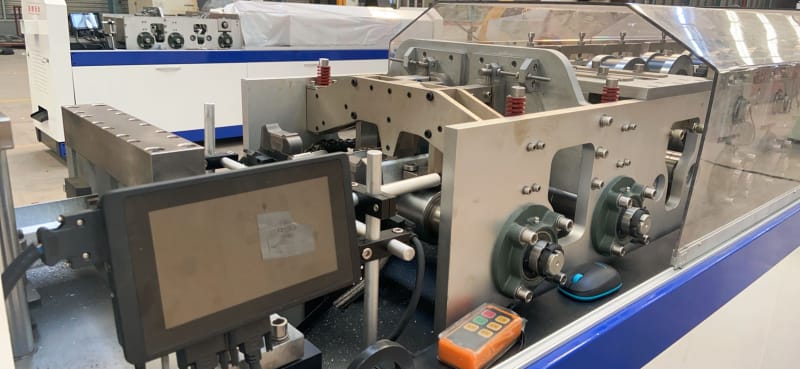

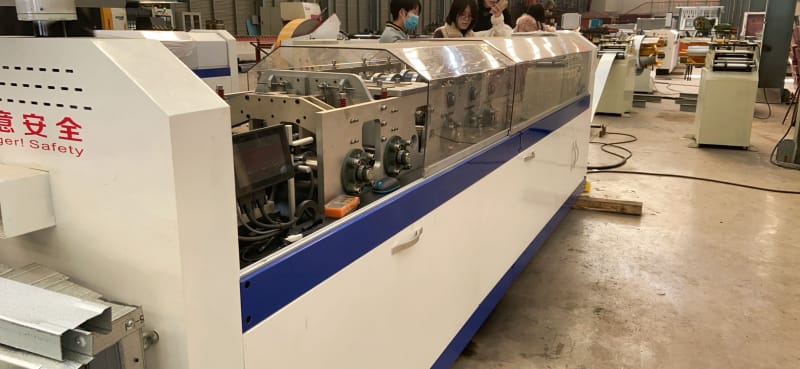

Here is the Magic version light frame villa rolling machine picture for your reference:


PLC

PC control

Changeable distribution box

1 (installed in the middle of the rack)

External controller

1 (can facilitate the advancement and retreat in the production process and debugging process)

Main accessories origin

PLC (Panasonic, Japan), relay (Schneider, France), proximity switch (Ortonix, Korea)

Printer

One-piece inkjet (single nozzle, fixed side waist high spray)

power system

Servo motor 22KW+ curved bevel gear reducer

Mian hydraulic

Hydraulic station power 11KW + air cooling

Fuel tank capacity 200 liters

Small hydraulic station

Hydraulic station power 3.75kw + heat sink; fuel tank volume 30 liters (underline flange mold)

Main parts origin

Solenoid valve oil research and development

Supporting weight: 5 Ton

Expansion

Hand rail

The center of the four links is outwardly supported

Driven

Motor drive, automatic discharge

Supporting length 12 meter, it has two parts, one is for 6 meter and another is for 3 meters

Metahod

The frame body is welded with angle steel and angle steel, and the surface is loaded with rollers.

Roller

Material:Gcr12

Processing technology: after CNC machining, heat treatment to HRC58-60, and then fine car

Shaft

Material: 40Cr

Processing technology: after CNC machining, quenching and tempering treatment HRC28-32, and then fine plating

Weight

The weight of the whole machine is about 9 tons.

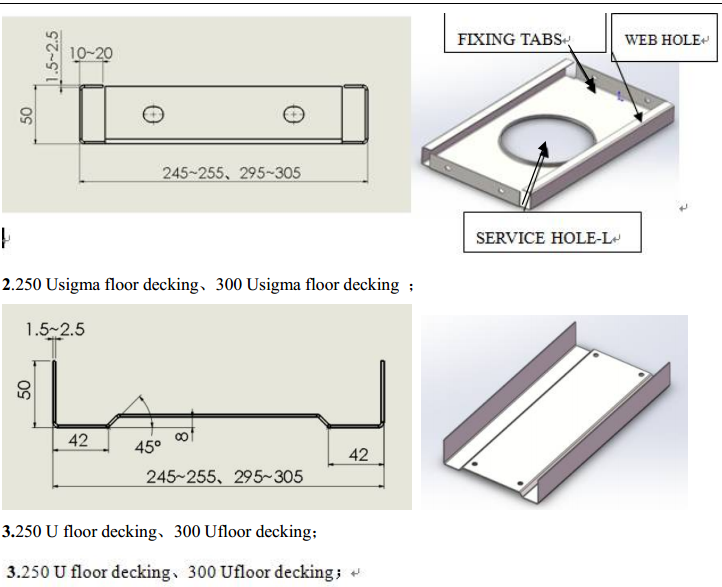

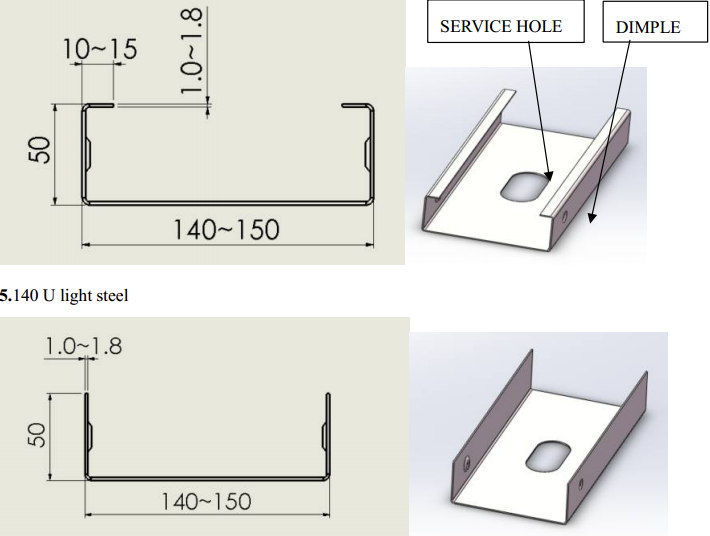

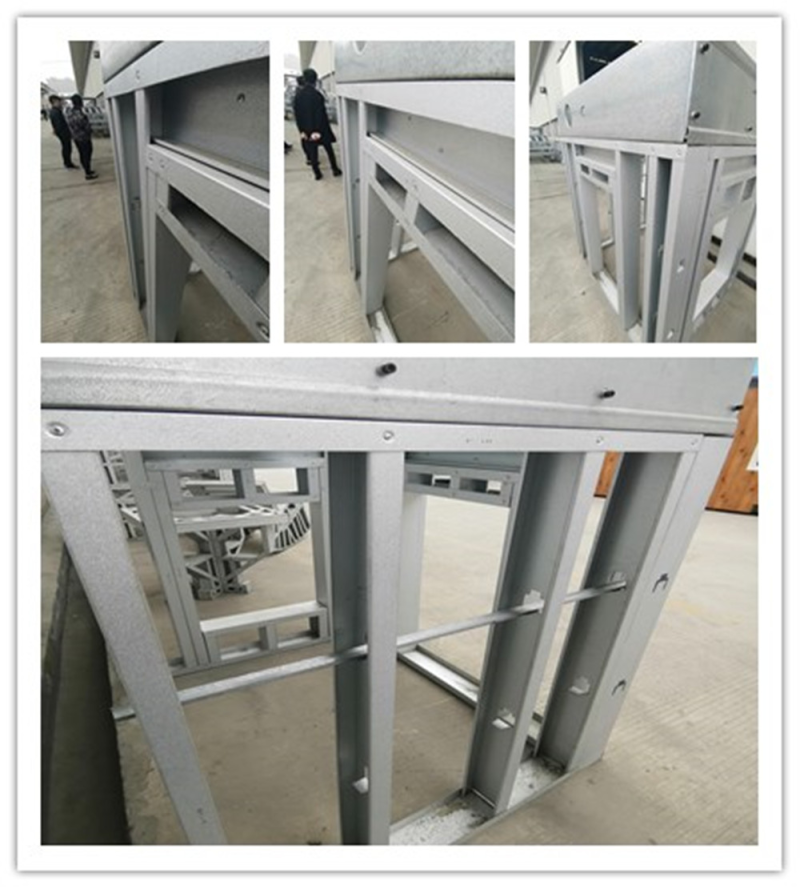

Here are some pictures shows the finished products of Magic version light frame villa rolling machine:
