Light steel housing machinery- C140 villa frame machine Compared with C89, C140 is much biggerthan C89, C100 and others. C140 is good when you want to bulid higher layer building like 6 layers, 5 layersout wall stud and track. Here is C140 villa frame machine pictures for your reference.C140 villa frame machine working flow.C140 villa frame machine parameters for your reference:Item Name TYPE:89*41*10Servo motor driven Parameters of the machine 1Mian rolling machine Coil Upper and lower rollers + two sets of side wheelsMain rolling machine 13 constitutive models (one of which is a waist-high forming 87-95 degree arbitrary roller set)Levling part Two-axis two-way assemblyPinch With transmiss...

   Inquire


Light steel housing machinery- C140 villa frame machine

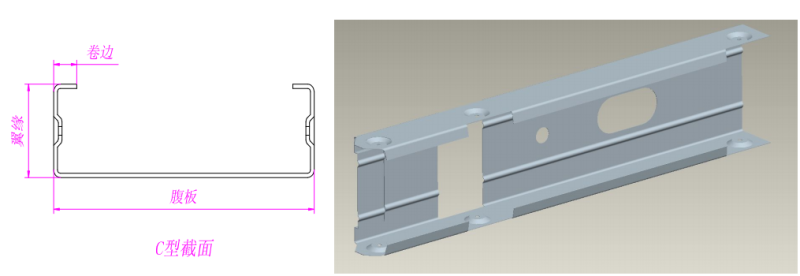

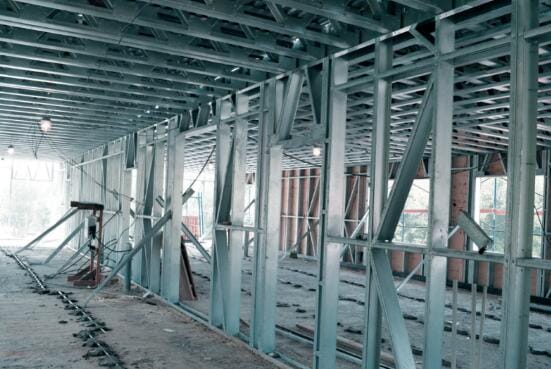

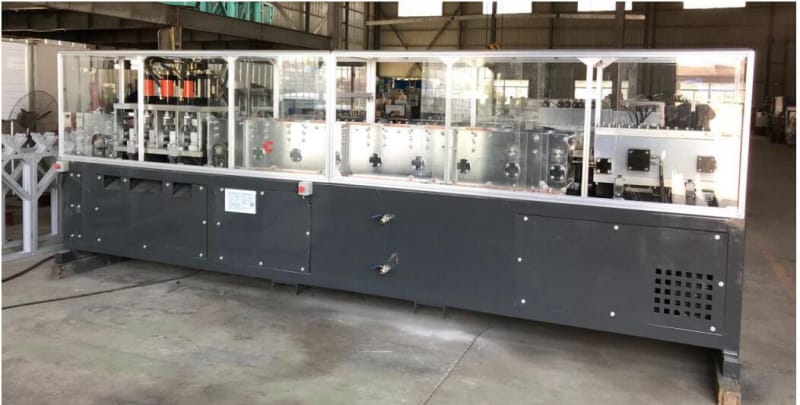

Compared with C89, C140 is much bigger than C89, C100 and others. C140 is good when you want to bulid higher layer building like 6 layers, 5 layers out wall stud and track. Here is C140 villa frame machine pictures for your reference.

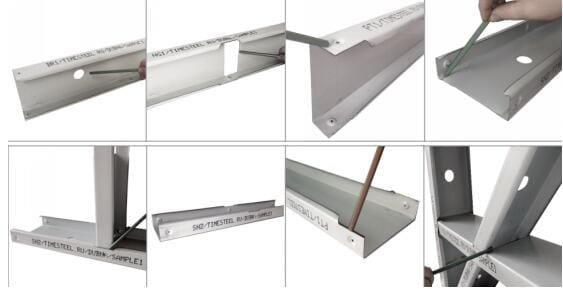

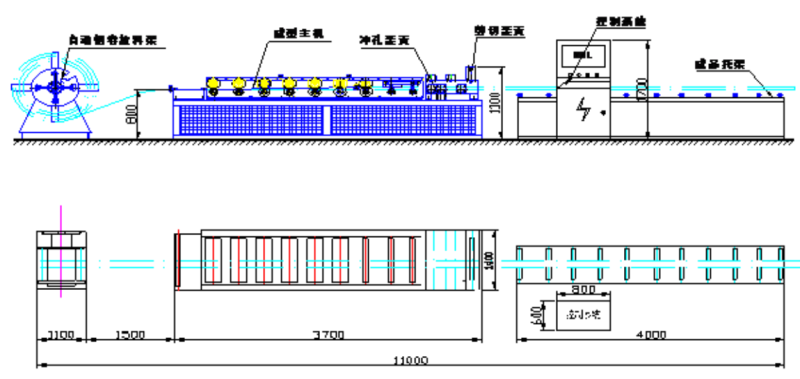

C140 villa frame machine working flow.


C140 villa frame machine parameters for your reference:


Item Name


TYPE89*41*10

Servo motor driven

Parameters of the machine


1

Mian rolling machine

Coil

Upper and lower rollers + two sets of side wheels

Main rolling machine

13 constitutive models (one of which is a waist-high forming 87-95 degree arbitrary roller set)

Levling part

Two-axis two-way assembly

Pinch

With transmission, upper and lower shaft gear drive

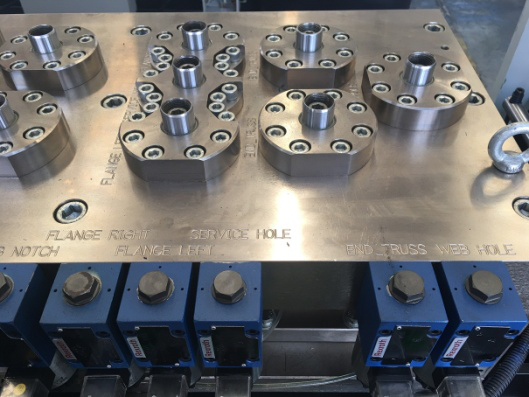

Punching




Shearing

Three-piece knife cut

2

PLC

Main PLC control system

1 Lenovo computer + 1 main control cabinet (mounted on the side of the device)

Control software

(Buliding master Nccontrol software )

Laser coding

Matthews One-piece inkjet (double nozzle, waist-high spray on both sides)

External controller

The wireless remote control controls and sets an emergency stop button on the front and rear guards of the device;

Main accessories origin

PLC (Omron), relay (Schneider, France), proximity switch (Schneider, France), length encoder (OMRON), servo motor (OMRON)

3

Servo and hydraulic system

servo motor

Servo motor (7.5KW) + precision planetary gear reducer

Hydraulic station

Hydraulic station power 7.5KW

Fuel tank capacity 200 liters

Main parts origin

Solenoid valve Germany Rexroth

4

Performance parameter

Roller

Roller materialGCr15

Processing technology: after CNC machining, heat treatment to HRC58-60, and then refined polishing

Shaft

material40Cr

Processing technology: after CNC machining, quenching and tempering treatment HRC28-32, and then finishing polishing

Weight

3.8 tons.

Machin color

Customize

PLC control methods

There are two connection modes between the device and the computer: wireless connection and wired connection

Receiving table

Support rack (when online production, the finished material can be placed)

With pneumatic side slip, one side set, storage table



Acceptance Criteria

Straightness: 10:1;

Plate type tolerance: ±1mm.

Length tolerance: ±1mm.

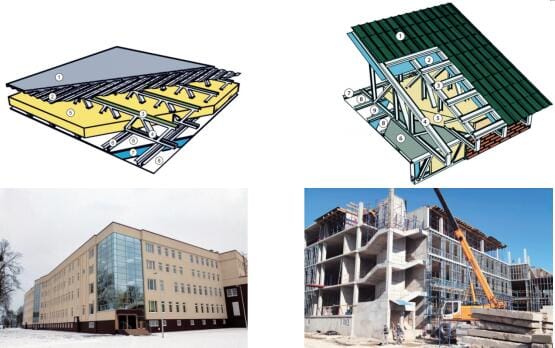

For the C140 villa frame machine, here are some installation pictures for your reference:
