TRACKS 51-150 TRACKS MACHINE ROLL FORMING MACHINE

The Track machine roll forming machine is designed for making the tracks 51-150 production in batch fully automatically.

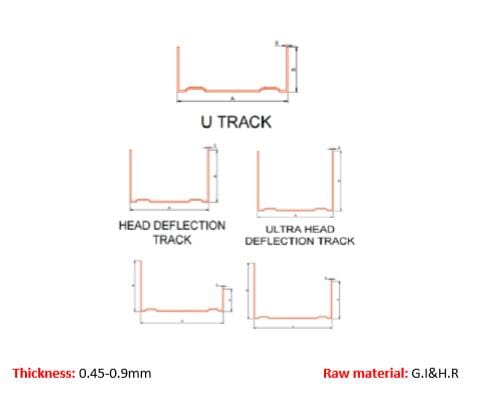

Track 51-150 drawing profile for your reference:

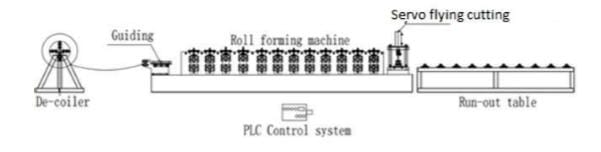

Work Flow of Track machine Roll Forming Machine:

De-coiler-----Guiding----- Roll forming machine-----Servo Fly Hydraulic cutting ----- Run-out table

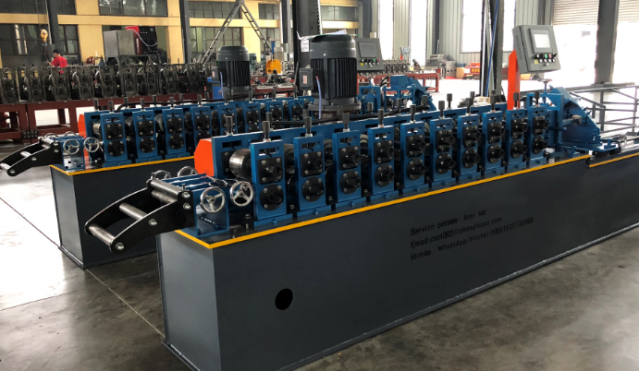

Based on the customer requirements and our experience, we design the Tracks machine Roll Forming Machine like following picture:

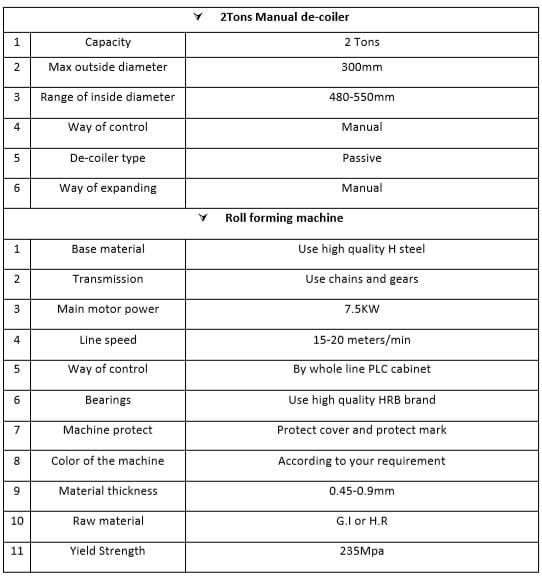

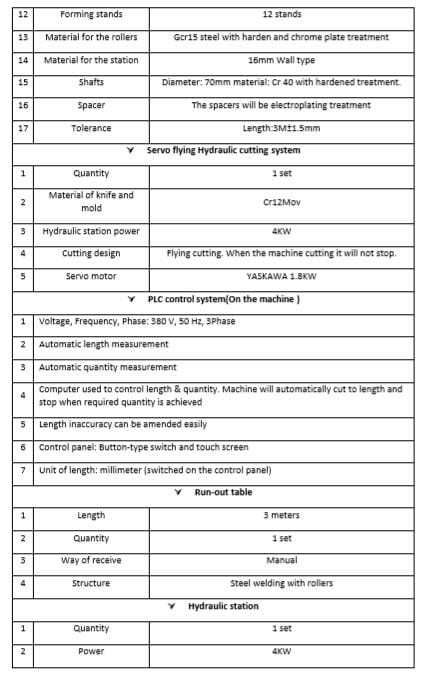

The composition  and Technical parameters of the track roll forming machine

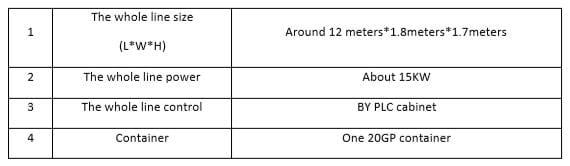

 the Dimensions of the track roll forming machine

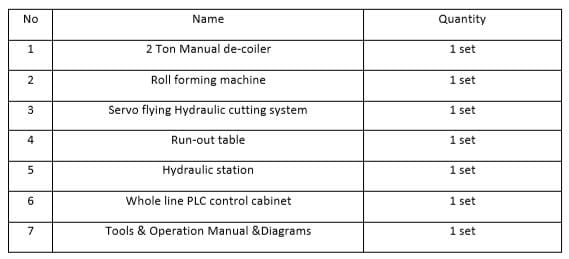

Packing list of the track roll forming machine
