c Shaped Channel Roll Forming Machinec Shaped Channel Roll Forming Machineis designed for making the c channel production in batch fully automatically. c Shaped Channel Roll Forming Machinedrawing profile for your reference:Finished product profile:c Shaped Channel Roll Forming Machineis Suitable for processing material thickness 0.7-1.8mm. And the shafts manufactured from 45# ,Main shaft diameter=65mm, precision machined. And as to the power motor driving,Gear chain transmission,14 rolls to form.Main motor=7.5kW,Frequency speed control. Forming speed approx.12-15m/minBased on the customer requirements and our experience, we design the c Shaped Channel Roll Forming Machinelike following pic...

   Inquire


c Shaped Channel Roll Forming Machine

c Shaped Channel Roll Forming Machine is designed for making the c channel production in batch fully automatically.

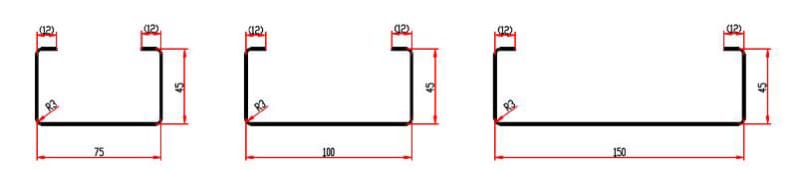

c Shaped Channel Roll Forming Machine drawing profile for your reference:

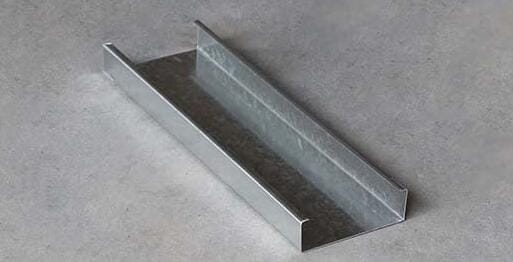

Finished product profile:


c Shaped Channel Roll Forming Machine is Suitable for processing material thickness 0.7-1.8mm. And the shafts manufactured from 45# ,Main shaft diameter=65mm, precision machined. And as to the power motor driving,Gear chain transmission,14 rolls to form.Main motor=7.5kWFrequency speed control. Forming speed approx.12-15m/min

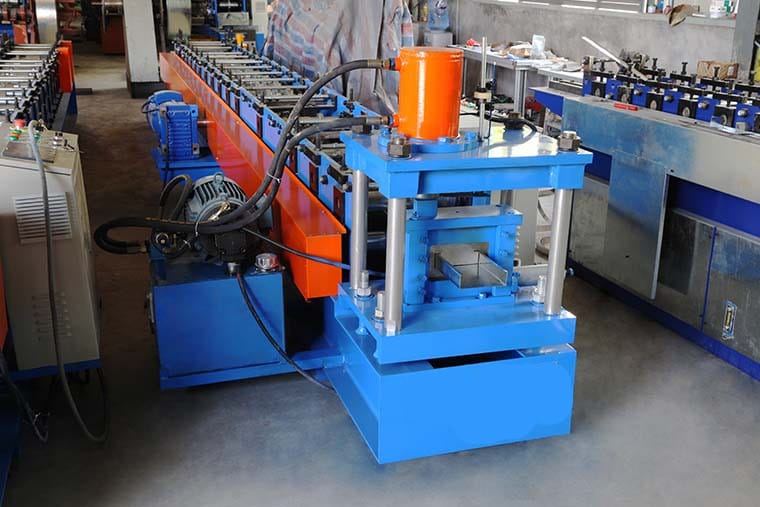

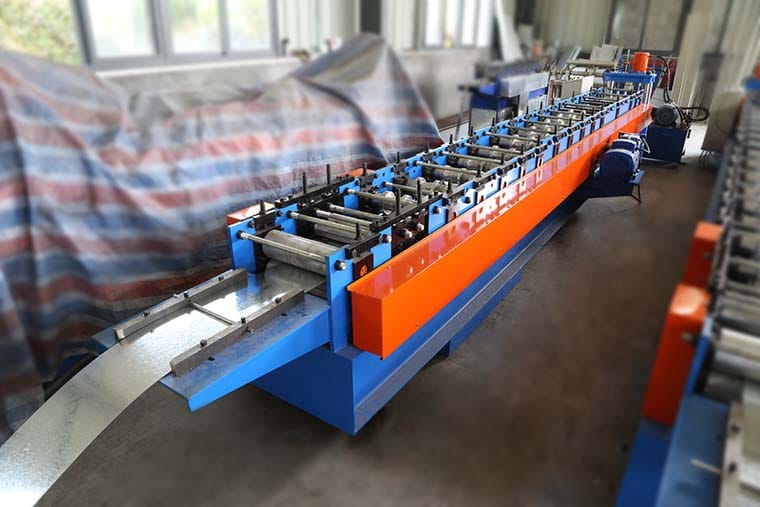

Based on the customer requirements and our experience, we design the c Shaped Channel Roll Forming Machine like following picture:

20171216171208_40963 (1).jpg

The c Shaped Channel Roll Forming Machine is composed by the following elements:

1.C channel machine feeding guide

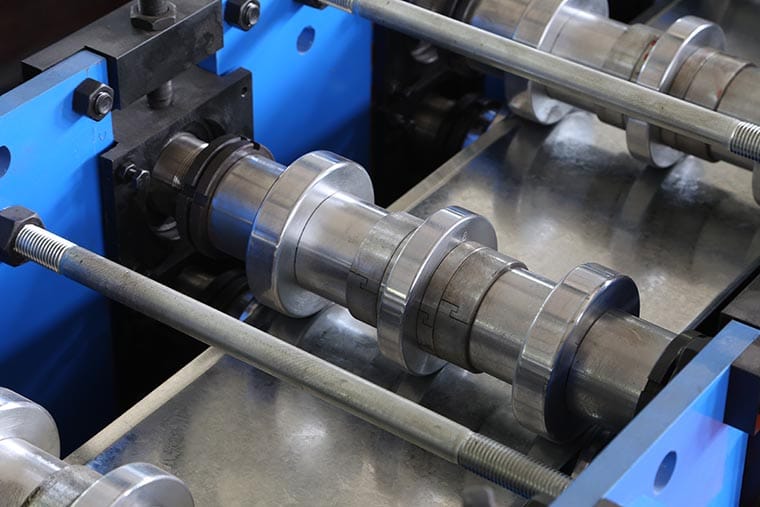

2. C channel machine rollers

Rollers manufactured from high quality bearing steel GCr15,CNC lathes,Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body frame made from 300#H type steel by welding

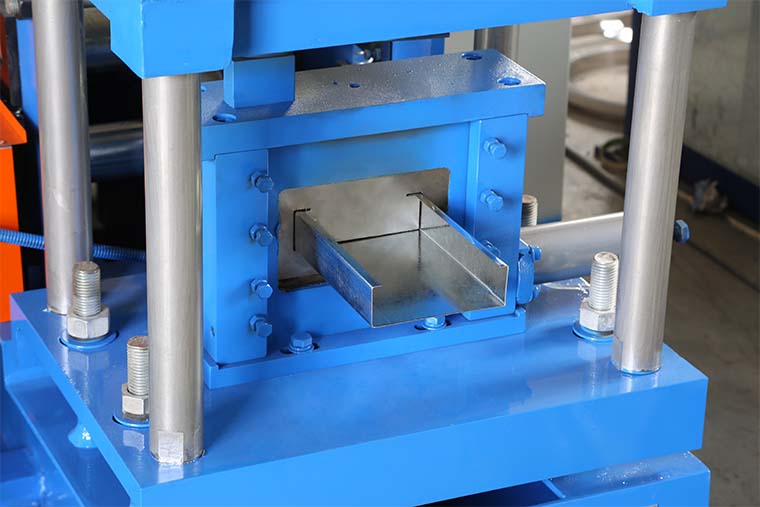

3.C channel machine post cutter

No need to change cutter for different size,

made by high quality mold steel Cr12MOV with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

Pre-punching &Pre-cutting,stop to punch,stop to cut

hydraulic motor:5.5KW,Hydraulic pressure range:0-16Mpa


ZT c channel machine advantages as follows:

1.The machine has Beautiful appearance

2.It is Stable and durable

3. It is Easy operation, low maintenance cost and durable for long time to use.
