Stud & Track Machine

STUD 51-150 STUD ROLL FORMING MACHINE

STUD 51-150 STUD ROLL FORMING MACHINEThe Stud 51-150 Stud roll forming machine is designed for making the Stud 51-150 production in batch fully automatically.Stud 51-150 drawing profile for your reference:Work flow of the Stud 51-150 Stud roll forming machineDe-coiler--Guiding--Hydraulic punching (25mm embossing hole)--Roll forming machine--Servo Fly Hydraulic cutting --Run-out tableBased on the customer requirements and our experience, we design the Stud Roll Forming Machine like following picture:The composition of the whole line and Technical parametersDimensions of whole linePacking list

   Inquire


STUD 51-150 STUD ROLL FORMING MACHINE

The Stud 51-150 Stud roll forming machine is designed for making the Stud 51-150 production in batch fully automatically.

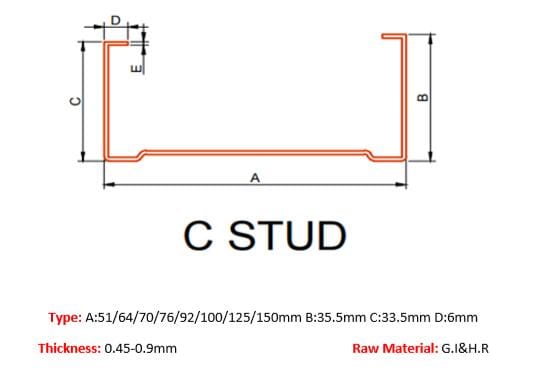

Stud 51-150 drawing profile for your reference:


Work flow of the Stud 51-150 Stud roll forming machine

De-coiler--Guiding--Hydraulic punching (25mm embossing hole)--Roll forming machine--Servo Fly Hydraulic cutting --Run-out table

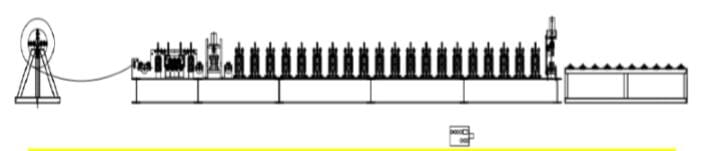

Based on the customer requirements and our experience, we design the Stud Roll Forming Machine like following picture:

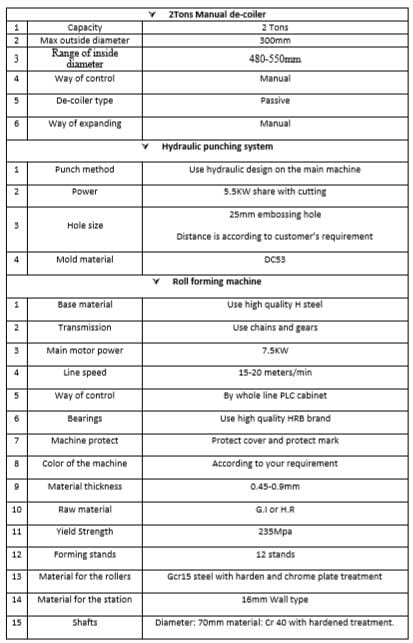

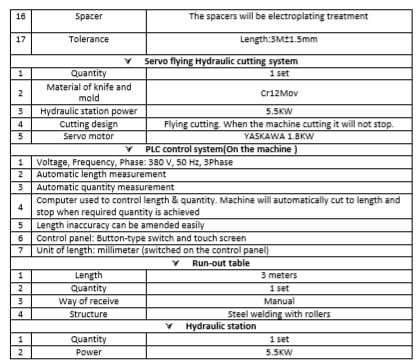

The composition of the whole line and Technical parameters

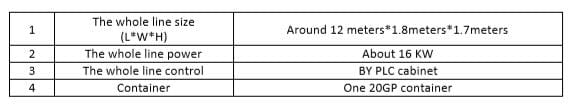

Dimensions of whole line

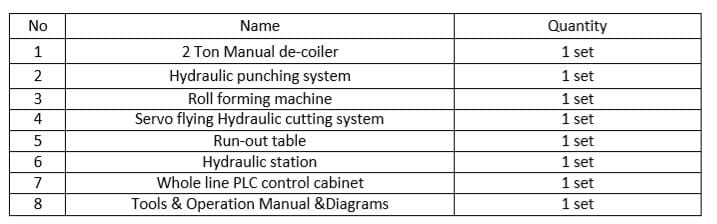

Packing list
