High Speed c Section Roll Forming Machine

High Speed c Section Roll Forming Machine is designed for making the c channel production in batch fully automatically.

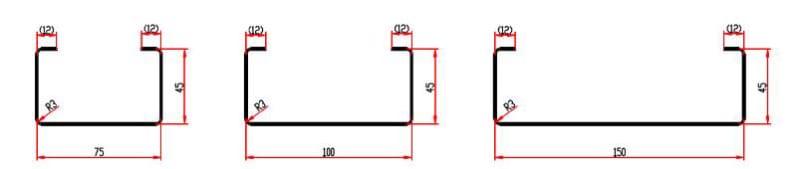

High Speed c Section Roll Forming Machine drawing profile for your reference:

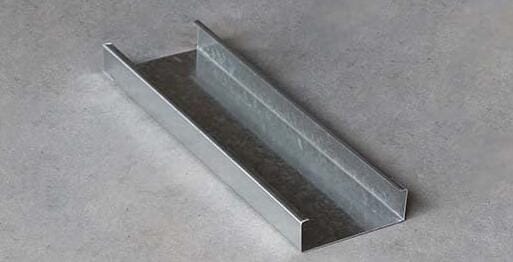

Finished product profile:

High Speed c Section Roll Forming Machine is Suitable for processing material thickness 0.5-1.2mm. And the shafts manufactured from 45# ,Main shaft diameter=75mm, precision machined. And as to the power motor driving,Gear chain transmission,12 rolls to form.Main motor=2.0W，Frequency speed control. Forming speed approx.25-30m/min

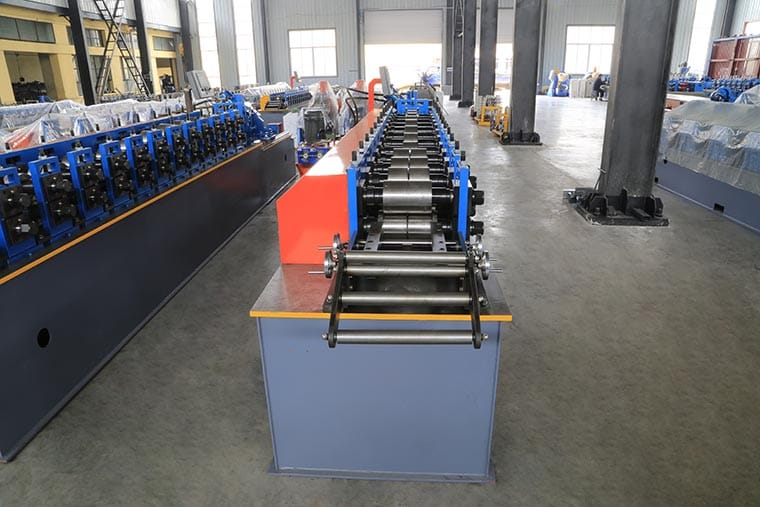

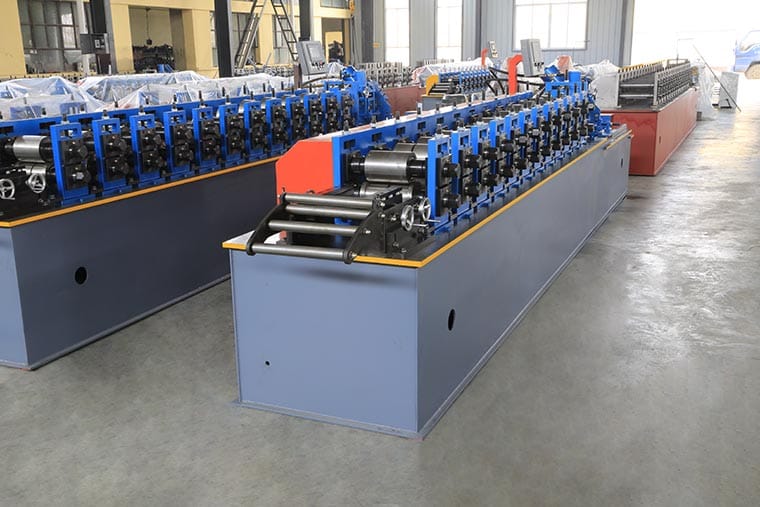

Based on the customer requirements and our experience, we design the High Speed c Section Roll Forming Machine like following picture:

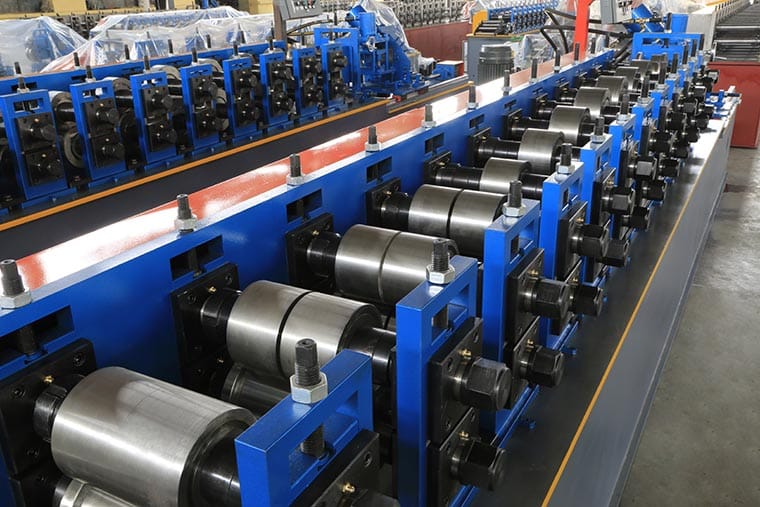

The High Speed c Section Roll Forming Machine is composed by the following elements:

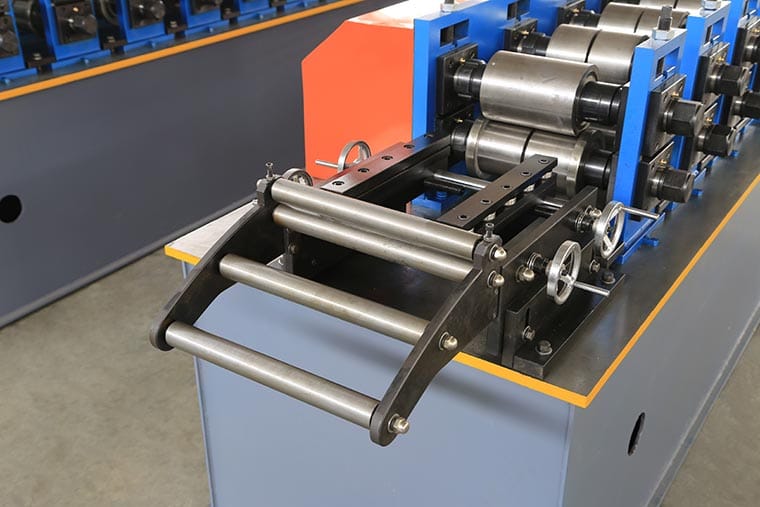

1.High speed C section machine arc feeding guide

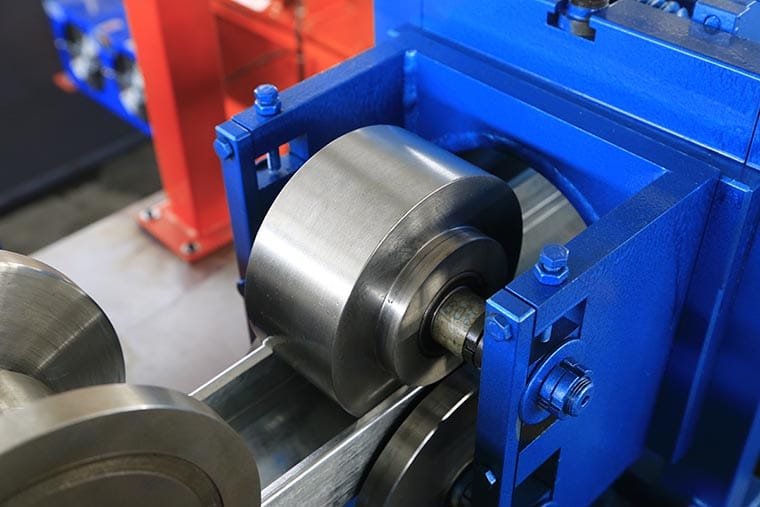

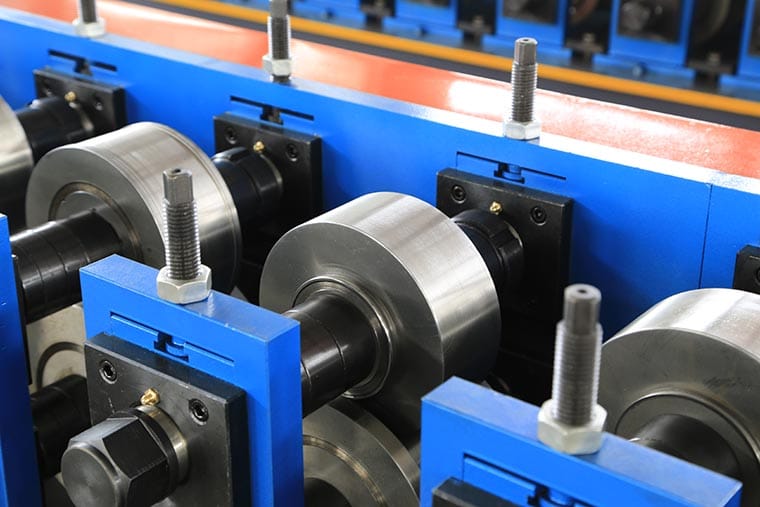

2.C section machine rollers

 we use high quality Cr12 steel，CNC lathes, Heat Treatment for long time use

And we do black treatment or Hard-Chrome Coating for options.

Machine frame use350# H type steel by welding

3.High speed C section machine straighting and logo punching device

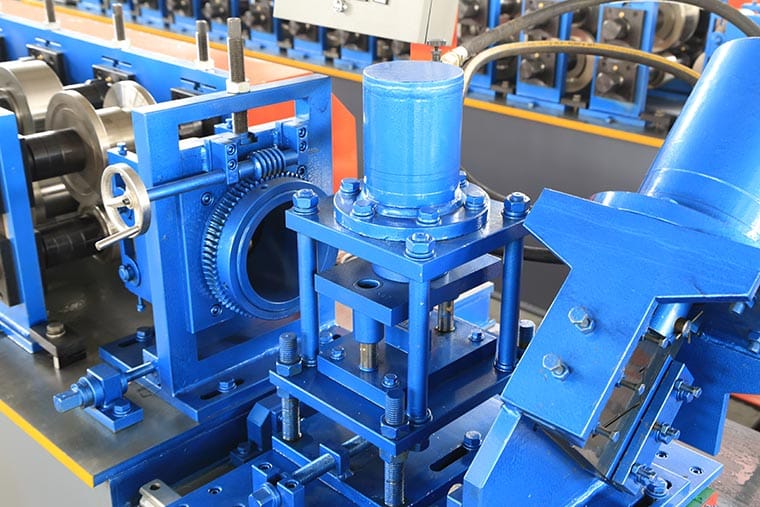

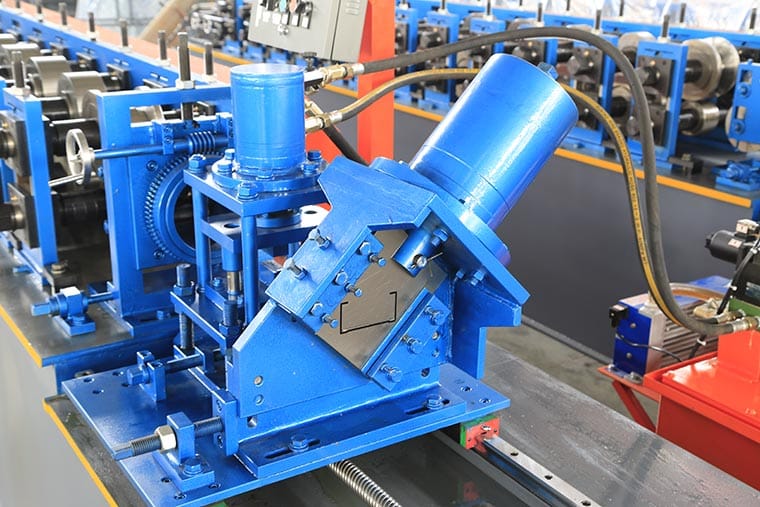

4.C section machine post flying cutter

The cutter is made by high quality mold steel Cr12 with heat treatment,Cutter frame made from high quality 30mm steel plate by welding ,The servo motor is 2.2KW,Hydraulic pressure range is 0-16Mpa.
