Steel T bar cross tee roll forming machine ceiling system main t grid making machine

Ceiling System T Grid Cross Tee Roll Forming Making Machine is used to make ceiling T-bar.The T-bar is a technical profile forsupporting suspended ceiling panels (cell grid suspended ceiling).This highly technical system consists of two different profileswhich called Main Tee and Cross Tee.A galvanized sheet metal base gives structure and strength to the profile, but all that can beseen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be foundon the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other.These materials arewidely used in the buildings now,such as office building and schools, etc.

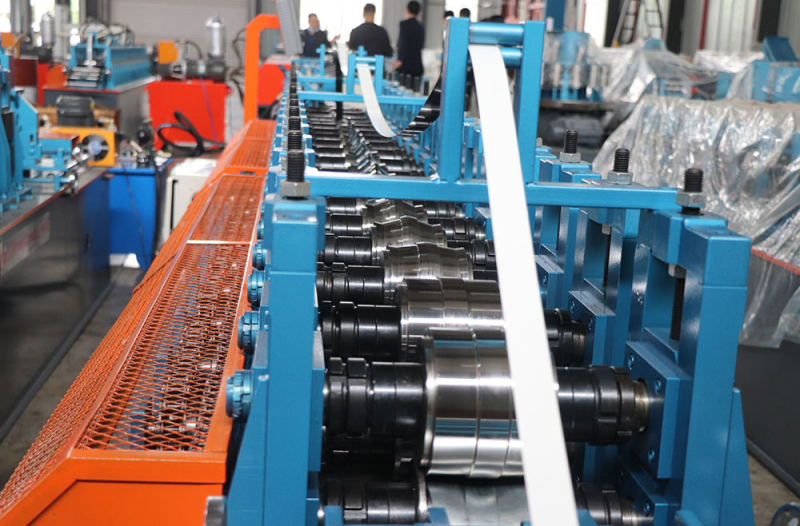

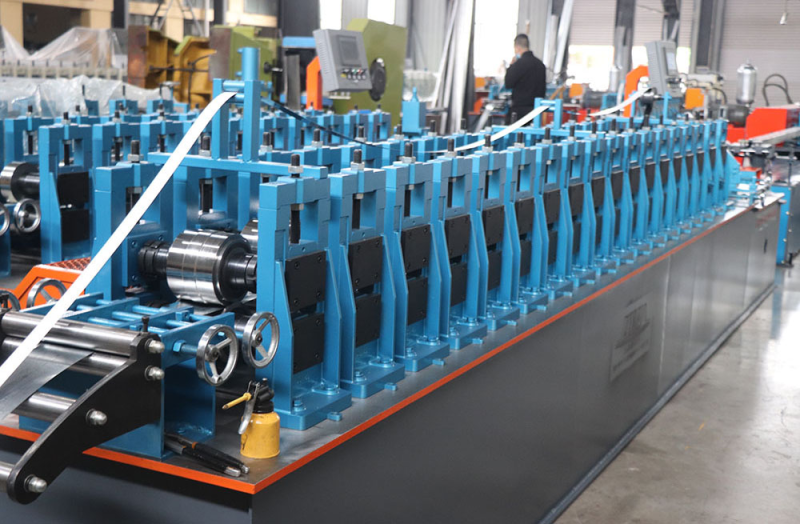

Main T bar: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked with main forming machine,punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming.


Cross T bar: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main machine with constant speed,it is traced by the servo trace system, automatic tracing the speed of the main machine, punching and cutting automatically. Two heads and middle hole are punched and cut-off at the same time after forming.


We also have machines for producing purlin of C shape, W shape, M shape and others. Please find those machines in related products.
