UD CD profile machine c channel light steel roll forming machine drywall profiles machine

Metal profile cd ud machine  UD CD UW CW Profile machine  offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other Double Furring And C Channel Machine currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. Nomatter for running business or for big construction, this machine will be good helper for you.

There are lot of product sizes according to the architectural feature in different countries or areas.

We have summaried some regular sizes as below for ceiing system and partition system. if there's no one ok for you, please show us your sample photos with measurements

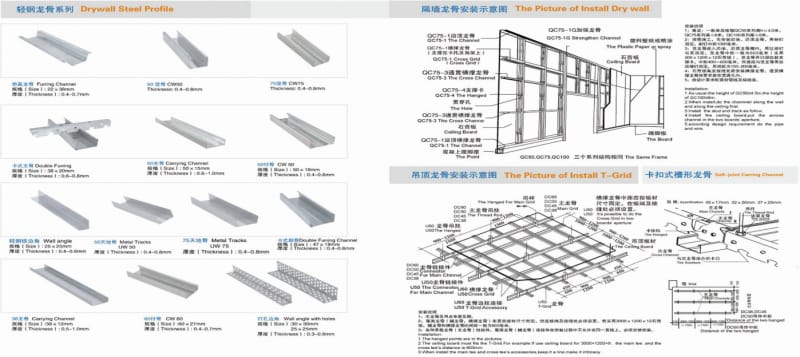

profile drawing.JPG

Some profiles can be made on one machine, means the machine is adjustable. Some ud cd profiles will need different roll forming machines.

We can provide different machine design based on customers' requests.

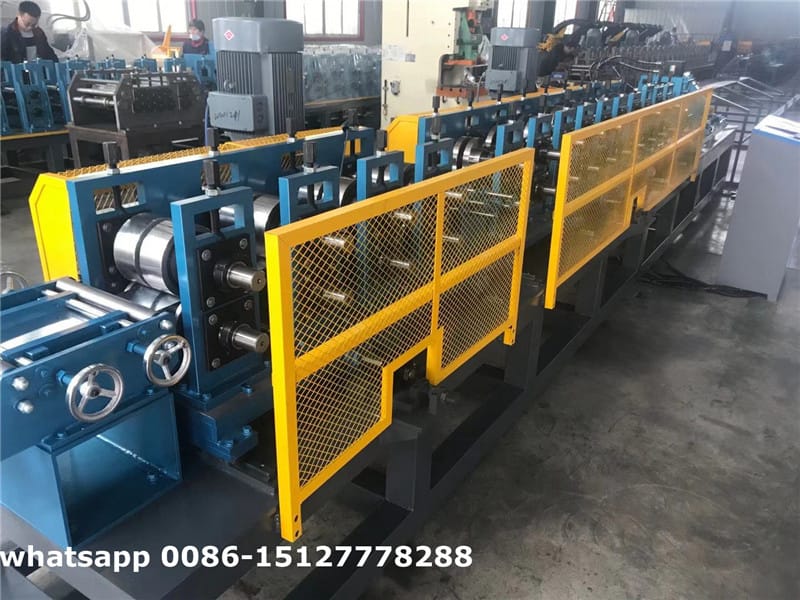

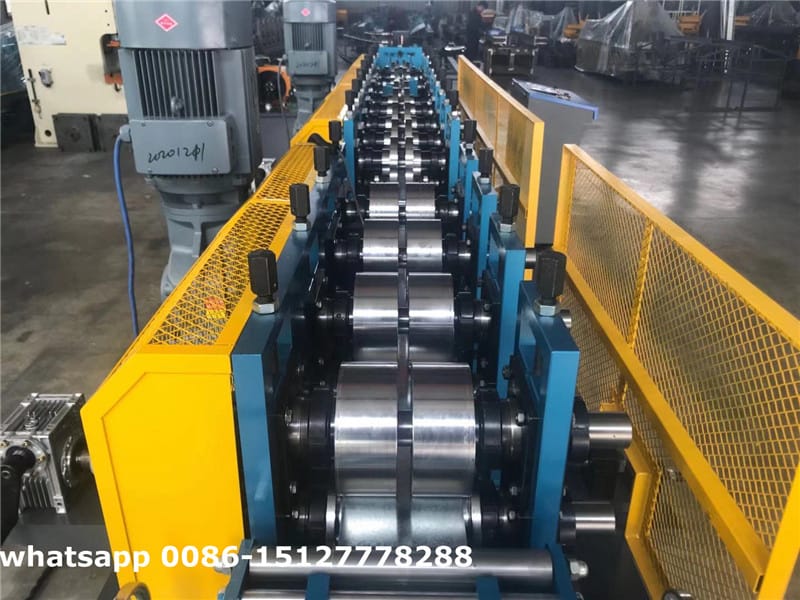

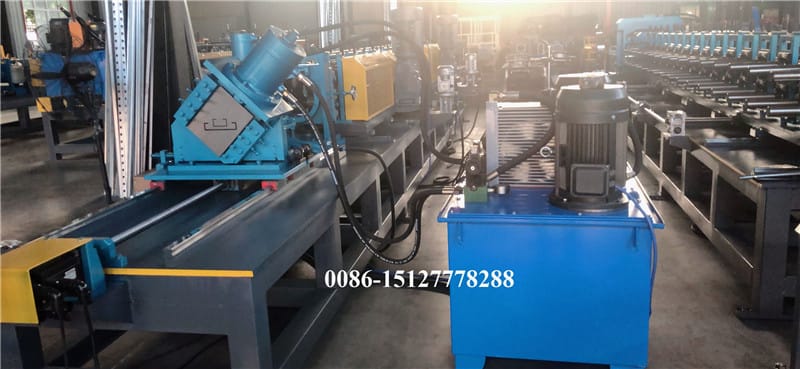

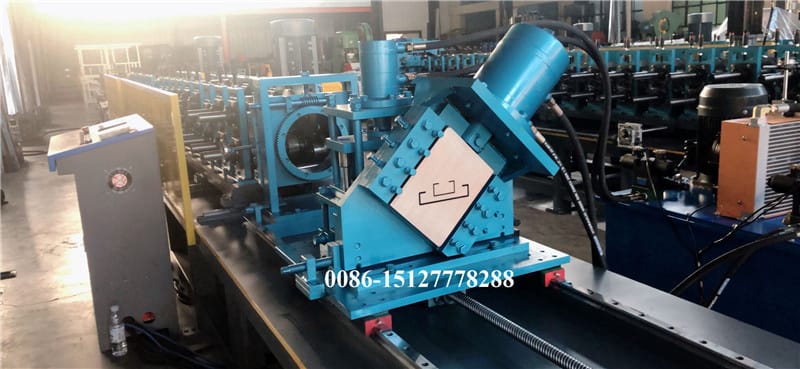

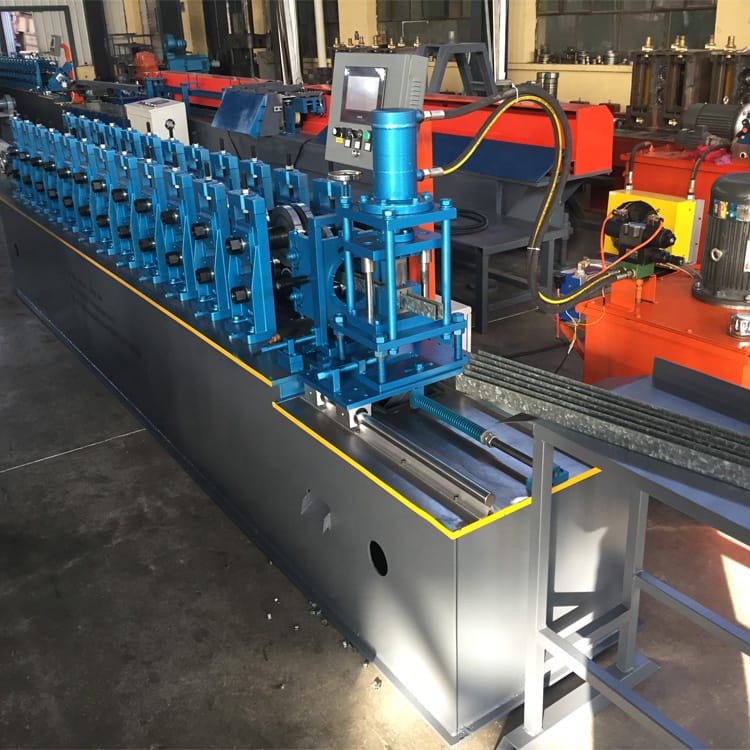

I will share some machine pictures with you:

photobank (5).jpg

The main elements of the ud cd profile roll forming machine as below:

1. 1.5 ton vertical manual decoiler two sets

2. roll forming machine with two working lines

3. The transmission system is independent

4. Hydraulic cutting and PLC control are independent for each line as well

5. 3 meters long product receiving table two sets



The advantage of the ud cd profile roll forming machine:

1. All transmission system, cutting system and PLC control system are independent,

    ensure the two lines can work separateply according to the production order.

2. We adopt the flying cutting system to improve the work speed

3. This machine is equal two sets machine, we use one basic frame.

    It can save lot of working space and save some cost.

4. The normal working speed is 25m/min, even we can make it more faster till 60m/min or more,

    depends on customers' requests.



The specification of the ud cd profile roll forming machine

1. roller material: Cr12 with quenched treatment

2. rolling station number: 10-12 stations

3. Shaft material: 45# steel with tempering treatment

4. Shaft diameter: 40mm

5. driving motor power: 3+3 kw

6. hydraulic motor power: 3+3kw

7. structure: vertical arch frame

8. control system brand: Delta or as required

9. control panel language: English/Spanish/Arabic/French (as required)

9. Encoder brand: Omron

10. work speed: 25m/min or as required

11. voltage: 220/380/440V-50HZ-3Phase (depends on the local one)
