Solar mounting structure strut channel machine

Strut channelhas been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners. Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed. Working flow:Technical Parameters ofSolar mounting structure strut channel machine1. Material thickness range:1.5-2.5mmfeeding width: 90-230mm2. Main motor power: 22 k w3. Forming speed:8 m/min4. Shearing method: Hydraulic she...

   Inquire


Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners. Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

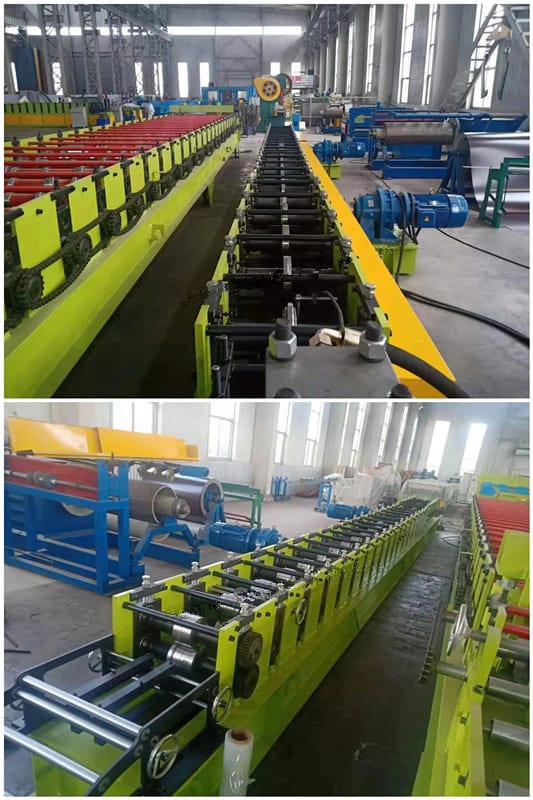

      Solar mounting structure strut channel machine

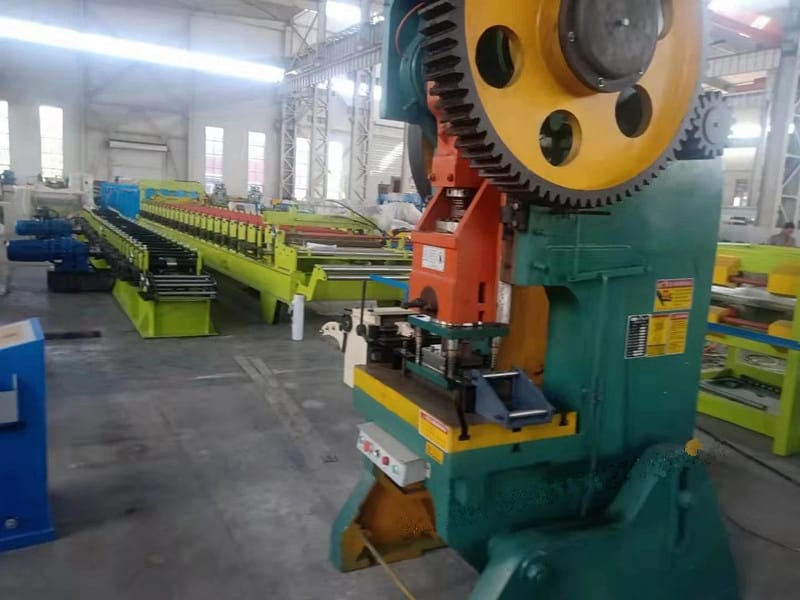

 Working flow:

Solar mounting structure strut channel machine



Technical Parameters of Solar mounting structure strut channel machine

1. Material thickness range:1.5-2.5mm

feeding width: 90-230mm

2. Main motor power: 22 k w
3. Forming speed:8 m/min

4. Shearing method: Hydraulic shearing
5. Hydraulic station power:11 KW

6. Quantity of rollers:24 rollers

7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm

10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)

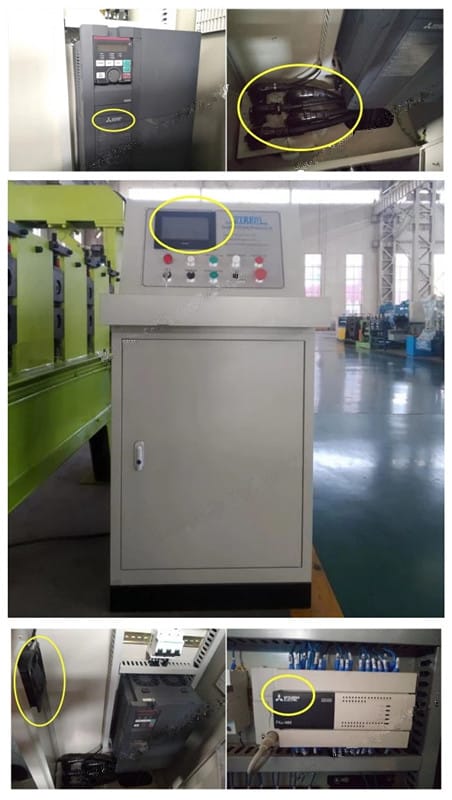

Control Cabinet

PLC : Delta

Touch Screen:Siemens

Encoder: Schneider/Mitsubishi

Plug: Aviation plug

Botton: Schneider

cooling systerm: Fans

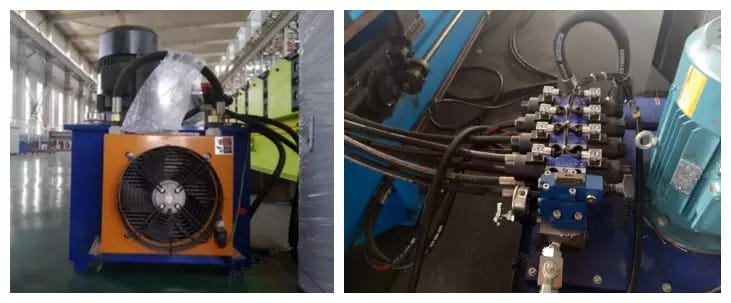

   Hydraulic Station

Oil tube: Standrad brand

Solenoid valve:Standrad brand

Cooling systerm: Fans

45#, 46# hydraulic oil

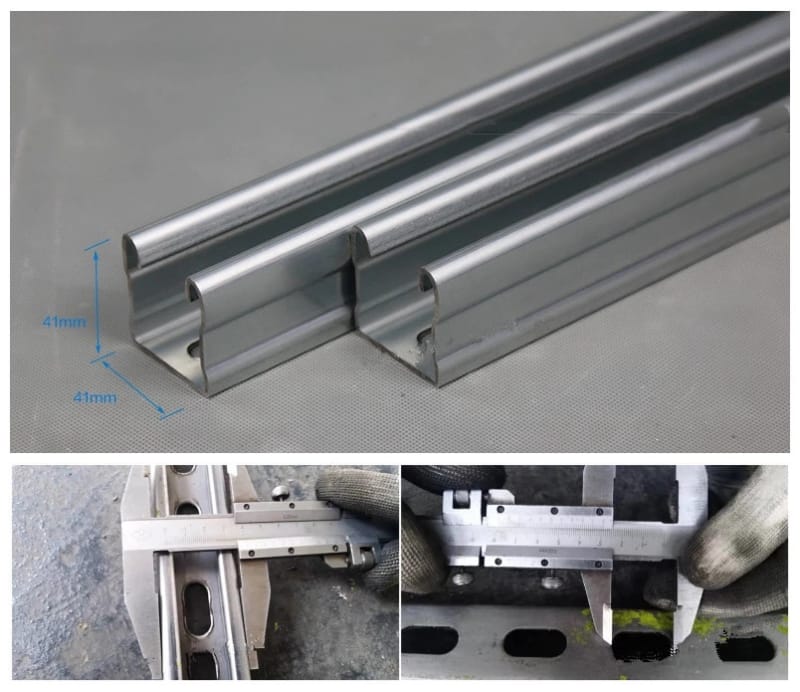

Solar mounting structure strut channel


  Application of Solar mounting structure strut channel

Solar mounting structure strut channel machine
