roll forming machine for Solar Panel Mounting Structure

roll forming machine for Solar Panel Mounting StructureTheGI strut channelcan be fastened to the side of the home to allow the solar panel to be placed at the most advantageous angle. For those who would require the GI strut channelmachine.we provide affordable options. Purchase today and invest in a better future of your family, community, and the planet as a whole. If you have any questions, please contact us at for further details.Technical Parameters ofSolar mounting structure strut channel machine1. Material thickness range:1.5-2.5mmfeeding width: 90-230mm2. Main motor power: 22 k w3. Forming speed:8 m/min4. Shearing method: Hydraulic shearing.5. Hydraulic station power:11 KW6. Quantity...

   Inquire


roll forming machine for Solar Panel Mounting Structure



The GI strut channel can be fastened to the side of the home to allow the solar panel to be placed at the most advantageous angle. For those who would require the GI strut channel machine. we provide affordable options. Purchase today and invest in a better future of your family, community, and the planet as a whole. If you have any questions, please contact us at for further details.

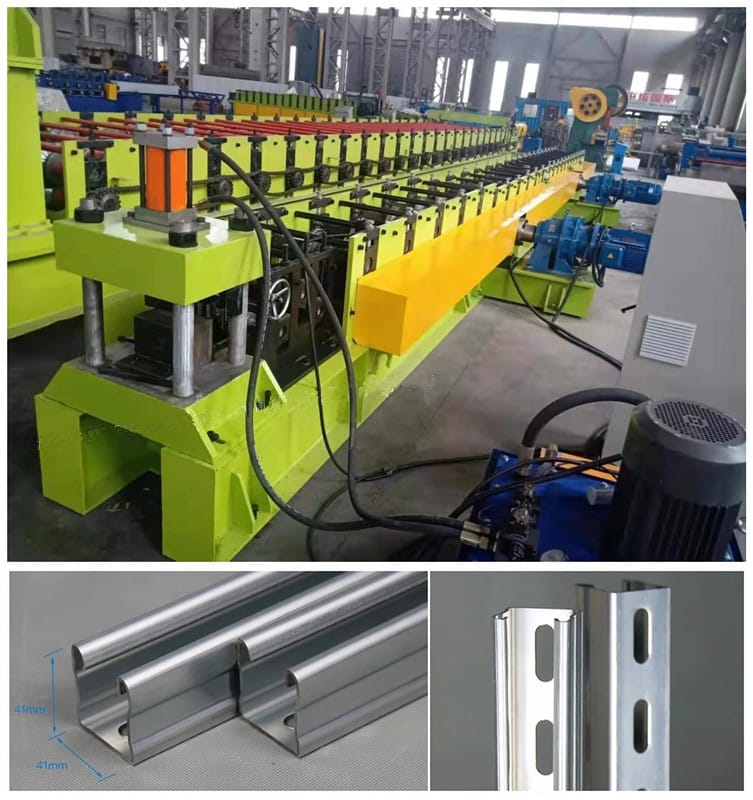

Technical Parameters of Solar mounting structure strut channel machine

1. Material thickness range:1.5-2.5mm

feeding width: 90-230mm

2. Main motor power: 22 k w
3. Forming speed:8 m/min

4. Shearing method: Hydraulic shearing
5. Hydraulic station power:11 KW

6. Quantity of rollers:24 rollers

7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm

10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)

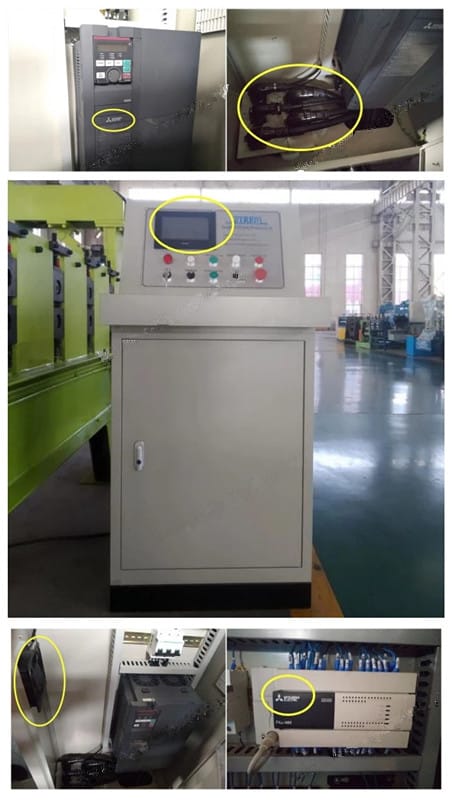

  Control Cabinet

PLC : Delta

Touch Screen:Siemens

Encoder: Schneider/Mitsubishi

Plug: Aviation plug

Botton: Schneider

cooling systerm: Fans

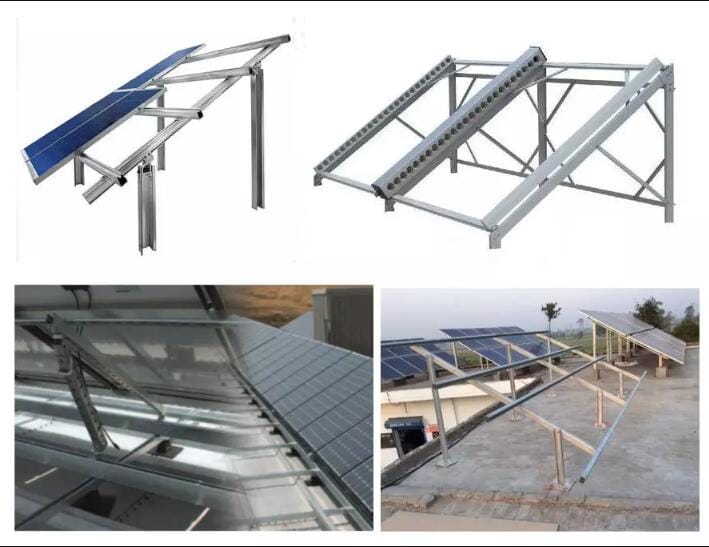

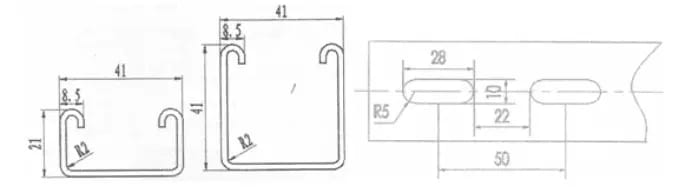

 Solar mounting structure strut channel

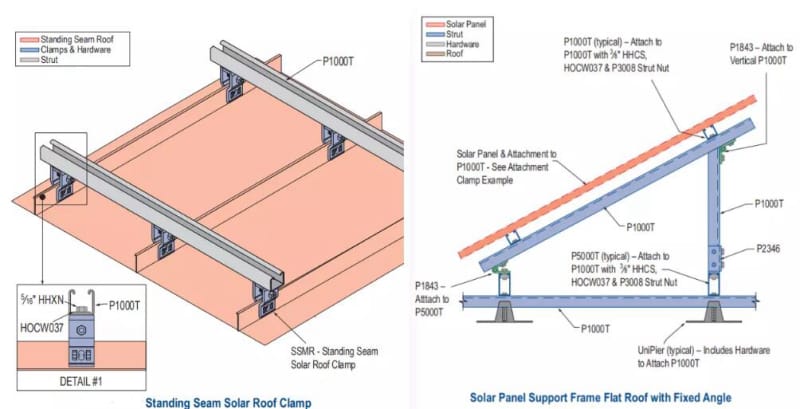

 Installation of Solar mounting structure strut channel
