HEAVY DUTY 1.5" USA B DECK COMPOSITE DECK ROLL FORMING MACHINE FLOOR DECK ROLL FORMER


Cangzhou zhongtuo is a leading producer of steel deck roll forming machines. We had experience of making roll forming machine of B deck. B Deck is a conventional metal deck profile in the United States which meets recent North American Specification(ANSI standard). B Deck is usuallly produced using 0.8-1.5mm(Gauge 22, Gauge 20, Gauge 18, Gauge 16) thickness galvanized steel.

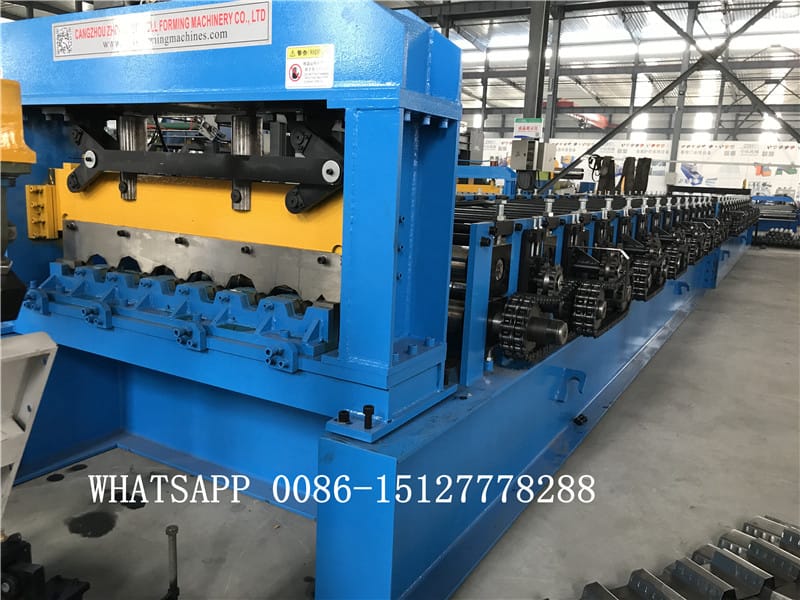

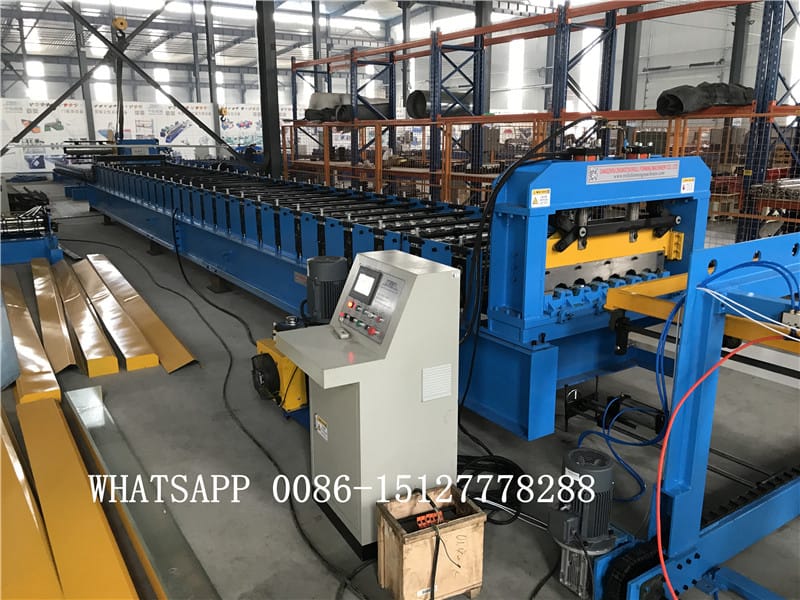

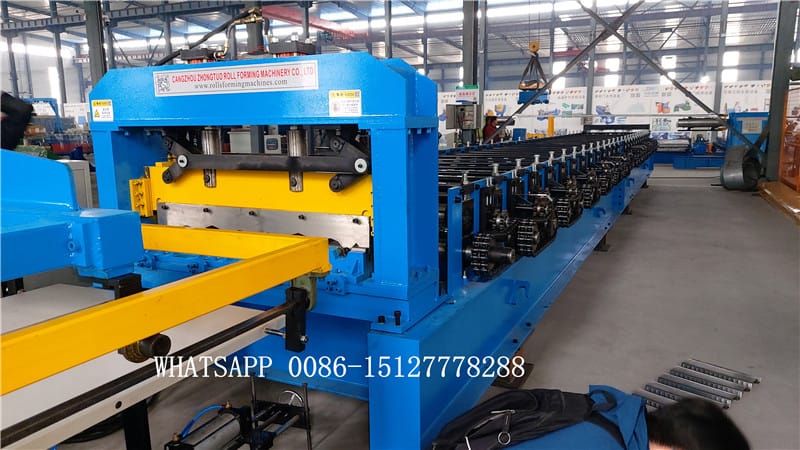

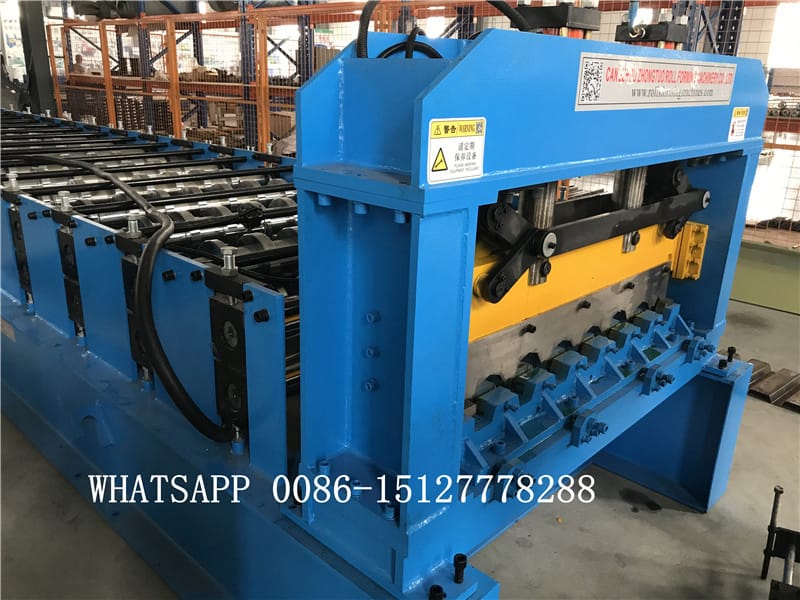

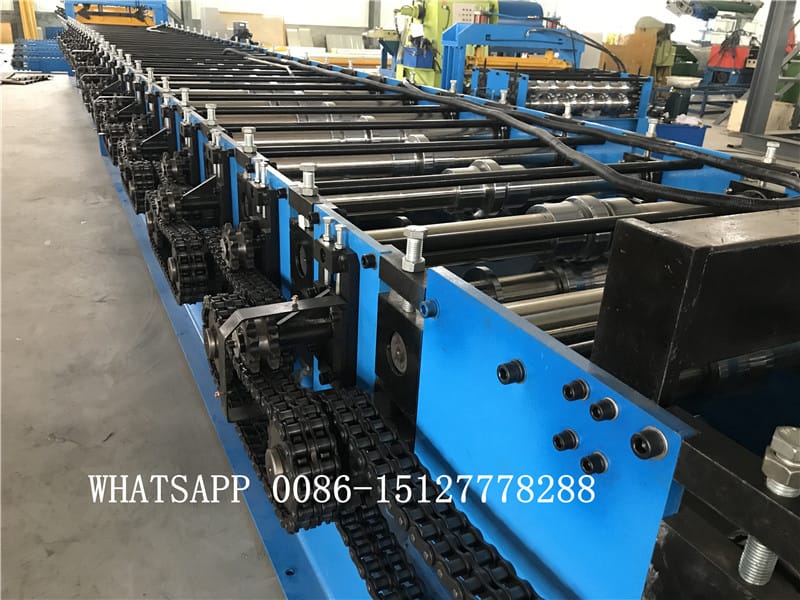

Our roll forming machine uses 28 forming stations to make perfect B Deck profile, if the yield strength of steel material is higher than 345MPa, it will need more forming stations. Our machine body is sturdy and durable. The machine body is about 20 meters long, it can be disassembled into 2 sections for easy transportation and installation. The roll forming part has two 22KW motors, Siemens brand, powerful during production. Shafts φ85mm, forming rollers GCr15, chromed plated surface is bright and not easy to rust, and will not cause scratches on the surface of galvanized steel. The exquisite processing technology makes the machine more smooth in operation and it has a longer service life. The profile produced by our roll forming machine is straight and horizontal, with high accuracy in flatness and distortion, and the length accuracy can be controlled within plus or minus 1mm.


Zhongtuo machinery also produce other types of metal deck roll forming machines, any interest, welcome to contact us.


Floor deck Roll Forming Machine

1.Raw material

Thickness

0.8-1.5mm

2.Decoiler

Operation

automatic

Weight apacity

10 ton

3.Main body

Roller station

28 stations

Diameter of shaft

90mm

Material of rollers

45# steel

Material of shaft

45# steel

Frame

20mm

Chain

2inch

4.Cutter

Operate

auto

Blade Material

cr12mov

5. Power

Voltage

customized

Power

22kw

6.Control system

Electric Box

customized/Delta

Language

English Chinese/customized

7.Forming Speed

Forming Speed

15-20m/min
