High Speed Galvanized Steel IBR Wall Panel TN40 Trapezoidal Roof Sheet Roll Forming Machine

High Speed Galvanized Steel IBR Wall Panel TN40Trapezoidal Roof Sheet Roll Forming MachineTN40roofing panel is the standard profile inAlgeriamarket, there is also TN35 for you choose. we have produced lots of these machines to Algeria market, and get many positive feedbacks from our Algeria clients.TN40 roof sheet roll forming machine, there areeconomic speedand high speed for you choose. means 20m/min, 30m/min and 40m/min, and the finished products are used mainly in European and Africa market.TN40 Roof Sheet Machine Detail:Thickness : 0.4-0.8mmMaterial : G550, pre-painted sheetsInput width : 1250mmCoil ID: 508mmEffective width:1000+/-4mmMaterial weight: 5Tons cap.Certificate : CE by TUVDri...

   Inquire


High Speed Galvanized Steel IBR Wall Panel TN40 Trapezoidal Roof Sheet Roll Forming Machine



TN40 roofing panel is the standard profile in Algeria market, there is also TN35 for you choose. we have produced lots of these machines to Algeria market, and get many positive feedbacks from our Algeria clients.



TN40 roof sheet roll forming machine, there are economic speed and high speed for you choose. means 20m/min, 30m/min and 40m/min, and the finished products are used mainly in European and Africa market.



TN40 Roof Sheet Machine Detail:

Thickness : 0.4-0.8mm

Material : G550, pre-painted sheets

Input width : 1250mm

Coil ID: 508mm

Effective width:1000+/-4mm

Material weight: 5Tons cap.

Certificate : CE by TUV

Driven motor: by 7.5Kw or 11kw motor with gear box or higher

Cutter Material: Cr12, heat treatment

Description/Technical Parameter details of complete line:

·

10TX1250mm Hydraulic Un-Coiler

·

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 10 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

·

Entry bench & Manual Pre-shearing device

·

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

·

Roll forming machine with cutting details as below table :

·

Suitable roll forming material

Color steel sheet or galvanized steel sheet, G550

Thickness

0.4-0.8mm

Coil feed in width

1219mm

Carriage Frame design

Wall-plate-frame-design or stand frame desig

Roll forming stages

24 stages

Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Shafts Diameter

Φ75/95mm

Main motor power

7.5Kw with reducer

Line speed of roll former

20m/min or higher

Hydraulic group power

5.5 Kw

Cutting material

Cr12, hear treatment

Electric Voltage Standard

380V/50Hz/3PH or as request

Major Painting Color

Customized and RAL5015 as standard

· PLC Control System

· Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

· Product Rack 3 units, no power rack

· Normally, the full mesh around un-coiler and the roll forming machine and cutting device is required as the CE request, the interlock and safe relay is also included.

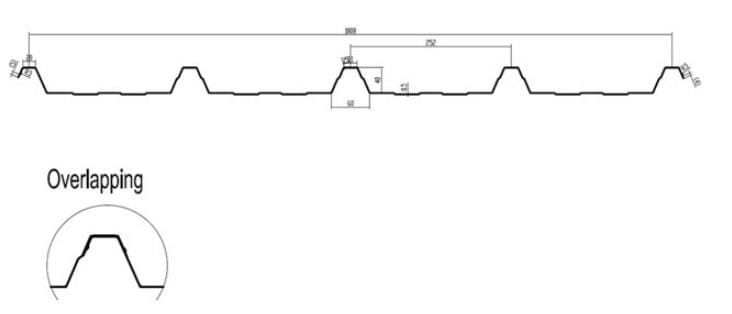

Profile Drawing/Layout/Equipment reference pictures:


There are also some TN40 roof sheet panel roll forming machines working video for you check, please click bellow link:



https://www.youtube.com/watch?v=LAa_ExFvVes



Any interest, welcome to contact us.
